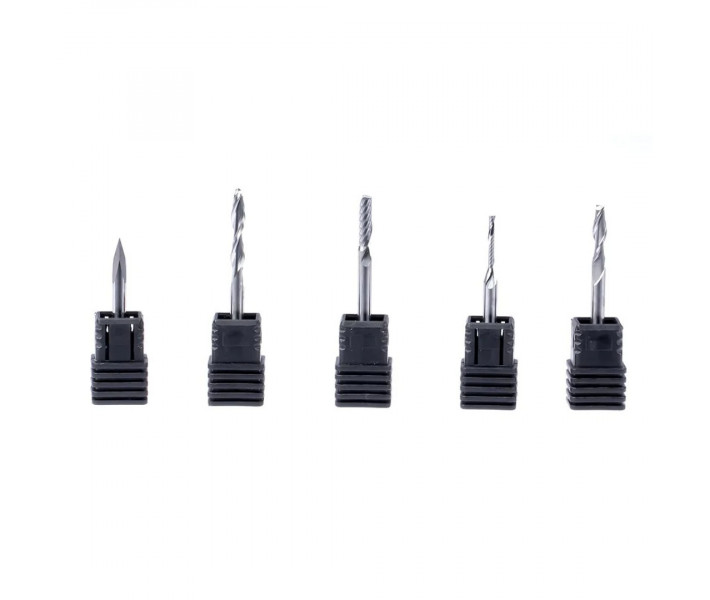

CNC Bits Set of Five Cutters for Cutting and Carving
CNC Bits (5 Bits) is a set of CNC cutters designed for rough machining, cutting 2D contours, forming 3D reliefs, and carving patterns, with a 3.175 mm shank, three types of geometry, and tungsten steel alloy UF20. Flat end mills work with planes and contours, ball end mills with curved surfaces, and V-shaped ones with fine patterns. The set includes five cutters for Snapmaker machines.
Advantages of Snapmaker CNC Cutters
- The set is suitable for various types of milling. Flat cutters process flat surfaces and cut contours, ball ones form curved 3D parts, and V-shaped ones create fine patterns.
- The cutters are made of UF20 alloy. They have high hardness, wear slowly, and help the tool maintain its working properties longer.
- The cutters differ in the shape of the cutting part. The flat end is suitable for flat surfaces and straight edges, the rounded one for curves, and the narrow V-shaped tip for fine carving.
- The set is compatible with Snapmaker Artisan, Snapmaker 2.0, and Snapmaker Original.
Types of Cutters in the Set
Flat end mills are intended for rough machining, cutting 2D shapes, and forming 3D parts with flat sides. The set includes a single-flute cutter with a cutting diameter of 1.5 mm, a double-flute cutter of 3.175 mm, and another single-flute cutter without a separately specified diameter. In the specification, the last position is marked as a single-flute cutter 3.175 mm.
The ball end mill has a rounded cutting edge. This shape is intended for curved surfaces and 3D shapes. Its overall length is 38 mm, and the cutting part length is 17 mm.
The V-shaped carving cutter has a narrow sharp tip. It is intended for detailed patterns. The cutter angle is 30°, the tip diameter is 0.2 mm, and the overall length is 32 mm.
Material and Precision
The cutters are made of tungsten steel alloy UF20. The material has high hardness, resists wear well, and is designed for long-term use. There is no information on coating, exact alloy composition, hardness class, and permissible deviations on the product page.
The set is described as high-precision. However, numerical precision indicators, permissible runout, and surface roughness requirements are not specified.
Applications
- Rough material removal with a flat end mill.
- Cutting 2D contours and parts with straight side surfaces.
- Forming curved 3D reliefs with a ball end mill.
- Carving detailed patterns with a V-shaped cutter with a 30° angle.
Compatibility
The set is compatible with Snapmaker Artisan, Snapmaker 2.0, and Snapmaker Original. The 3.175 mm shank diameter is directly related to the Snapmaker Original and Snapmaker 2.0 models. Artisan is included in the general list of compatible equipment.

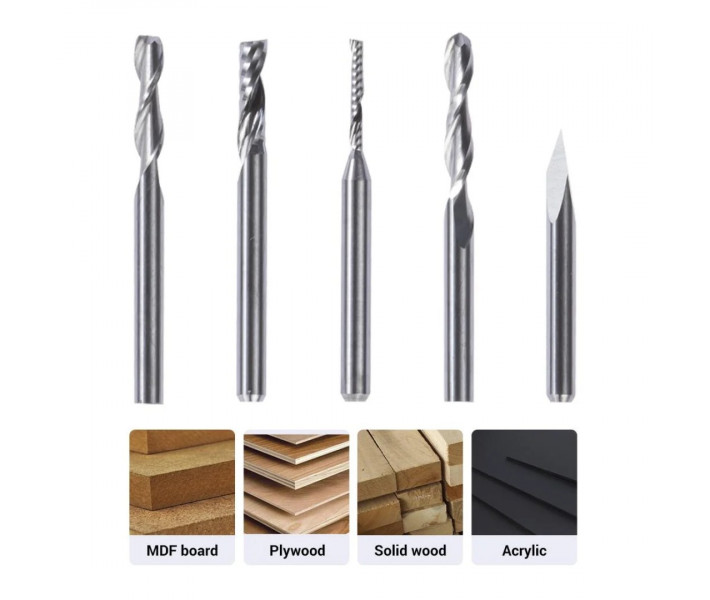

The shown materials include plywood, solid wood, and acrylic sheets. A complete list of suitable materials, modes for MDF, and boundary processing parameters are not available on the page.
Exact values of rotation speed, feed rate, and depth per pass are not specified. During operation, it is necessary to control the movement speed and cutting depth to reduce the risk of cutter breakage or machine damage.

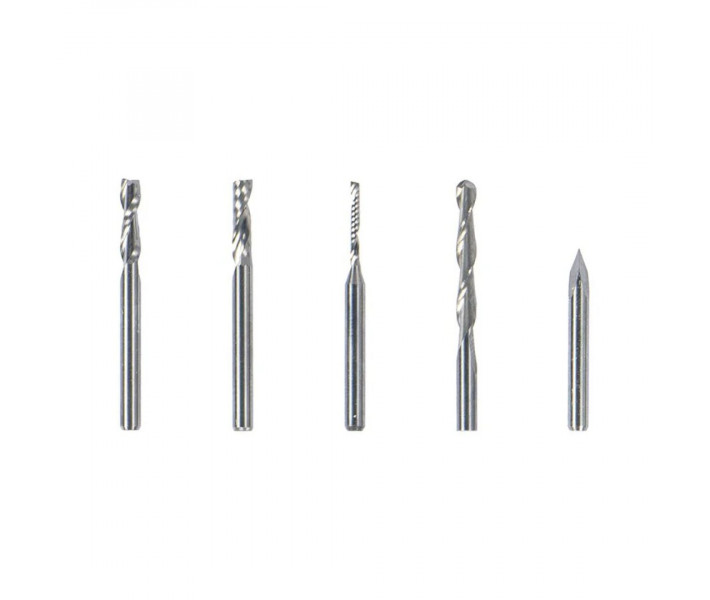

What's Included in the Set
The set contains five cutters. The elements are intended for flat contours, curved shapes, and V-shaped carving.
- Flat end single-flute cutter, cutting diameter 1.5 mm. For rough machining.
- Flat end double-flute cutter, cutting diameter 3.175 mm. Cutting 2D contours and 3D shapes with flat side surfaces.
- Flat end single-flute cutter. Designed for operations with flat end geometry.
- Ball end mill. For processing curved surfaces and creating 3D shapes.
- V-shaped carving cutter. Designed for creating detailed patterns.

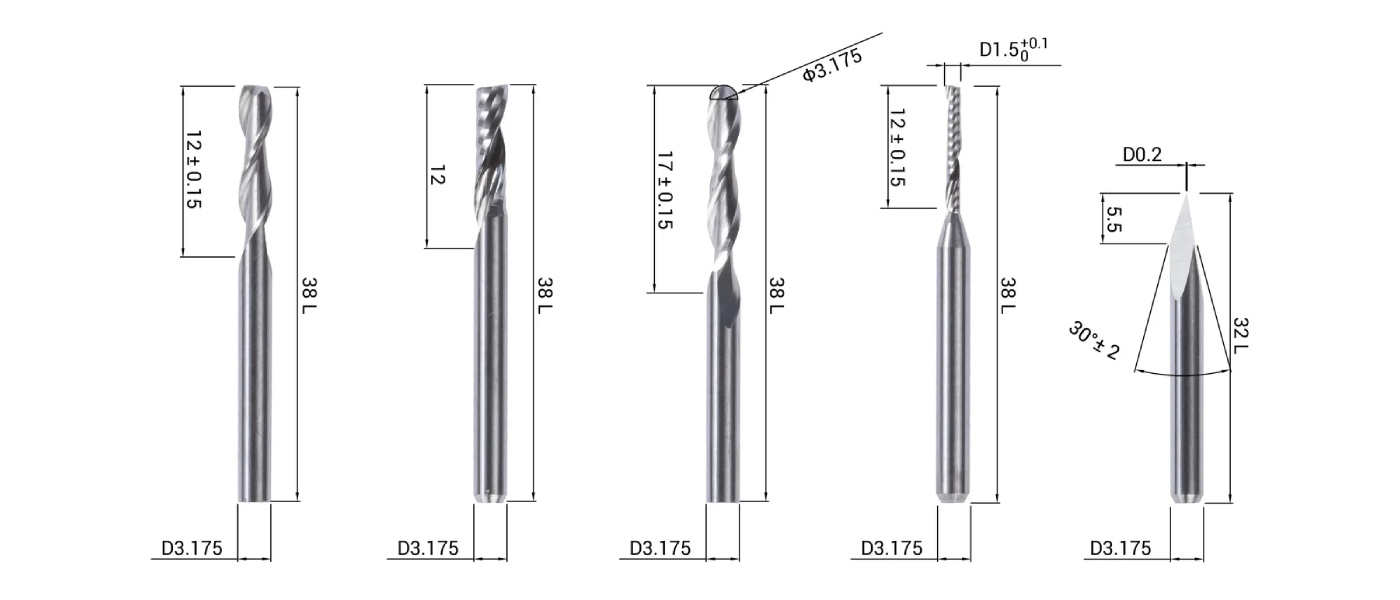

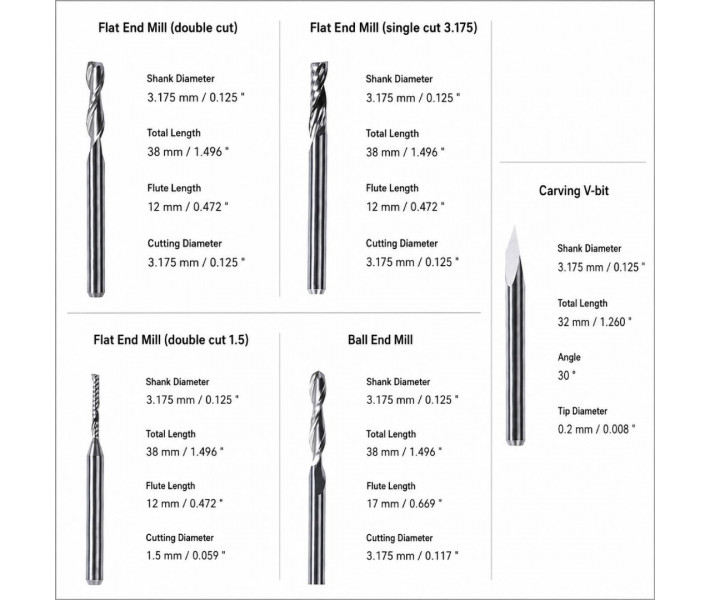

Technical Specifications
| Parameter | Value |
| Number of cutters | 5 |
| Cutter material | Tungsten steel alloy UF20 |
| Shank diameter | 3.175 mm / 0.125″ for all cutters |
| Flat double-flute cutter 3.175 mm | Overall length 38 mm; cutting part length 12 mm; cutting diameter 3.175 mm |
| Flat single-flute cutter 3.175 mm | Overall length 38 mm; cutting part length 12 mm; cutting diameter 3.175 mm |
| Flat cutter 1.5 mm | Overall length 38 mm; cutting part length 12 mm; cutting diameter 1.5 mm |
| Ball end mill | Overall length 38 mm; cutting part length 17 mm; cutting diameter 3 mm / 0.117″ in the main block |
| V-shaped cutter | Overall length 32 mm; angle 30°; tip diameter 0.2 mm / 0.08″ |
| Compatibility | Snapmaker Artisan, Snapmaker 2.0, Snapmaker Original |
Work Tips
- Before starting, check the fit of the shank and the clamping of the cutter in the collet.
- Select a flat, ball, or V-shaped cutter according to the shape of the cut.
- Control the depth per pass, especially when working with a thin cutter or V-shaped tip.
- Set the working speed and depth per pass according to the recommendations for the machine and material.
- Before the next start, recheck the clamping. Incorrect installation can worsen the quality of carving, damage the equipment, or lead to injury.
