Air Filter Combo Set for the Bambu Lab Smoke Purifier

Multi-Level Filtration System Kit

Air Filter Combo is a set of three replacement filters for the Bambu Lab Smoke Purifier air cleaner. It removes fine particles, neutralizes toxic fumes, and eliminates unpleasant odors generated during 3D printing. The kit provides a four-level purification system and serves for scheduled replacement of consumable elements in the printing area. The primary G4, fine F8, carbon, and HEPA H13 filters sequentially capture particles and maintain safe working conditions.

Main Advantages of Air Filter Combo

• Multi-stage filtration. The sequential combination of the primary G4 element, fine cleaning block F8, carbon, and HEPA H13 filter ensures the capture of dust of various sizes and neutralizes odors.
• Absorption of 3D printing fumes. The combination of carbon and HEPA layer purifies the air from volatile organic compounds released during plastic melting.
• Quick maintenance. The kit's design allows for the renewal of consumables without complete disassembly of the exhaust unit.

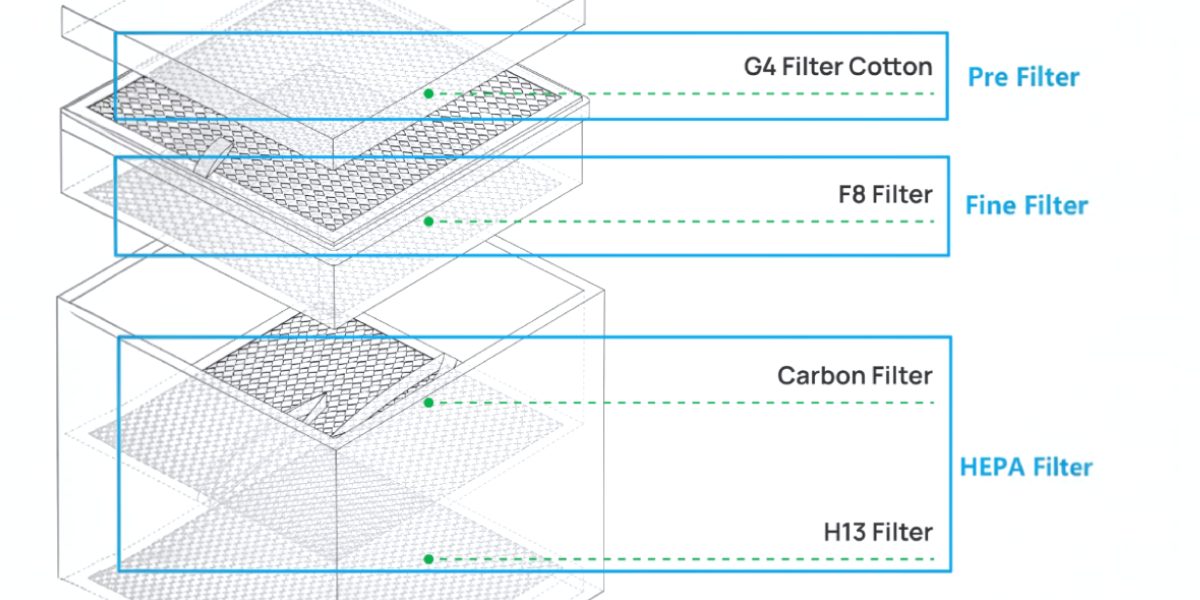

How the Air Filter Combo Filtration System Works

Purification is carried out in several stages, each layer performs a separate function, helping to reduce the amount of pollution generated during 3D printing.

• Primary filtration G4. Captures large dust particles and mechanical contaminants, reducing the load on the next levels of the system. Recommended replacement interval is 80–100 hours. Renewal is carried out if more than 70% of the surface area is covered with dust, if mechanical cleaning does not restore throughput.
• Fine cleaning F8. Captures medium-sized suspended particles formed during the melting of filament. Recommended replacement interval is 300–500 hours. Cleaning or replacement is carried out in the presence of visible deposits that lead to a decrease in the suction power of the exhaust unit.
• Adsorption of odors and filtration with carbon layer and HEPA H13. Absorb volatile organic compounds (VOC), neutralize chemical fumes, and block the finest dust. Recommended replacement interval is 800–1000 hours. The block must be renewed if the system stops retaining microparticles and neutralizing specific aromas of molten plastic.

Compatibility of Air Filter Combo

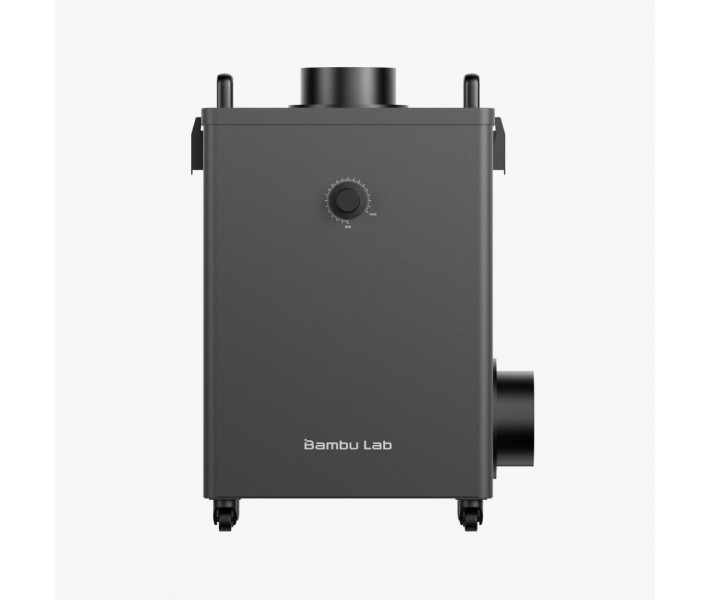

The Air Filter Combo is designed to be installed in the Bambu Lab Smoke Purifier air cleaner. The set of replacement elements provides stable and effective filtration of smoke, soot, and toxic odors generated during 3D printing.

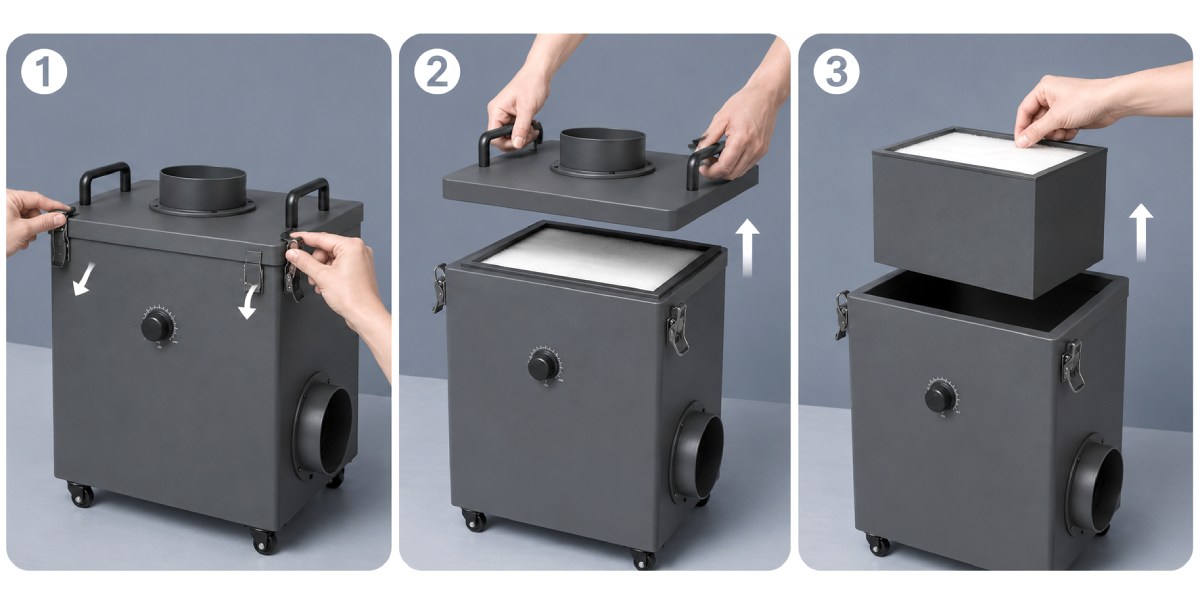

Step-by-Step Replacement of Air Filter Combo Filters

Filters are recommended to be replaced when noticeable contamination or a decrease in air purification efficiency is detected. Installing new elements takes only a few minutes and does not require special tools.

1. Push the metal clips on both sides of the device body down.
2. Grab the two top handles of the cover and carefully lift the removable part of the cleaner upwards.
3. Remove the used filter and install a new one, strictly following the sequence of layers provided by the manufacturer.
4. After replacing the filters, return the cover to its place and secure it with the side latches.

Note: If the air purification system is used regularly, it is recommended to have a spare set of filters. This will allow timely maintenance and maintain stable air purification efficiency without interruptions in operation.

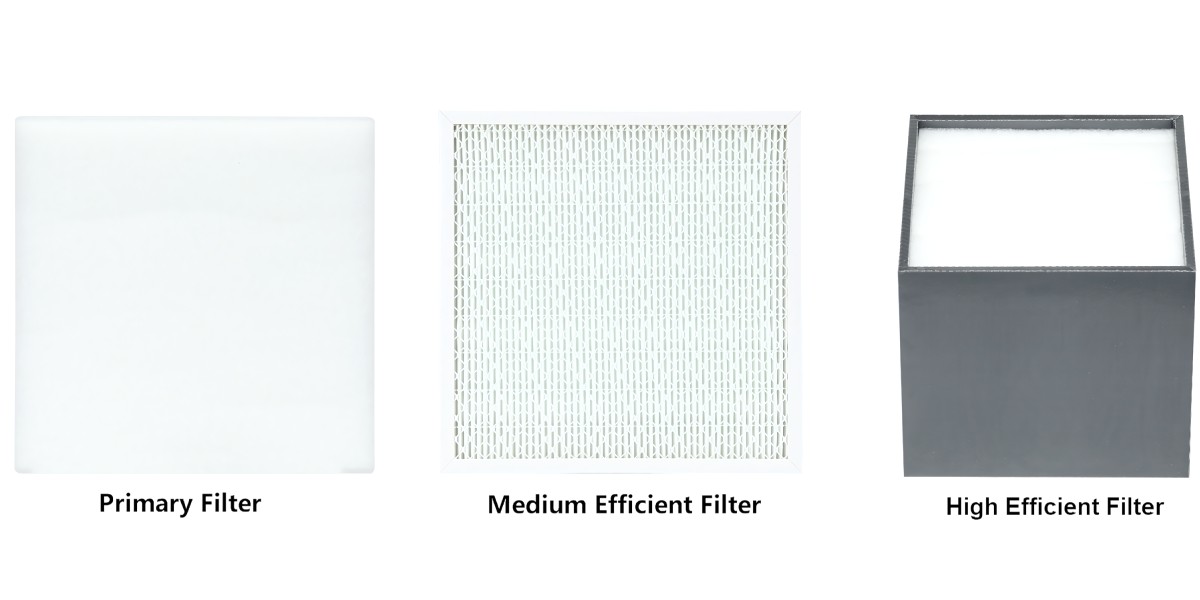

Contents of the Air Filter Combo

The set includes three filtering elements for the Bambu Lab Smoke Purifier air cleaning system. Each of them performs a separate stage of purification and helps maintain the effective operation of the system.

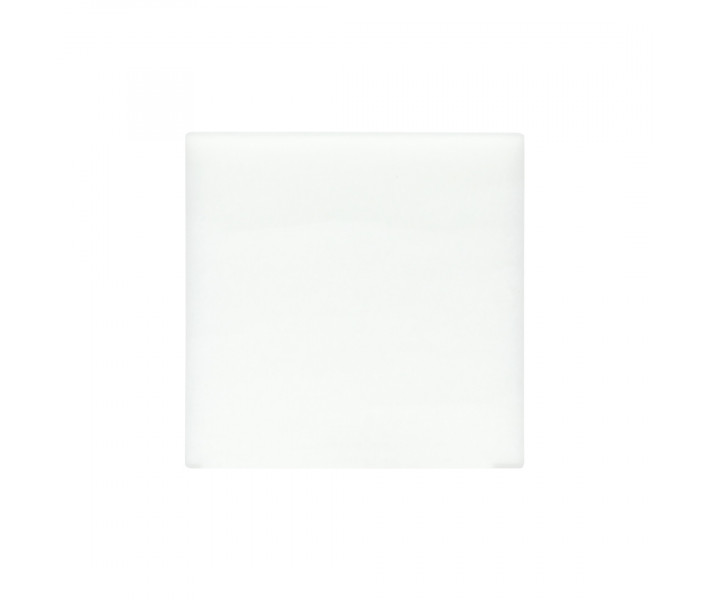

• Smoke Purifier Primary Filter. Primary filter for capturing large dust particles and protecting subsequent components from premature contamination.

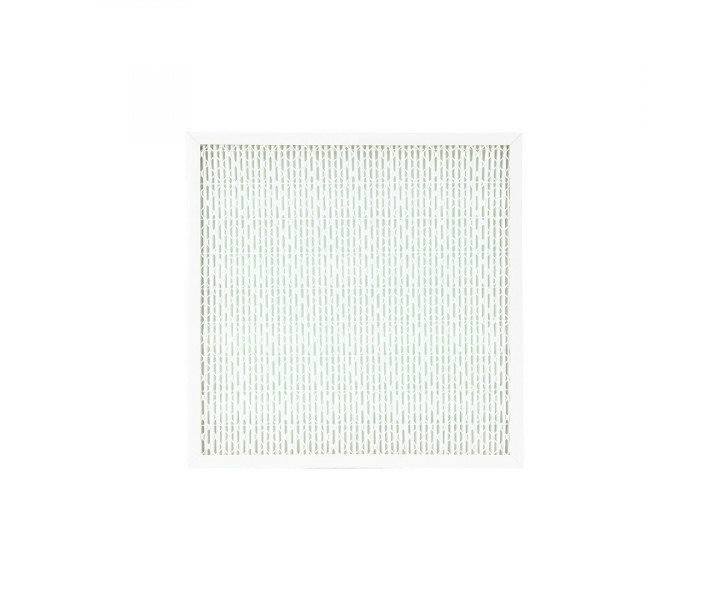

• Smoke Purifier Medium Efficient Particulate Filter. Fine cleaning block for capturing medium-sized suspended particles released during 3D printing.

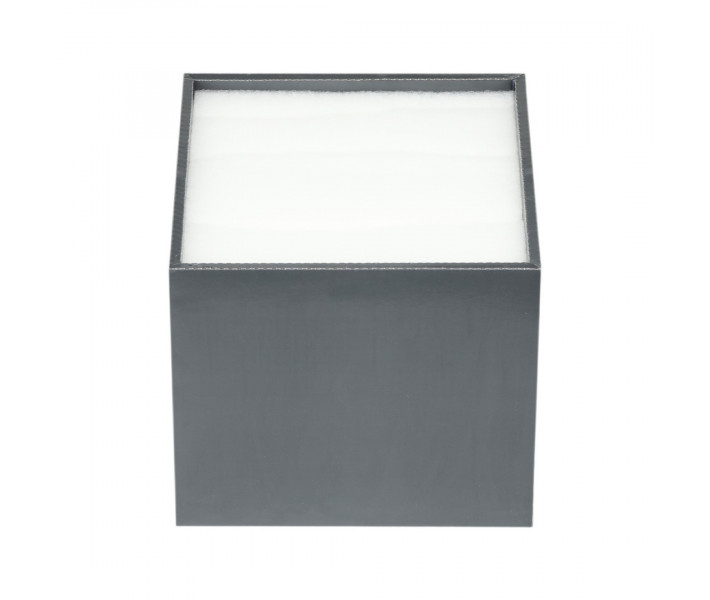

• Smoke Purifier High Efficient Particulate Filter. Combined block with activated carbon and HEPA material for neutralizing chemical odors, absorbing volatile compounds, and blocking the finest dust.

Technical Specifications

Working with the Bambu Lab Smoke Purifier? Order the Air Filter Combo to timely update and maintain the effective operation of the filtration system during 3D printing.
