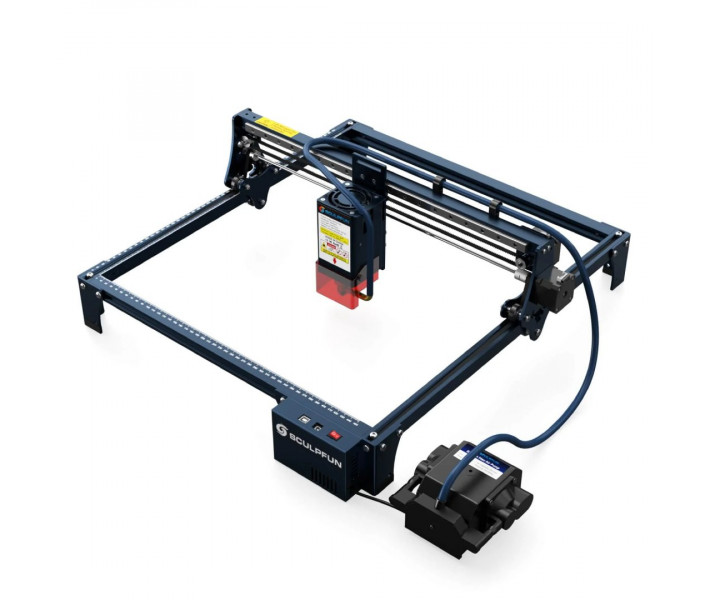

Laser Engraver with Rotary Module and Honeycomb Table SCULPFUN S30 Pro Max 20W Deluxe Bundle

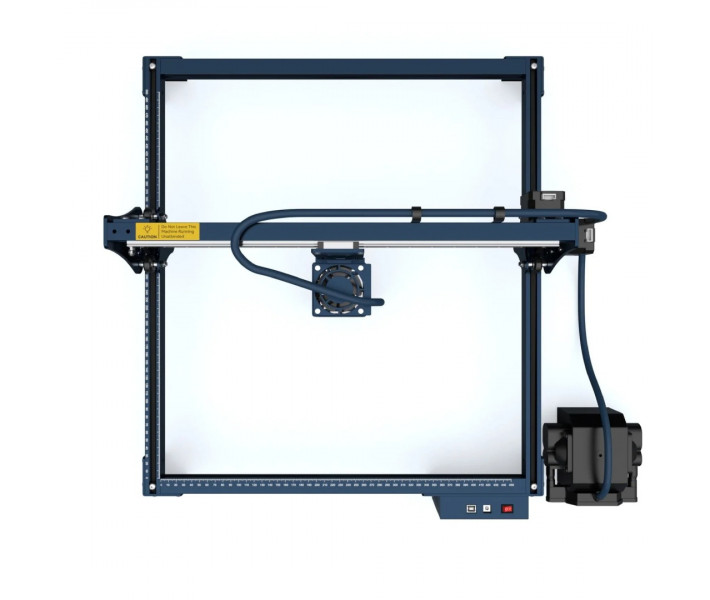

SCULPFUN S30 Pro Max 20W Deluxe Bundle is a ready-made kit for laser cutting and engraving, including the SCULPFUN S30 Pro Max 20W laser machine, a Sculpfun 350×350 mm honeycomb platform with a protective metal screen, and a universal rotary mechanism Sculpfun RA Pro Max with a chuck. The combination of these tools allows for a wide range of tasks in workshops, production, and creative projects — from high-precision material cutting to 360-degree engraving on cylindrical and complex-shaped volumetric products. A powerful 20W diode laser module with a spot size of 0.08 × 0.10 mm and a working area of 410 × 400 mm cuts solid wood up to 15 mm thick or birch plywood up to 10 mm in one pass. The automatic Air Assist system with a complete pump ensures efficient removal of smoke and combustion products from the cutting area. For comfortable work with sheet materials, the kit is complemented by a honeycomb table with built-in measuring scales, and the Sculpfun RA Pro Max rotary module allows easy engraving on glasses, bottles, goblets, and rings.
Technical Features and Functionality of the Kit

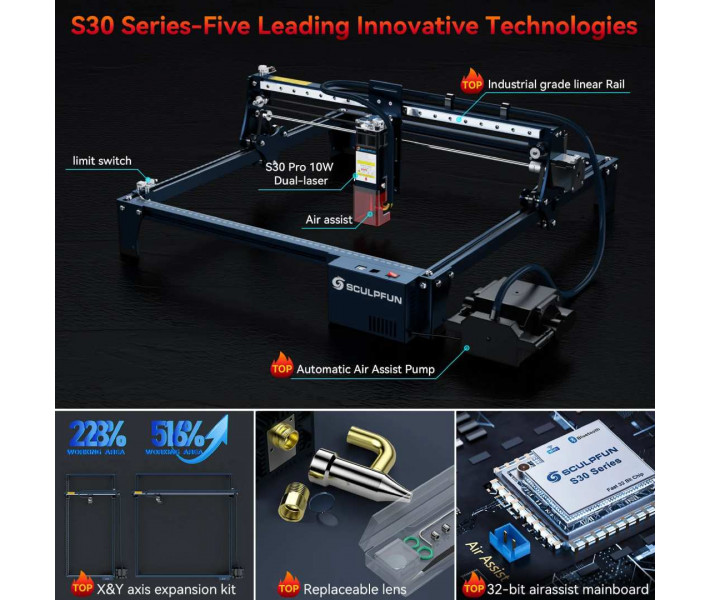

- Comprehensive Processing: the combination of a powerful laser engraver, a honeycomb table with an exhaust effect, and a chuck rotary mechanism allows working with both flat sheet blanks and cylindrical and complex-shaped volumetric objects.
- Laser Performance 20W: an optically compressed four-diode module provides through cutting of solid wood up to 15 mm thick or birch plywood up to 10 mm in one pass.
- Ultra-Precise Engraving: a focused laser spot size of 0.08 × 0.10 mm allows reproducing ultra-clear fine details, detailed logos, photographic images, and fine texts without contour distortion.
- Automatic Air Assist System: directs the airflow directly to the processing area, effectively removing smoke and combustion products.

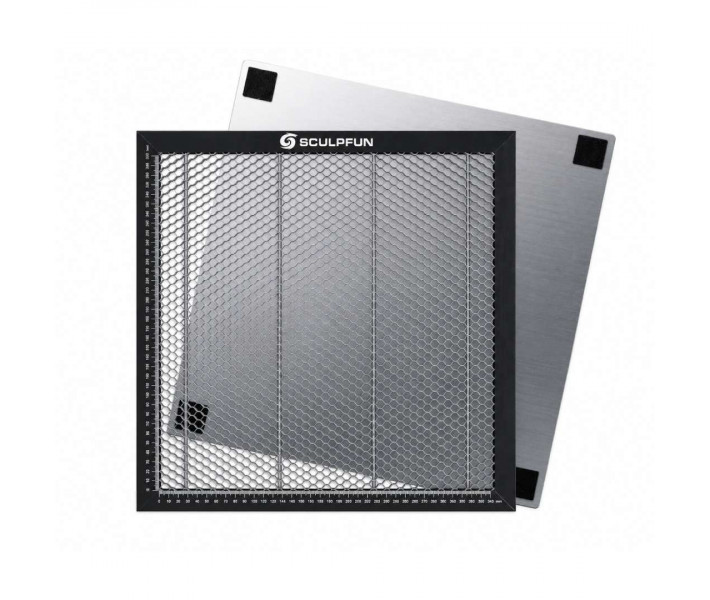

- Professional Honeycomb Table 350×350 mm: the honeycomb structure protects the workpiece from smoke accumulation below, and the metal protective plate facilitates visual control of through cutting.
- Chuck Rotary Module RA Pro Max: the chuck and roller expand engraving capabilities to 360° on glasses, bottles, goblets, vases, spherical objects, and even rings.
- Interfaces and Software: convenient connection to a PC via USB; full compatibility with professional software LightBurn and LaserGRBL.
Automatic Air Supply System and Chuck Rotary Engraving

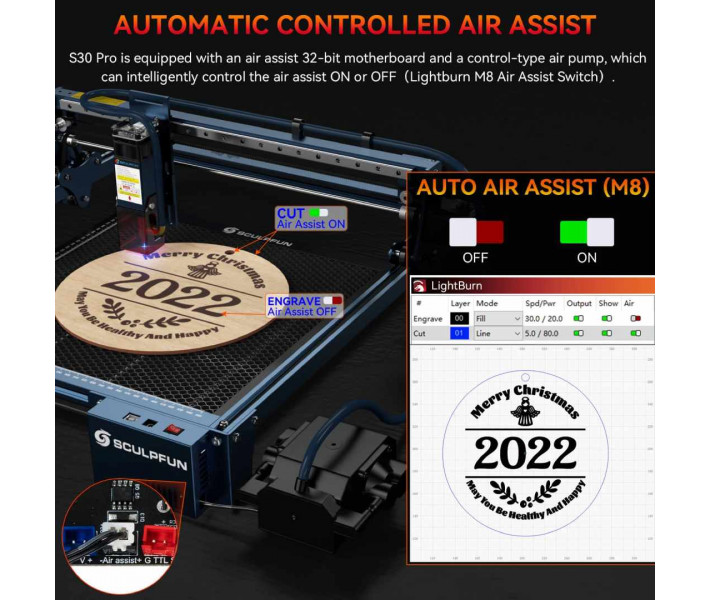

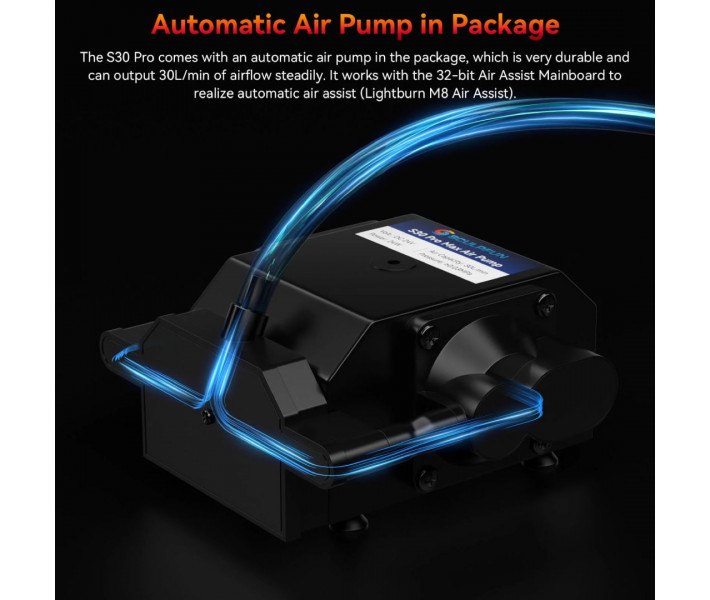

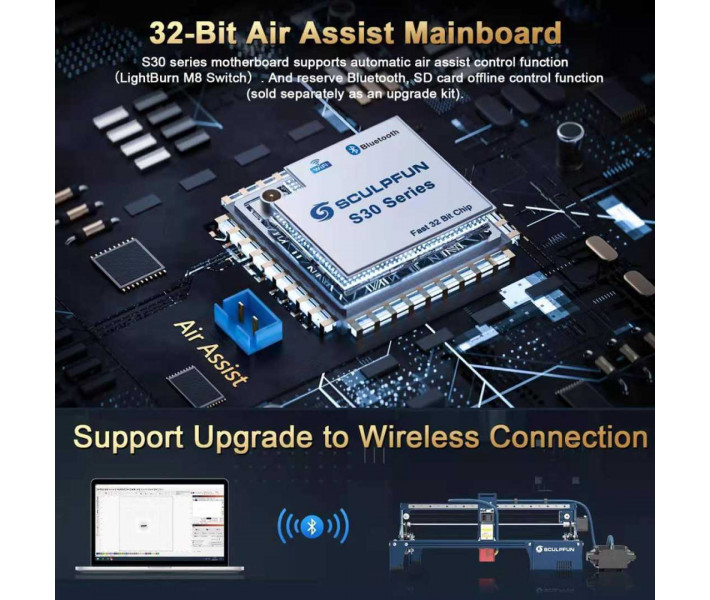

- Automatic Air Assist System (Air Pump): the complete automatic pump connects directly to the engraver's motherboard and regulates the airflow depending on the current task in the program (cutting or engraving). A directed high-pressure jet through a special nozzle instantly blows combustion products out of the processing area, preventing edge charring and ensuring a perfectly clean cut without soot.

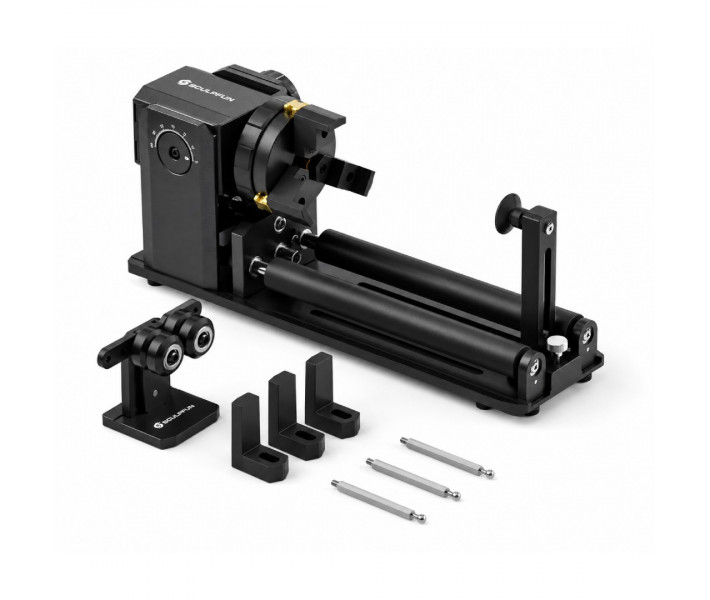

- Multifunctional Rotary Module Sculpfun RA Pro Max: a universal rotary device with a chuck and roller mechanism automates 360-degree engraving on round, cylindrical, conical, and complex-shaped products. The module allows easy fixation and processing of a wide range of blanks — from glasses, thermos cups, bottles, and goblets to balls, vases, and jewelry rings.
Compatibility with Materials by Processing Types
| Operation | Supported Materials |
| Laser Cutting | Wood (solid up to 15 mm), plywood (birch up to 10 mm), MDF, colored and dark acrylic, leather, paper, cardboard, bamboo, felt, dense fabrics. |
| Laser Engraving | Stainless steel, anodized and oxidized metal, painted metal surfaces, wood, plywood, MDF, bamboo, leather, ceramics, stone, glass (with pre-treatment/paste), plastic, paper, cardboard. |
| 360° Rotary Engraving (with RA Pro Max Rotary System) | Cylindrical, conical, and spherical products made of metal, glass, ceramics, and wood: glasses, bottles, wine goblets, thermoses, mugs, vases, balls, jewelry rings. |

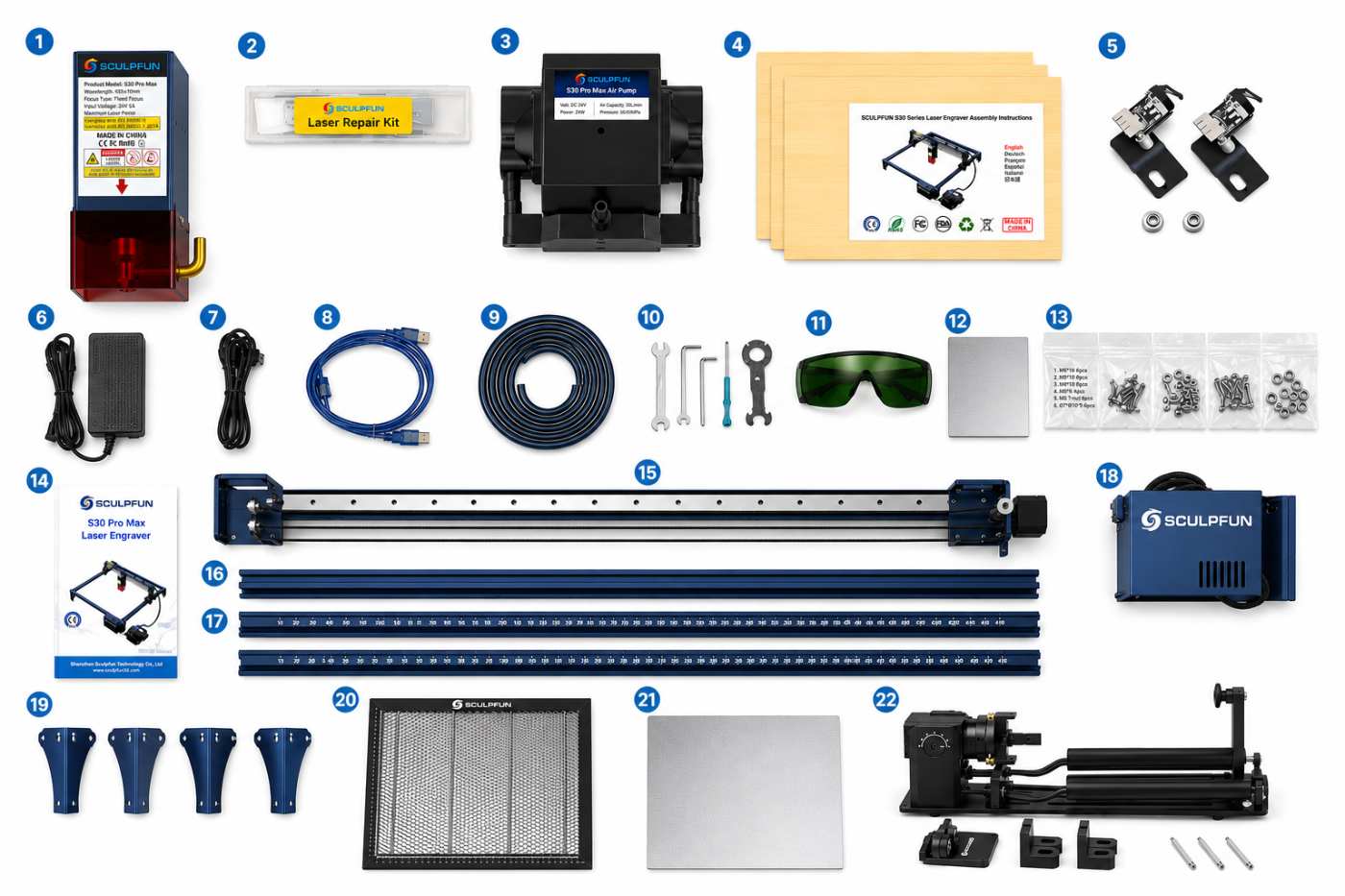

Package Contents
- SCULPFUN S30 Pro Max 20W Laser Module — 1 pc.

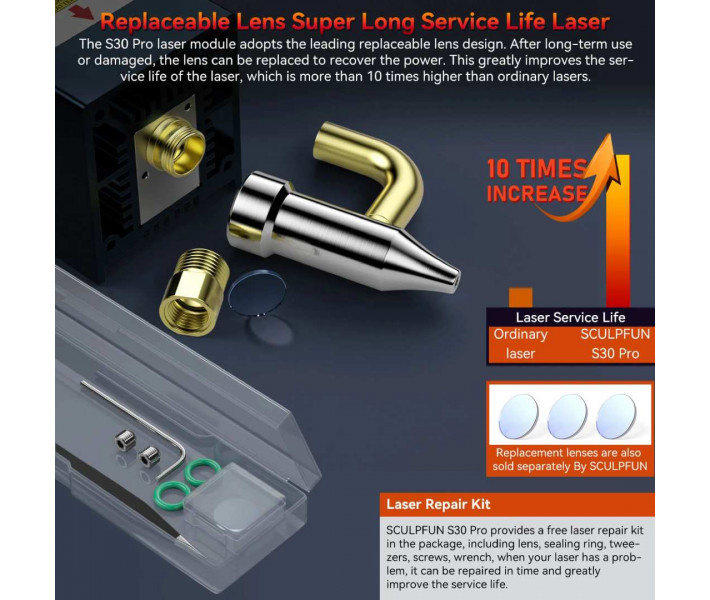

- Optical Maintenance and Repair Kit — 1 pc.

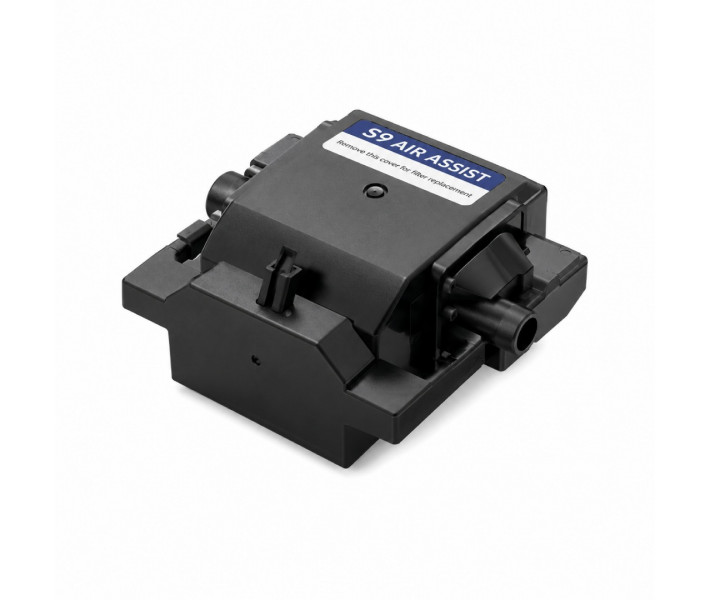

- Automatic Air Pump S30 Pro Max Air Pump 24V — 1 pc.
- Wooden Test Plate A4 (3 mm) — 3 pcs.

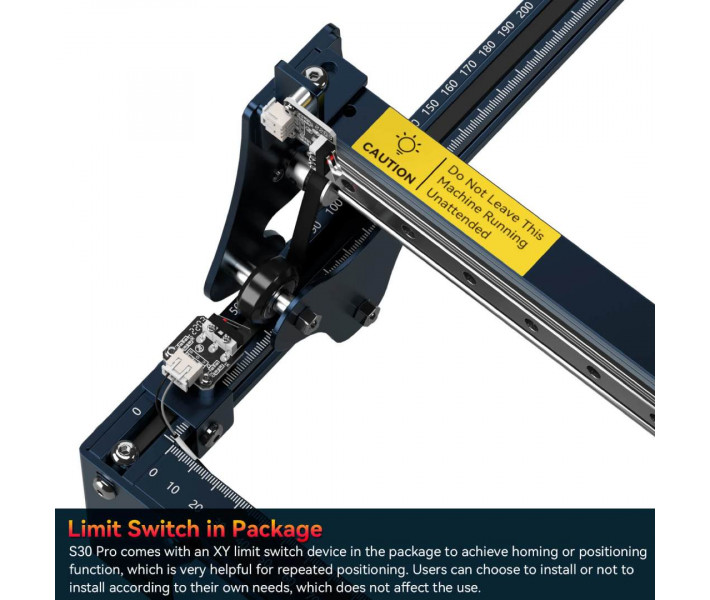

- Limit Switches — 2 pcs.
- Power Adapter (24V, 5A) — 1 pc.
- Power Cable — 1 pc.
- USB Cable for PC Connection — 1 pc.
- Silicone Air Tube (Hose) — 1 pc.
- Set of Mounting Tools and Keys — 1 pc.
- Protective Glasses for Laser Work — 1 pc.
- Protective Metal A4 Pad — 1 pc.
- Set of Fasteners and Mounts (Packages 1–6) — 1 set.
- User and Assembly Manual — 1 pc.
- X-Axis Central Assembly (with Linear Rail Guide) — 1 pc.
- X-Axis Aluminum Profiles — 2 pcs.
- Y-Axis Aluminum Profiles with Scale — 2 pcs.
- Control Unit (Motherboard in Case) — 1 pc.
- Corner Support Legs of the Frame — 4 pcs.
- Sculpfun Honeycomb Platform 350×350 mm — 1 pc.
- Protective Metal Plate for Honeycomb Table 350×350 mm — 1 pc.
- Chuck Rotary Module Sculpfun RA Pro Max — 1 pc.
Technical Specifications
| Parameter | Value |
| Processing Technologies | Laser Cutting, Laser Engraving, 360° Rotary Engraving |
| Laser Type | Diode Laser (455 ± 5 nm) with Optical Compression |
| Laser Optical Power | 20W |
| Laser Working Area | 410 × 400 mm |
| Honeycomb Table Working Area | 350 × 350 mm |
| Laser Spot Size | 0.08 × 0.10 mm |
| Engraving Accuracy | 0.005 mm |

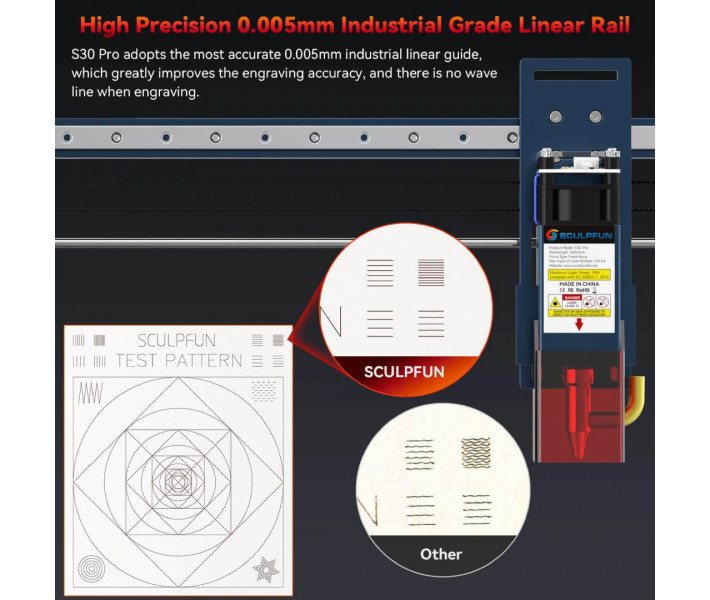

| X-Axis Guides | High-Precision Linear Rail Guide |
| Air Supply (Air Assist) | Automatic Pump Controlled by Motherboard (24V) |
| Rotary Module | Sculpfun RA Pro Max with Chuck and Rollers |
| Focusing | Fixed Focus with Focusing Block/Plate |
| Connection | USB |
| Supported OS | Windows, macOS |
| Software | LightBurn, LaserGRBL |
| File Formats | NC, BMP, JPG, PNG, DXF, SVG, etc. |
| Frame Material | High-Strength Aluminum Alloy |
| System Power Supply | 100–240V AC, 50/60 Hz (Output 24V, 5A) |
| Safety Certification | CE, FCC, RoHS, FDA |
