Description
3D printing from metal – Raise3D MetalFuse system
The Raise3D S200-C vacuum oven is a device for vacuum sintering of printed parts. It is part of the new MetalFuse solution, which also includes the Forge1 large-format metal 3D printer and the D200-E catalytic polymer removal furnace. The system is aimed at high productivity, better repeatability, smooth post-processing, and environmental safety.

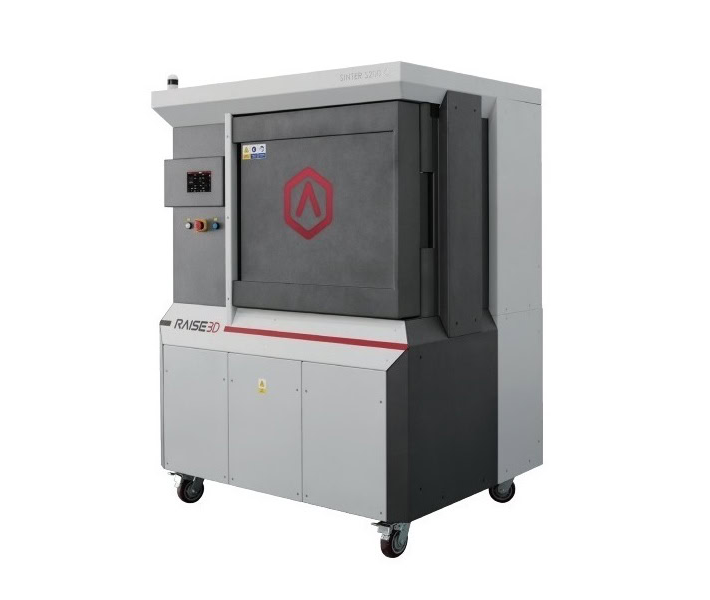

Raise3D S200-C sinter
Raise3D S200-C is equipped with a working chamber measuring 200*200*200 mm. The machine does not require additional consumables and boasts low gas consumption, making it a cost-effective solution for small-scale production. In addition, one cycle of the S200-C takes 10-24 hours, which is twice as fast as other ovens (17-31 hours). The device has intelligent safety features such as a front-mounted E-stop and overheat protection. In addition, the oven is quite mobile and easy to operate.
MetalFuse system
For best results, it is recommended to use the Raise3D S200-C as part of the MetalFuse system together with the Forge1 3D printer and the D200-E catalytic furnace. In this way, the polymer will be removed from the model during the catalytic binder removal process, resulting in a pure metal with no binder residue. The sintering process will further remove the binder due to the temperature below the melting point of the metal. This is how the product reaches its final hardness and strength.
Controls
The Raise3D S200-C, like the other devices in the MetalFuse system, is equipped with a 7-inch touchscreen display for easy operation. Its intuitive interface allows users to easily control the process. The device is fully compatible with a special version of the ideaMaker software, which offers templates optimized for smooth sintering.
Raise3D metal 3D printing equipment, price in Ukraine
