Ortur LM2 S2 10W Laser Engraver and Cutter

Ortur Laser Master 2 for Laser Engraving

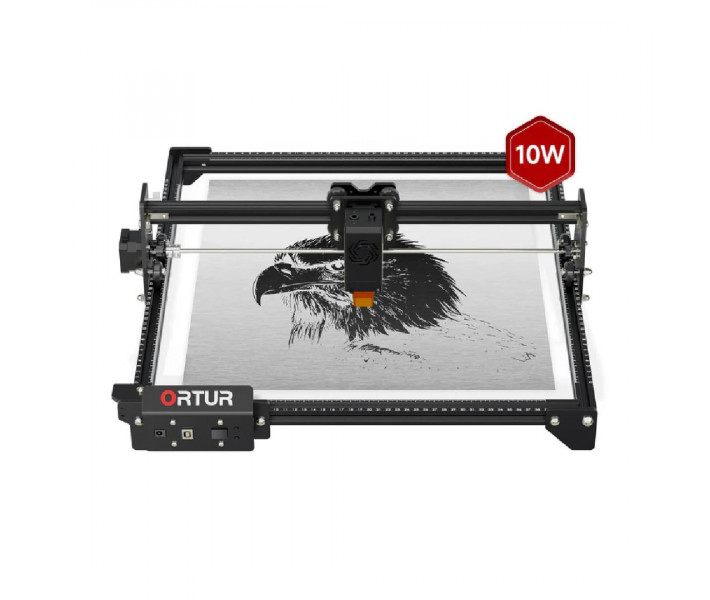

Ortur LM2 S2 10W is a desktop diode laser machine for applying graphics and cutting sheet materials. The model is equipped with a LU2-10A laser module, a working area of 390 × 410 mm, USB connectivity, and mechanics with speeds up to 5000 mm/min. The machine works with wood, plywood, cardboard, leather, black acrylic, and coated materials. If tilted or USB connection is lost, the laser operation stops.

Main Advantages of Ortur LM2 S2

• 10W Laser Module. LU2-10A is designed for engraving and regular cutting of sheet materials.

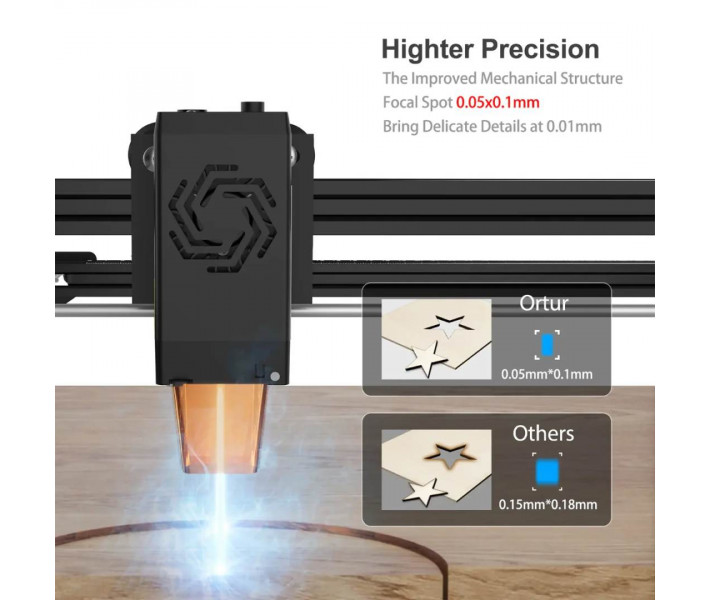

• Compact Laser Spot. The spot size of 0.05 × 0.1 mm allows for applying fine inscriptions, contours, and graphics.
• Working with Long Workpieces. The standard working area of 390 × 410 mm expands to 390 × 800 mm with a separate kit.
• Fast Task Execution. The mechanics move the laser module at speeds up to 5000 mm/min, and the ESP32 controller controls two NEMA 17 motors.
• Precise Laser Beam Positioning. The mechanical movement accuracy along the X and Y axes is 12.5 μm.
• Convenient File Preparation. Ortur LM2 S2 works with LightBurn and LaserGRBL, and USB connectivity allows projects to be transferred from a computer.
• Multi-level Safety Control. The system stops the laser in case of tilt, USB connection loss, prolonged exposure, out-of-position, or electrical deviations.

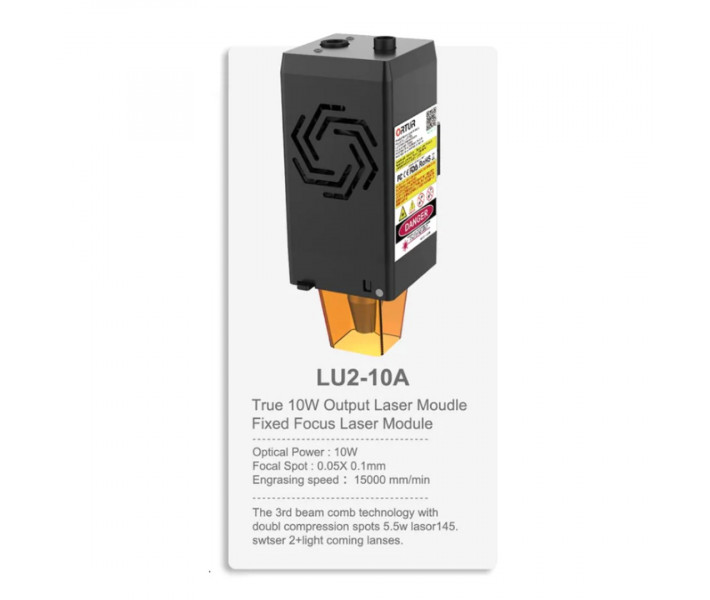

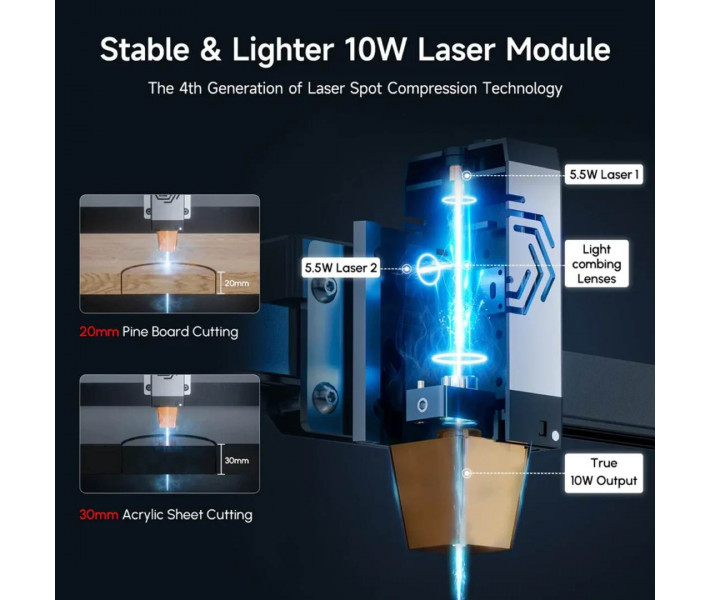

LU2-10A 10W Laser Module

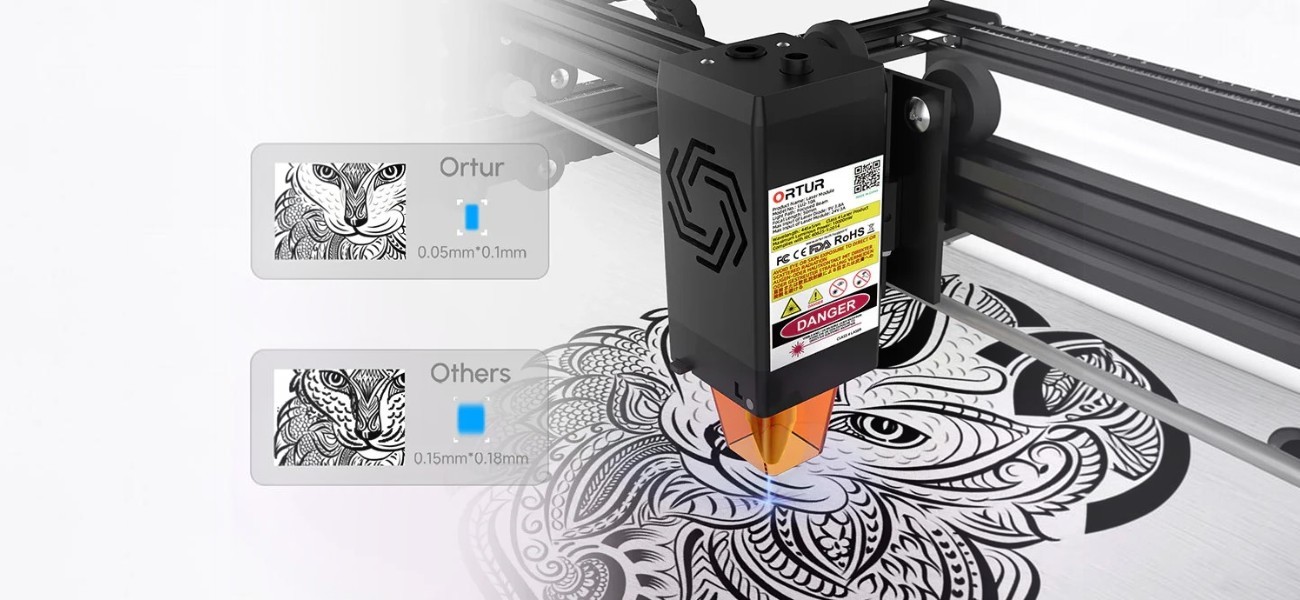

Ortur Laser Master 2 is equipped with a LU2-10A diode module with an optical power of 10W. The beam is formed into a spot size of 0.05 × 0.1 mm, making the equipment suitable for applying fine graphics and cutting appropriate sheet materials.

The fixed focus requires manual adjustment of the laser head height before starting. The exact speed and power parameters depend on the type of material, thickness, density, and surface condition. The 10W power is the optical power of the laser beam.

Working Area and Control

The Ortur LM2 S2 frame consists of aluminum profiles and acrylic parts. Movement along the X and Y axes is performed by NEMA 17 stepper motors, and the OLM-PRO-V1.2 board with a 32-bit ESP32 MCU processes control commands.

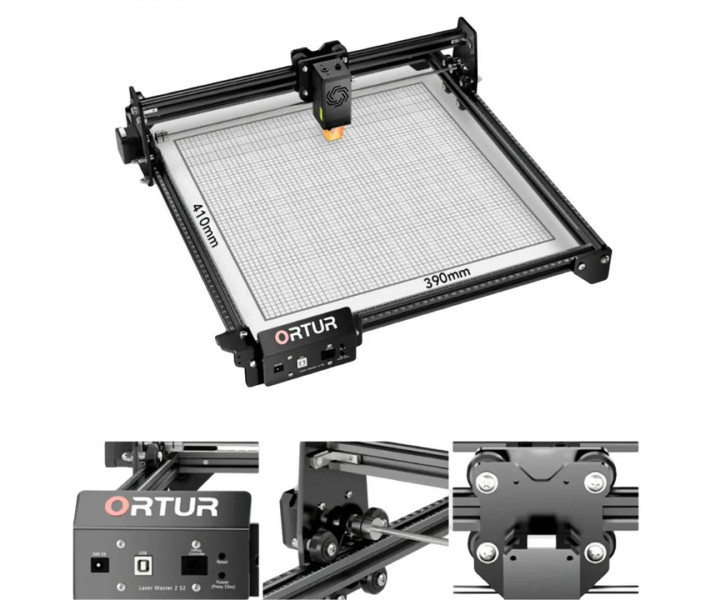

The standard working area is 390 × 410 mm. For long parts, a separate extension kit is available, increasing the format to 390 × 800 mm. The maximum speed of the laser module movement is 5000 mm/min.

The mechanical movement accuracy along the X and Y axes is declared at 12.5 μm. Before starting, the correct distance between the module and the workpiece surface must be set.

Work Control and Safety

Ortur Laser Master 2 controls the frame position, exposure duration, and electrical parameters. In case of tilt, USB connection loss, or exceeding the permissible working position, the system stops the laser operation.

The manufacturer does not declare a separate physical emergency stop button for the LM2 S2. The open design requires protective goggles, smoke extraction, and a non-flammable base. The operator must remain near the machine throughout the entire cycle.

Application Areas

The Ortur LM2 S2 10W laser engraver is suitable for creative, educational, and workshop tasks, including applying images and cutting sheet materials. Main application areas:

• applying inscriptions, logos, and graphics on wood and MDF;
• personalizing leather tags, covers, and accessories;
• making signs from plywood or black acrylic;
• cutting cardboard for models, packaging, and templates;
• engraving stone, coated glass, and coated metal;
• creating souvenirs and small batches of identical products;
• educational, home, and workshop projects.

Compatible Materials and Software

Materials

• Wood, MDF, and plywood: engraving and cutting depending on thickness, density, and processing parameters, applying inscriptions, images, and contour graphics.
• Cardboard and paper: engraving and cutting after preliminary testing.
• Leather and felt: engraving and cutting with smoke extraction.
• Black acrylic: engraving and cutting considering material thickness.
• Coated glass and stone: applying images to the surface.
• Stainless steel and coated metal: surface marking or engraving. The manufacturer does not declare metal cutting.

Do not cut PVC, vinyl, and other materials that release toxic or corrosive substances when heated.

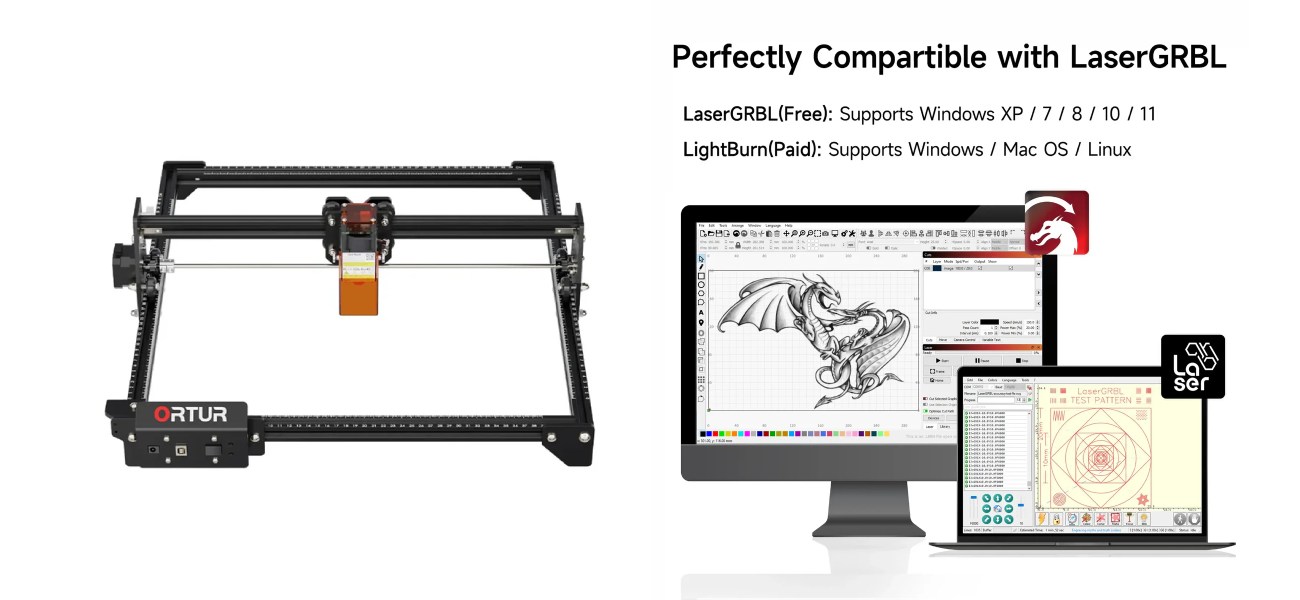

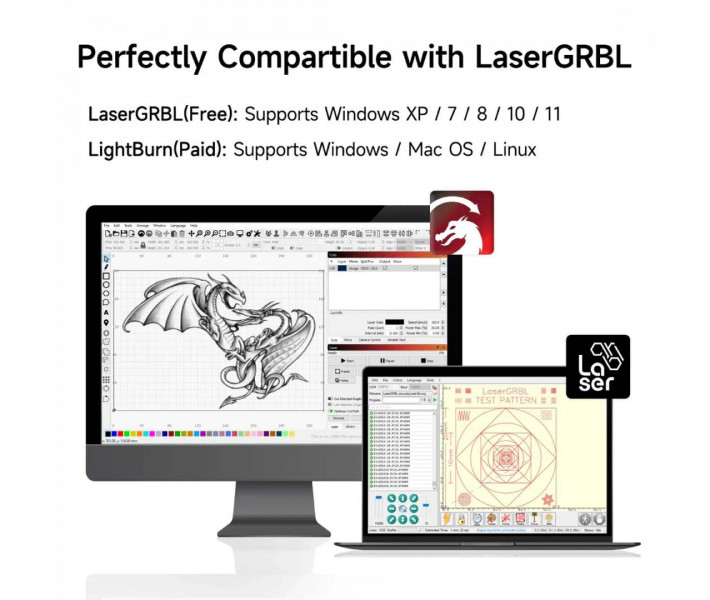

Software and Connectivity

• LightBurn: Windows, macOS, and Linux.
• LaserGRBL: Windows; the program is free.
• Connectivity: USB, computer control.
• File formats: JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, and DWG.

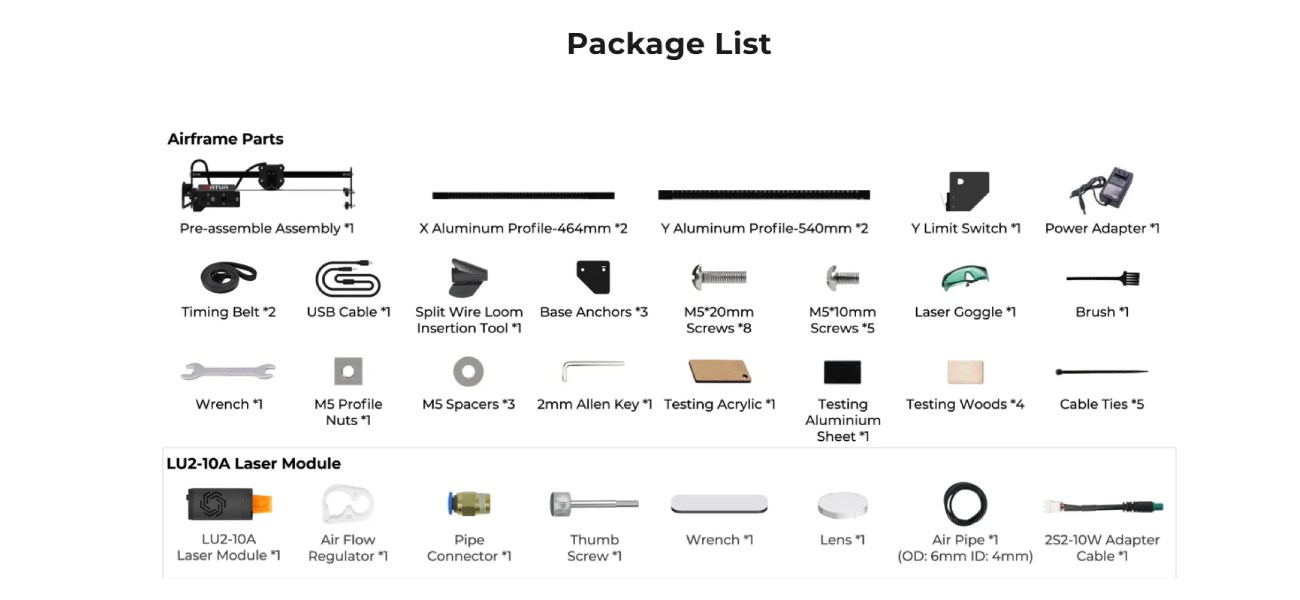

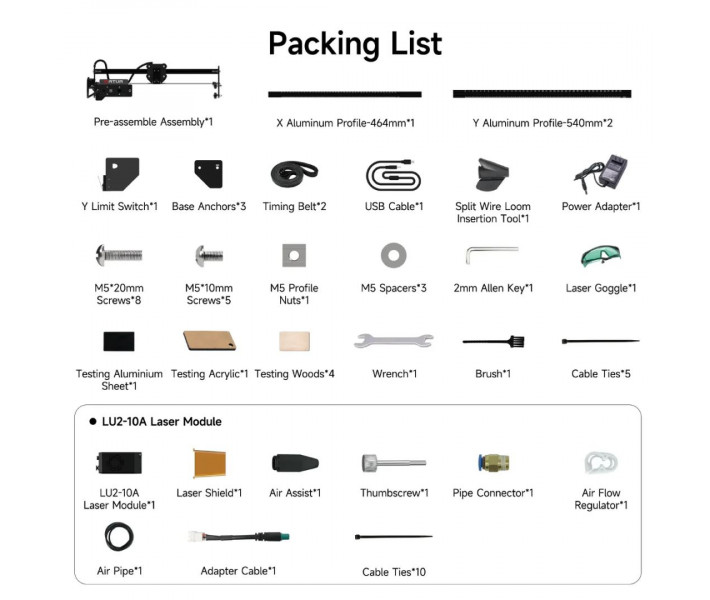

What's Included in the LM2 S2 Kit

The package is listed for Ortur LM2 S2 with a 10W LU2-10A laser module. Additional equipment, including a case, honeycomb table, and compressor, is purchased separately.

• Pre-assembled X-axis unit — 1 pc.
• Aluminum profile X length 464 mm — 2 pcs.
• Aluminum profile Y length 540 mm — 2 pcs.
• Y-axis limit switch — 1 pc.
• Power supply — 1 pc.
• Timing belt — 2 pcs.
• USB cable — 1 pc.
• Cable threading tool — 1 pc.
• Frame support brackets — 3 pcs.
• Screws M5 × 20 mm — 8 pcs.
• Screws M5 × 10 mm — 5 pcs.
• Protective goggles — 1 pc.
• Brush — 1 pc.
• Wrench — 1 pc.
• Profile nut M5 — 1 pc.
• Spacers M5 — 3 pcs.
• Hex key 2 mm — 1 pc.
• Acrylic test plate — 1 pc.
• Aluminum test plate — 1 pc.
• Wooden test plates — 4 pcs.
• Cable ties — 5 pcs.
• LU2-10A 10W laser module — 1 pc.
• Air supply regulator — 1 pc.
• Air supply fitting — 1 pc.
• Laser module clamping screw — 1 pc.
• Module key — 1 pc.
• Spare lens — 1 pc.
• Air tube 6/4 mm — 1 pc.
• 2S2-10W adapter cable — 1 pc.

Technical Specifications of Ortur LM2 S2 10W

Work Tips

• Secure the workpiece firmly and check the focus accuracy.
• Perform a speed and power test on a material cut-off before the main work.
• Adjust parameters according to the type, thickness, density, and coating of the workpiece.
• Place a non-flammable metal base under the workpiece.
• Wear protective goggles and do not leave the machine unattended during operation.
