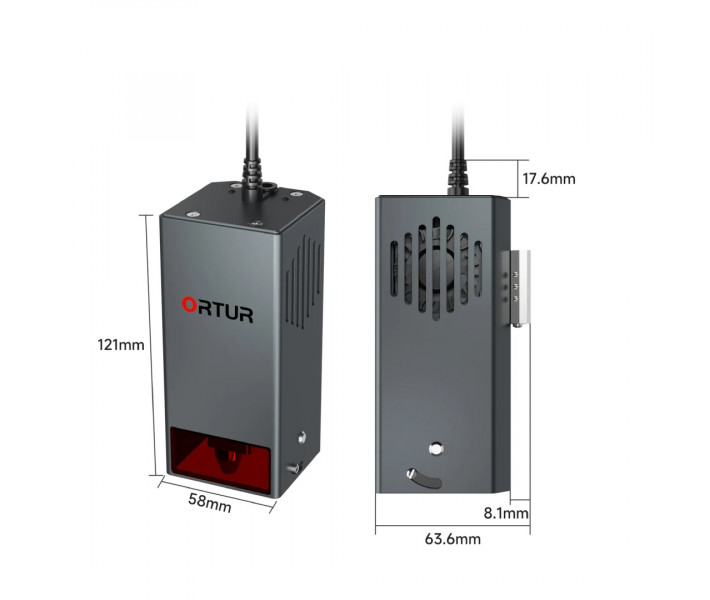

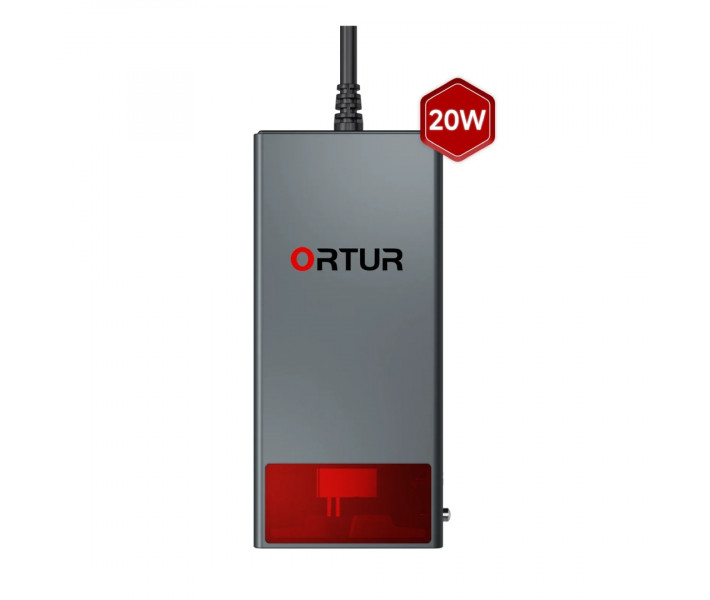

Variable Laser Module Ortur LU3-20A: 20W Diode Laser
The Ortur LU3-20A laser module with an optical output power of 20W is designed for installation on Ortur laser engravers. The model is compatible with machines OLM3, OLM3 LE, OLM2 PRO S2, and OLM2 S2. The module is used for cutting and engraving wood, plywood, black acrylic, leather, as well as marking metals. The 20W power is sufficient for through-cutting materials in one pass — for example, pine with a thickness of 15mm, plywood 10mm, or black acrylic 8mm.
Technical Advantages of the Module

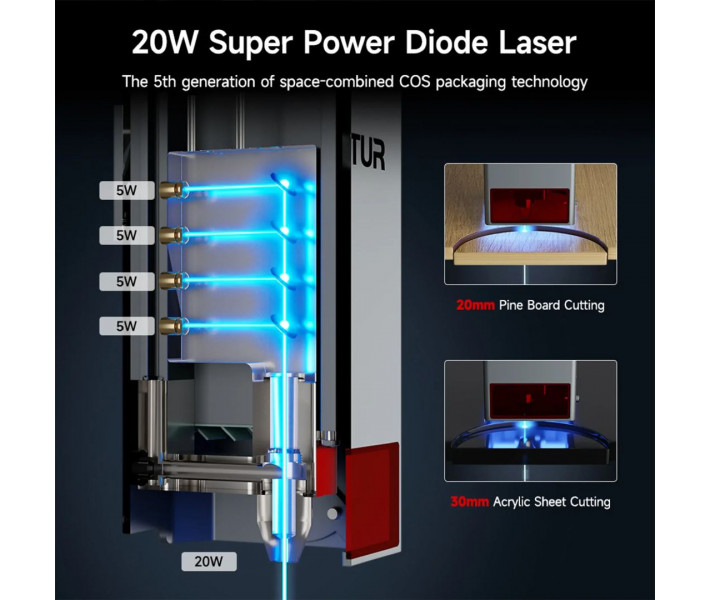

- COS Beam Compression Technology: combining 4 diode laser sources into one concentrated beam, providing stable optical power of 20W.

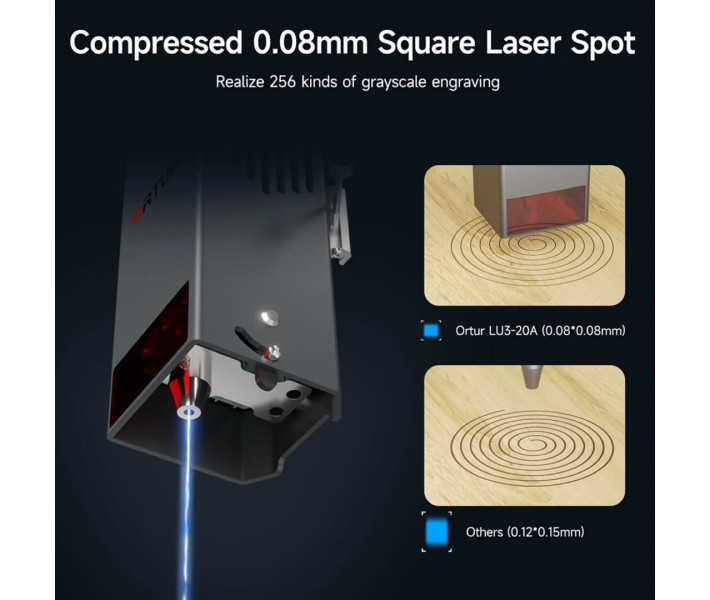

- Ultra-precise square laser spot: the focal point size is 0.08 × 0.08mm, ensuring high detail clarity and support for 256 levels of gray shades during engraving.
- Multicolor engraving on metal: depending on speed, power, and frequency settings, the module can create over 380 different color shades on stainless steel surfaces.

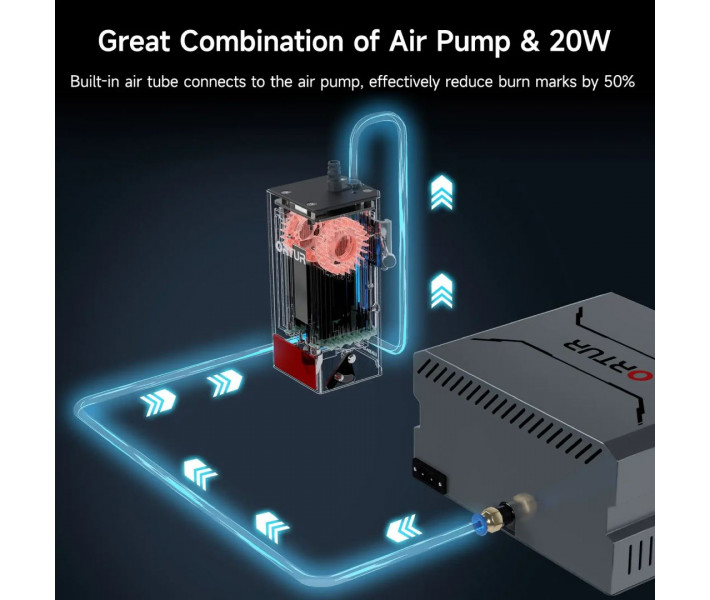

- Built-in Air Assist System: an integrated air tube optimized for use with an air pump (compressor) reduces material soot by 50%.

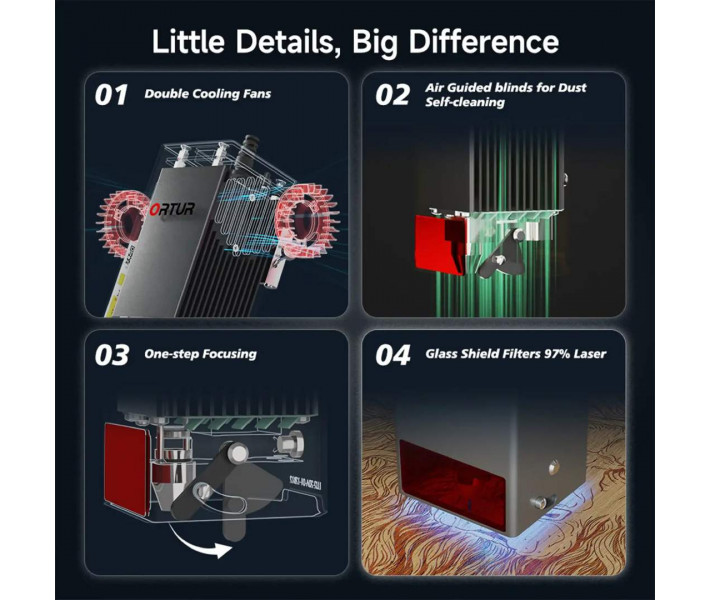

- Efficient cooling: a dual-fan system with a rotation speed of up to 10,000 rpm maintains the module's operating temperature, extending its lifespan to 10,000 hours.
- Lens protection: air louvers-deflectors direct airflows to reduce dust and soot deposition on optical elements.
- Quick focusing: the module is equipped with a mechanical flip stop (Quick Focus Stick) for fast and accurate setting of the focal distance.
- Protective glass: a built-in filter screen made of durable glass blocks up to 97% of laser radiation.
Material Compatibility and Processing Features
Materials for work: wood, plywood, MDF, black and colored opaque acrylic, leather, paper, cardboard. Suitable for engraving and color marking of stainless steel, anodized aluminum, and coated metals.
Cutting specifics: the optical power of 20W allows cutting in one pass pine up to 15mm thick, plywood up to 10mm, and black acrylic up to 8mm. The maximum cutting thickness depends on the density, structure, and color of the workpiece.
Optical limitations: the diode laser operates in the visible blue spectrum. The module is not intended for cutting transparent or mirrored acrylic, nor for direct cutting of pure metals (copper, brass, untreated aluminum).

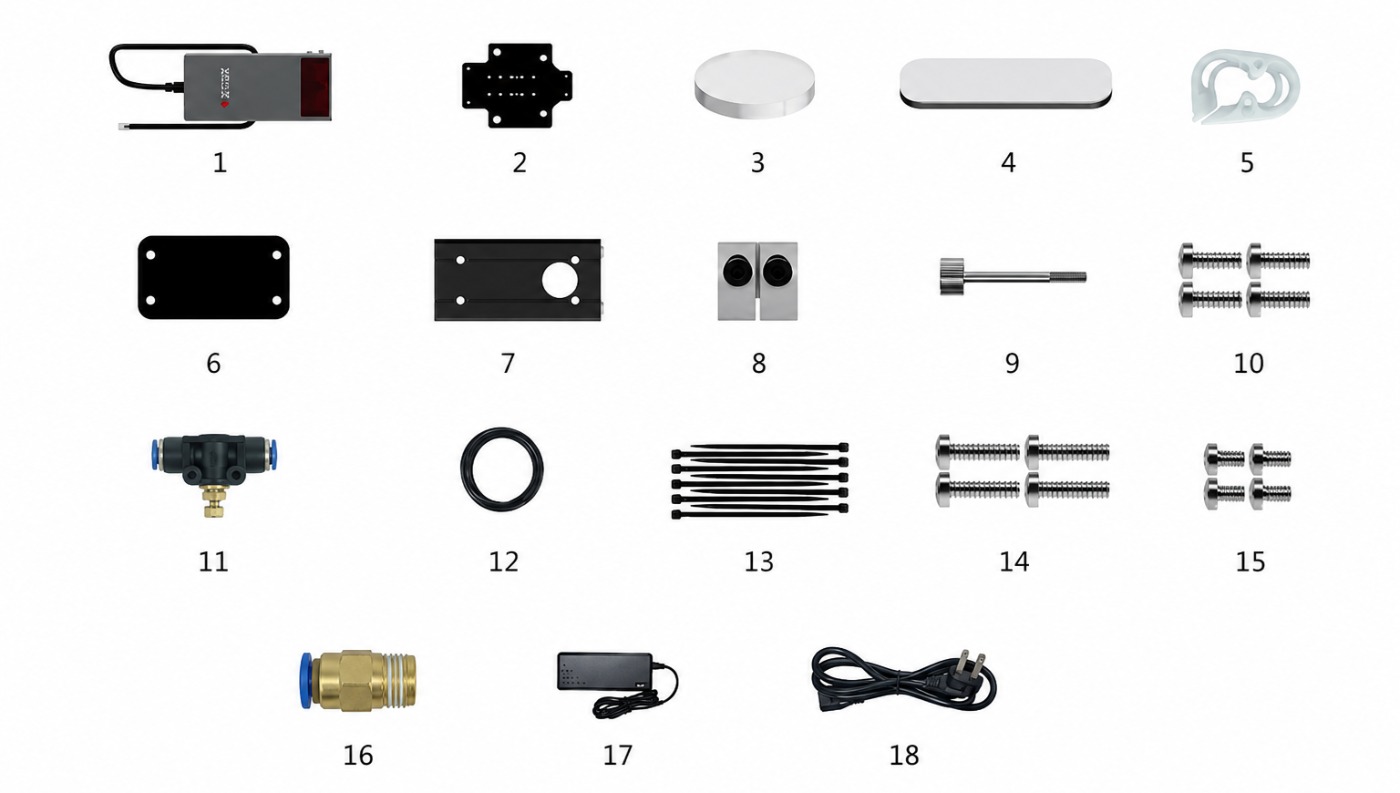

Package Contents
- Laser Module LU3-20A — 1 pc.
- Rear mounting plate for laser — 1 pc.
- Lens — 1 pc.
- Wrench — 1 pc.
- Airflow regulator — 1 pc.
- Support block — 1 pc.
- Slider — 1 pc.
- Small coupling — 1 pc.
- Thumb screw — 1 pc.
- Screws M3 × 8mm — 4 pcs.
- Airflow regulator — 1 pc.
- Air tube OD 6mm / ID 4mm — 1 pc.
- Cable ties — 1 set.
- Screws M3 × 12mm — 4 pcs.
- Screws M3 × 5mm — 4 pcs.
- Tubing connector — 1 pc.
- Power adapter — 1 pc.
- Power cable — 1 pc.
Technical Specifications
| Parameter | Value |
| Laser type | Blue diode laser |
| Wavelength | 450 ± 5 nm |
| Optical power (emission) | 20W |
| Laser electrical power | 80W |
| Total device power | 120W |
| Power supply parameters (input) | 24V / 4A |
| Laser spot size | 0.08 × 0.08mm |
| Laser technology | Spatial beam compression |
| Focal distance | 56.5mm |
| Focusing mode | Manual |
| Maximum operating speed | 20,000 mm/min |
| Control and connection functions | Wi-Fi / App / USB / SD card |
| Module lifespan | > 10,000 hours |
| Built-in air nozzle | Yes |
| Maintenance frequency | Cleaning every 50 hours of operation |
| Lens cleaning method | Wipe the lens surface with a cotton swab moistened with alcohol until fully evaporated |
Module Ordering and Consultation
The Ortur LU3-20A 20W laser module can be ordered with delivery across Ukraine on our website. If you have questions regarding compatibility with your Ortur engraver model, working with specific materials, or setting cutting and engraving modes, our specialists will provide technical information.
