Smoke Purification during Laser Engraving

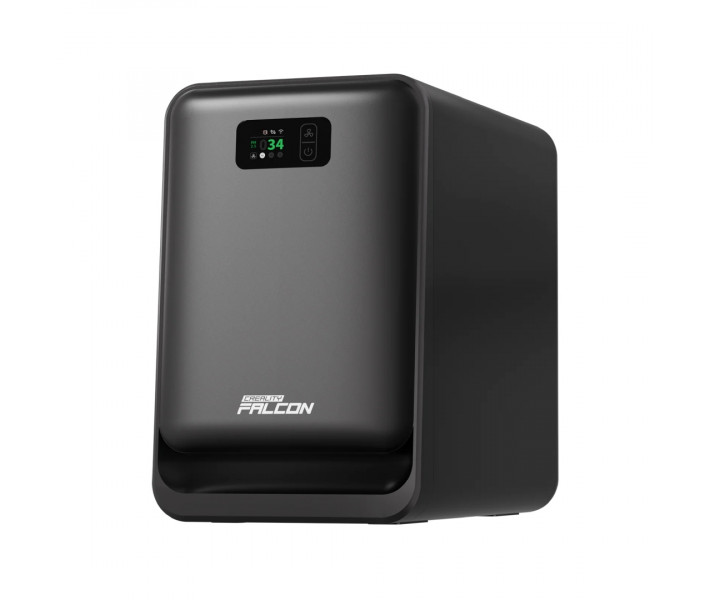

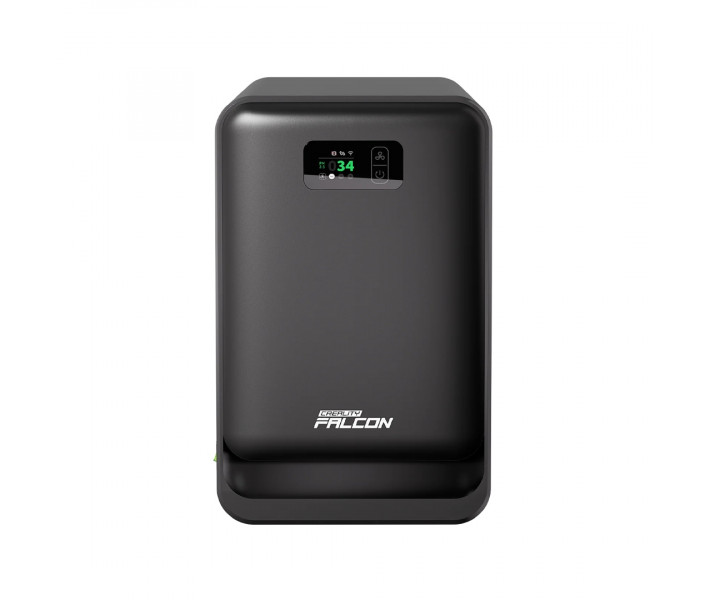

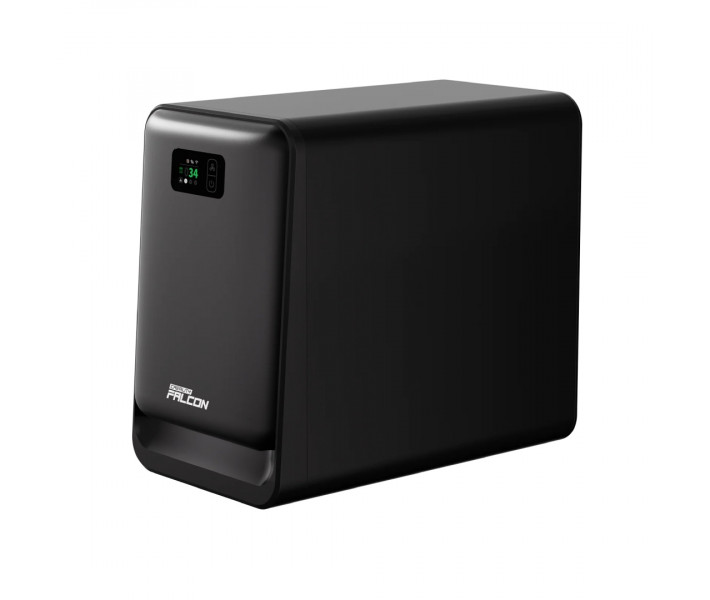

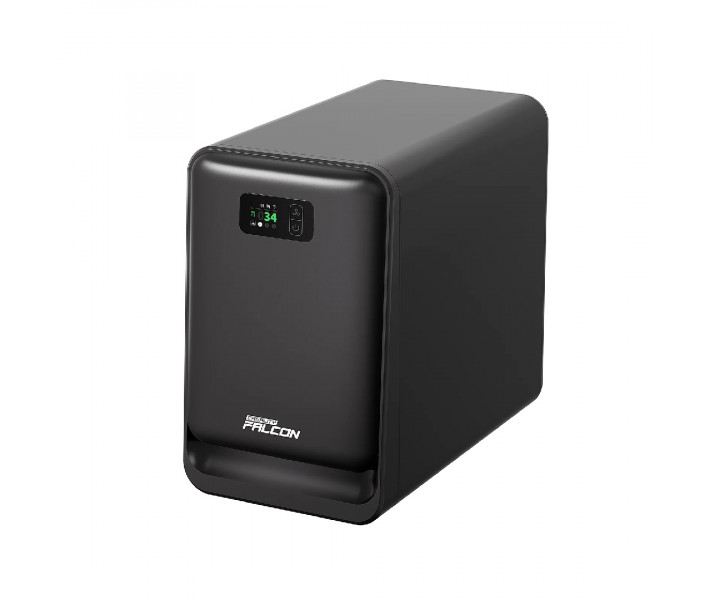

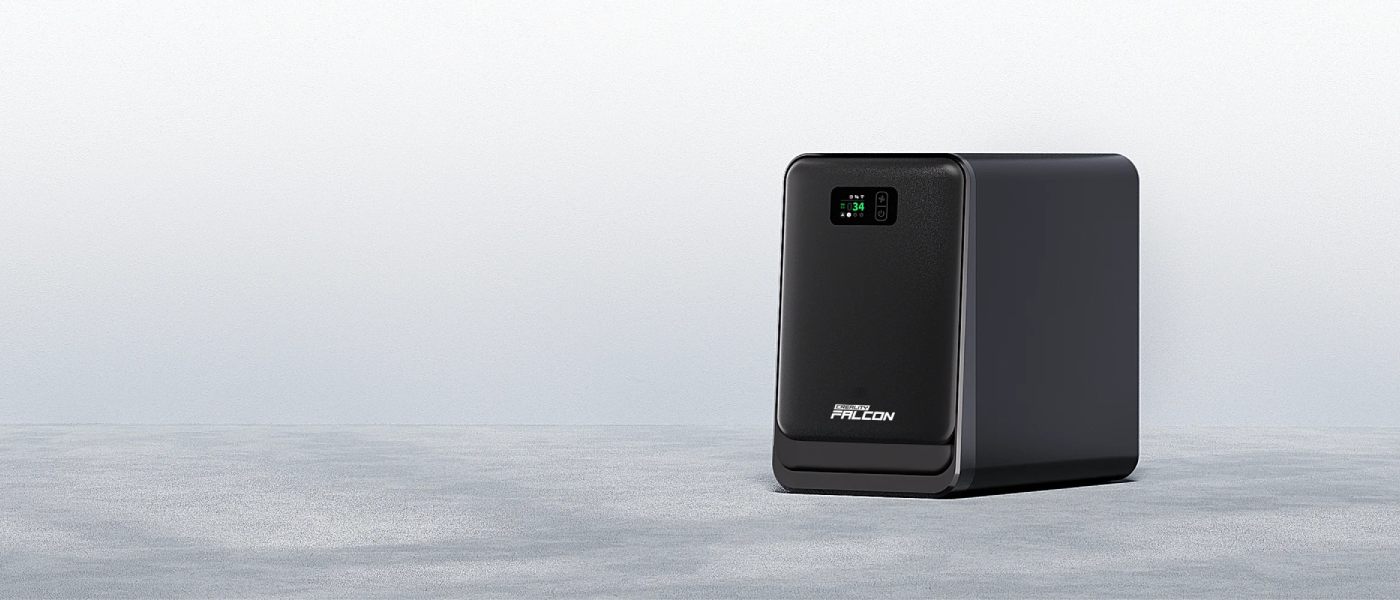

Creality Falcon AP1 Smoke Purifier is a smoke purifier for laser engravers, designed for workshops, educational labs, and small productions, with an airflow of 250 m³/h, suction of 1700 Pa, and real-time PM2.5 control. The model helps to remove smoke, dust, and odors during engraving, cutting plywood, acrylic, leather, and other materials.
Advantages of Falcon AP1 Smoke Purifier
- Quickly removes smoke during operation. The suction of 1700 Pa helps to capture smoke near the laser engraver. The workshop has less odor, dust, and burn marks on the material.
- Maintains a stable airflow during operation. The purifier passes up to 250 m³/h of air through filters. The airspeed of 20 m/s helps to consistently remove smoke during cutting and engraving.
- Evenly loads the filter. The 360° airflow helps to engage up to 98% of the filter area. This reduces uneven pollution and helps the filter last longer.
- Displays air status on the screen. The PM2.5 display shows the level of fine dust near the workspace. This helps to quickly understand when the air has become cleaner or when the filters are already working less effectively.
- Captures smoke, dust, and odors in multiple stages. The filtration system up to 99%+ works through a pre-filter, HEPA H13, and carbon layers. This is useful when working with plywood, wood, acrylic, leather, and other materials.

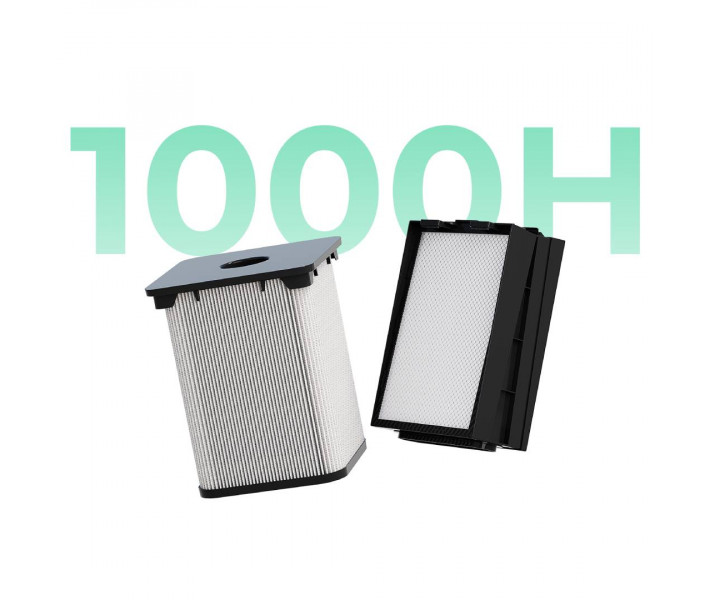

- Filters last long. The main filter works up to 1000 hours, and the V-shaped carbon filter up to 1500 hours. This helps to buy consumable parts less often.

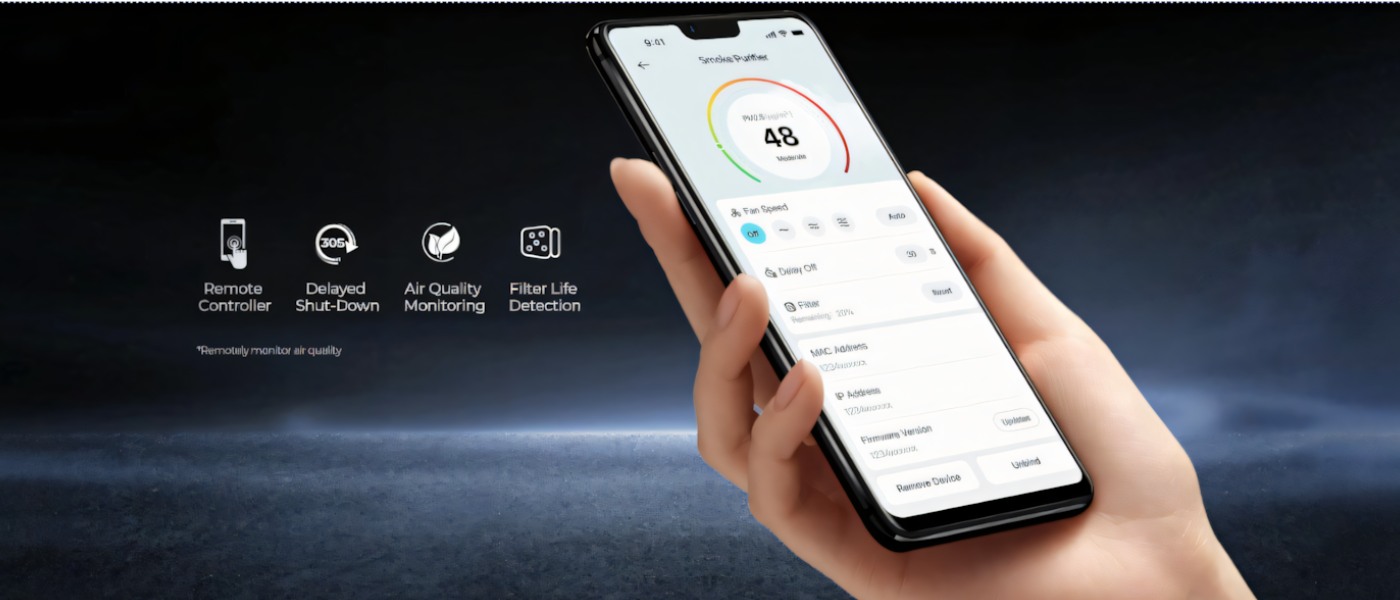

- Automates exhaust operation with the engraver. Wi-Fi control and synchronization with Falcon allow the purifier to turn on and off together with a compatible laser engraver. This is convenient as there is no need to manually start the exhaust each time.
Filtration and Air Control

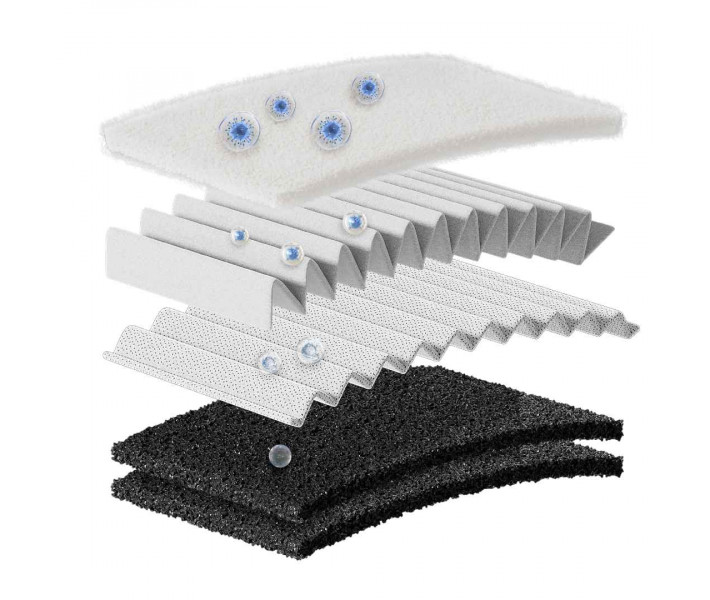

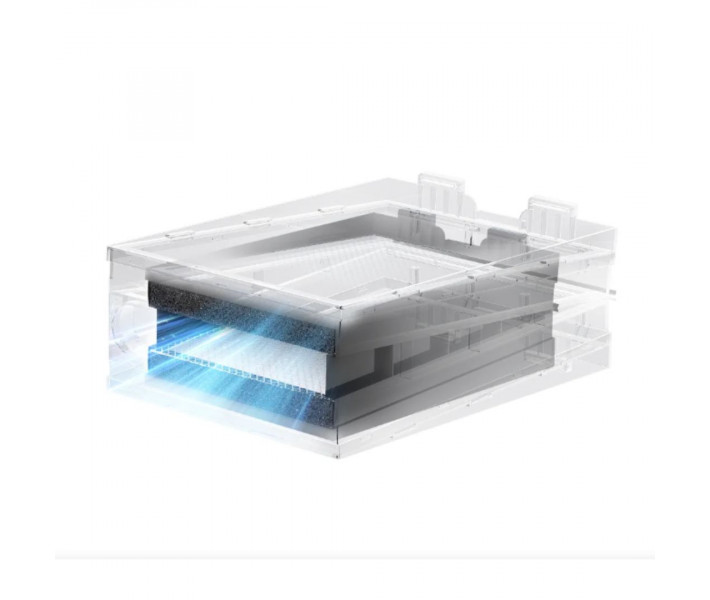

Creality Falcon AP1 cleans the air in 5 stages: the G4 pre-filter captures large particles over 5 microns, the HEPA H13 with an area of 3 m² removes fine dust up to 0.3 microns, and activated carbon works with odors, volatile compounds, and harmful gases. The V-shaped carbon filter with 1.4 kg of modified carbon helps to better absorb odors and fine pollutants after laser cutting or engraving.
The built-in PM2.5 display shows the level of fine particles in real-time. This is convenient for the workshop: you see the air quality during work and can timely check the filter status.
Strong Suction and Even Filter Load

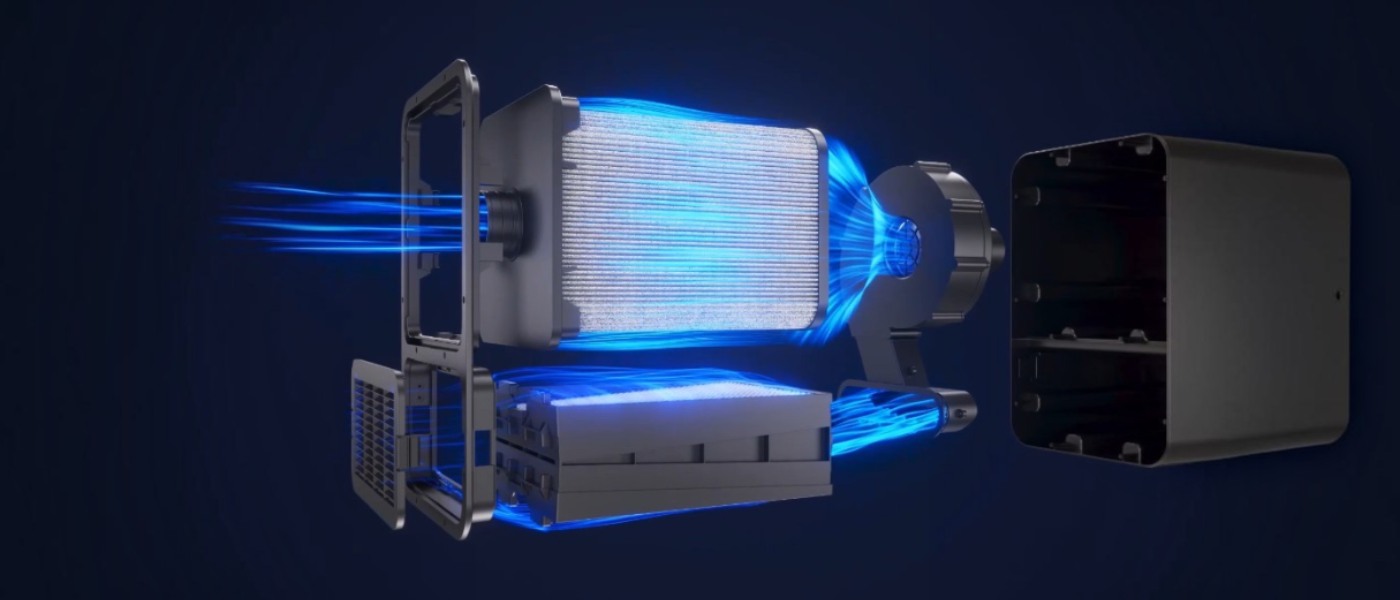

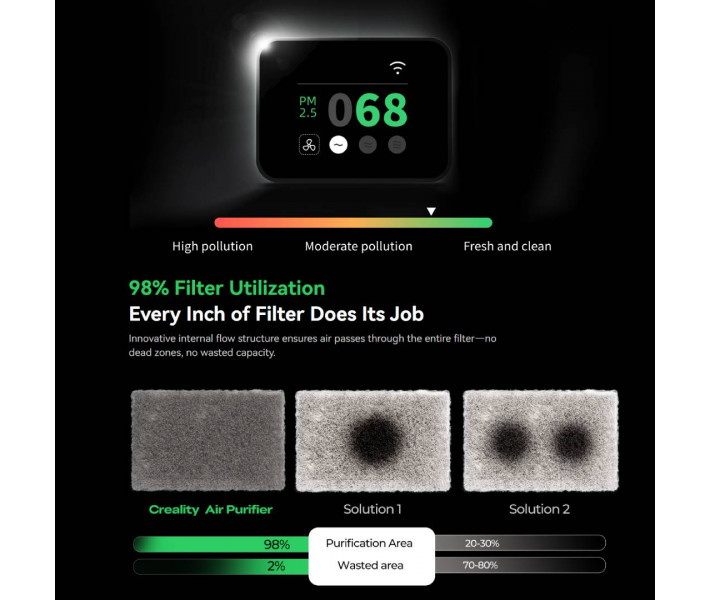

The 360° Airflow design directs air across the entire filter area, so the manufacturer claims up to 98% effective operation of the filter unit. Such air supply helps to prevent clogging one area of the filter faster than others and supports stable cleaning during long tasks.
The motor creates an airflow of up to 250 m³/h, airspeed of 20 m/s, and suction up to 1700 Pa. Thanks to this, the purifier captures smoke near the source, preventing it from quickly spreading across the work area.
Filter Resource Management and Control
Falcon AP1 can automatically turn on and off together with compatible Falcon laser engravers. You can also set the shutdown time so that the purifier works a little longer after cutting or engraving to remove smoke residues.
The system monitors the filter resource in real-time. This helps not to change them too early and not to miss the moment when the filter is already working less effectively.

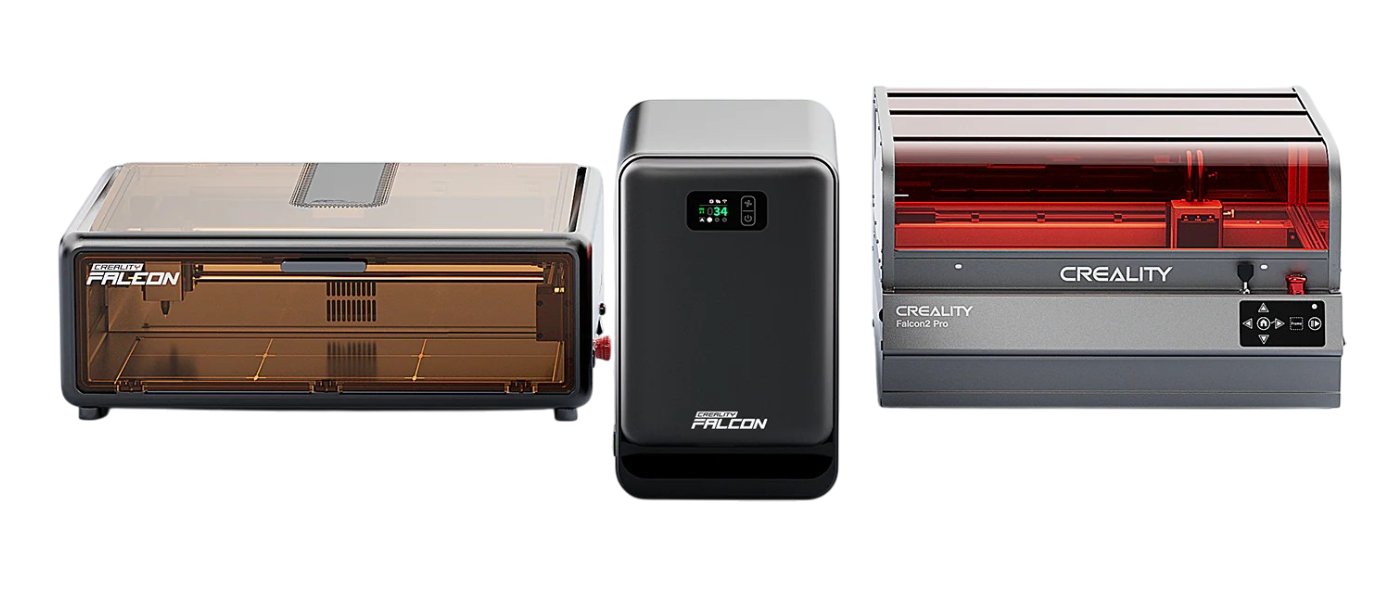

Compatibility with Laser Engraver
The standard set includes a 2.5-inch adapter for connecting the air duct. For compatibility with other laser engravers, you need to select an adapter of the appropriate size; the inlet pipe of Creality Falcon AP1 has a diameter of 65 mm.
The purifier is designed to work with Falcon laser engravers and may be suitable for other equipment if properly connected. Before purchasing, it is worth checking the smoke outlet diameter on your engraver.
Where Creality Falcon AP1 is Used
- Laser engraving of wood, plywood, leather, and paper.
- Cutting of acrylic, plywood, and thin sheet materials.
- Working in a workshop, office, classroom, or laboratory.
- Serial marking of souvenirs, plates, packaging, and custom products.
- Connecting to closed laser chambers, where separate smoke removal is required.
Technical Specifications
| Parameter | Value |
| Product Type | Smoke Purifier |
| Net Dimensions | 460 × 270 × 430 mm |
| Gross Dimensions | 650 × 344 × 532 mm |
| Net Weight | 10 kg |
| Gross Weight | 15 kg |
| Inlet Pipe Diameter | 65 mm |
| Input Voltage | 110–230 V, 50–60 Hz |
| Output Voltage | DC 24 V |
| Maximum Power | 150 W |

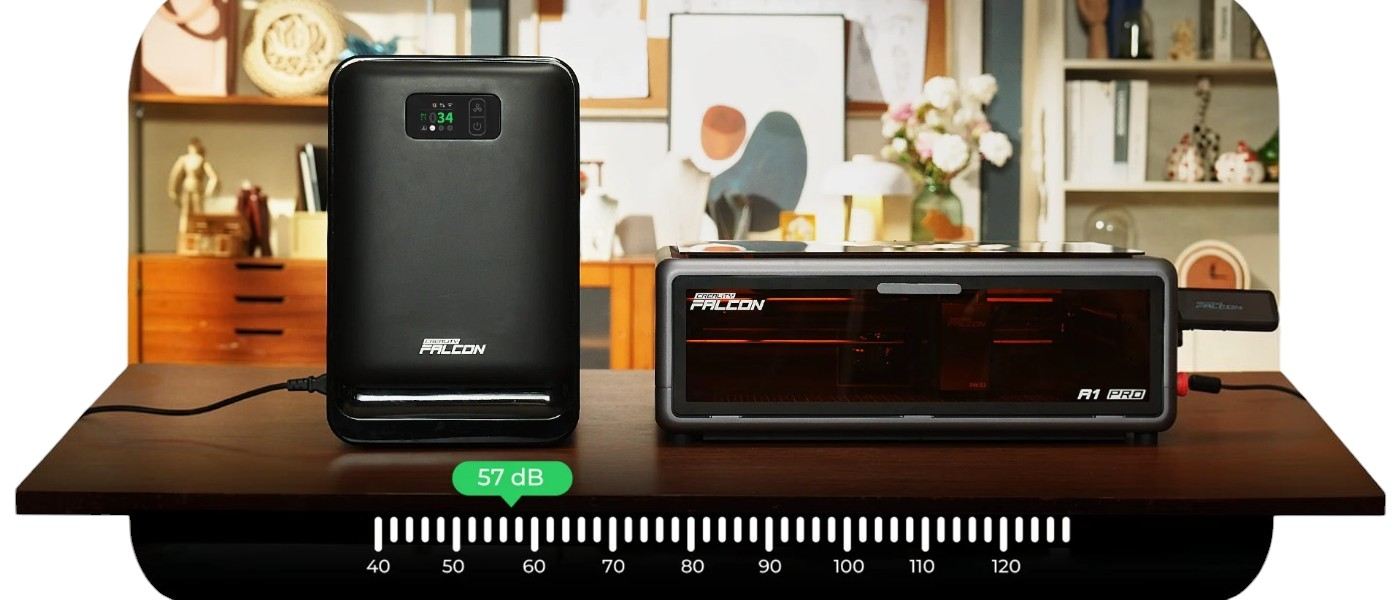

| Noise Level | ≤62 dB |
| Maximum Airflow | 250 m³/h |
| Operating Temperature | -20…50 °C |
| Certification | CE, RoHS, FCC |
| Filters | HEPA composite filter, activated carbon filter |
| Air Control | PM2.5 display |
| Control | Touch panel, Wi-Fi |
Usage Tips
- Check the connection diameter before starting. The standard set includes a 2.5-inch adapter, and the Falcon AP1 inlet pipe has a diameter of 65 mm. If using another laser engraver, select an adapter of the required size.
- Place the purifier closer to the engraver. This way, the air duct will be shorter, and the suction will not lose strength. This will help to quickly capture smoke near the work area.
- Monitor the PM2.5 display. The screen shows the level of fine dust in real-time. If the indicators do not decrease for a long time, it is worth checking the hose, filters, and connection tightness.
- Leave the purifier running a little longer after cutting. This will help to remove smoke residues from the work area. For compatible Falcon engravers, you can set the shutdown time.
