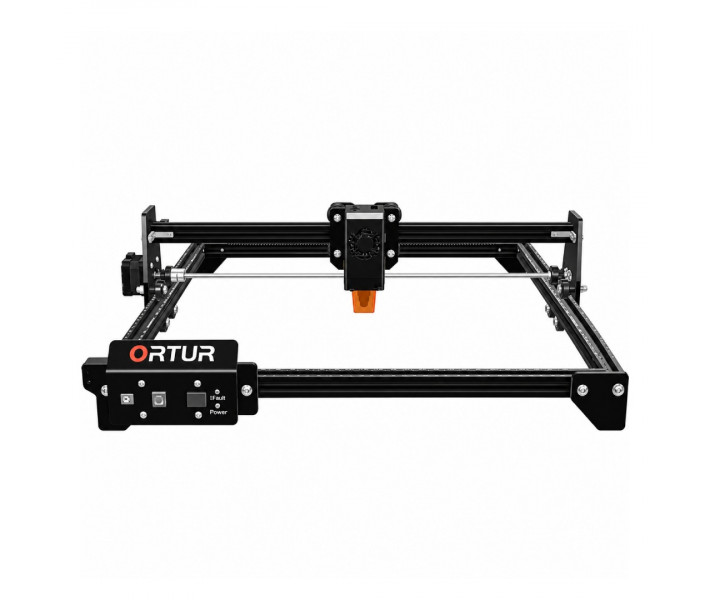

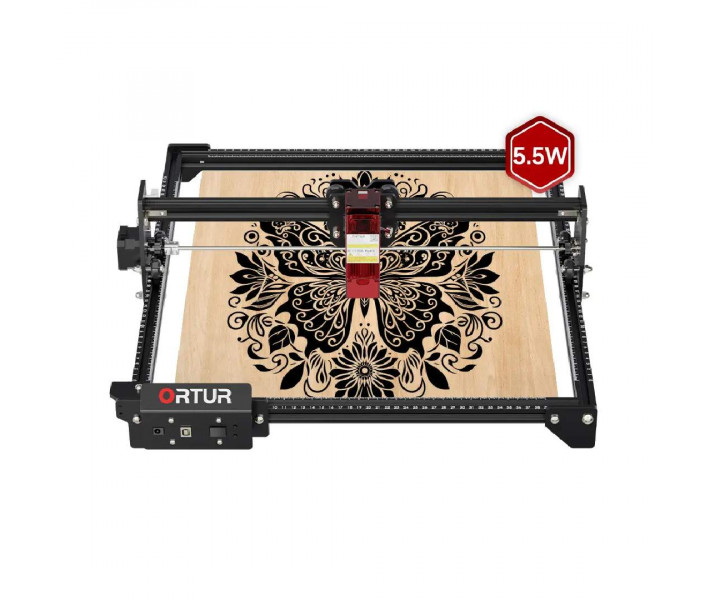

Ortur Laser Master 2 S2 5W Laser Engraver-Cutter
Ortur Laser Master 2 S2 with the LU2-4-SF module is a desktop diode laser machine with a working area of 390 × 410 mm, designed for precise engraving and contour cutting of sheet materials: wood, plywood, cardboard, leather, dark acrylic, etc. The engraver-cutter is equipped with a 32-bit OLM-PRO-V1.2 control board based on the ESP32 microcontroller, providing a movement speed of up to 5000 mm/min and stable data exchange. Thanks to the optical power of the laser module 4.5–5.5 W and the reduced size of the light spot 0.07 × 0.06 mm, the machine allows for fine detail reproduction, precise fonts, and layout elements.
Design and Operating Characteristics
- Laser Module LU2-4-SF: The module's focal distance is fixed at 50 mm from the radiator to the material. The reduced laser spot ensures high energy density at the focus point, optimized for detailed engraving and clean cutting of thin materials.

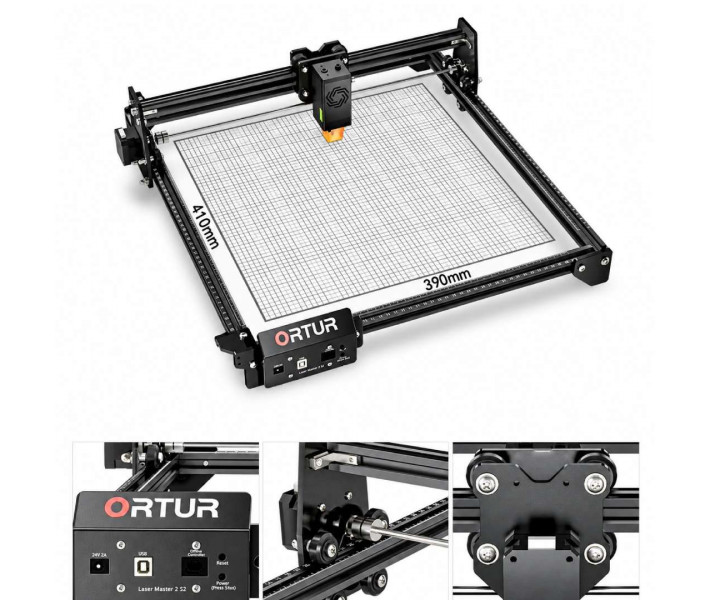

- Mechanics and Precision: The frame is made of aluminum profile with acrylic elements. The mechanical precision of movement along the X and Y axes is 12.5 µm. The design uses NEMA 17 stepper motors.
- Safety Systems: The model provides 5 levels of hardware and software protection:
- Tilt and unwanted movement control using an accelerometer.
- Control of USB connection presence and stability.
- Limitation of continuous laser operation time — protection against short circuits.
- Protection of the active module position.
- Voltage and current monitoring with automatic power shutdown in case of deviations.
Compatibility and Materials

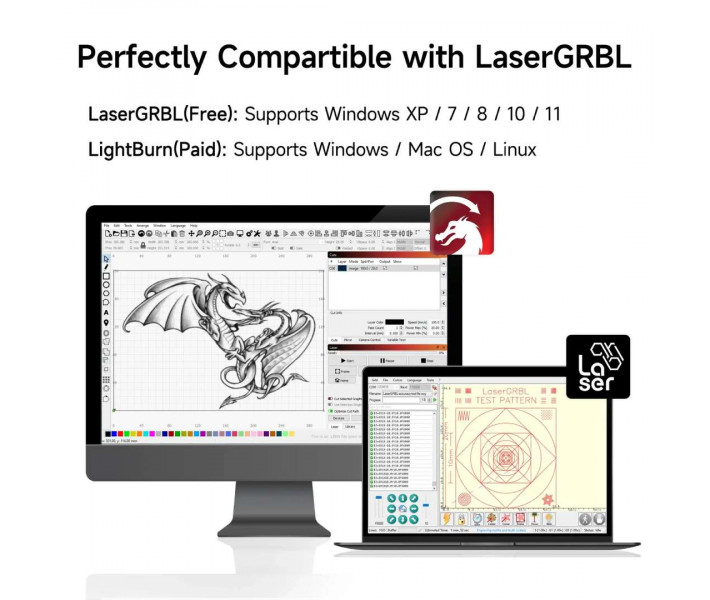

Software:
- LaserGRBL: Free software for Windows OS. Recommended version — 4.9.x or newer.
- LightBurn: Full-featured cross-platform software for Windows, macOS, and Linux with advanced layer processing and layout preparation capabilities.
- Connection: Via USB interface. In modern Windows 10, macOS, and Linux OS, it works without installing additional drivers; for older versions of Windows XP, 7, and 8, a corresponding USB driver is required. Popular graphic formats are supported: JPG, JPEG, PNG, BMP, SVG, and others.
Material Processing:

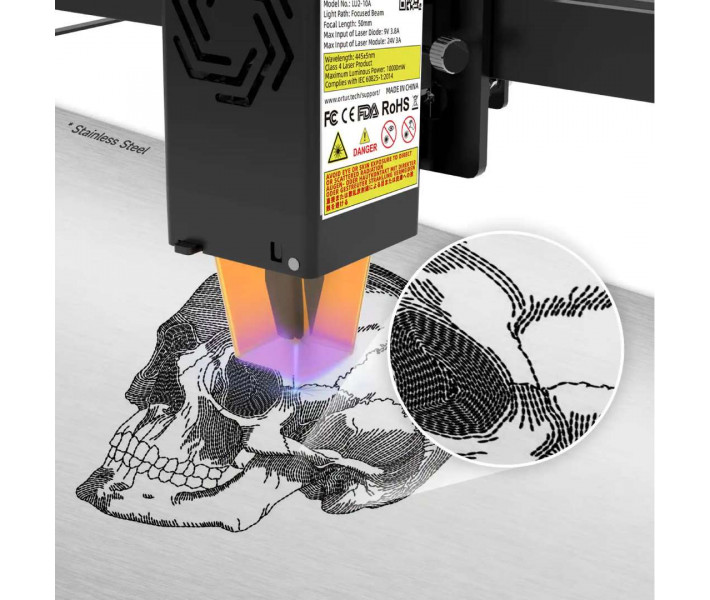

- Engraving: Wood, bamboo, MDF, plywood, paper, cardboard, leather, dark acrylic, stone, glass, anodized aluminum, painted and powder-coated metal. Surface marking on stainless steel is possible with the use of special surface preparation agents.
- Cutting: Thin plywood, pine board, paper, cardboard, dark acrylic, leather, felt, and dense fabrics.
Note: The maximum cutting thickness depends on the density, color, and transparency of the material, as well as the speed and number of passes.
Technical Specifications
| Characteristic | Value |
| Model | Ortur Laser Master 2 S2 |
| Laser Module Version | LU2-4-SF |
| Module Type | Short-focus diode laser |
| Declared Power Category | 5 W |
| Actual Optical Power | 4500–5500 mW |
| Wavelength | 445 ± 5 nm |

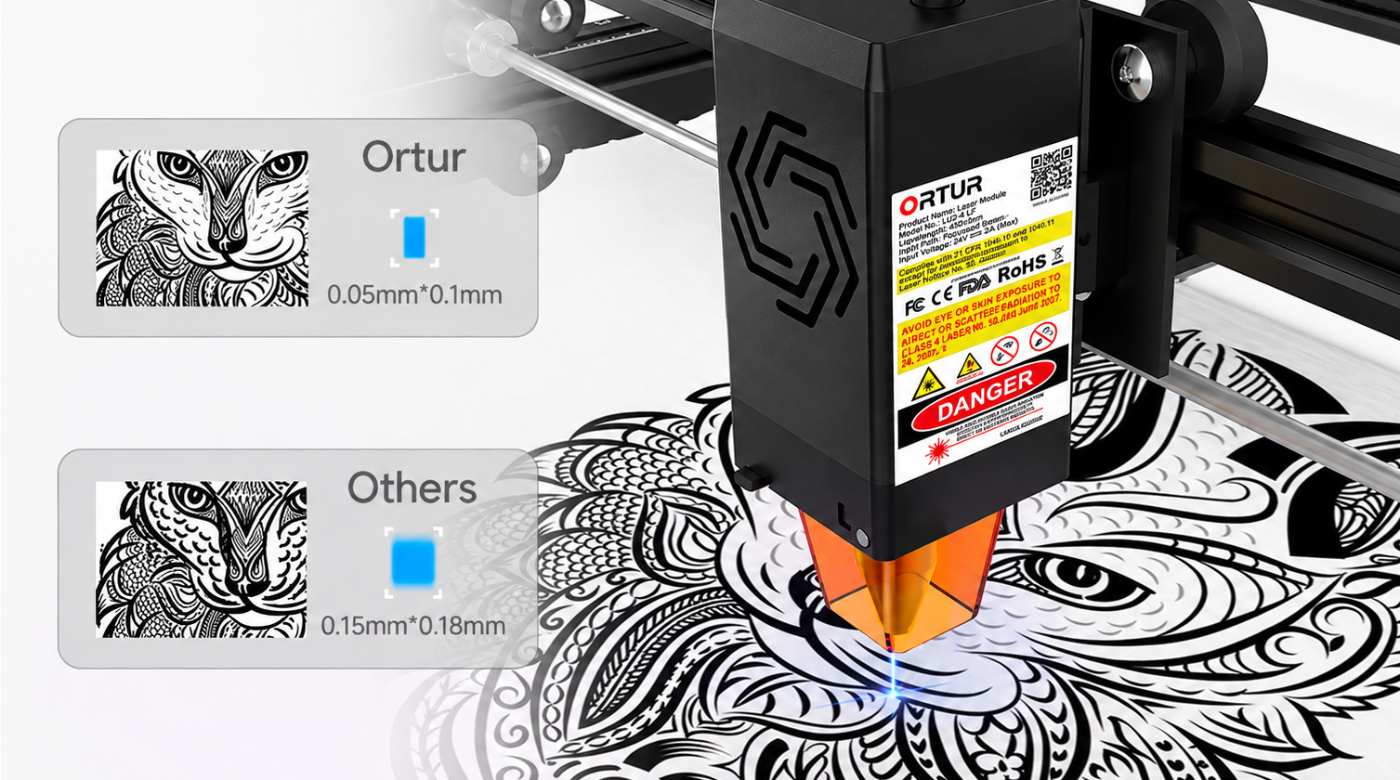

| Laser Spot Size | 0.07 × 0.06 mm |
| Focusing Type | Fixed focus |
| Standard Focal Distance | 50 mm from module radiator to material |
| Working Area | 390 × 410 mm |
| Operating Speed | 0–5000 mm/min |
| Mechanical Precision on X Axis | 12.5 µm |
| Mechanical Precision on Y Axis | 12.5 µm |
| Control Board | OLM-PRO-V1.2 |
| Processor | 32-bit ESP32 MCU |
| Firmware | OLF-V180 Series |
| Motors | NEMA 17 stepper motors |
| Laser Control Method | PWM |
| Power Range | S0–S1000 |
| Data Exchange Speed | 115200–921600 baud |
| Standard Exchange Speed | 115200 baud |
| Frame Material | Aluminum profile and acrylic |
| Connection | USB |
| Input Voltage | 110–220 V |
| Power Supply Output | 24 V / 2 A |
| Operating Temperature | from −20 to +50 °C |

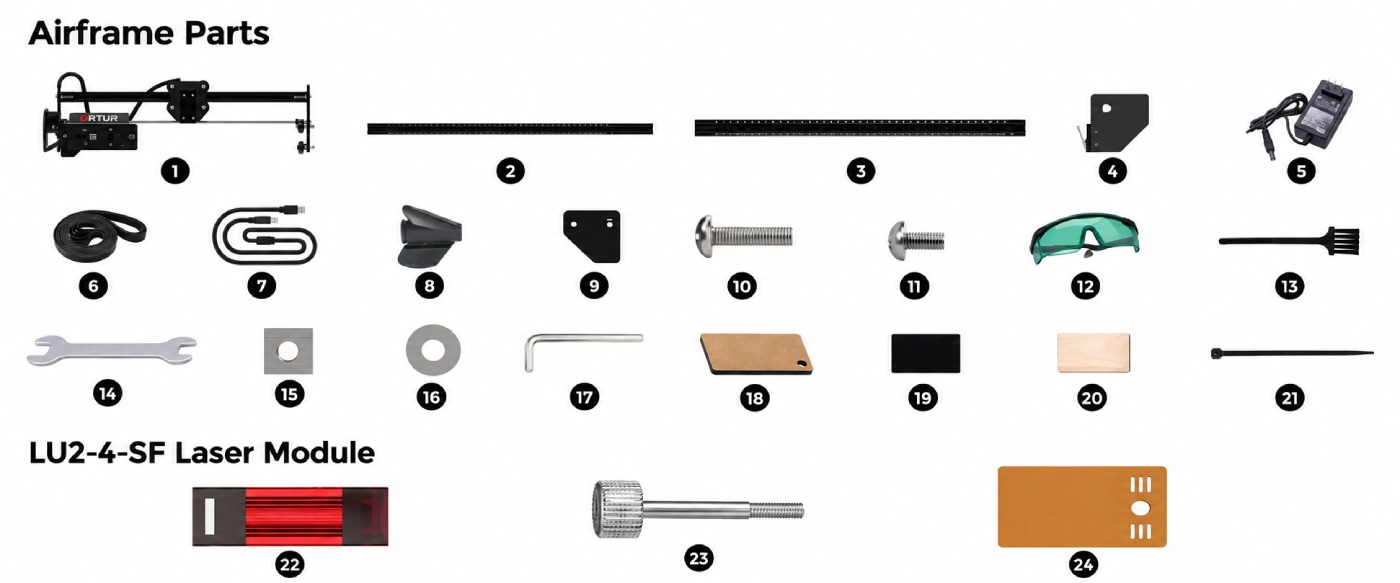

Package Contents
Frame Details:
- Pre-assembled frame — 1 pc.
- X-axis aluminum profile, 464 mm — 2 pcs.
- Y-axis aluminum profile, 540 mm — 2 pcs.
- Y-axis limit switch — 1 pc.
- Power adapter — 1 pc.
- Timing belt — 2 pcs.
- USB cable — 1 pc.
- Tool for split cable sleeve installation — 1 pc.
- Base mounts — 3 pcs.
- Screws M5×20 mm — 8 pcs.
- Screws M5×10 mm — 5 pcs.
- Laser safety goggles — 1 pc.
- Brush — 1 pc.
- Wrench — 1 pc.
- Profile nut M5 — 1 pc.
- Spacers M5 — 3 pcs.
- Hex key 2 mm — 1 pc.
- Test acrylic plate — 1 pc.
- Test aluminum sheet — 1 pc.
- Test wooden plates — 4 pcs.
- Cable ties — 5 pcs.
- Laser module LU2-4-SF — 1 pc.
- Knurled head screw — 1 pc.
- Focus calibration plate — 1 pc.
Laser Module LU2-4-SF:
