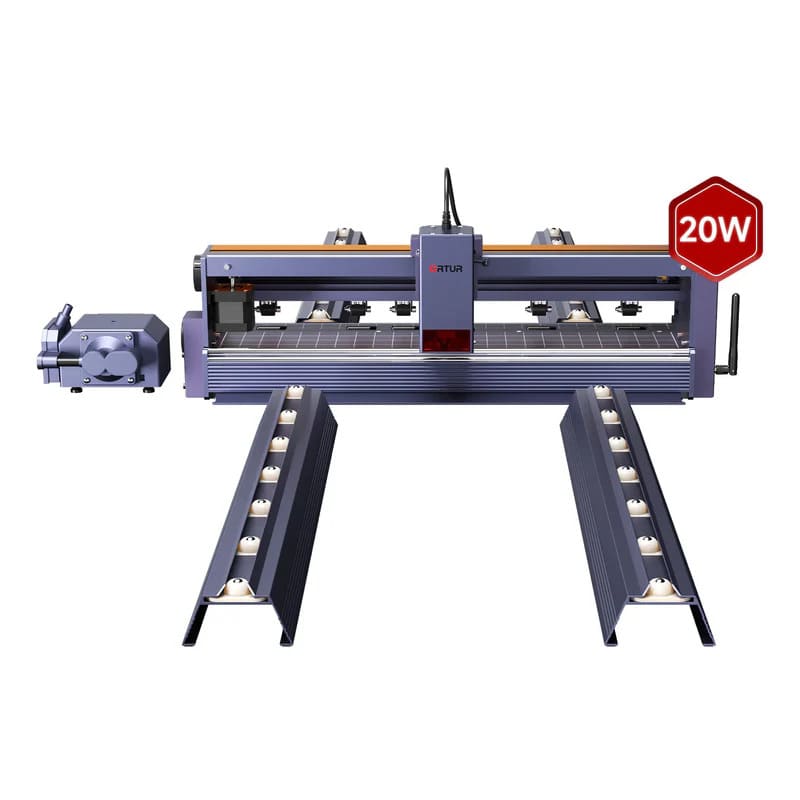

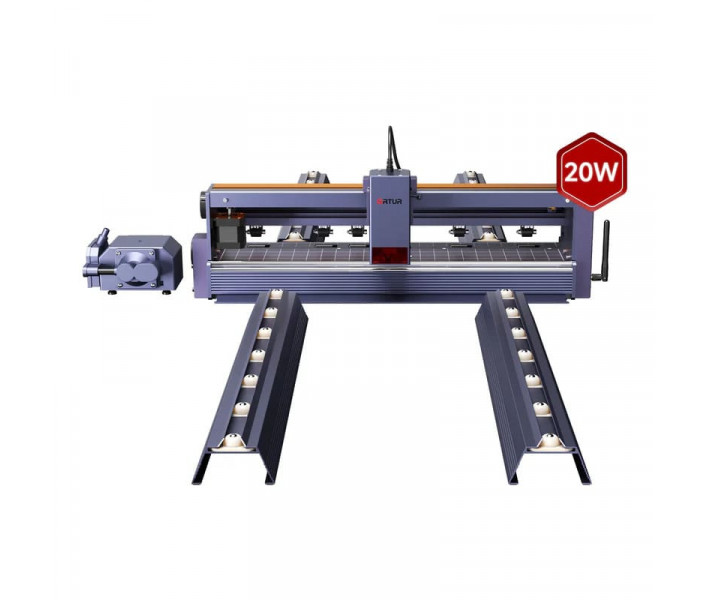

Ortur F10 Conveyor Laser Engraver & Cutter – Large Format Conveyor Laser System
The Ortur F10 Conveyor Laser Engraver & Cutter is a professional laser engraving and cutting solution designed for makers, workshops, sign manufacturers, and small businesses that require high productivity and processing of long materials.
Unlike conventional desktop engravers, the Ortur F10 features an integrated conveyor system with an extended working area of up to 400 × 3000 mm, allowing users to process oversized projects, batch production jobs, signs, decorative panels, and long-format materials with exceptional precision.
The modular design supports interchangeable 10W, 20W and 40W laser modules, making the F10 suitable for everything from detailed engraving to high-performance cutting applications.
Why Choose Ortur F10?
- Conveyor-based laser processing system
- Extended working area: 400 × 3000 mm
- Supports 10W, 20W and 40W laser modules
- Maximum engraving speed: 20,000 mm/min
- USB and Wi-Fi connectivity
- Automatic pin-point positioning system
- Dual pressure rollers for stable material feeding
- Retractable light connection plate for table protection
- Alignment grid system for accurate positioning
- Compatible with LightBurn, LaserGRBL and Ortur App
One Machine, Three Laser Options
The Ortur F10 supports multiple laser modules, allowing users to choose the ideal balance between engraving precision and cutting power.
| Laser Module | Spot Size | One-Pass Acrylic Cutting | One-Pass Plywood Cutting |
|---|---|---|---|
| 10W | 0.05 × 0.1 mm | 5 mm Black Acrylic | 8 mm Plywood |
| 20W | 0.1 × 0.12 mm | 8 mm Black Acrylic | 10 mm Plywood |
| 40W | 0.1 × 0.15 mm | 15 mm Black Acrylic | 15 mm Plywood |
Designed for Large Projects
The conveyor mechanism enables continuous feeding of materials, making the F10 ideal for oversized projects and production environments.
- Large signs and advertising boards
- Furniture components
- Wall decorations
- Production panels
- Long-format artwork
- Batch manufacturing
- Educational and maker projects
Thoughtful Mechanical Design
Every element of the Ortur F10 has been engineered to improve accuracy and ease of operation.
- Dual pressure rollers for stable feeding
- Automatic pin-point positioning
- Adjustable positioning knob
- Precision alignment grid
- Support stands for long materials
- Retractable protection plate
Compatible Materials
The Ortur F10 supports a wide range of engraving and cutting materials depending on the installed laser module.
- Plywood
- MDF
- Pine
- Paulownia Wood
- Leather
- Cardboard
- Corrugated Board
- Dark Acrylic
- Bamboo
- Rubber
- ABS Plastic
- Ceramics
- Glass
- Stainless Steel
- Coated Metal
- Marble
- Brick
- Slate
- Cement
What's Included in the Package
- Ortur F10 Conveyor Engraver Frame
- Selected Laser Module (10W / 20W / 40W)
- Conveyor Feeding System
- Material Support Stands
- Power Adapter
- USB Cable
- Assembly Accessories
- User Manual
- Warranty Card
Technical Specifications
| Model | Ortur F10 Conveyor Laser Engraver & Cutter |
| Supported Laser Modules | 10W / 20W / 40W |
| Working Area | 400 × 3000 mm |
| Maximum Speed | 20,000 mm/min |
| Maximum Material Width | 480 mm |
| Minimum Material Width | 65 mm |
| Maximum Material Thickness | 15 mm |
| Connectivity | USB, Wi-Fi |
| Software | Ortur App, LightBurn, LaserGRBL |
| Operating Systems | Windows, macOS |
| Laser Wavelength | 445–450 nm |
