Unitree As2 AIR – Compact Industrial-Grade Quadruped Robot
The Unitree As2 AIR is a next-generation AI-powered robotic dog designed for research, education, industrial inspection, security patrols, and autonomous navigation. Combining powerful locomotion, advanced perception systems, and intelligent interaction capabilities, the As2 AIR delivers exceptional mobility and performance in a compact form factor.
Equipped with a high-performance 8-core processor, HD camera, LiDAR navigation, and intelligent motion control, the Unitree As2 AIR can operate in complex indoor and outdoor environments while maintaining stability, precision, and safety.

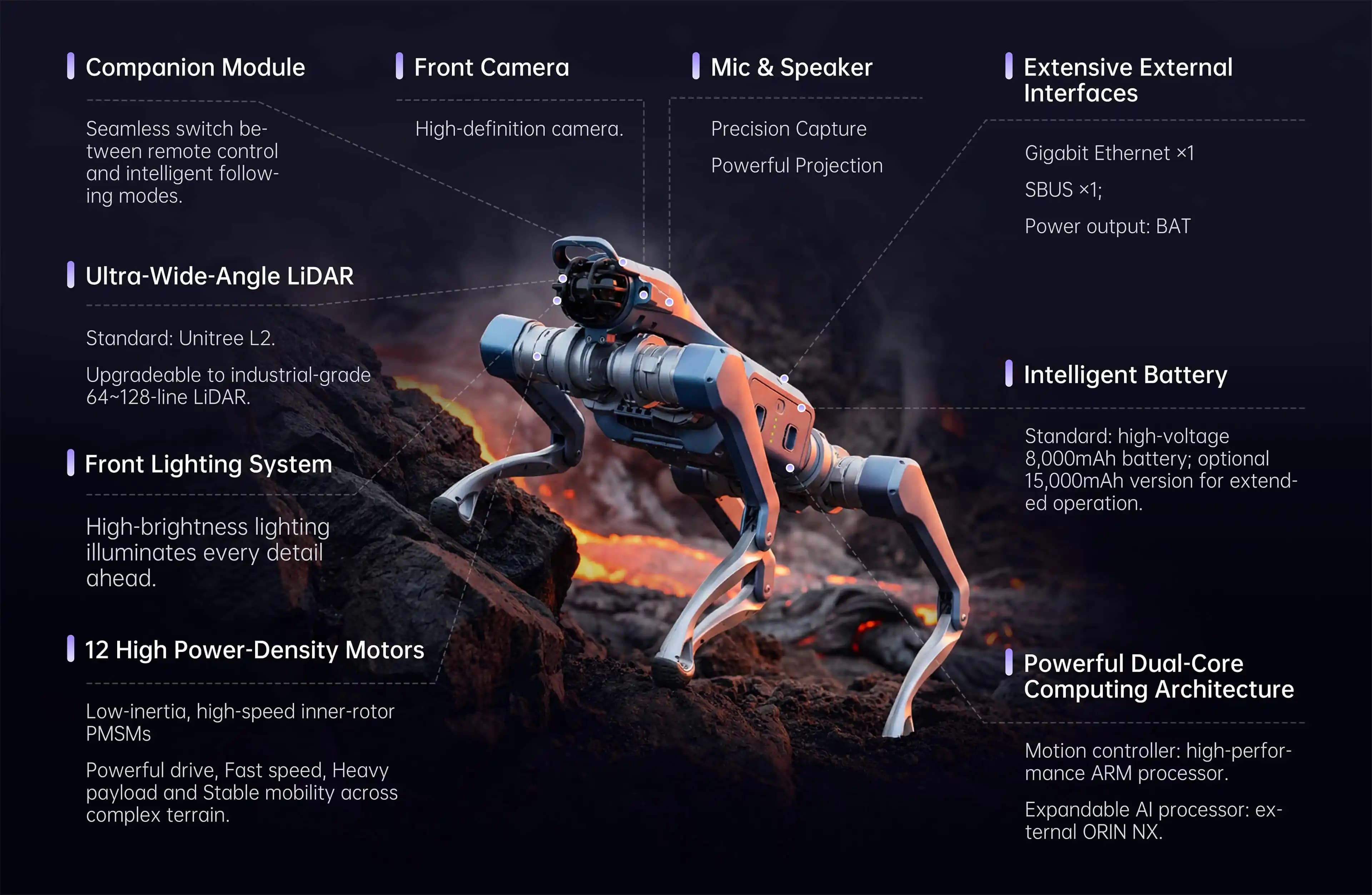

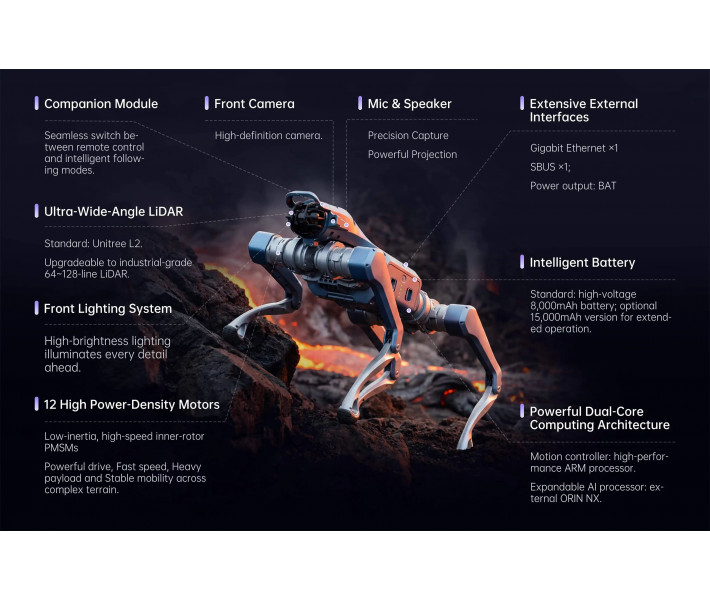

Key Features
- Compact industrial design with a weight of only 18 kg
- 12 high-performance robotic joints
- Maximum speed up to 3.0 m/s
- Maximum joint torque 65 N·m
- Ultra-wide-angle Unitree L2 LiDAR
- HD camera system
- 8-core high-performance CPU
- Wi-Fi 6 and Bluetooth 5.2 connectivity
- Built-in microphone and speaker
- OTA software updates

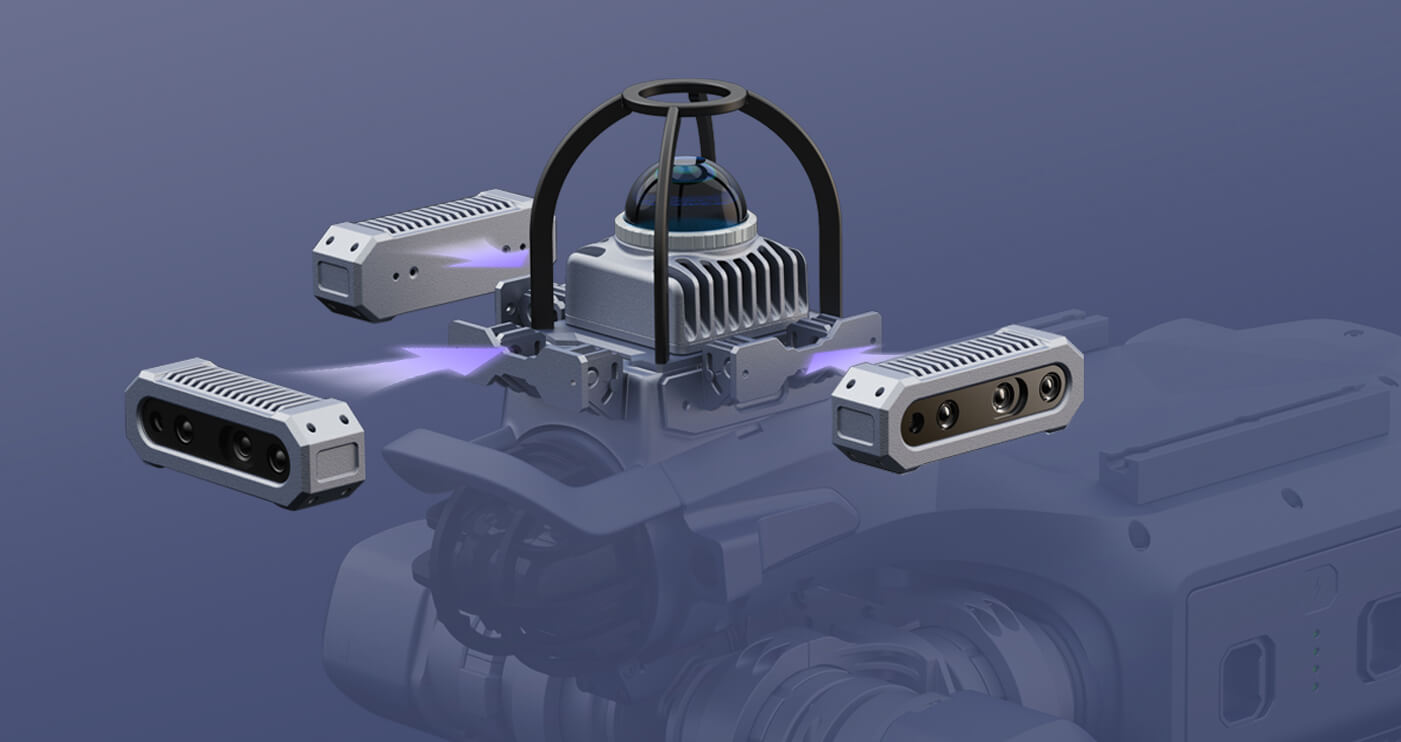

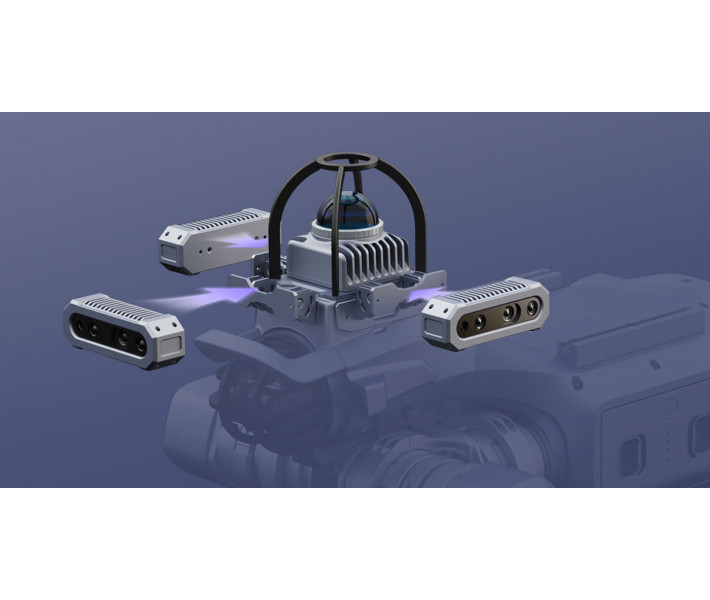

Intelligent Perception and Navigation
The Unitree As2 AIR combines visual perception and LiDAR technology to create an accurate understanding of its surroundings. The robot can autonomously navigate, avoid obstacles, and perform patrol and inspection tasks with minimal operator intervention.
- Real-time environmental mapping
- Autonomous navigation support
- Obstacle avoidance
- Industrial-grade positioning
- Advanced AI interaction
Applications
- Education & Research – robotics laboratories, AI development, engineering projects.
- Industrial Inspection – factory patrols, equipment monitoring, hazardous environments.
- Security & Surveillance – autonomous patrol routes and monitoring.
- Technology Development – AI, machine vision and robotics research.
- Events & Demonstrations – exhibitions and interactive presentations.
Performance Highlights
- Maximum speed: 3.0 m/s
- Maximum standing payload: 45 kg
- Continuous walking payload: 10 kg
- Slope climbing capability: 30°
- Stair climbing capability: 20 cm
- Operating temperature: -20°C to +50°C
- Continuous runtime: up to 2 hours
- Maximum travel distance: approximately 10 km
Technical Specifications
| Model | Unitree As2 AIR |
| Dimensions (Standing) | 720 × 378 × 457 mm |
| Dimensions (Folded) | 776 × 378 × 233 mm |
| Weight | Approx. 18 kg |
| Material | Aluminum Alloy + High-Strength Engineering Plastic |
| Degrees of Freedom | 12 |
| Maximum Joint Torque | 65 N·m |
| Processor | 8-Core High-Performance CPU |
| Camera | HD Camera |
| LiDAR | Unitree L2 Ultra-Wide LiDAR |
| Battery | 8000 mAh Lithium Battery |
| Runtime | Up to 2 Hours |
| Range | Approx. 10 km |
| Connectivity | Wi-Fi 6, Bluetooth 5.2 |
| Interfaces | Gigabit Ethernet, SBUS, BAT Power Output |
| Operating Temperature | -20°C ~ +50°C |
| Maximum Speed | 3.0 m/s |
| Maximum Standing Load | 45 kg |
| Continuous Walking Load | 10 kg |
| Slope Capability | 30° |
| Stair Climbing | 20 cm |
| Speaker | Yes |
| Microphone | Yes |
| Front Light | Yes |
| Remote Control | Optional |
| Warranty | 6 Months |
Package Contents
- Unitree As2 AIR Robotic Dog
- 8000 mAh Battery
- Battery Charger (50.4V 4A)
- User Documentation
- OTA Software Support
