Atmosphere Furnace SLQ1400-20

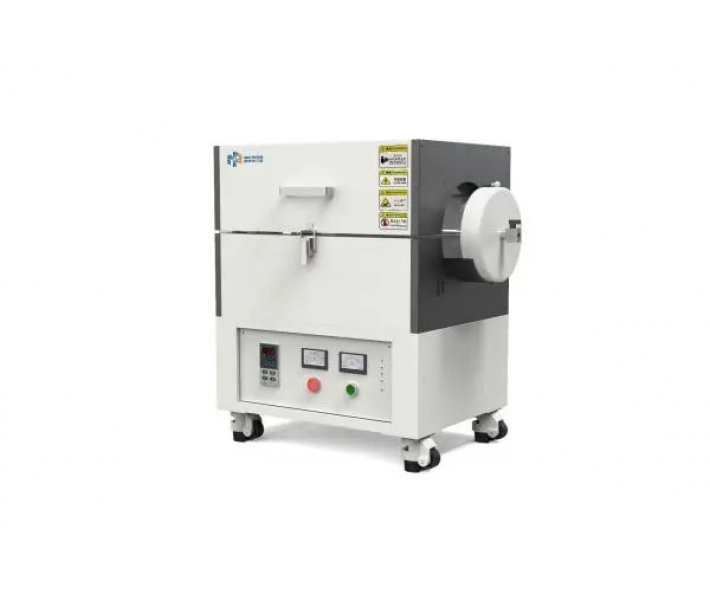

Atmosphere Furnace SLQ1400-20 — a chamber atmosphere furnace for thermal processing of materials at temperatures up to 1400 °C. The model is designed for high-temperature sintering, reduction processes, vacuum annealing, CVD research, melting, and laboratory testing. The furnace is equipped with a sealed chamber, door cooling system, and a programmable controller with 51 segments, allowing precise temperature cycle adjustments.

Why is thermal processing needed?

Thermal processing allows changing the properties of metals, ceramics, and other materials according to technological requirements. The controlled atmosphere in the chamber helps reduce surface oxidation, decrease carbon loss on the material surface, and achieve stable results during heating.

The Atmosphere Furnace SLQ1400-20 is suitable for laboratories, research centers, production enterprises, and research departments where temperature and gas environment control is necessary.

Main advantages of the SLQ1400-20 atmosphere furnace

• Silicon carbide heating elements for high-temperature operation.
• Programmable controller with 51 segments for creating complex temperature cycles.
• Temperature regulation accuracy of ±1°C.
• Automatic PID regulation and self-tuning function.
• Double casing with an air cooling system.
• Water cooling of the doors to maintain tightness during high-temperature operation.
• Support for various gases: nitrogen, argon, hydrogen, oxygen, and others.
• Overheat and thermocouple break protection functions.
• Capability to perform processes in vacuum and protective atmosphere.

Where the SLQ1400-20 atmosphere furnace is used

The SLQ1400-20 atmosphere furnace is designed for high-temperature sintering, vacuum annealing, thermal processing in a protective atmosphere, and conducting laboratory research.

• Research and development of new materials.
• Thermal testing of samples.
• Conducting CVD processes.
• Sintering of metal and ceramic blanks.
• Annealing of metal parts.
• Restorative thermal processing in a protective atmosphere.
• Firing of technical ceramics.
• High-temperature laboratory experiments.
• Educational and research work in higher education institutions.

Step-by-step preparation and start-up of the SLQ1400-20 furnace

Before starting work, the furnace should be installed on a flat, stable surface. The equipment should be placed away from explosive substances, gases, and flammable materials.

Connecting the furnace

1. Connect terminal L1 to the phase wire.
2. Connect terminal N to neutral.
3. Be sure to connect the grounding.
4. Check the correctness of all electrical connections before turning on.

Preparing the atmosphere in the chamber

For processes requiring a controlled atmosphere or vacuum, the manufacturer recommends pre-pumping the chamber:

1. Connect the vacuum pump to the furnace outlet pipe.
2. Pump air from the chamber to a pressure of about -0.03 MPa.
3. Supply protective gas at a pressure of up to 0.02 MPa.
4. Repeat the vacuuming of the chamber.
5. Repeat the cycle several times to achieve the necessary atmosphere in the working area.

Starting work

1. Turn on the automatic power switch.
2. Ensure the temperature controller is on and information appears on the display.
3. Turn on the water supply to the door cooling system and check circulation.
4. Place the material in the center of the working chamber using crucible tongs.
5. Tightly close the furnace door and secure all four quick-release clamps.
6. Supply protective gas and flush the furnace according to the instructions.
7. Supply protective gas at a pressure of up to 0.02 MPa and ensure its circulation through the furnace chamber. Maintain a positive pressure in the chamber during operation, not exceeding 0.03 MPa.
8. Set the heating, holding, and cooling program on the controller.
9. Start the program.

Before first use or after a long idle period, perform furnace drying according to the manufacturer's recommendations.

Configuration of the SLQ1400-20 atmosphere furnace

The SLQ1400-20 atmosphere furnace is supplied ready for installation and connection according to the manufacturer's requirements. The exact supply composition is recommended to be clarified before ordering.

1. Programmable temperature controller with 51 segments.
2. Built-in water cooling system for the doors.
3. Gas pipes for atmosphere connection.
4. Type S thermocouple.
5. Technical documentation.

Technical specifications

Expert tips from 3DDevice

• Before first use, be sure to perform furnace drying according to the manufacturer's instructions.
• Do not exceed the maximum temperature of 1400 °C.
• During operation in a gas atmosphere, maintain a slight excess pressure in the chamber.
• Monitor water circulation in the door cooling system. The sealing temperature should remain below 60 °C.
• Regularly check the condition of heating elements and electrical connections.
• It is forbidden to pour flammable liquids and molten metal into the chamber.

Need an atmosphere furnace for sintering, annealing, thermal processing, or laboratory research? The SLQ1400-20 atmosphere furnace is an effective solution for operation up to 1400 °C. Our specialists will help select the configuration, gas equipment, and provide consultations on connection and start-up.
