CreatBot F430 NX – the fastest IDEX 3D printer
CreatBot F430 NX is the fastest IDEX 3D printer in its price segment. It is designed for professional use. The device provides a full range of solutions for 3D printing tasks, from creating concepts and prototypes to manufacturing final products. High technical characteristics and reliability make the F430 NX an ideal choice for working with engineering.
High Temperature Heating Element Up to 420°C
One of the key features of the CreatBot F430 NX is its advanced heating element. With a die-cast memory alloy body and an ultra-wear-resistant nozzle, the hot end can withstand temperatures up to 420°C. The F430 NX industrial 3D printer never gets tired, because it is designed for continuous use.
Compatible materials with F430 NX:
- Consumer grade: PLA, PETG, PLA-CF, etc.
- Engineering materials: ASA, ABS, PC, Nylon, PET-CF, PET-GF, UltraPA-CF.
- Auxiliary materials: S-270, S-350.
The nozzle is highly wear-resistant – even after 2000 hours of printing with carbon fiber materials, its wear rate does not exceed 10%.
Independent Dual Extruders (IDEX)
The F430 NX features an independent dual extruder system, which expands your printing capabilities.
Operating modes:
- Single print.
- Dual print.
- Copy mode.
- Support print.
IDEX delivers superior print quality for complex engineering materials and simplifies the creation of products using support materials.
Large build volume: fast printing of large parts
If you buy the F430 NX industrial 3D printer, your printing capabilities will increase significantly, both literally and figuratively.
F430 NX print area size:
- Single print: 400 × 300 × 300 mm.
- Printing with support materials: 360 × 300 × 300 mm
This allows you to create larger products than most other professional printers in this segment.
Reinforced Z-axis in the fast F430 NX 3D printer
The F430 NX Z-axis motion system is designed to ensure stability and high precision. It includes:
- High-precision ball screw.
- Four reinforced optical axes.
These components ensure synchronous movement and a uniform model surface, minimizing possible printing defects.
Heat management system
The CreatBot F430 NX is equipped with an active heating system that prevents deformation and cracking of materials.
Temperature parameters:
- Print head temperature: up to 420 °C.
- Heated bed: up to 120 °C.
- Active chamber: up to 70 °C.
This system ensures stability and high print quality even for materials with a high level of shrinkage.
3D printer for large parts CreatBot F430 NX: accuracy and speed
The printer is designed to work with engineering-grade materials, maintaining the accuracy and rigidity of the structure even when printing large parts. The precise mechanics of the device prevent warping and ensure ideal adhesion of layers.
Ease of control
The F430 NX is equipped with a 5-inch high-resolution touch screen.
- User-friendly interface allows you to easily control the device.
- Instant response to touch simplifies the setup and operation process.

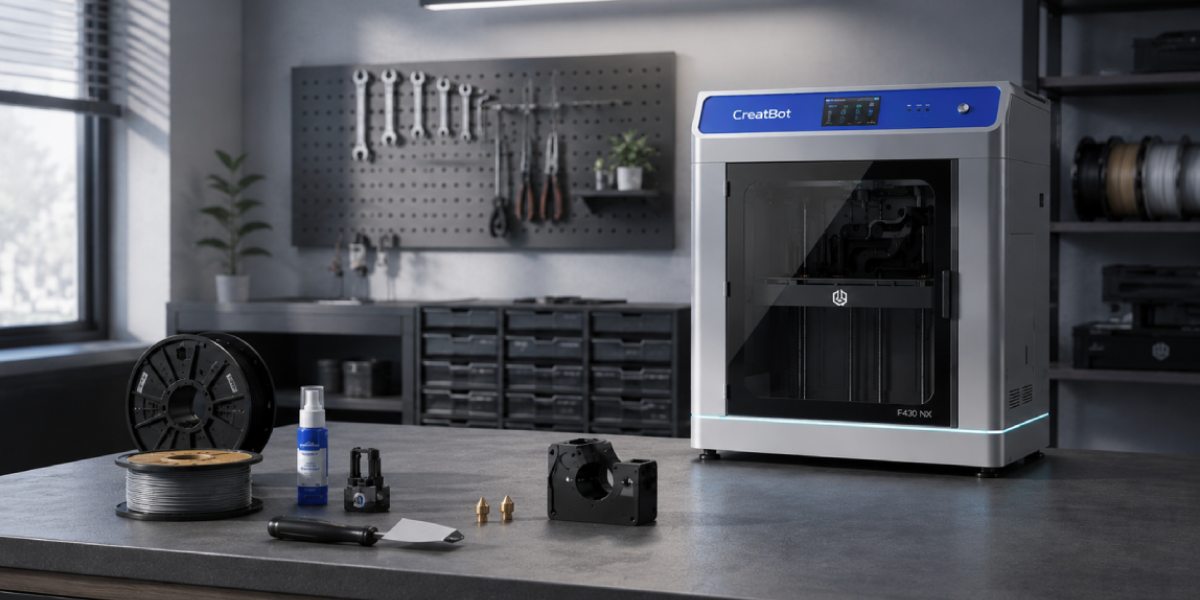

Full Package of CreatBot F430 Nx 3D Printer
CreatBot F430 Nx 3D printer is equipped with accessories, consumables, and service components necessary for starting the equipment, setup, and regular technical maintenance. The kit includes calibration tools, spare parts for the hot zone, extruder components, and starter materials for test 3D printing with technical filaments.
- 10A power cable for connecting the equipment.
- Data transmission cable for connecting the printer to a PC.
- USB flash drive with software and test files.
- Two glue sticks for improving model adhesion to the platform.
- Two PLA filament spools of 0.5 kg each for test printing.
- Low-temperature trio kit with 0.4 mm brass nozzle.
- High-temperature trio kit with 0.4 mm carbon steel nozzle.
- Two additional 0.4 mm brass nozzles.
- Installed 0.4 mm nozzle for standard 3D printing.
- Heating cartridge for the hotend.
- KTC temperature controller for stable print temperature control.
- Extruder tension mechanism kit for filament pressing (spring, knurled nut, and locking screw).
- Z Homing kit with Z-axis homing cable and rotary lever.
- 5160 Direct Plug driver for controlling stepper motors.
- 20A fuse for protecting the printer electronics.
- Set of screws including four black hex bolts 3x4.
- Phillips screwdriver for assembly and service maintenance.
- Polished scraper spatula for safe model removal.
- Tweezers for cleaning the 3D printing area.
- 0.1 mm calibration feeler gauge for adjusting the gap between the nozzle and the bed.
- Set of hex keys 1.5, 2.0, 2.5, 3.0, and 4.0 mm.
- Open-end wrenches 5.5x7 mm, M8, and 10x12 mm for service maintenance.
- Short needle for nozzle cleaning.
- Long needle for nozzle cleaning, 150 mm length.
CreatBot F430 NX Specifications
- Build Volume: 400 x 300 x 300 mm.
- Accuracy: 0.04 mm.
- Heating Elements:
- Print Head: Up to 420°C.
- Build Area: Up to 120°C.
- Chamber: Up to 70°C.
- Consumer Grade: PLA, PETG, PLA-CF, etc.
- Engineering Materials: ASA, ABS, PC, Nylon, PET-CF, PET-GF, UltraPA-CF.
- Support Materials: S-270, S-350.
- Print Modes: Single, Dual, Copy, Mirror.
Additional Features
The F430 NX is compatible with a wide range of 3D printing software and supports automatic adjustment functions. The manufacturer offers comprehensive technical support, including API development and customization of functions for specific needs.
Industrial 3D printing requires precision and an engineering approach to organizing the workflow. The fastest 3D printer CreatBot F430 NX is designed for such tasks.
It is the perfect combination of reliability, precision and innovation. It will become an indispensable tool for engineers, designers and manufacturers.
