AESUB Dices positioning for 3D scanner

Capture complex parts with AESUB Dices

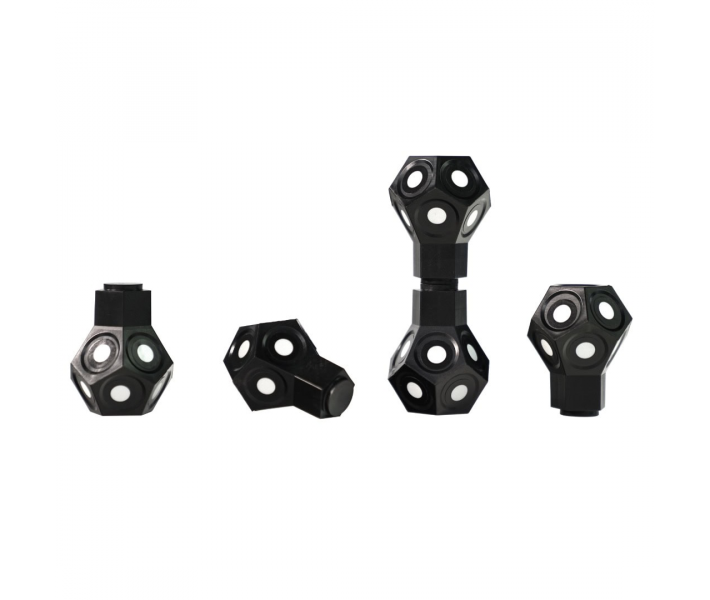

The special positioning AESUB Dices for 3D scanning have up to 11 reflective targets with a diameter of 6 mm and even more reflective targets with a diameter of 3 mm.

The dice are available in two different versions:

• Magnetized

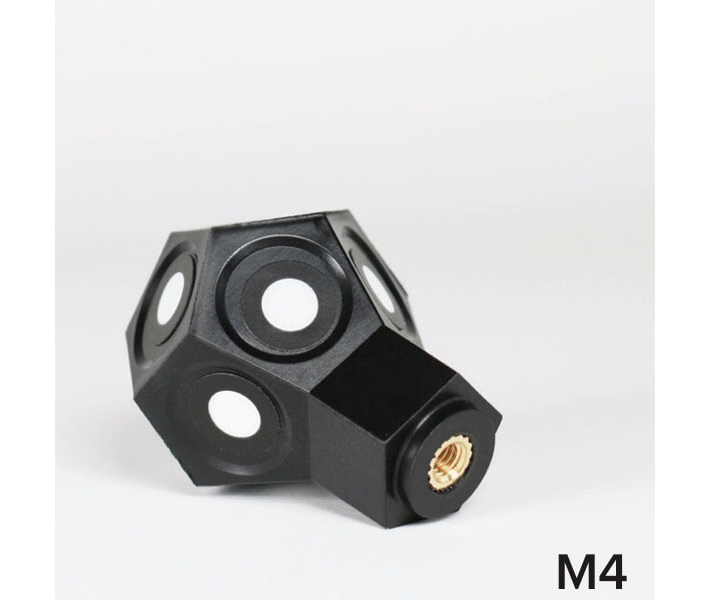

• With M4 thread

Magnetic AESUB Dices – positioning targets for 3D scanners

• Accurate scanning of complex objects. When markers are not possible due to small dimensions or delicate surfaces, AESUBDices come to the rescue.
• Fewer reference points. Increase your 3D scanning efficiency by using fewer anchor points, which is especially useful when working with rotation or multiple views during scanning.
• Lightweight and portable. AESUB cubes won’t weigh down your scanning process because they are lightweight and easy to transport.
• Two mounting options. Choose between magnetic attachment to metal surfaces or M4 threaded connection for non-magnetic surfaces.
• Minimize data loss. The beveled bottom of Dices minimizes data loss during scanning.

Applications

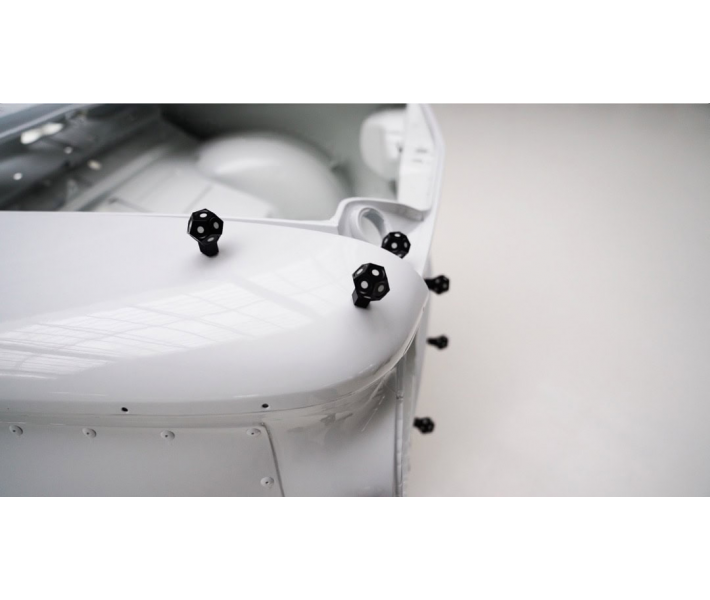

Simply place several AESUB Dices around the object you are scanning on a table or other surface. This will greatly improve your 3D scanning workflow, ensuring accuracy and efficiency.

Benefits

• Reduces dependence on reference points.
• Improves your 3D scanning workflow.
• Increases accuracy and detail.
• For different types of surfaces – magnetic or threaded.
• Lightweight and easy to use.

Buy magnetic positioning marks for 3D scanning
