Wireless Metrology 3D Scanning with a Hybrid Light Source

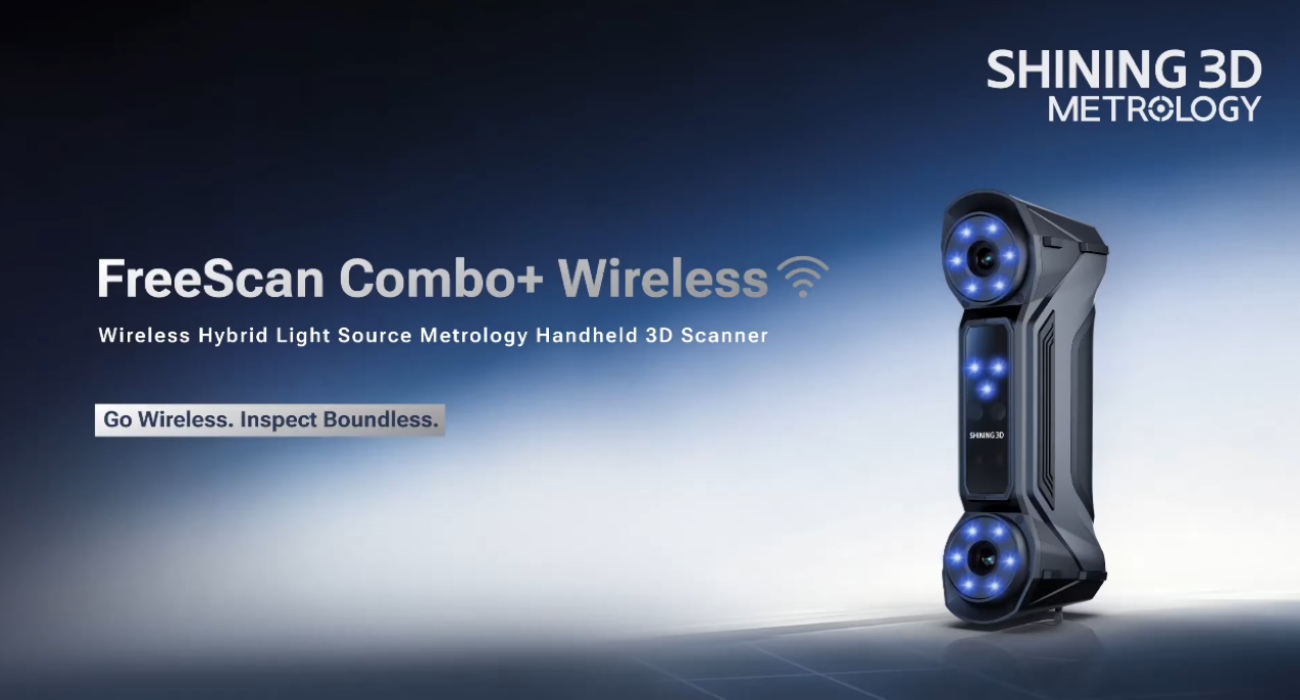

SHINING 3D FreeScan Combo+ Wireless — is a wireless metrology-grade handheld 3D scanner with a hybrid light source system. The model supports Wi-Fi 7, five scanning modes, built-in VPG video photogrammetry, and a data acquisition speed of up to 9106000 points/s. The scanner is designed for inspection, quality control, and reverse engineering in the automotive industry, heavy industry, transportation, energy, and other manufacturing sectors.
Advantages of FreeScan Combo+ Wireless
- Freedom of movement during measurement. Wireless data transmission simplifies working around parts and in production environments without a permanent cable connection to the scanner. Wi-Fi 7 together with anti-interference technology is used for communication.
- High-speed 3D data acquisition. The system reduces the number of passes required to digitize a surface and enables faster work with complex geometries. High-speed mode uses 93 laser lines, the frame rate reaches 180 frames/s, and the scanning speed is up to 9 106 000 points/s.
- Accurate metrology measurements. The scanner enables the acquired data to be used for inspection and dimensional control of parts. Accuracy is 0.02 mm, while volumetric accuracy is 0.02 mm + 0.03 mm/m.
- Accuracy control on large parts. VPG technology reduces accumulated error as the size of the measured object increases. The system corrects the spatial position of reference markers during scanning, while volumetric accuracy with VPG is 0.02 mm + 0.015 mm/m.
- Working with different geometries using a single scanner. Multiple modes allow the scanning process to be adapted to large components, detailed surfaces, deep holes, and high-speed scanning. Available modes include high-speed scanning with 93 laser lines, detailed scanning with 25 parallel lines, deep-pocket scanning with 1 laser line, VPG, and infrared scanning.
- Convenient operation in hard-to-reach areas. The compact housing and low weight simplify scanner positioning around complex structures and in confined spaces.
- Autonomous operation without frequent battery replacement. The scanner can be used for extended measurement sessions without wired power. The battery provides up to 2 hours of continuous scanning, while a charging dock is used for quick replacement and charging.
Wireless 3D Scanning with Wi-Fi 7
FreeScan Combo+ Wireless uses Wi-Fi 7 for fast and stable wireless data transmission. The anti-interference system helps maintain a reliable connection when working in production facilities and outdoor environments. If required, the scanner can also be connected via USB 3.0.
The wireless connection gives the operator greater freedom during scanning. It is possible to move freely around the part without a cable, which is especially convenient when working with large objects and in hard-to-reach areas.
Measurement accuracy and metrology control
FreeScan Combo+ Wireless accuracy is 0.02 mm, enabling precise verification of part dimensions and shape. Volumetric accuracy is 0.02 mm + 0.03 mm/m, while with VPG technology it reaches 0.02 mm + 0.015 mm/m. This level of accuracy is important when scanning large parts where the entire object must be measured precisely.
The scanners are calibrated in the SHINING 3D laboratory, which is accredited by CNAS in accordance with ISO 17025. Accuracy verification is performed in accordance with ISO 10360, confirming the system's suitability for precise measurements and dimensional inspection of parts.
VPG Video Photogrammetry for Large Parts
Built-in Video Photogrammetry technology is designed for metrology-grade 3D scanning of large components. During data acquisition, the system corrects the spatial position of reference markers, helping to reduce accumulated error over large distances. With VPG, volumetric accuracy is 0.02 mm + 0.015 mm/m.
Scanning Speed and 93 Laser Lines
In high-speed mode, FreeScan Combo+ Wireless uses 93 laser lines, enabling more data to be captured in a single pass and allowing surfaces to be scanned faster. Scanning speed reaches 9 106 000 points/s.
A frame rate of up to 180 frames/s ensures stable tracking even when the scanner is moved quickly. The system is suitable for scanning complex surfaces, deep holes, narrow slots, and large parts. The 3D mesh is generated in real time, allowing the result to be monitored directly during operation.
FreeScan Combo+ Wireless Scanning Modes
FreeScan Combo+ Wireless has five modes that differ in how geometry is captured and in their intended applications.
- High-speed scanning. The mode with 93 laser lines is designed for fast surface data acquisition.
- Detailed scanning. The mode with 25 parallel laser lines is used for detailed geometry acquisition.
- Deep-pocket scanning. One laser line is used for deep holes, recesses, and other areas that are difficult to scan.
- VPG. Video photogrammetry mode is designed for working with large components and controlling volumetric accuracy.
- Infrared rapid scanning. IR Rapid Scan mode is used for fast geometry acquisition using a VCSEL infrared light source.
Scanning Complex Geometries and Hard-to-Reach Areas
The combination of detailed mode and a dedicated single laser line allows the scanning method to be selected according to the shape of the object. The scanner is suitable for working with complex surfaces, deep holes, and narrow slots. Its compact and lightweight housing simplifies operation in hard-to-reach areas and confined spaces. A dedicated single-laser-line mode is provided for scanning deep recesses.
Software and Quality Control
FreeScan Combo+ Wireless supports a direct transition from 3D data acquisition to working in SHINING3D Inspect. The software provides tools for dimensional analysis, GD&T evaluation, color map comparison, and report generation. SHINING3D Inspect is PTB certified.
During scanning, the software displays the mesh in real time. Automatic recognition of circular and rectangular hole and slot boundaries, automatic adjustment of mesh resolution according to surface curvature, and visual quality control of the acquired data are also available. The distance to the object can be monitored by the color of the laser lines in the 3D window or by the scanner's LED indicator.
FreeScan Combo+ Wireless Applications
FreeScan Combo+ Wireless can be used for:
- Inspection. Checking the shape, dimensions, and geometry of parts.
- Quality control. Comparing acquired data with specified parameters and identifying deviations.
- Reverse engineering. Acquiring 3D data from finished parts for further work with their geometry.
- Scanning large parts. VPG mode helps maintain accuracy when working with large objects.
- Scanning complex areas. The single-laser-line mode is designed for deep holes and recesses.
The model is designed for use in the automotive industry, heavy industry, transportation, and energy.
SHINING 3D FreeScan Combo+ Wireless Technical Specifications
Main Technical Specifications
| Parameter | Value |
| Accuracy | 0.02 mm |
| Volumetric accuracy | 0.02 mm + 0.03 mm/m |
| Volumetric accuracy with VPG | 0.02 mm + 0.015 mm/m |
| Maximum scanning speed | Up to 9 106 000 points/s |
| Frame rate | Up to 180 frames/s |
| High-speed mode | 93 laser lines |
| Detailed mode | 25 parallel laser lines |
| Deep-pocket mode | 1 laser line |
| Infrared mode | IR Rapid Scan with VCSEL |
| Video photogrammetry | Built-in VPG |
| Battery scanning time | Up to 2 hours |
| Maximum scan area | 580 × 650 mm |
| Working distance | 300 mm |
| Connectivity | Wi-Fi 7, USB 3.0 |
| Operating temperature | From -10 to 40 °C |
| Operating humidity | From 10 to 90% |
| Certifications | CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX |
| Acceptance testing | ISO 10360 |
| Inspection software | SHINING3D Inspect |
| Net dimensions | 189 × 81 × 53 mm |
| Net weight | 0,550 kg |
Computer System Requirements
| Parameter | Value |
| Operating system | Windows 10 Pro 64 bit, Windows 11 Pro 64 bit |
| Processor | Intel Core Ultra 9 275HX |
| Graphics card | NVIDIA GeForce RTX 5080 Laptop GPU or higher |
| Video memory | 12 GB or more |
| RAM | 64 GB or more, DDR5 dual channel |
| Computer interface | USB 3.0 |
Order SHINING 3D FreeScan Combo+ Wireless
SHINING 3D FreeScan Combo+ Wireless is worth considering for metrology-grade 3D scanning, quality control, dimensional inspection, and reverse engineering of parts of different sizes. We will help you select the configuration and provide advice on the capabilities of SHINING 3D FreeScan Combo+ Wireless and delivery terms.
