3D scanner SHINING 3D FreeScan Combo+

950 000 грн.

Red Dot Award 2024 Winner

The FreeScan Combo+ is a compact and versatile hybrid laser-infrared scanner. Metrological accuracy and application flexibility. 50 laser lines offer high speed and accuracy of data collection.


Free training on how to use the 3D scanner and related programs.

3DDevice is the official representative of SHINING3D in Ukraine.

Официальный партнер Shining 3D в Украине

Description

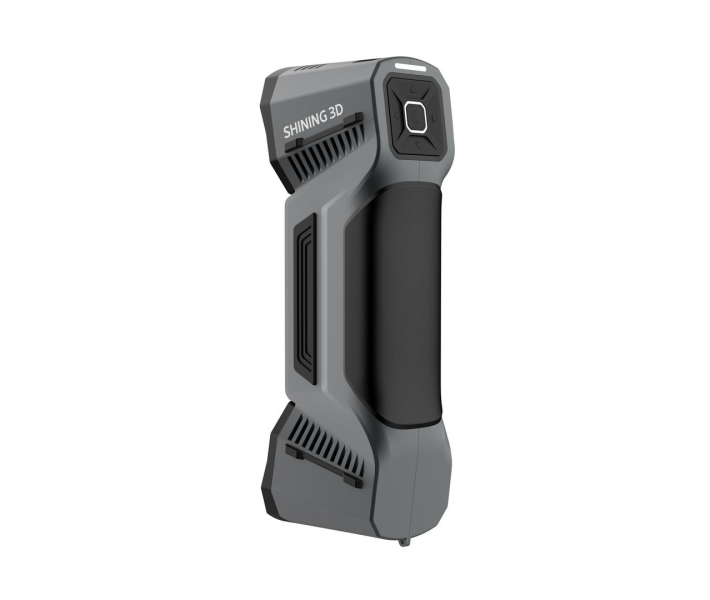

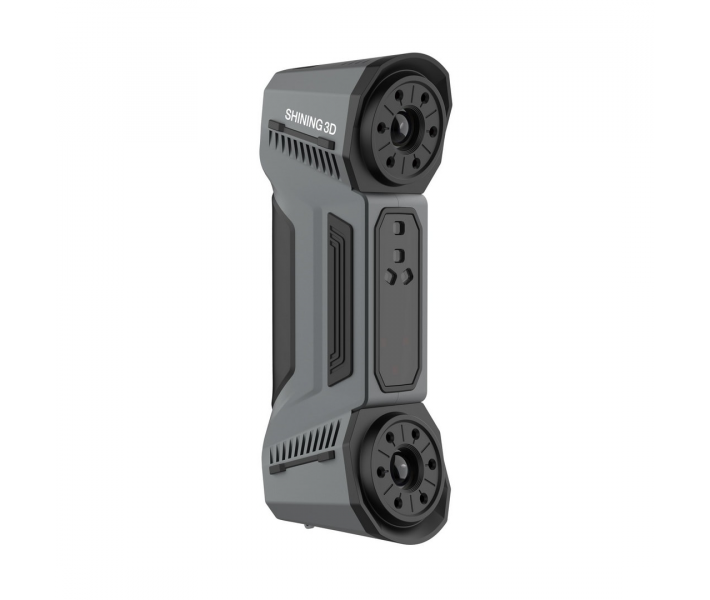

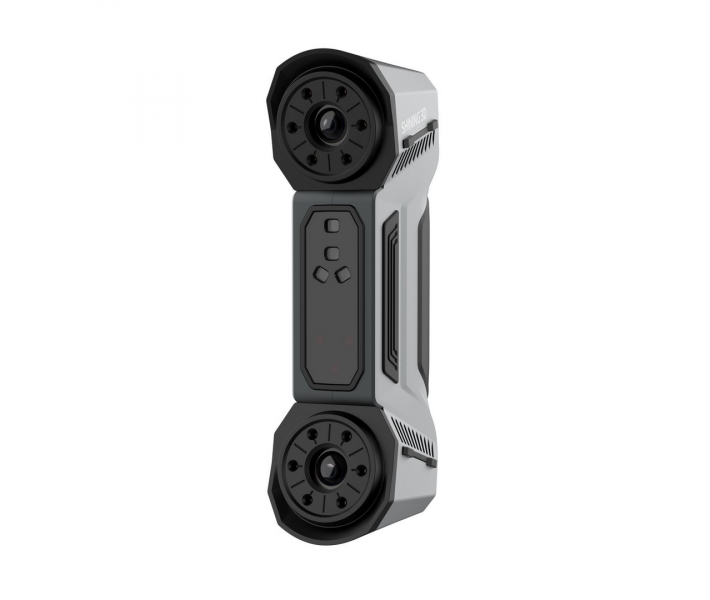

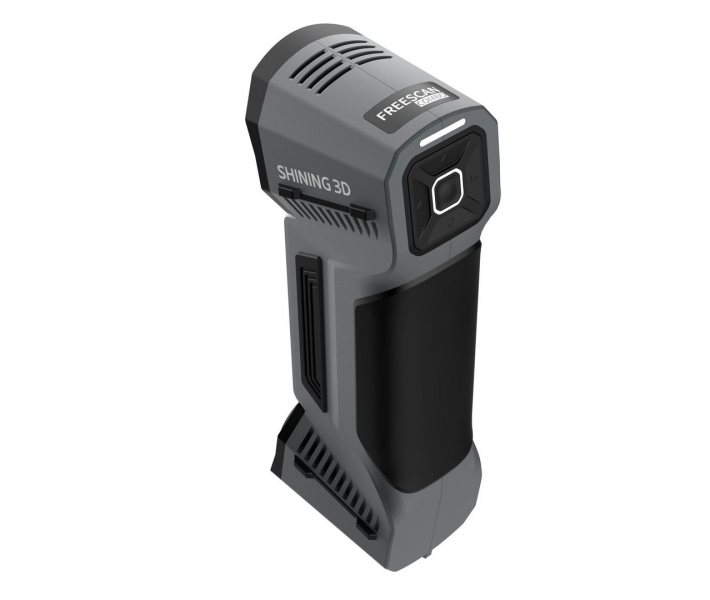

Compact metrological 3D scanner FreeScan Combo+

Compact and powerful metrology tool 3D scanner FreeScan Combo+, price in the online store 3DDevice – the official representative of Shining 3D in Ukraine.

The powerful FreeScan Combo+ contains two light sources in an ultra-compact body measuring only 193*63*53 mm, which simplifies its use in small scanning environments and makes it a versatile scanner. It is equipped with both blue laser and VCSEL infrared technology and weighs only 620 g.

The efficiency of the FreeScan Combo series combined with its hybrid technology, wide field of view and material adaptability makes it highly versatile.



Red Dot Award 2024 Winner

The FreeScan Combo+ handheld 3D scanner has outstanding features that set it apart from the competition. It was recognized with the Red Dot Award 2024.

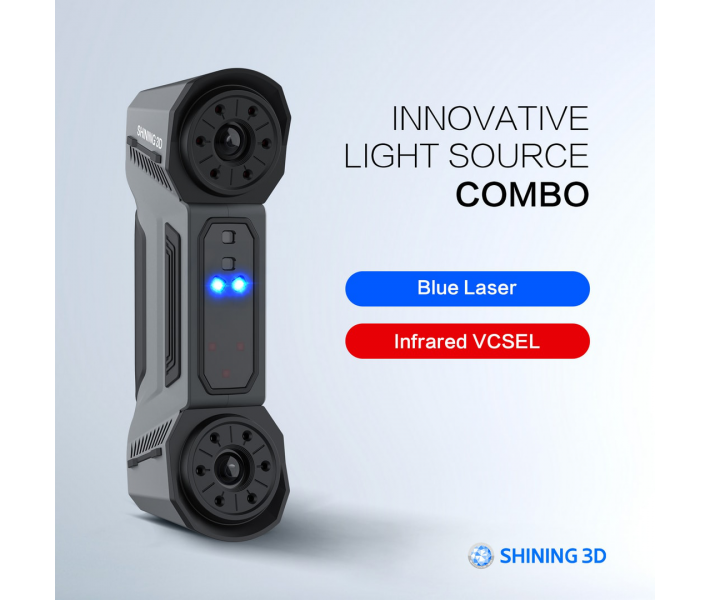

  • Hybrid scanner of metrological class. Blue laser and infrared VCSEL light.

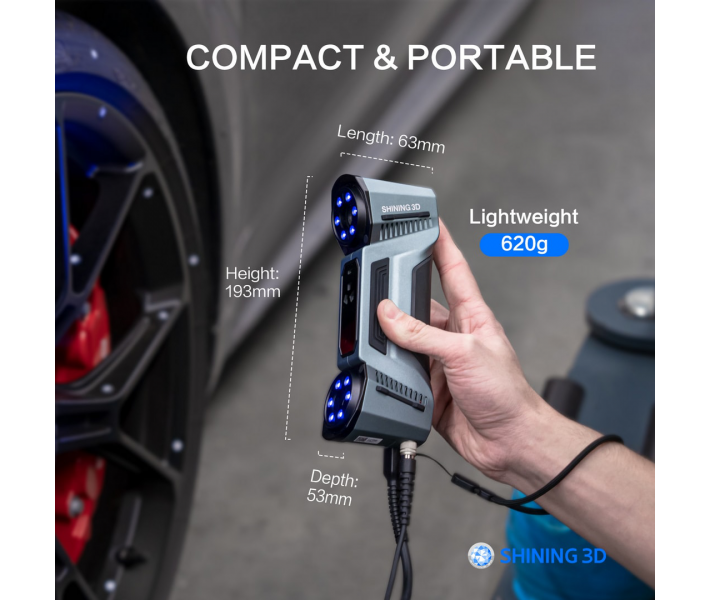

  • Ultra-compact. Dimensions only 193*63*53 mm, weight 620 g.
  • Accuracy up to 0.02 mm.
  • Scanning speed up to 3600000 dots/s, which is provided by the projection of up to 50 laser lines.

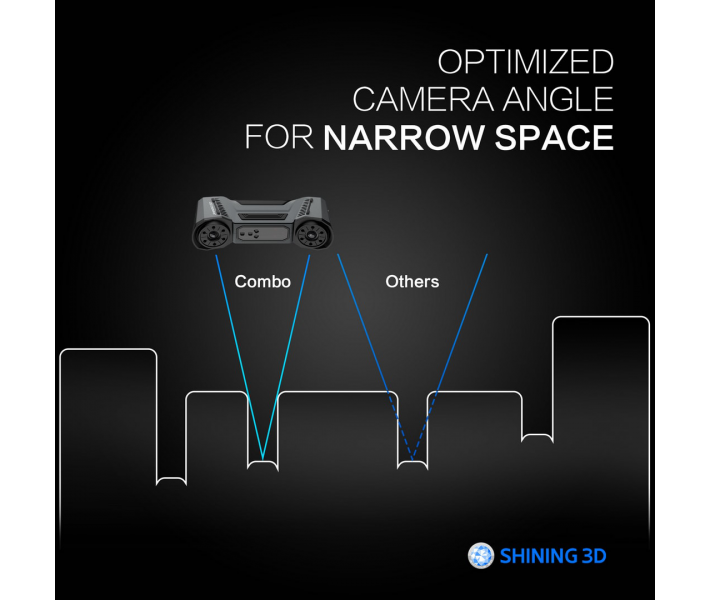

  • Optimized camera viewing angle for scanning narrow spaces (holes, crevices, etc.).



4 operating modes – a versatile 3D scanner

Thanks to its various scanning modes and technologies, the FreeScan Combo+ can adapt to many applications. This lightweight, portable 3D scanner offers four modes:

  • Multi-line scanning, 50 laser lines for easy scanning of large areas.
  • Precision scanning, 7 parallel laser lines for scanning the smallest details.
  • 1 single laser line can obtain 3D data from narrow areas such as holes.
  • In infrared mode, it can scan without positioning markers.



Scan deep holes with complete data

The scanner’s optimized lens angle and single-line mode provide comprehensive data acquisition for deep holes and pockets. Scan and inspect every single part of your workpiece.



Precise scanning with FreeScan Combo+



Fast and accurate 3D scanner FreeScan Combo+ best price

The scanning speed of the FreeScan Combo+ reaches 3,600,000 pixels per second in laser scanning mode and 2,250,000 pixels per second in infrared mode. The FreeScan Combo+ provides a high accuracy of 0.02 mm in accordance with the VDI-VDE 2634-2 standard, while capturing a huge amount of data per second.



Metrological accuracy in accordance with VDI-VDE 2634-3

Application of the FreeScan Combo+ scanner



Intuitive and free software

FreeScan Combo+ provides a simple workflow with its powerful and user-friendly software that integrates connections to popular 3D inspection and design applications and allows for more efficient import of scan data.



3D scanner FreeScan Combo+ price



FreeScan Combo+ applications

The FreeScan Combo+ is used for precision metrology inspection, reverse engineering, product development, additive manufacturing, and other demanding applications in a wide range of sectors. This includes automotive, aerospace, rail, heavy industry, mold making, foundry, and medical industries.



Specifications

Scanner typeHybrid portable scanner. Combination of blue laser + VCSEL infrared light
Scan modeMulti-line scanningSingle-line scanningAccurate scanningInfrared scanning
Light50 laser linesOne laser line7 parallel laser linesVCSEL light source
Working distance300 mm300 mm200 mm300 mm
Scanning speed3,600,000 pixels/s2250000 pixels/s
Scanning accuracyUp to 0.02 mm/
Volumetric accuracy0.02 + 0.033 mm/mm0.05 + 0.1 mm/m
Scan depth360 mmMaximum 1240 mm
Maximum viewing angle520*510 mm600*600 mm
Point distance0.05 – 10 mm0.1 – 3 mm
Laser classClass II (safe for eyes)
Connection standardUSB 3.0
Input power12, 5.0 A
Working temperature-20 ~ 40 °C
Working humidity10~90%
CertificationCE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50
Recommended computer configurationOS: Windows 10 Pro (64-bit)/Windows 11 Pro (64-bit). Processor: 13th Gen Intel (R) Core (TM) i7-13650HX 2.6 GHz or higher. Video card: NVIDIA GeForce RTX 4060 or higher. Video memory: 8 GB or higher. RAM: 64 GB or higher, DDR5 dual-channel. USB port: USB 3.0
weight, kg0.62
Dimensions, mm193*63*53



What’s in the box?

  • 3D scanner FreeScan Combo+
  • USB flash drive
  • Key
  • Power adapter
  • Calibration plate
  • Certificate and quick start guide
  • Markers
  • Power cable
  • USB cable





Buy FreeScan Combo+ metrology 3D scanner in Ukraine

As the official representative of Shining 3D in Ukraine, 3DDevice offers the best prices for 3D scanners and free training on how to use the scanner.
