Multimaterial 3D Printing in the FDM System Flashforge Creator 5 Pro

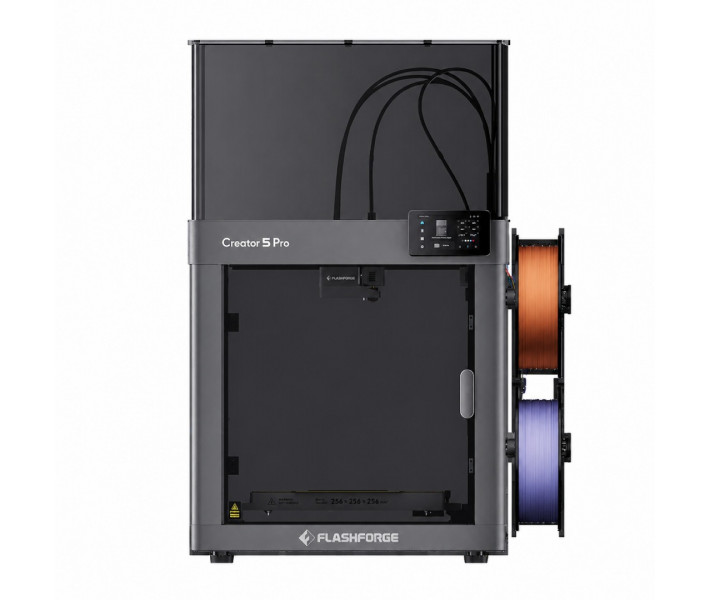

3D Printer Flashforge Creator 5 Pro is an industrial FDM printer with a build volume of 256 × 256 × 256 mm. It is equipped with a chamber with active heating up to 65 °C and a FlashSwap system with four independent print heads. This model is designed for printing large technical parts, prototypes, and serial production. The FlashSwap interchangeable print module system and hotends with heating up to 320 °C allow four heads to work autonomously. This design minimizes the risk of contamination of one material with residues of another during tool switching.
Why Choose Flashforge Creator 5 Pro

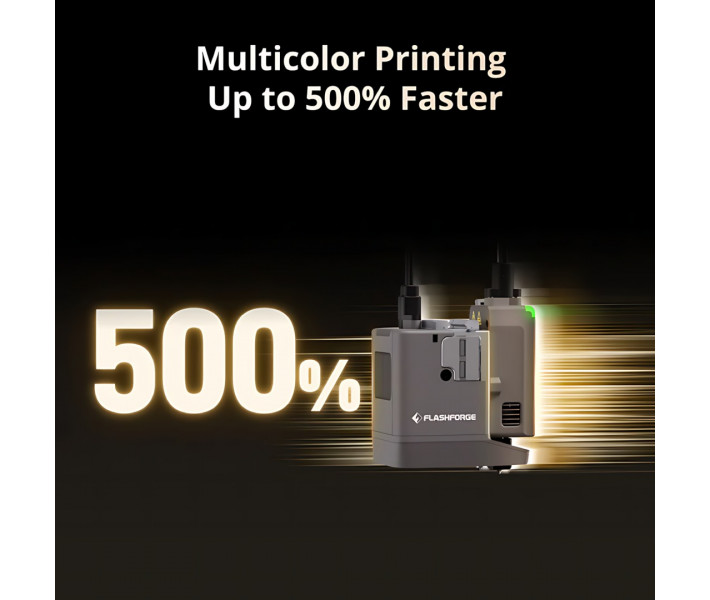

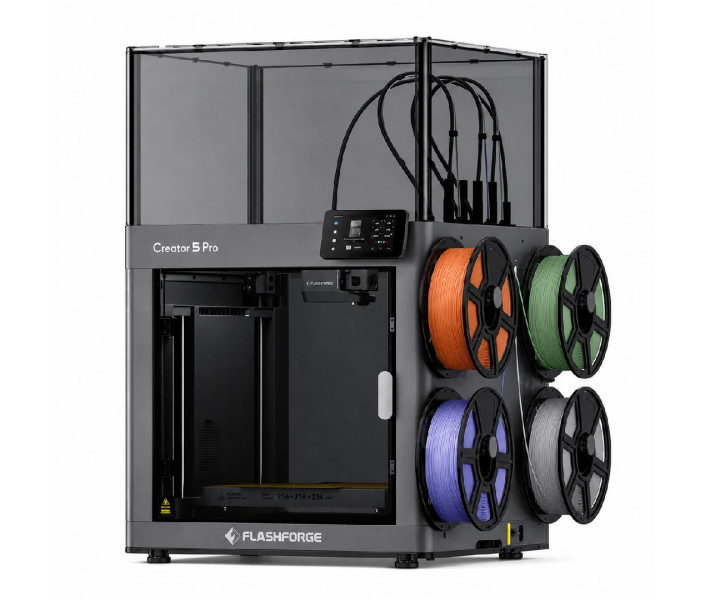

- Multicolor and Multimaterial Printing: FlashSwap automatic tool change system supports simultaneous operation of up to 4 independent extruders.
- Waste-Free Printing: Quick nozzle change technology completely eliminates the need for purging and forming waste blocks when switching to another color or material.

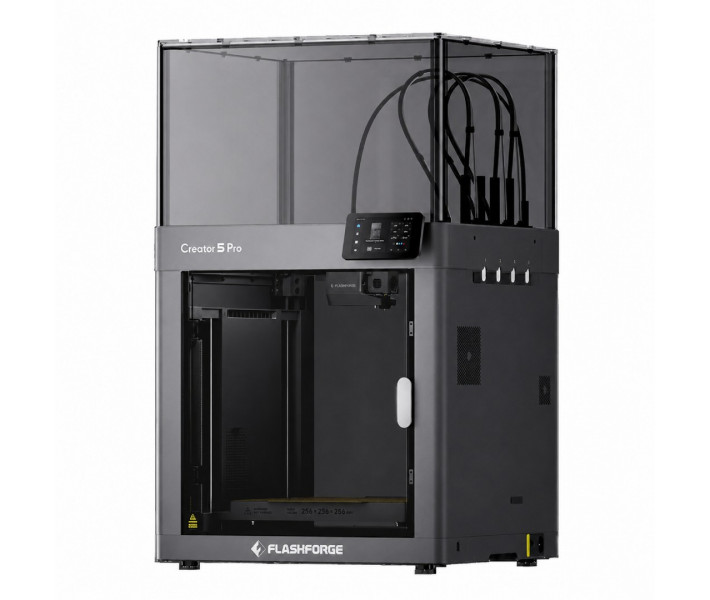

- Plastic Deformation Control: Closed chamber with active heating up to 65 °C prevents cracking and shrinkage of engineering plastics like ABS, ASA, Nylon.
- High-Speed Kinematics: Stable printing at speeds up to 300 mm/s with acceleration up to 30,000 mm/s².
- Efficient Air Cleaning: Two-level filtration system with HEPA H13 filter and activated coconut shell carbon for capturing dust and fumes.
- Automatic Setup: Fully automatic calibration system that independently levels the platform, compensates for vibrations, and calibrates the mutual position of the nozzles.
- Remote Monitoring: Built-in HD camera 1280 × 720 for real-time printing process control and timelapse recording.
Technological Features of Printing Units
Architecture with Independent Print Heads for Multimaterial Printing
The design of Creator 5 Pro uses the FlashSwap system with four independent print heads that move autonomously.
Practical Use Cases:
- Simultaneous printing of two identical parts (duplication mode);
- Simultaneous printing of mirror copies of a part (mirror mode);
- Use of special support materials (e.g., water-soluble PVA or BVOH);
- Combining rigid structural plastics with flexible ones (e.g., TPU).
This architecture is indispensable for creating parts with internal cavities, thin walls, and overhanging elements.
Working with FlashSwap Modules
The user can install different FlashSwap modules depending on the tasks—from high-speed print heads for standard materials to high-temperature units with heating up to 320 °C for composite filaments.

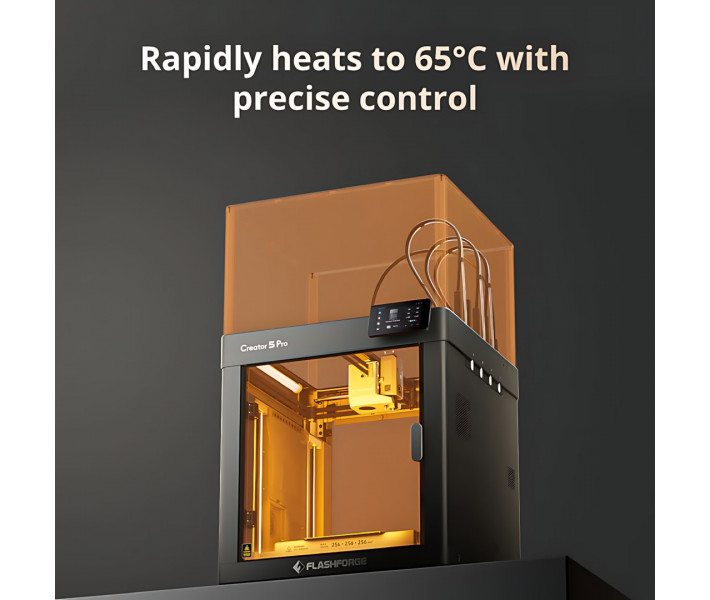

Active Chamber Heating
Maintaining a stable temperature of 65 °C around the part throughout the entire printing cycle minimizes internal stress in the material. This prevents deformation and corner peeling in large products, and significantly improves layer adhesion strength when working with engineering plastics (ABS, ASA, Nylon, PC).
Compatible Materials
Thanks to the closed chamber with heating up to 65 °C and high-temperature extruders, Flashforge Creator 5 Pro supports a wide range of industrial and engineering filaments.
- Optimal Materials: PLA, PETG, TPU, as well as specialized support materials (PVA, BVOH).
- Supported Engineering Materials: ABS, ASA, PC, Nylon (PA), PP, as well as composites filled with carbon or glass fiber (PACF, PET-CF, PP-GF, PA-GF).
- High-Strength Structural Plastics: Ultra-strong materials like PPA-CF, PPA-GF, and PPS-CF.
Recommendation for Composites: When working with materials containing carbon or glass fiber, it is necessary to install a wear-resistant extruder with a hardened nozzle (Hardened Nozzle from the FlashSwap system) and use an external filament drying station to prevent hydrolysis.

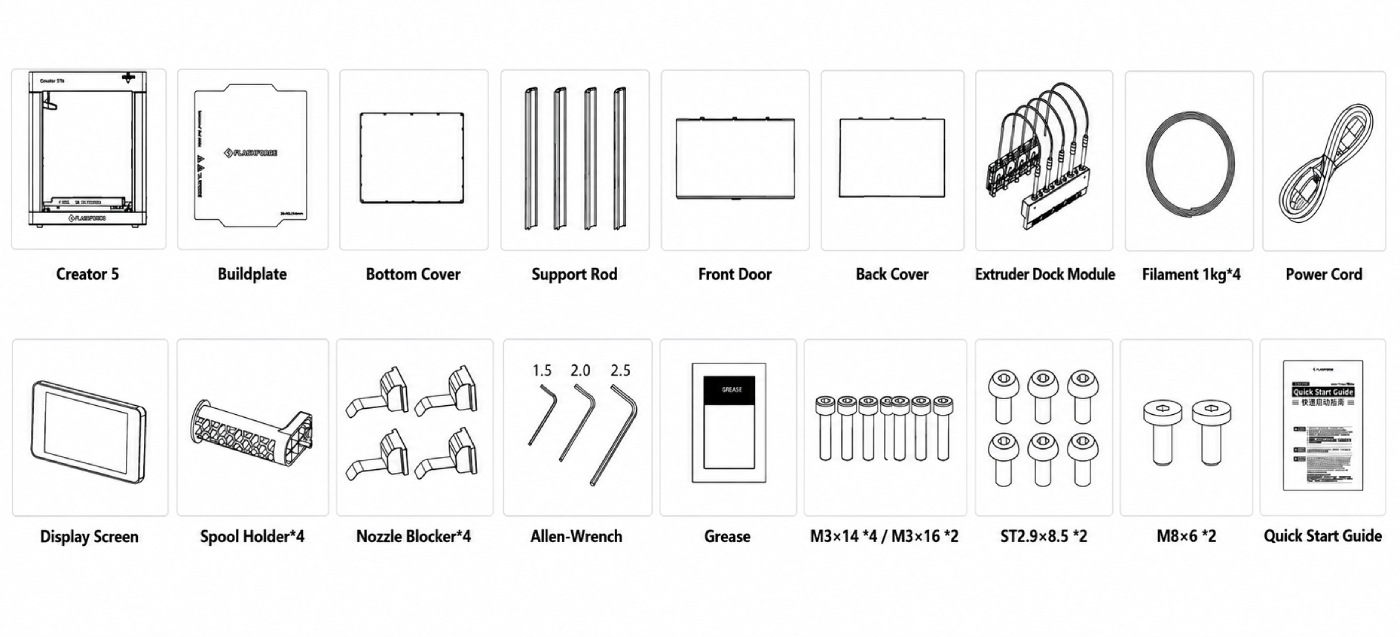

Package Contents of Flashforge Creator 5 Pro
- 3D Printer Flashforge Creator 5 Pro.
- Four independent print heads of the FlashSwap system.
- Textured flexible magnetic plate (PEI).
- Nozzle lock clips.
- Test filament spools — 4 pcs.
- Docking station module for extruders.
- Filament guide tubes and spool holders.
- Built-in dual-component air filtration system HEPA H13 + activated carbon.
- Built-in HD camera.
- Toolbox for maintenance (set of keys, axis lubricant, fasteners).
- Power cable.
- Quick start guide.
Technical Specifications
| Parameter | Value |
| Printing Technology | FDM / FFF |
| Chamber Type | Closed |
| Printing System Type | FlashSwap |
| Number of Nozzles | 4 |
| Filament Diameter | 1.75 mm |
| Standard Nozzle | 0.4 mm |
| Supported Nozzles | 0.25 / 0.4 / 0.6 / 0.8 mm |
| Max. Nozzle Temperature | 320 °C |
| Max. Platform Temperature | 120 °C |
| Max. Chamber Temperature | 65 °C |
| Max. Movement Speed | 600 mm/s |
| Max. Printing Speed | 300 mm/s |
| Max. Acceleration | 30,000 mm/s² |
| Max. Volumetric Productivity | 32 mm³/s |
| Working Surface | Textured flexible PEI plate |
| Max. Build Volume | 256 × 256 × 256 mm |
| Automatic Platform Leveling | Yes |
| Material Feed Control | Filament end sensor and automatic flow calibration |
| Air Filtration System | HEPA H13 filter + activated carbon |
| Monitoring Camera | Built-in HD camera 1280 × 720, 30 fps |
| Display | 4" touch color screen 800 × 480 |
| Built-in Memory | Yes |
| Connection Interfaces | USB, Wi-Fi |

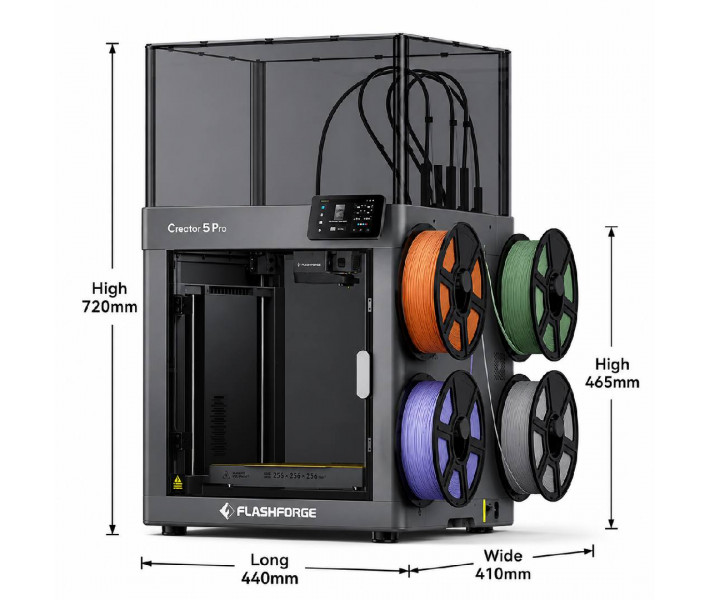

| Dimensions without Filament Holders | 441 × 411 × 460 mm |
| Device Weight | 18 kg |
Warranty, Service, and Support
The Flashforge Creator 5 Pro 3D printer comes with an official 12-month manufacturer warranty. Our engineers provide qualified consultations on setting up profiles for various engineering and composite materials.
