- Stock: In Stock
- Product code: 00-08800144
- SKU: PKG-F4BL-WSVC-COMPLETE-230V

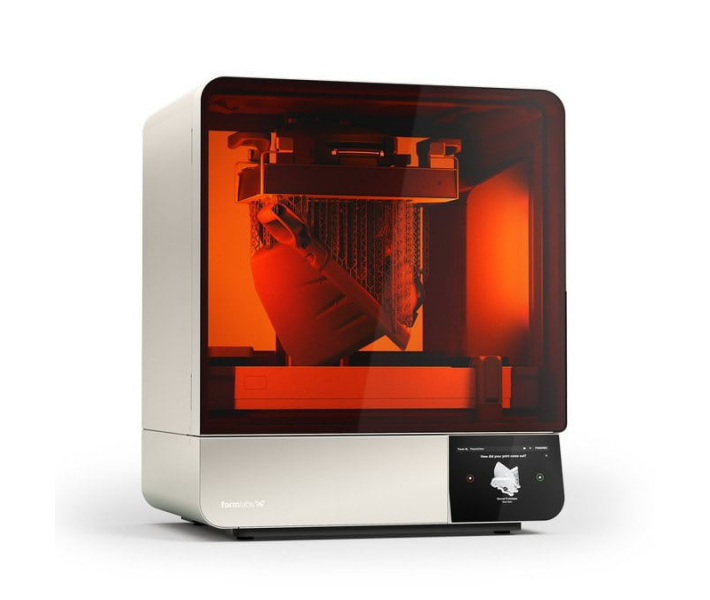

Formlabs Form 4BL Medical 3D Printer Complete Package
The Complete Package includes the Form 4BL medical 3D printer and a set of equipment at a more affordable price, so you can immediately start printing fast and efficiently for healthcare.
The Form 4BL is an extremely fast, large-format printer that prints biocompatible anatomical models and sterilizable medical devices with easy workflows, the highest reliability, versatile materials, and stunning part quality through the Form 4BL ecosystem. Choose from Formlabs’ extensive library of materials for the medical, dental, and orthodontic industries.
- Concept research
- Prototyping with a simulated appearance
- Functional prototyping
- Same day turnaround
Features of the Form 4BL medical printer
- Large parts. Solve big problems with large parts.
- Biocompatible. Printers and materials are manufactured to meet FDA biocompatibility requirements.
- Unmatched speed. Large prints in less than 6 hours.
- Reliability. Large format 3D printing you can rely on.
- Versatility. Industry-leading materials and an open platform.
- Stunning parts. Stunning parts that are always true to size.
- Intuitive. Anyone can learn in 15 minutes.
- Printing area – 353 × 196 × 350 mm.
- Layer height – up to 25 microns.
The Form 4BL’s 3D printing speed is powered by the new Formlabs Low Force Display™ print engine, a powerful combination of high-power LEDs, collimating lenses, optical filters, and a robust LCD display. Together, they quickly cure each layer of resin – regardless of the size or number of parts. With consistent surface accuracy, models, devices, and prostheses fit every time.

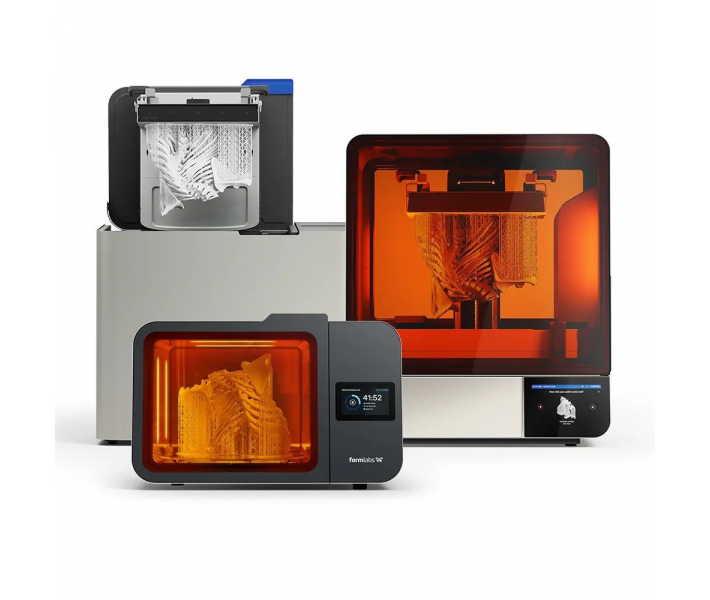

Form 4BL Complete Package contains
- 3D printer Form 4BL
- Form 4L Resin Tank
- Form 4L Mixer
- Form 4L Flex Build Platform

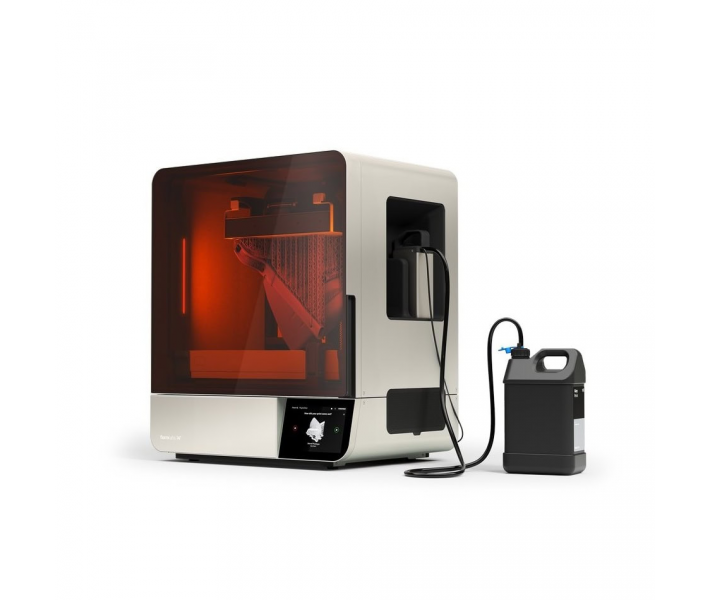

- Form 4 Resin Pump
- Form 4L Finish Kit: Cleaning Tools
- Form Wash L V2
- Form Cure L V2
- Form 4L Open Material Mode – as a gift!
- PreForm Software
- 1-year Basic Warranty
- 3‑Year Form 4BL Dental and Medical Service Plan (billed at the 1‑Year rate)*
* You you can select a 5‑Year Form 4BL Dental and Medical Service Plan billed at the 3‑Year rate in the options above.
Specifications
| Printing Technology | MSLA |
| Build Field (mm) | 353 × 196 × 350 |
| Light Source | Backlight Unit: 145 uniform-wavelength LEDs, a plano-convex lens array, and integrated air cooling 405 nm optical wavelength 16 mW/cm² optical power intensity delivered to the cure plane 46 µm pixel size |
| Layer Height (micron) | 25 – 200 |
| XY resolution (micron) | 46 |
| Print Speed (mm/h) | Up to 80 |
| Resin Cartridges | 2 |
| Resin Filling System | Automatic |
| Supported Materials | Biocompatible photopolymer resins |
| Supports | Autogenerated, Light-Touch Removal |
| Language | English, German, French, Spanish, Italian, Japanese, Simplified Chinese |
| Control | 7″ interactive touchscreen 1280 × 800 resolution |
| Video Camera | Integrated camera 2592*1944 resolution, 5 MP. Remote monitoring, print histories, and print timelapse |
| Supported File Types | STL, OBJ, 3MF, FORM |
| Operating System | Windows 7 (64-bit only, ARM not supported) and up. Mac OS X 10.12 and up. OpenGL 2.1. C++ runtime library from Microsoft (Windows only). 4 GB RAM (8 GB recommended) |
| Software | PreForm, Dashboard, Fleet Control |
| Connectivity | Wifi, Ethernet, USB 2.0 |
| Power Requirements | 100-240 VAC, 9 A, 50/60 Hz, 900 W |
| Manufacturer Country | USA |
| Warranty Period (months) | One-year warranty included. Paid service and extended warranty options available |
| Weight Netto (kg) | 58,5 |
| Minimum Access Dimensions (mm) | 889 × 1169 × 813 |
| Dimensions Assembled (mm) | 664 × 528 × 794 |
| Weight Brutto (kg) | 65,1 |
| Operating Temperature Range (°C) | 18 – 28 |
