- Stock: In Stock
- Product code: 00-00000093
- SKU: PKG-FS1-30-COMPLETE-230V
Buy SLS 3D Printer Formlabs Fuse 1+ 30W Complete Package
On this page, you can buy the SLS 3D printer Formlabs Fuse 1+ 30W with the Complete Package equipment set.
Formlabs Fuse 1+ 30W Complete Package is a full set of equipment, accessories, software, and one-year service, with which you can immediately start SLS 3D printing in your workshop.

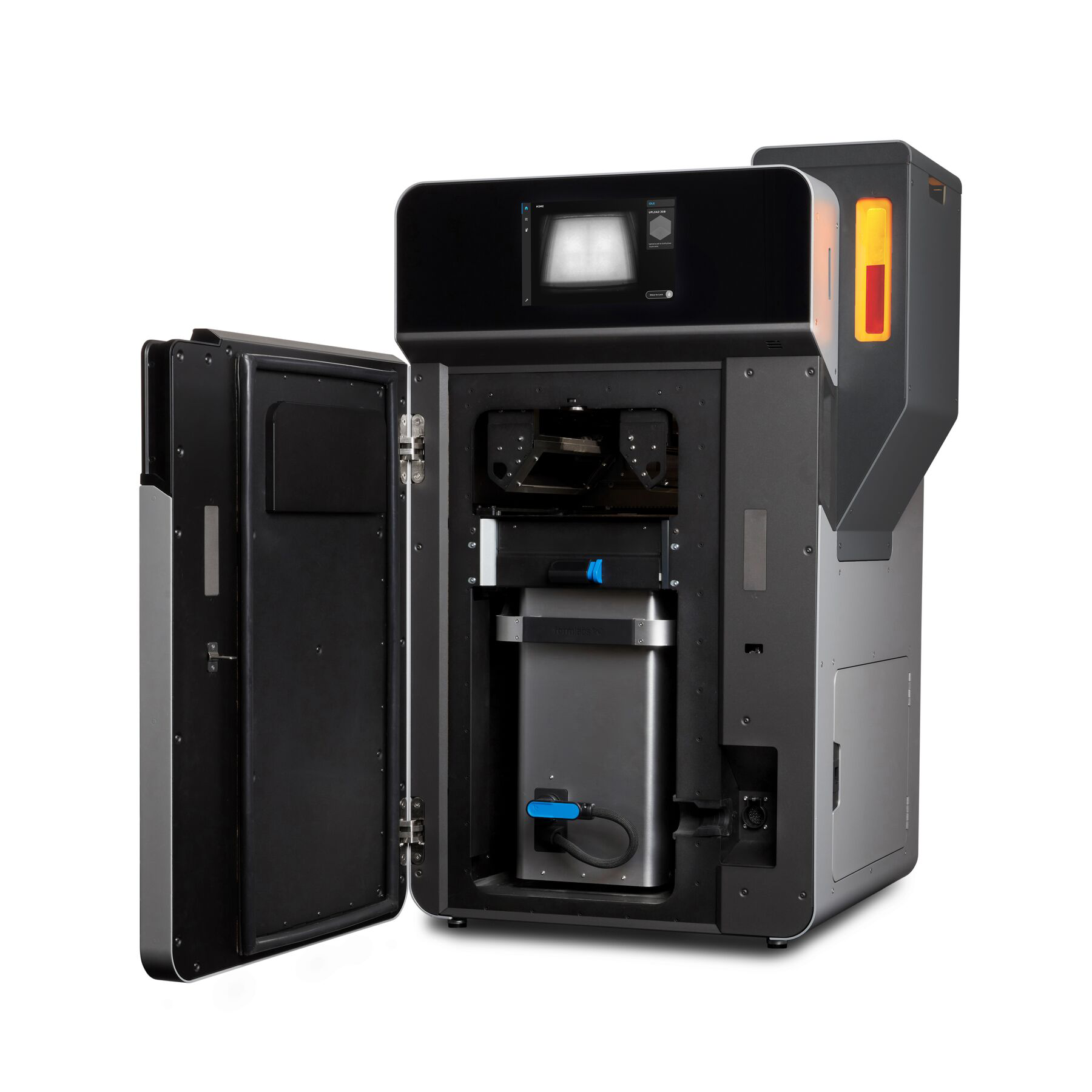

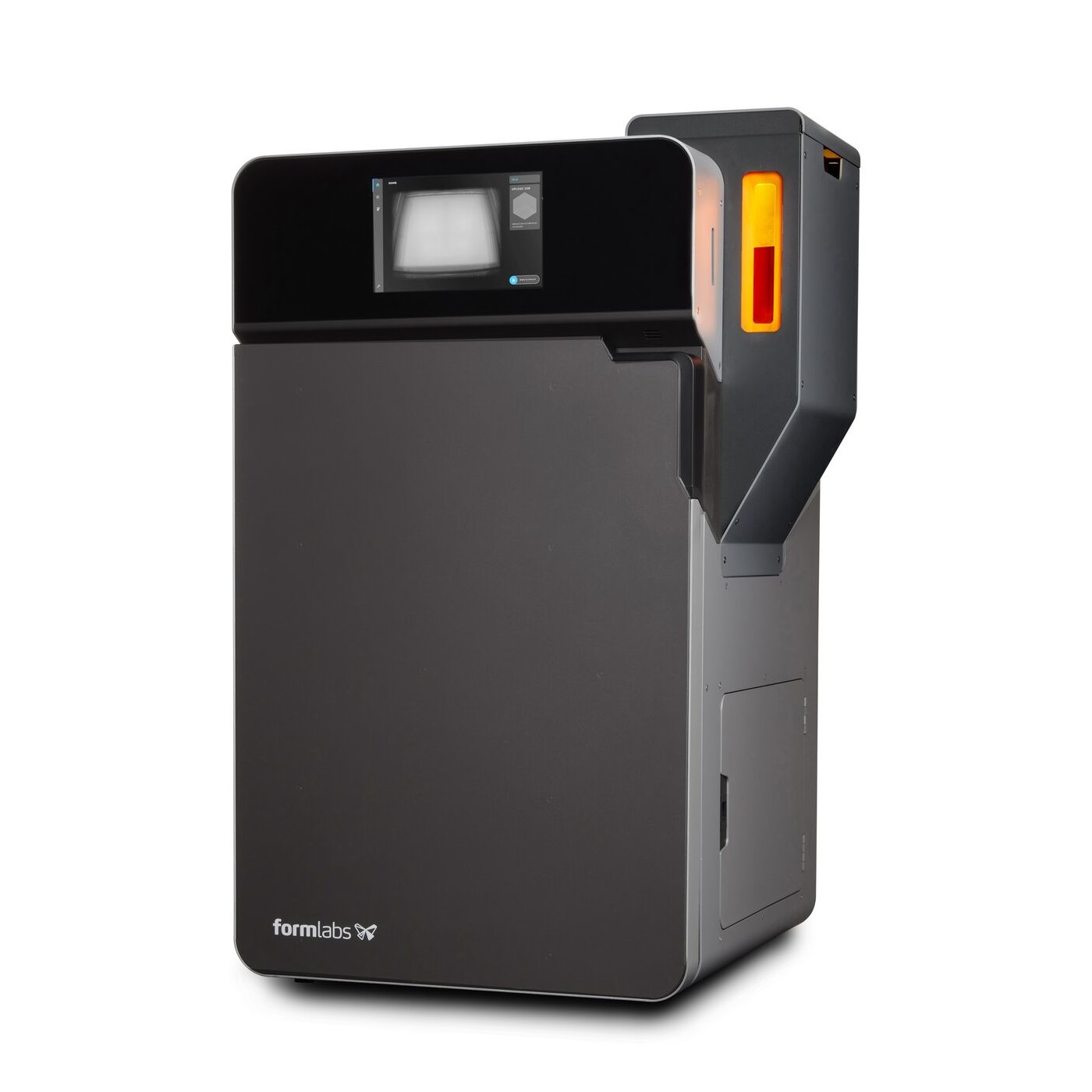

The Fuse 1+ 30W printer is a new generation of Formlabs powder printers, based on the 3D printer Fuse 1. It provides a simple, precise, and highly efficient printing process.
Print volume: 165 × 165 × 300 mm
The Fuse 1+ Complete Package includes
- 3D printer Fuse 1+ 30W (including Build Chamber) – 1 pc.
- Fuse Build Chamber – 1 pc.

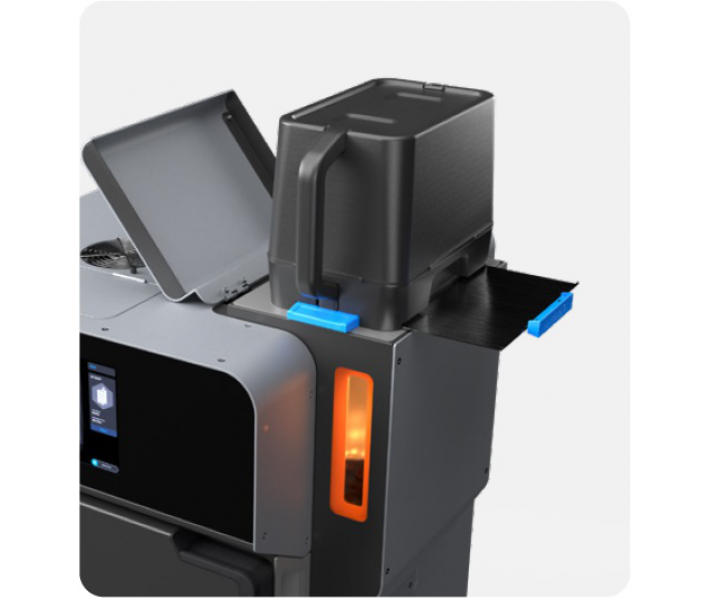

- Fuse 1 Powder Cartridge – 2 pcs.
- Fuse Sift 230V – 1 pc.
- Fuse Blast – 1 pc.
- Fuse Blast Polishing Module – 1 pc.
- Fuse Blast Polishing Media 4 L (2.5 kg) – 2 pcs.
- Fuse Blast Polishing Agent (115 ml) – 1 pc.
- Fuse Blast Polishing Mesh – 1 pc.
- Fuse 1+ 30W Printer 230V Uptime Kit – 1 pc.
- Fuse 1 Printer Stand – 1 pc.
- Formlabs PreForm Software
- Fuse Series Complete Service 1 year*
* You can also choose a Fuse Series Complete Service Plan for 3, or 5 years.
What's new in Formlabs Fuse 1+ 30W?
- Powerful 30W laser
A laser three times more powerful allows printing with new materials and increases printing speed.
- Higher printing speed – time-saving
The printing speed mainly depends on the material, object geometry, and the density of parts packing in the Work Chamber. Compared to the Fuse 1, the new Fuse 1+ 30W with Nylon 12 powder, for example, can reduce printing time by 50%.
- Additional nitrogen supply
The Fuse 1+ 30W has received a new nitrogen supply function – through a nitrogen generator or gas cylinders. 3D printing in an inert gas atmosphere improves the mechanical properties of Nylon 11-based materials and additionally improves the powder recovery characteristics of Nylon 11, which is 50%.
- New exclusive materials
Thanks to the more powerful laser and nitrogen supply, the Fuse 1+ 30W can also process carbon fiber-filled powder PA11 CF – in addition to all previous Formlabs SLS powders. This material is ideal for printing lightweight finished products that require both rigidity and high strength and impact resistance over time.
- Low refresh rate
With the best-in-class refresh rate of only 30-50%, the Fuse production line ensures the most efficient powder recovery. Thanks to innovative new technology, up to 70% of the powder can be recycled.
- Improved hopper geometry
The new carbon fiber material Nylon 11 CF is less prone to shedding and easier to clump. The modified hopper and agitator geometry ensure that even complex materials can be fed evenly and without clumping.
Buy 3D Printer Fuse 1+ Complete Package in Ukraine
Specifications of Formlabs Fuse 1+ 30W
| Technology | Selective Laser Sintering (SLS) |
| Usable work volume | 165*165*300 mm |
| Layer thickness | 110 µm |
| Print speed | 0.5 L/h |
| Laser type | Ytterbium fiber laser (class 1) – certified according to DIN EN 60825-1:2014 |
| Laser wavelength | 1065 nm |
| Laser spot diameter | 247 µm |
| Maximum laser power | 30 W |
| Nitrogen supply connection | Yes |
| Material reuse | 50 – 70% |
| Startup time | <60 min. |
| Operating temperature | 200 °C |
| Temperature control | Quartz heaters – resistive air heater |
| Printing materials | Nylon 12, Nylon 12 GF, Nylon 11, Nylon 11 CF |
| 3D printing without support structures | Yes |
| Software | PreForm Desktop |
| Compatible file types | .STL, .OBJ |
| Minimum system requirements | Win7 (64 bit); Mac OS X 10.12; OpenGL 2.1; 4 GB RAM |
| Connectivity | Ethernet (1000 Mbps), WiFi (2.4 GHz), USB 2.0 |
| Control | 10.1” touchscreen display (resolution 1280 x 800) |
| Warning messages | Warnings on the touchscreen; SMS/email; real-time video streaming; proactive service notifications |
| Power requirement | 230; 7.5A |
| Device dimensions | 64.5 x 68.5 x 107 cm |
| Weight | 120 kg (without build chamber and powder) |
Specifications of Formlabs Fuse Sift

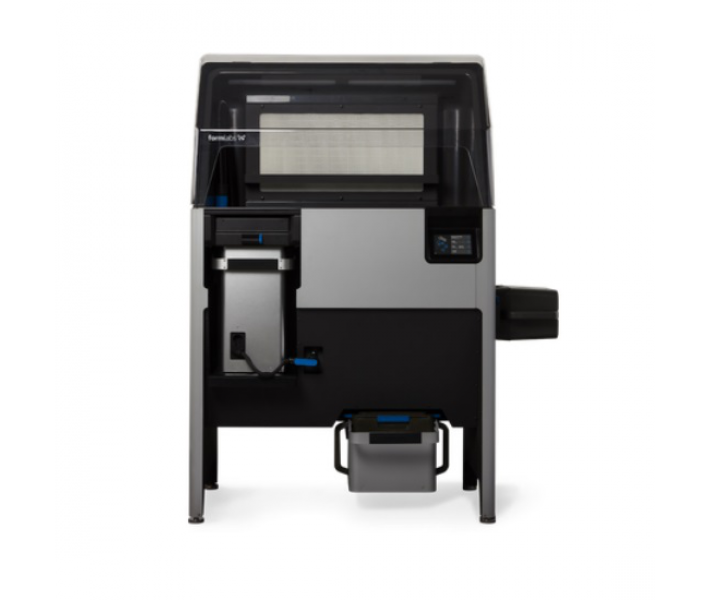

Formlabs Fuse Sift is a multifunctional post-processing station for removing excess SLS powder and recovering it for reuse in printing. A convenient innovative combined device, simple and safe to use.
To prevent the powder material from escaping into the external environment during the extraction of printed objects, a vacuum is created in the Fuse Sift using an industrial vacuum cleaner (not included in the package). The industrial vacuum cleaner connects directly to the Fuse Sift and is controlled by it. When working with the closed system, a transparent cover protects the user. After cleaning all printed parts of the powder, its excess in the working area can be sieved through a sieve and collected in a collection container for further use.
| Purpose | For removal, recovery, mixing, and storage of SLS powder |
| Advantages | Efficient, closed, and coordinated system |
| Work environment safety | Vacuum system for powder particle suction (industrial vacuum cleaner required!) |
| Control | Large touchscreen display with intuitive workflow |
| Material refresh rate | Best in the field – only 30% |
| Air filtration | Replaceable HEPA filter |
| Fresh powder material capacity | 10.7 kg |
| Recycled powder material capacity | 9.8 kg |
| Connectivity | Ethernet (1000 Mbps), WiFi (2.4 GHz), USB 2.0 |
| Power requirement | 230; 7.5 A/10 A with vacuum cleaner, requiring more than 6 A |
| Noise level | ≤ 76.5 dB |
| Device dimensions | 99.1 x 61.0 x 188.8 cm |
| Weight | 114 kg (without build chamber and powder) |
Fuse 1+ – the most affordable SLS printing – now in Ukraine
Cost-effective SLS 3D printer in your office and workshop
SLS 3D printing is a high-tech process that has so far been the privilege of quite large enterprises, capable of purchasing expensive equipment and ensuring compliance with technology at every stage.
Formlabs has developed its compact and affordable powder printing ecosystem Fuse 1, creating a cost-effective, convenient, fast, and simple workflow that can be supported by any small workshop or office. Buying an SLS 3D printer from Formlabs to print inexpensive customized parts on-site that are not inferior in characteristics to the original is a good choice.
