Buy in Ukraine biocompatible 3D printer Formlabs Form 4BL

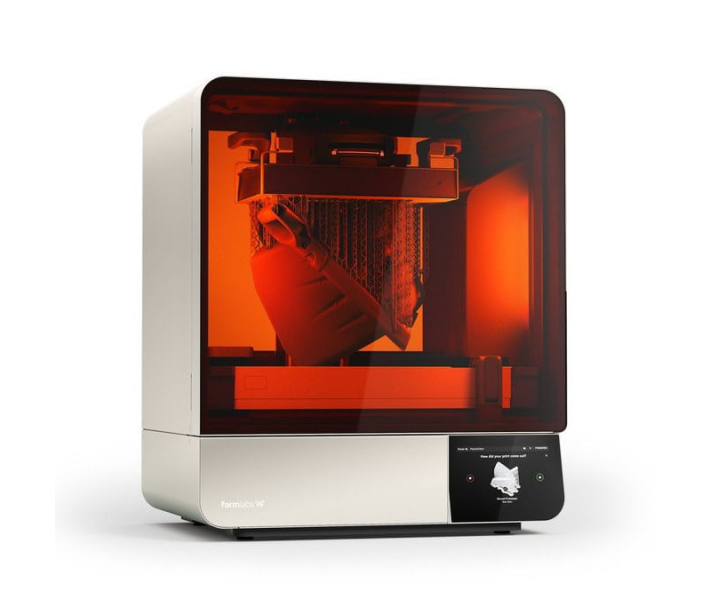

Formlabs introduces a new biocompatible 3D printer Form 4BL with a large printing field. It is a very fast large format medical and dental printer that can print a wide library of medical, dental and orthodontic materials. Quickly model and print high quality medical and dental models and biocompatible devices with simple workflows, high reliability and stunning part quality with the Form 4BL ecosystem.
- Big parts: solve big problems with big parts.
- Biocompatible: printers and materials are manufactured to meet FDA biocompatibility requirements.
- Unrivaled speed: large prints in less than 6 hours.
- Reliable: large format 3D printing you can rely on.
- Versatility: industry-leading materials and an open platform.
- Stunning detail: stunning parts that always fit.
- Intuitive: anyone can learn in 15 minutes.
- Printing area: 353 × 196 × 350 mm.
- Layer height: up to 25 microns
Form 4BL 3D printing speed is enabled by the new Formlabs Low Force Display™ printing engine, a powerful combination of ultra-high-power LEDs, collimating lenses, optical filters and a robust LCD display. Together, they quickly cure each layer of resin – no matter the size or number of parts. With consistent surface accuracy, models, devices and prostheses fit every time.
Form 4BL Basic Package includes:
- Form 4BL 3D printer
- Form 4L Resin Tank
- Form 4L Mixer
- Form 4L Build Platform
- Form 4L Finish Kit: Rinse Bucket
- Form 4L Finish Kit: Cleaning Tools
- Formlabs PreForm Software
- 1 Year Warranty*
* You can also choose an optional Medical/Dental Service Plan for 1, 2 or 3 years.
Specifications:
| Printing Technology | MSLA |
| Build Field (mm) | 353 × 196 × 350 |
| Light Source | Backlight Unit: 145 uniform-wavelength LEDs, a plano-convex lens array, and integrated air cooling 405 nm optical wavelength 16 mW/cm² optical power intensity delivered to the cure plane 46 µm pixel size |
| Layer Height (micron) | 25 – 200 |
| XY resolution (micron) | 46 |
| Print Speed (mm/h) | Up to 80 |

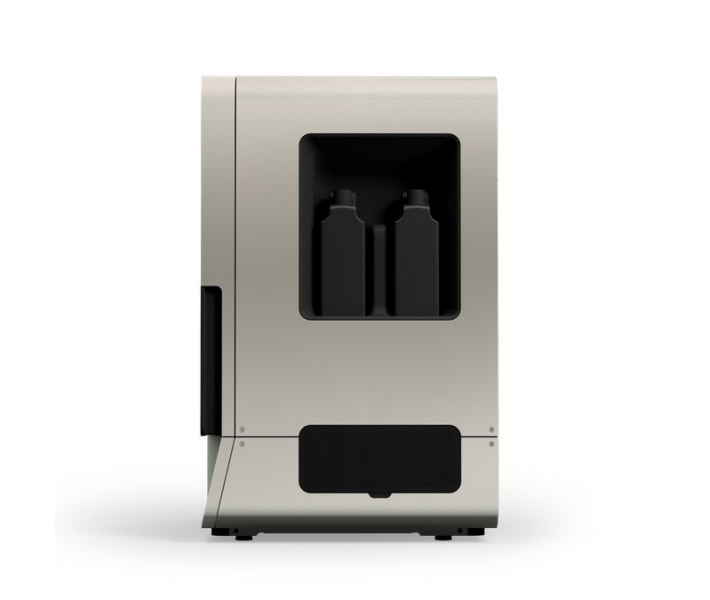

| Resin Cartridges | 2 |

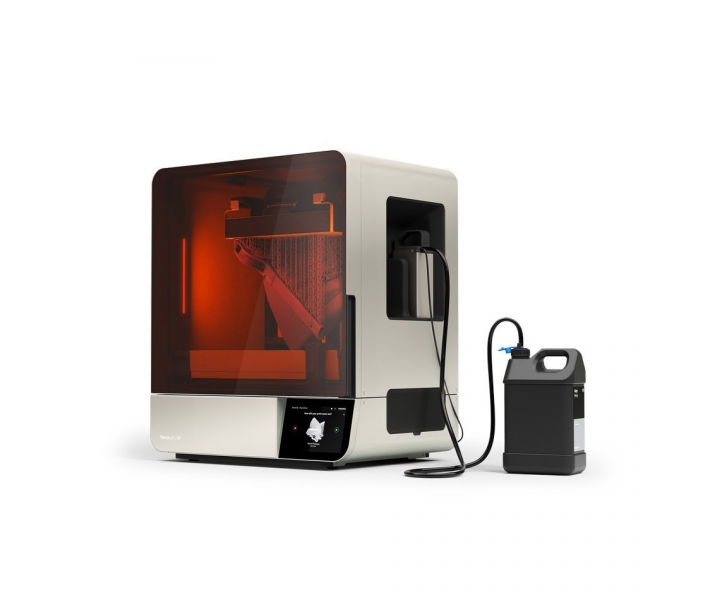

| Resin Filling System | Automatic |
| Supported Materials | Biocompatible photopolymer resins |
| Supports | Autogenerated, Light-Touch Removal |
| Language | English, German, French, Spanish, Italian, Japanese, Simplified Chinese |
| Control | 7″ interactive touchscreen 1280 × 800 resolution |
| Video Camera | Integrated camera 2592*1944 resolution, 5 MP. Remote monitoring, print histories, and print timelapse |
| Supported File Types | STL, OBJ, 3MF, FORM |
| Operating System | Windows 7 (64-bit only, ARM not supported) and up. Mac OS X 10.12 and up. OpenGL 2.1. C++ runtime library from Microsoft (Windows only). 4 GB RAM (8 GB recommended) |
| Software | PreForm, Dashboard, Fleet Control |
| Connectivity | Wifi, Ethernet, USB 2.0 |
| Power Requirements | 100-240 VAC, 9 A, 50/60 Hz, 900 W |
| Manufacturer Country | USA |
| Warranty Period (months) | One-year warranty included. Paid service and extended warranty options available |
| Weight Netto (kg) | 58,5 |
| Minimum Access Dimensions (mm) | 889 × 1169 × 813 |
| Dimensions Assembled (mm) | 664 × 528 × 794 |
| Weight Brutto (kg) | 65,1 |
| Operating Temperature Range (°C) | 18 – 28 |
