- Stock: In Stock
- Product code: 00-08800145
- SKU: PKG-F4BL-WO-PREMIUM-230V
Formlabs Form 4BL Premium Package biocompatible 3D printer
On this page, you can buy Form 4BL Premium Package, which includes a medical large format 3D printer and an extended set of equipment with open mode printing with third-party materials. Get everything you need to start printing fast and convenient 3D medical documents with repeatable results right away, at a more affordable price.

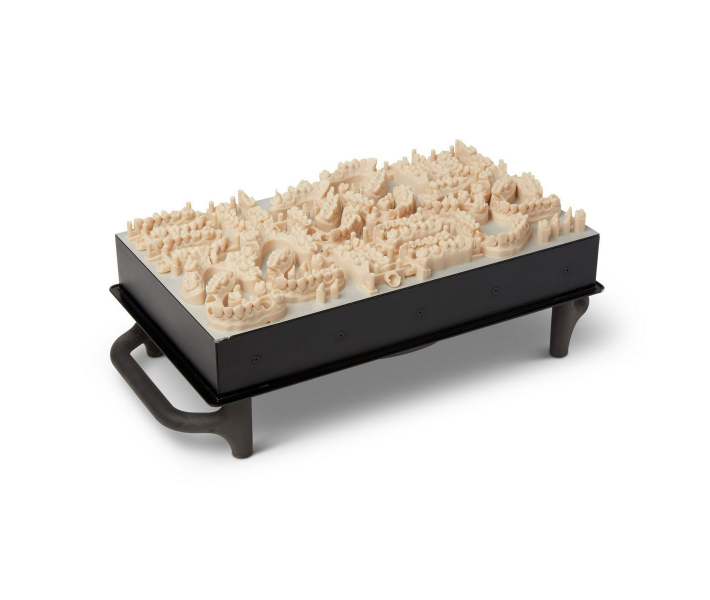

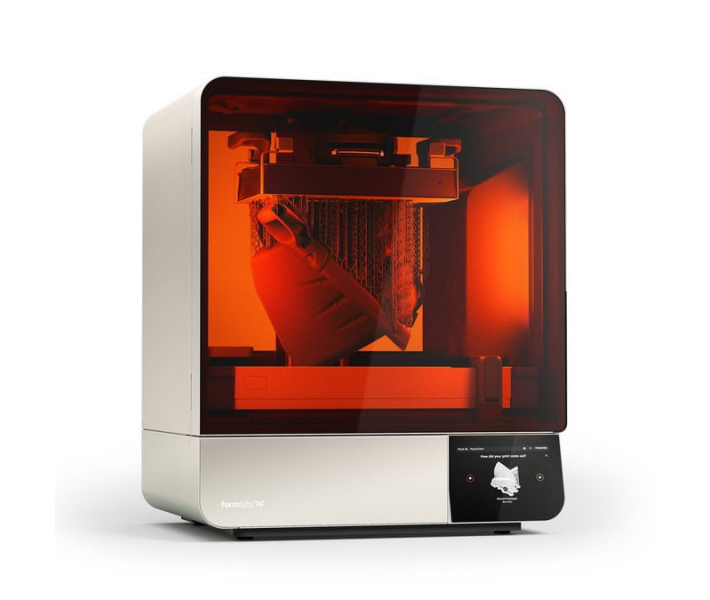

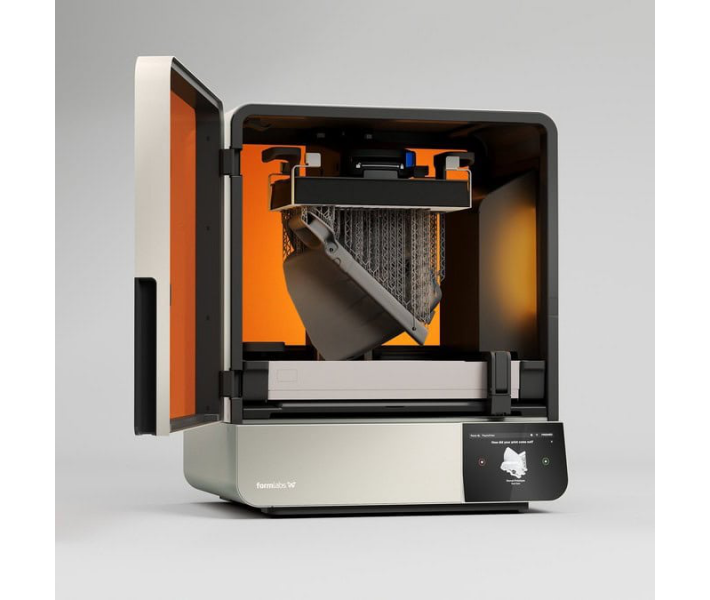

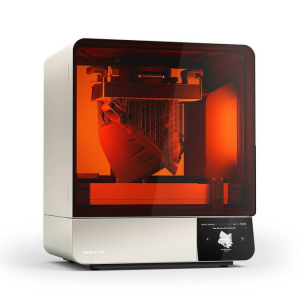

The Form 4BL is an extremely fast and reliable large format 3D printer for your laboratory or dental office. It prints biocompatible anatomical models and medical devices that can be sterilized. Enjoy effortless workflows, the highest reliability, versatile materials, and stunning part quality with the Form 4BL ecosystem. Choose from Formlabs’ extensive library of medical, dental, and orthodontic materials or take advantage of Open Material Mode.
- Large parts. Solve big problems with large parts.
- Biocompatible. Printers and materials are manufactured to meet FDA biocompatibility requirements.
- Unmatched speed. Large prints in less than 6 hours.
- Reliability. Large format 3D printing you can rely on.
- Versatility. Industry-leading materials and an open platform.
- Stunning details. Stunning parts that are always true to size.
- Intuitive. Anyone can learn in 15 minutes.
- Print area – 353 × 196 × 350 mm.
- Layer height – up to 25 microns.
The Form 4BL’s 3D printing speed is powered by the new Formlabs Low Force Display™ print engine, a powerful combination of high-power LEDs, collimating lenses, optical filters and a robust LCD display. Together, they quickly cure each layer of resin – regardless of the size or number of parts. With consistent surface accuracy, models, devices, and prostheses fit every time.

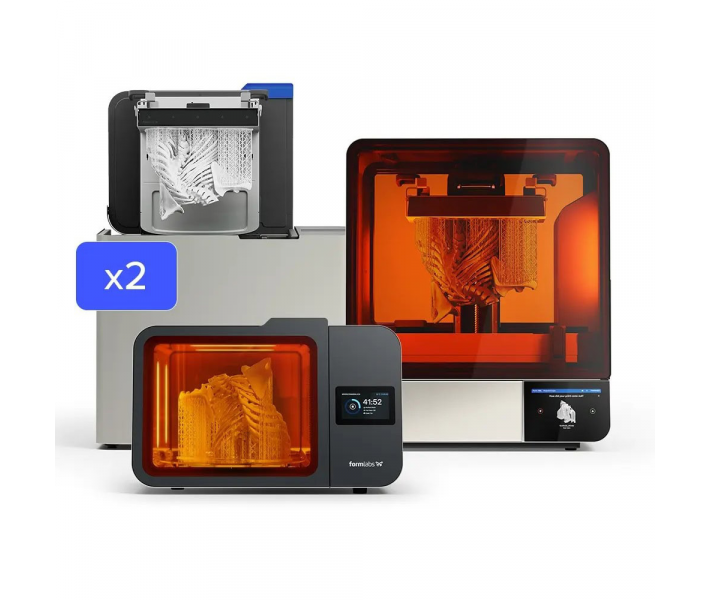

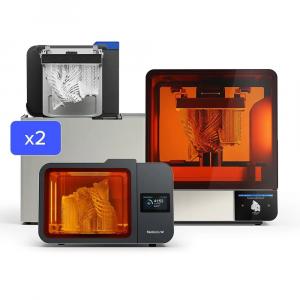

The Form 4BL Premium package includes
- Form 4BL 3D printer
- Form 4L Resin Tank × 2
- Form 4L Mixer × 2
- Form 4L Flex Build Platform × 2

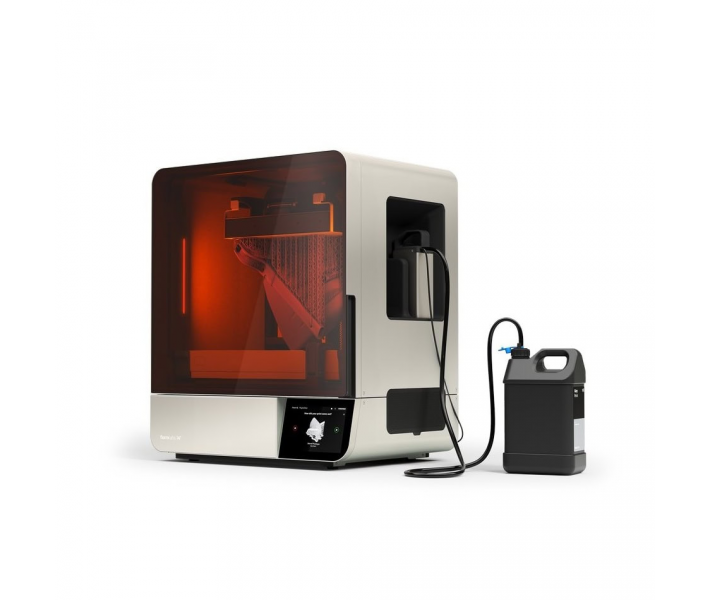

- Form 4 Resin Pump × 2
- Form 4L Finish Kit: Cleaning Tools
- Form Wash L V2 × 2
- Form Cure L V2
- Form 4L Open Material Mode
- Finishing Tools
- Formlabs PreForm software
- 1-year warranty*.
* You can also choose and buy an additional Medical or Dental Service Plan for 1, 3 or 5 years.
Specifications
| Printing Technology | MSLA |
| Build Field (mm) | 353 × 196 × 350 |
| Light Source | Backlight Unit: 145 uniform-wavelength LEDs, a plano-convex lens array, and integrated air cooling 405 nm optical wavelength 16 mW/cm² optical power intensity delivered to the cure plane 46 µm pixel size |
| Layer Height (micron) | 25 – 200 |
| XY resolution (micron) | 46 |
| Print Speed (mm/h) | Up to 80 |
| Resin Cartridges | 2 |
| Resin Filling System | Automatic |
| Supported Materials | Biocompatible photopolymer resins |
| Supports | Autogenerated, Light-Touch Removal |
| Language | English, German, French, Spanish, Italian, Japanese, Simplified Chinese |
| Control | 7″ interactive touchscreen 1280 × 800 resolution |
| Video Camera | Integrated camera 2592*1944 resolution, 5 MP. Remote monitoring, print histories, and print timelapse |
| Supported File Types | STL, OBJ, 3MF, FORM |
| Operating System | Windows 7 (64-bit only, ARM not supported) and up. Mac OS X 10.12 and up. OpenGL 2.1. C++ runtime library from Microsoft (Windows only). 4 GB RAM (8 GB recommended) |
| Software | PreForm, Dashboard, Fleet Control |
| Connectivity | Wifi, Ethernet, USB 2.0 |
| Power Requirements | 100-240 VAC, 9 A, 50/60 Hz, 900 W |
| Manufacturer Country | USA |
| Warranty Period (months) | One-year warranty included. Paid service and extended warranty options available |
| Weight Netto (kg) | 58,5 |
| Minimum Access Dimensions (mm) | 889 × 1169 × 813 |
| Dimensions Assembled (mm) | 664 × 528 × 794 |
| Weight Brutto (kg) | 65,1 |
| Operating Temperature Range (°C) | 18 – 28 |
