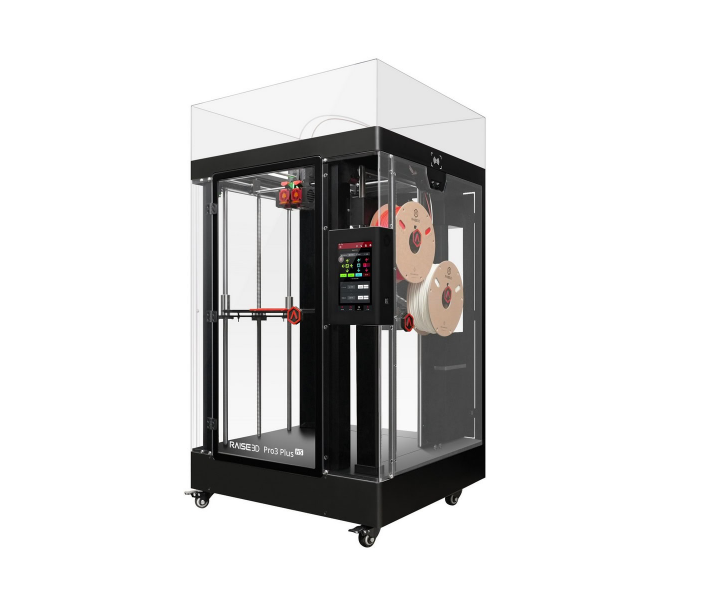

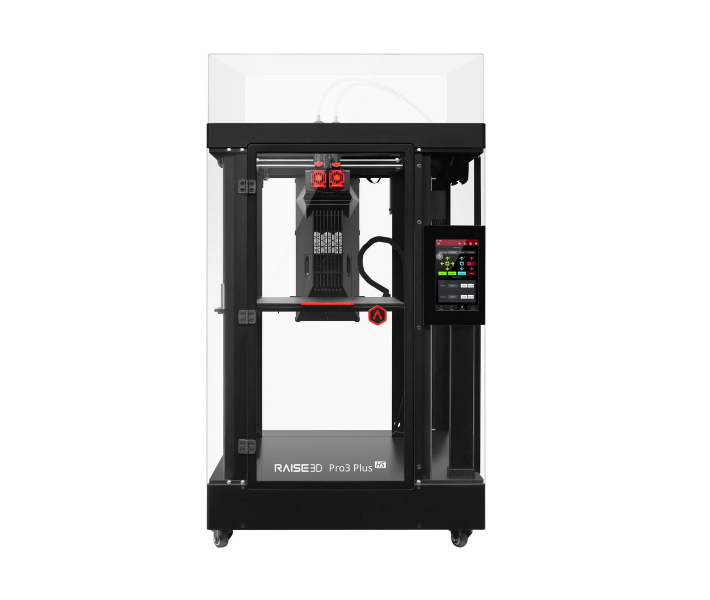

3D Printer Raise3D Pro3 Plus HS
3D printer Raise3D Pro3 Plus HS is a professional 3D printer designed for high productivity, incorporating all the enhancements found in the Raise3D Pro3 series. It excels in increasing print speed, enhancing production efficiency, and ensuring reliability. Utilizing Hyper FFF® technology, it enables rapid printing of composite materials. Automatic filament switching and support for spools up to 2.5 kg ensure stable and efficient production of small batches.
3D printer Raise3D Pro3 Plus HS
- Large print volume: 300 * 300 * 605 mm
- Built-in Hyper FFF® technology
- Upgraded print platform
- Automatic filament detection
- Airflow control system
- EVE Smart Assistant
- Automatic platform leveling
- Automatic pause with door/lid sensors
- HD camera
Enhancements in the Pro3 Plus HS Series
- Hyper FFF® Technology: Pro3 Plus HS printers feature advanced hot ends and vibration reduction algorithms, allowing speeds up to 300 mm/s for Premium, Industrial, Hyper Speed, and Hyper Core materials.
- Upgraded Motion Control System: enhanced with closed-loop stepper motors, dual diaphragm couplings, and improved axis designs for greater sealing and stability.
- New Print Platform: provides improved magnetic adhesion for reduced model warping. It heats up to 100 °C faster than previous versions, reducing wait times and enhancing print efficiency.
- Compatible with Hyper Core® Filaments and Silicon Carbide Nozzles: Hyper Core® filaments offer rapid melting and cooling speeds, enhanced strength, and stiffness in the Z direction.
- Automatic Filament Detection: Pro3 Plus HS series printers feature RFID sensors to prevent improper material usage, activated as soon as spools support RFID tags.
Enhanced Durability and Reliability
Designed for high-volume industrial printing, fast printer Raise3D Pro3 Plus HS series is optimized for increased reliability. Its reinforced hot ends and fully metal nozzles, combined with a robust all-metal frame and dual geared extruder, ensure prolonged production hours.
- Reinforced Fully Metal Hot Ends and Nozzles
- Dual Diaphragm Couplings
Increased Speed and Precision for Industrial Tasks
3D printer Raise3D Pro3 Plus HS utilizes Hyper FFF® technology for fast and precise printing, especially with Hyper Speed functionality. These printers achieve speeds up to 300 mm/s, making them ideal for industrial applications.
Specifications
| Printing Technology | FFF |
| Build Field (mm) | 300*300*605 |
| Build Field For Dual Printing (mm) | 255*300*605 |
| Plastic Diameter (mm) | 1,75 |
| Maximum Nozzle Temperature (°C) | 320 |
| Number Of Extruders | 2 |
| Chamber Type | Closed |
| Filament Chamber Type | Closed |
| Heating The Chamber | No |
| Plastic Drying | No |
| Autocalibration | Yes |
| Feeder Type | Direct |
| Layer Height (micron) | 50 – 600 |
| Nozzle Type | Raise3D Pro2 |
| Extruder Construction Type | Dual-head with electronic lifting system |
| Leveling System | Mesh-leveling with Flatness Detection |
| Nozzle Diameter (mm) | 0.4 (0.2, 0.6, 0.8, 1.0 available) |
| Positioning Accuracy (µm) | XYZ: 0,78125 |
| Print Speed (mm/s) | Up to 300 |
| Automatic Filament Switching | Yes |
| Platform Heating | Yes |
| RFID Filament Sensor | Yes |
| Maximum Platform Temperature (°C) | 120 |
| Platform Material | Steel plate, magnetic, flexible cover BuildTak |
| Open Filament System | Yes |
| Supported Materials | Hyper Core: PPA CF, PPA GF, ABS CF. Hyper Speed: PLA, ABS. Industrial: PPA CF, PPA GF, PET CF, PET GF, PETG ESD, PET Support, PPA Support. Premium: PLA, ABS, ASA, PETG, PC, TPU-95A, PVA+. Supported by Raise3D OFP (Open Filament Program) |
| Running Noise, dB | < 55 |
| Air Filter | HEPA filter with activated charcoal |
| Control | 7″ Touch Screen |
| Video Camera | Yes |
| Features | Automatic Filament Switching, RFID Sensor, Filament Run-Out Sensor, Eve Smart Assistant, Power Loss Recovery |
| Supported File Types | STL, OBJ, 3MF, OLTP, STEP, STP, IGES, IGS, GCODE |
| Software | ideaMaker |
| Connectivity | Wi-Fi, LAN, USB, Live camera |
| Power Requirements | Input: 100-240 V AC, 50/60Hz 230 V @ 3.3A. Output: 24 V DC, 600 W |
| Internal Storage (Gb) | 8 |
| System Requirements | Windows / macOS / Linux |
| Manufacturer Country | China |
| Warranty Period (months) | 12 |
| Weight Netto (kg) | 64 |
| Dimensions Netto (mm) | 620×626×1105 |
| Weight Brutto (kg) | 95,4 |
| Dimensions Brutto (mm) | 750×750×1360 |
| Operating Temperature Range (°C) | 15 – 30 |
| Operating Humidity Range (%) | 10 – 90 RH non-condensing |
Purchase Fast printer Raise3D Pro3 Plus HS
You can acquire this high-productivity 3D printer and leverage cutting-edge 3D printing technologies for professional and industrial applications.
