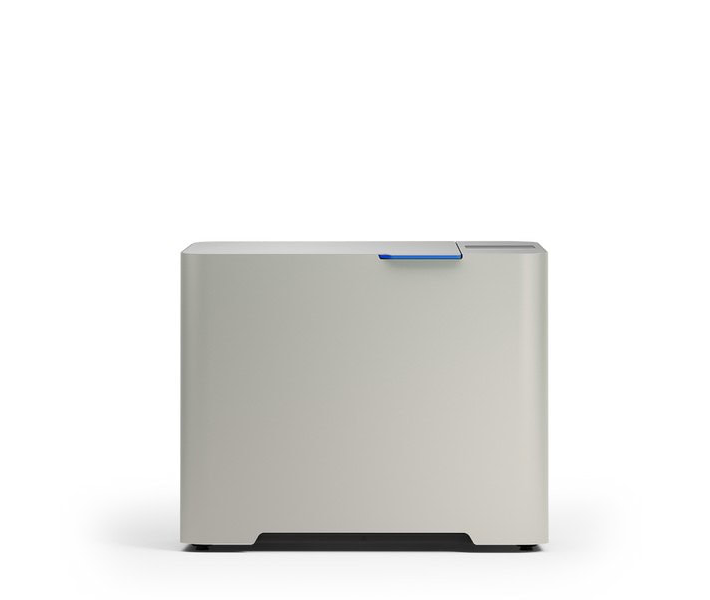

Formlabs Form Wash L – 2nd Generation
On this page you can buy Form Wash L second generation, an automated wash for washing Formlabs printer printed parts.
All SLA 3D printed parts need washing to remove resin residue. Form Wash L automates this process, leaving you with smooth, clean, high-quality parts every time.
Once washing is complete, parts are automatically removed from the solvent to air dry, avoiding over-soaked, warped prints. The built-in solvent monitor helps maintain maximum cleaning efficiency, alerting you when it’s time to change solvent.

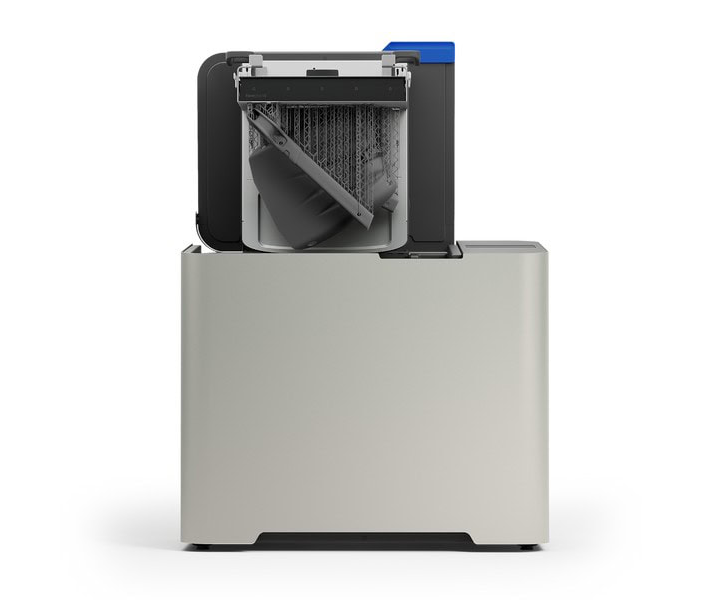

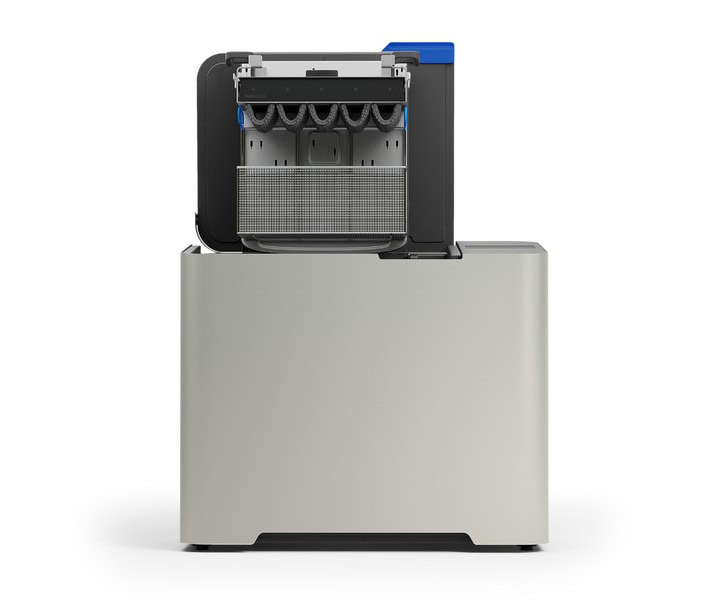

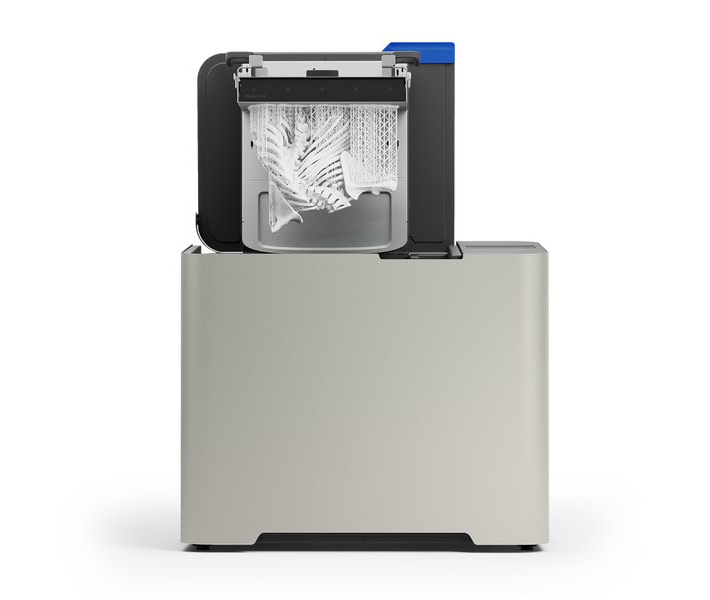

Use Form Wash L with all of your Formlabs SLA 3D printers. Wash one build platform from a large printer or two platforms from a smaller printer using the included Build Platform Adapter.
3D Printer Compatibility
The sink is compatible with all Formlabs 3D printers and materials. Wash 2 platforms from a Form 3/3B or Form 4/4B 3D printer in it, or 1 platform from a Form 3L/3BL or Form 4L/4BL.
Specifications
| Printing Technology | SLA, MSLA |
| Printer compatibility | Form 2, Form 3/3B, Form 3L/3BL, Form 4/4B, Form 4B/4BL |
| Bucket volume (l) | 37,9 |
| Maximum part size (mm) | 353*200*296 |
| Mixing method | Magnetically coupled impeller |
| Accessories included | Wash bucket, wash basket, electric solvent pump, rinsing cutters, rinse bottle, gloves |
| Compatible solvents | IPA, TPM, Water, Formlabs Resin Washing Solution |
| Power supply | Input Voltage (EU) 220-240 VAC, 50-60 Hz, 1 A |
| Net weight (kg) | 56,7 |
| Net dimensions (mm) | 780*460*670; Open Height: 1130 |
| Ambient temperature range (°C) | 18 – 28 |
