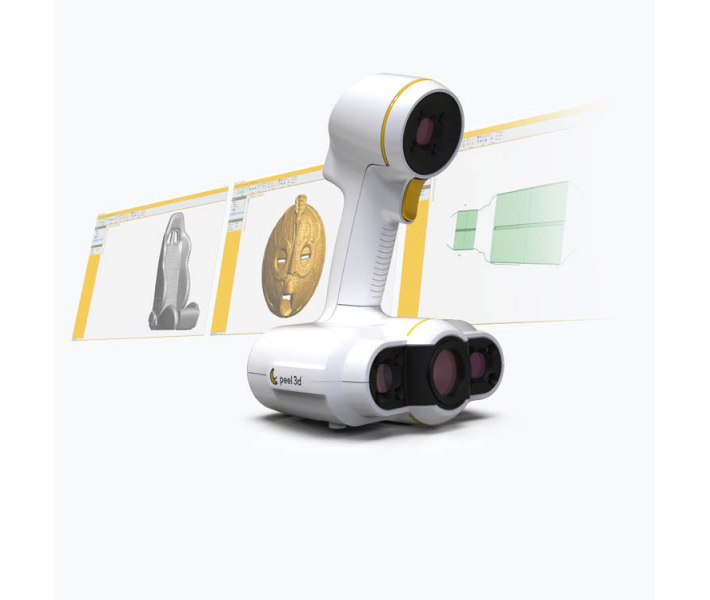

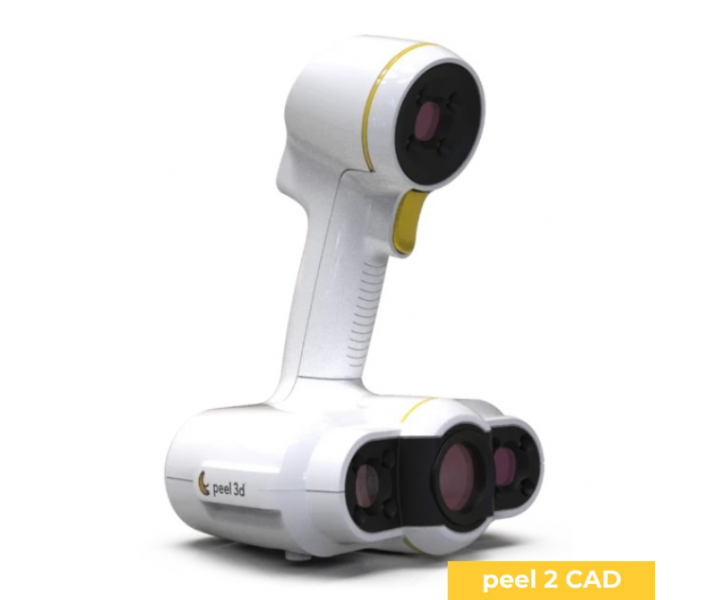

3D scanner Peel 3D Peel 2 CAD
Peel 3D Peel 2 CAD 3D scanner is a precision measuring instrument for creating digital copies of objects ranging in size from 30 cm to 3 m. By repeating basically parameters of its brother, the Peel 2 3D scanner, this device will be your best solution for reverse engineering. Create highly accurate 3D models of almost any object, no measurements, no trial and error, having at hand an exact 3D copy of the object, created using Peel 2 CAD.
Enjoy the benefits of working with Peel 3D scanners with multifunctional software, ease of use and proven quality.
Using a white LED light source, Peel 2 CAD obtains surface geometry data with a volumetric accuracy of 0.300 mm / m. It has a fairly large field of capture of 380 x 380 mm and a data acquisition rate of 550,000 points per second, which makes it possible to quickly capture geometric data and save it in any of the most popular formats.
Since it automatically recognizes the shape of objects and is capable of positioning not only by marks and geometry, but also by textures, it has wider possibilities for scanning objects. Thus, on some objects, Peel 2 CAD will be able to remove geometry even without first applying special marks.
Peel 2 CAD 3D Scanner Application
Since the Peel 2 CAD 3D scanner recognizes colors and can be positioned according to surface features and textures, it will be an excellent assistant:
- for designers and engineers,
- in reverse engineering,
- in the manufacture of tools, machines, automotive, aviation and others.
- To improve the scanning results of glossy, shiny, transparent surfaces, matting talcum powder and self-adhesive labels are used. Use Peel 2 CAD for 3D scanning of objects from 30 cm.
Peel 2 CAD Specifications
|Light source||White light (LED)|
|Volumetric Accuracy (mm/m)||0,3|
|Scan Range (mm)||380 x 380|
|Stand-off distance (mm)||400|
|Scan with marks||Yes|
|Part size range (m)||0,3 – 3,0|
|Scanning speed (points/s)||550 000|
|Scan Accuracy (mm)||Up to 0,1|
|Texture resolution (DPI)||50 – 150|
|Scan Depth (mm)||250|
|Point distance (mm)||0,5|
|Positioning methods||Geometry and/or targets and/or texture|
|Certifications||EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), IP50, WEEE|
|Supported file types||.dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr|
|System Requirements||Intel Core i7 (4+ cores) – 2.7 GHz or more; Windows 7, 8.1, 10 (64 bits); NVIDIA card with 2GB memory or more / OpenGL 4.5 and later; Memory: 16 GB (min), 32 GB (recommended); Hard Drive: At least 100 GB free space or 200 GB (recommended); 1 × USB 2.0, USB 3.0 compatible|
|Weight Netto (kg)||0,950|
|Dimensions Netto (mm)||150 x 171 x 251|
|Warranty period (months)||12|
|Operating Temperature Range (°C)||5 – 40|
|Operating Humidity Range (%)||10 – 90|
Peel 2 CAD software
The software supplied with Peel 3D products turns Peel 2 CAD into a complete solution for a variety of tasks.
Developed with Creaform, a leader in 3D industrial measurement and metrology, it contains powerful tools and features typically found only in premium solutions. It gives the user full control over the completion of the scan and speeds up the work with the received data.
The Peel 2 CAD kit additionally comes with an electronic key that enables reverse engineering functions.
