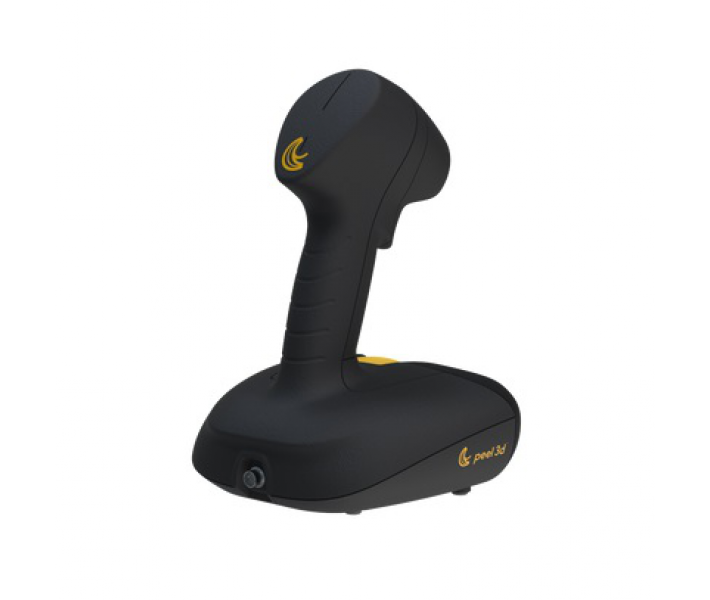

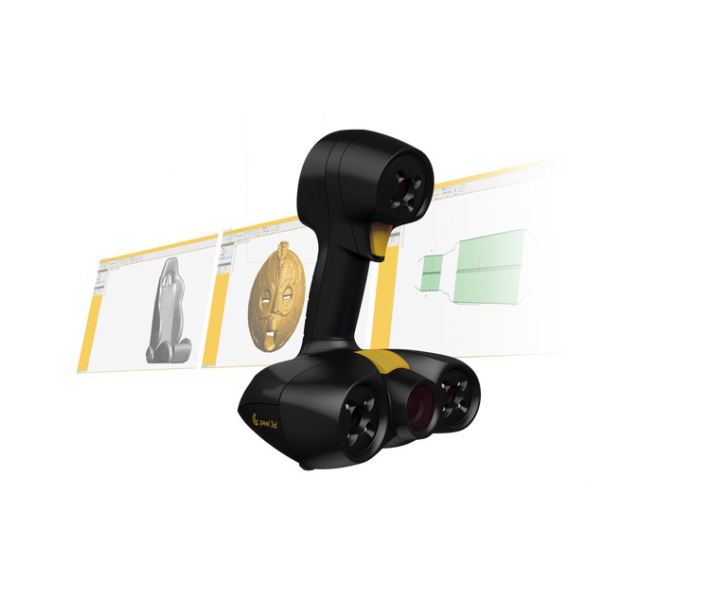

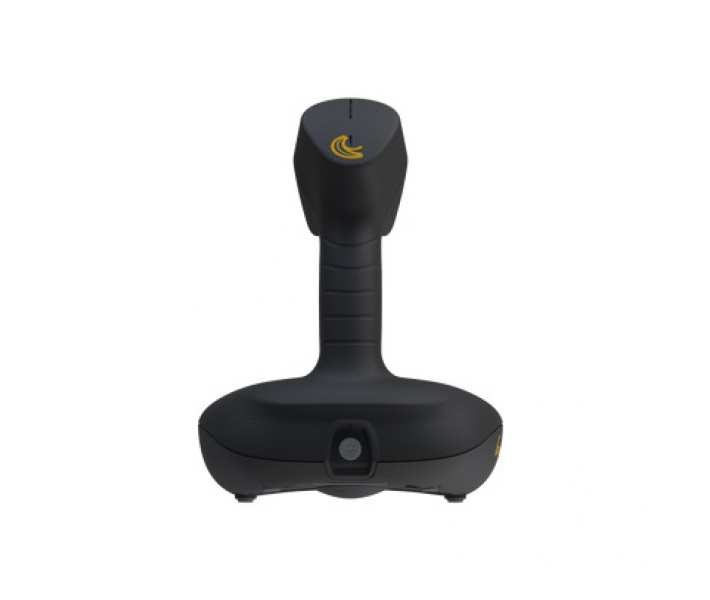

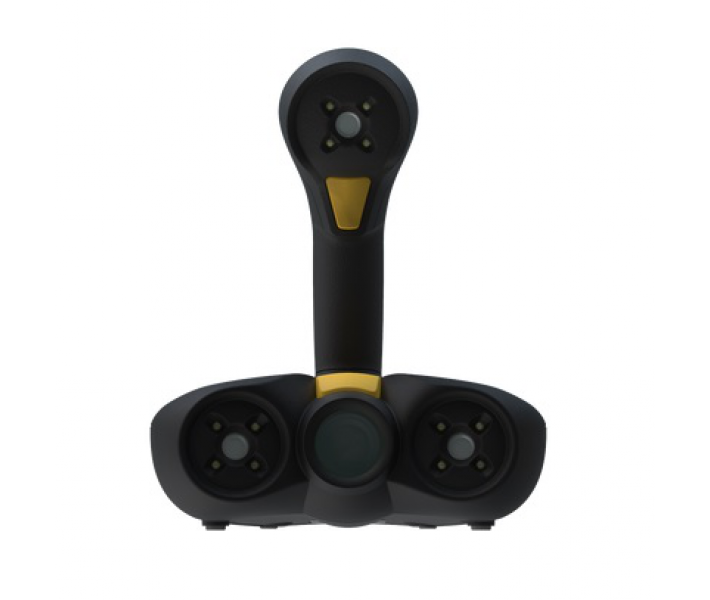

3D scanner Peel 3D Peel 2 CAD-S

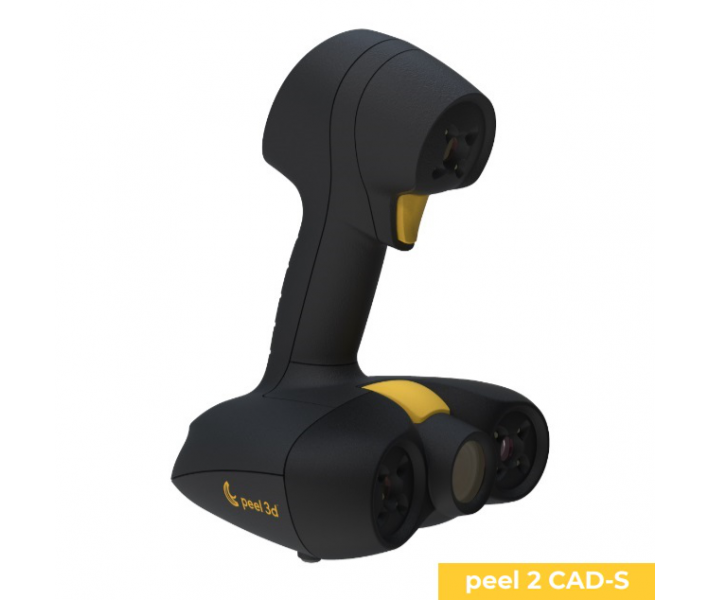

Introducing 3D scanner Peel 3D Peel 2 CAD-S, a new 3D scanner that delivers unprecedented levels of resolution in the Peel 3D range. This is a great portable 3D color grabbing scanner that you can take with you to work in any environment.
Like the Peel 2-S 3D scanner, it has a narrow 143 x 108 mm field of view, so Peel 2 CAD-S is optimized for 3D scanning of smaller parts with excellent resolution down to 0.1 mm. It will be the best solution for you to reverse engineer and obtain accurate digital copies of small objects ranging in size from 5 cm to 50 cm. Create very accurate 3D models of almost any object, without measurements, without trial and error, having an exact 3D copy at hand object created with Peel 2 CAD-S.
Using a white LED light source, Peel 2 CAD-S acquires surface data with a volumetric accuracy of 0.300 mm/m. It has a fairly high data acquisition rate of 550,000 points per second, which makes it possible to quickly capture geometric data and save it in any of the most popular formats. In addition, the 3D scanners of the Peel 3D line are distinguished by multifunctional software, ease of use and proven quality.
Application of 3D scanner Peel 2 CAD-S
Since Peel 2 CAD-S automatically recognizes the shape of objects and is capable of positioning not only by marks and geometry, but also by textures, it has ample opportunities for scanning objects. Thus, on some objects, Peel 2 CAD-S will be able to capture geometry even without first applying special marks.
Since the Peel 2 CAD-S 3D scanner recognizes colors and can be positioned according to surface features and textures, it will be an excellent assistant:
- for making copies of small and complex objects,
- in reverse engineering,
- detailed scanning of surfaces,
- high resolution applications.
To improve the scanning results of glossy, shiny, transparent surfaces, matting talcum powder and self-adhesive labels are used. Use Peel 2 CAD-S for 3D scanning of objects from 5 cm.
Peel 2 CAD-S Specifications
|Light source||White light (LED)|
|Volumetric Accuracy (mm/m)||0,3|
|Scan Range (mm)||380 x 380|
|Stand-off distance (mm)||400|
|Scan with marks||Yes|
|Part size range (m)||0,3 – 3,0|
|Scanning speed (points/s)||550 000|
|Scan Accuracy (mm)||Up to 0,1|
|Texture resolution (DPI)||50 – 150|
|Scan Depth (mm)||250|
|Point distance (mm)||0,5|
|Positioning methods||Geometry and/or targets and/or texture|
|Certifications||EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), IP50, WEEE|
|Supported file types||.dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr|
|System Requirements||Intel Core i7 (4+ cores) – 2.7 GHz or more; Windows 7, 8.1, 10 (64 bits); NVIDIA card with 2GB memory or more / OpenGL 4.5 and later; Memory: 16 GB (min), 32 GB (recommended); Hard Drive: At least 100 GB free space or 200 GB (recommended); 1 × USB 2.0, USB 3.0 compatible|
|Weight Netto (kg)||0,950|
|Dimensions Netto (mm)||150 x 171 x 251|
|Warranty period (months)||12|
|Operating Temperature Range (°C)||5 – 40|
|Operating Humidity Range (%)||10 – 90|
Peel 3D software
The software supplied with Peel 3D products turns Peel 2 CAD-S into a complete solution for a variety of tasks.
Developed with Creaform, a leader in 3D industrial measurement and metrology, it contains powerful tools and features typically found only in premium solutions. It gives the user full control over the completion of the scan and speeds up the work with the received data.
The Peel 2 CAD-S kit additionally comes with an electronic key that enables reverse engineering functions.
