Description

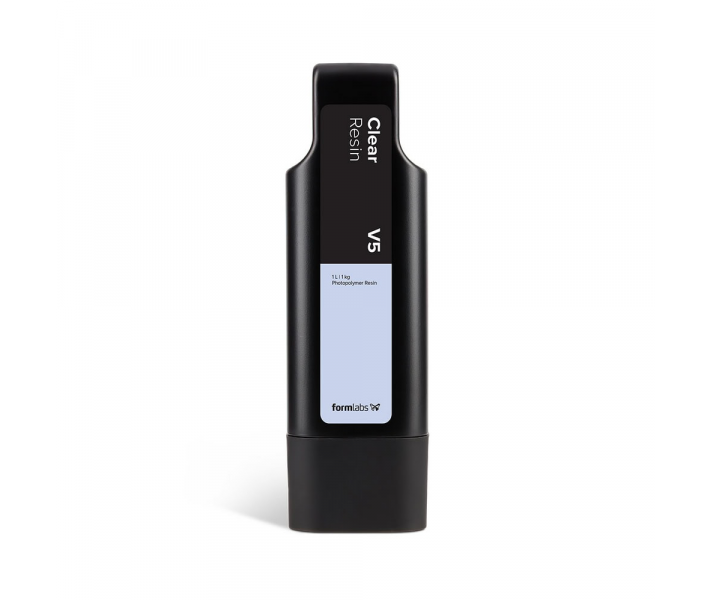

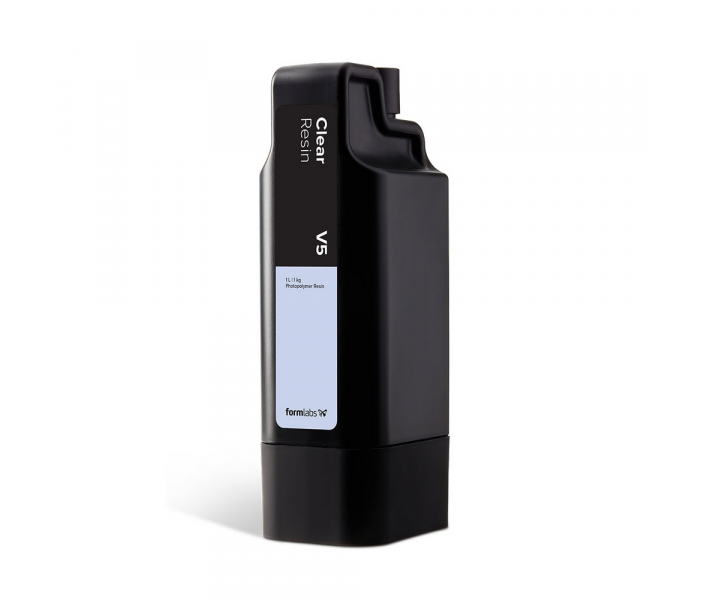

Formlabs Clear Resin V5 for Form 4 3D printer
Clear Resin V5 is an innovative 3D printing resin developed for the Formlabs Form 4 printer. It is characterized by exceptional transparency, neutral color, and an optimal combination of print speed, precision, strength, and ease of use.
Clear Resin V5 advantages
- Perfect transparency. Create high-quality colorless parts that are as transparent as acrylic.
- Precision at its finest. Achieve precise dimensions and print fine details with unprecedented accuracy.
- Durability and rigidity. Produce strong, rigid parts suitable for a wide range of applications.
- Fast print speeds. With the new Form 4 ecosystem, print speeds are up to three times faster than the previous version.
- Improved clarity and color. Delivers sharper and more vibrant colors than the previous version.
- Comfortable and safe. Virtually odorless, low VOC printing.
Applications
- Transparent enclosures, optical components, and lighting prototypes.
- Parts that visualize internal components.
- Molds, templates and other quick tools.

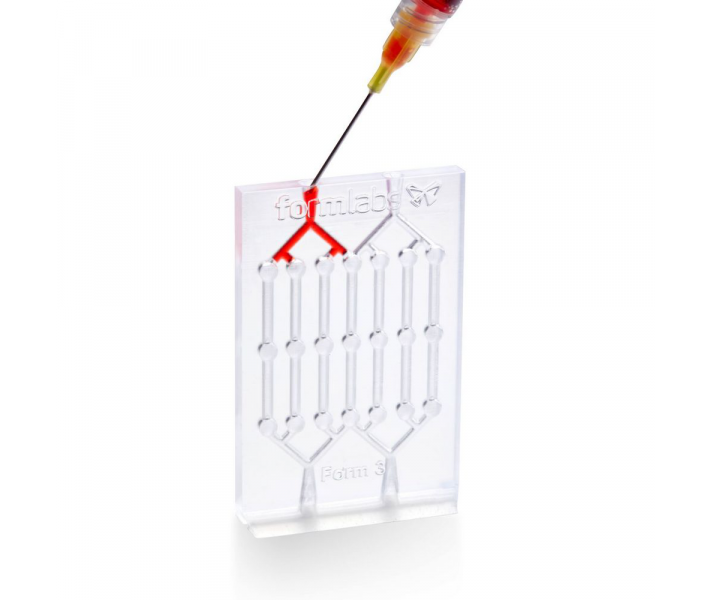

- Liquid devices.
Clear Resin V5 is the perfect choice for those looking for a transparent 3D printing resin that combines impeccable aesthetics, high precision, strength, and ease of use.
What’s new in Clear Resin V5
- Three times faster printing. Thanks to the new Form 4 ecosystem.
- Improved clarity and color. For sharper, more saturated colors.
- Increased durability. Increased elongation at break by 2 times and impact strength by 25% compared to Clear Resin V4.
Mechanical properties of Clear Resin V5
| Post-cured at room temperature for 5 minutes | Пост-отверждение при 60 °C в течение 15 минут | |
| Ultimate Tensile Strength | 51 MPa | 60 MPa |
| Tensile Modulus | 2575 MPa | 2750 MPa |
| Elongation at Break | 10% | 8% |
| Flexural Strength | 92 MPa | 105 MPa |
| Flexural Modulus | 2450 MPa | 2700 MPa |
| Notched Izod | 29 J/m | 29 J/m |
| Heat Deflection Temperature at 0.45 MPa | 56 °C | 74 °C |
Specifications
| Printing Technology | SLA |
| Polymerization | Needed |
| Biocompatibility | No |
| Layer Height (micron) | Form 4/4B – 50, 100 |
| Printer Compatibility | Form 4/4B |
| Resin Tank Compatibility | Form 4 Resin Tank |
| Build Platform Compatibility | Form 4 Build Platform, Form 4 Build Platform Flex |
| Volume (L) | 1 |
| Manufacturer Country | USA |
If you have any questions, please contact us.
Downloads:
Technical Data Sheet, PDF (EN)
