Description

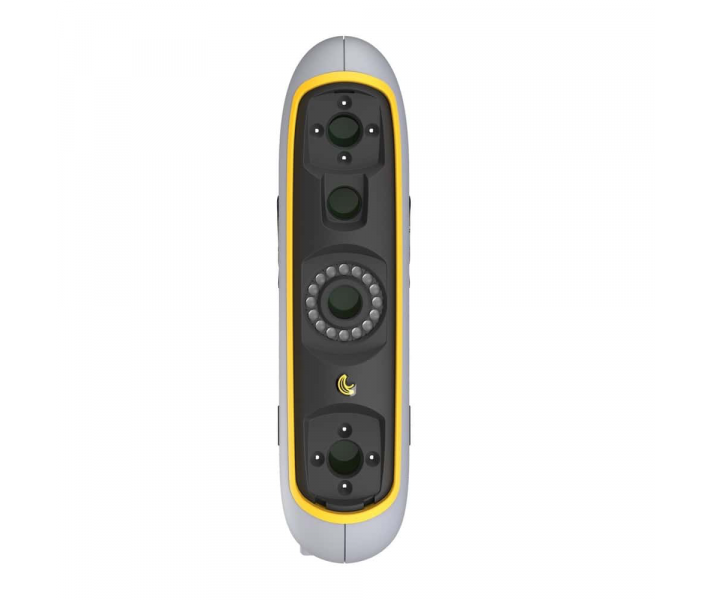

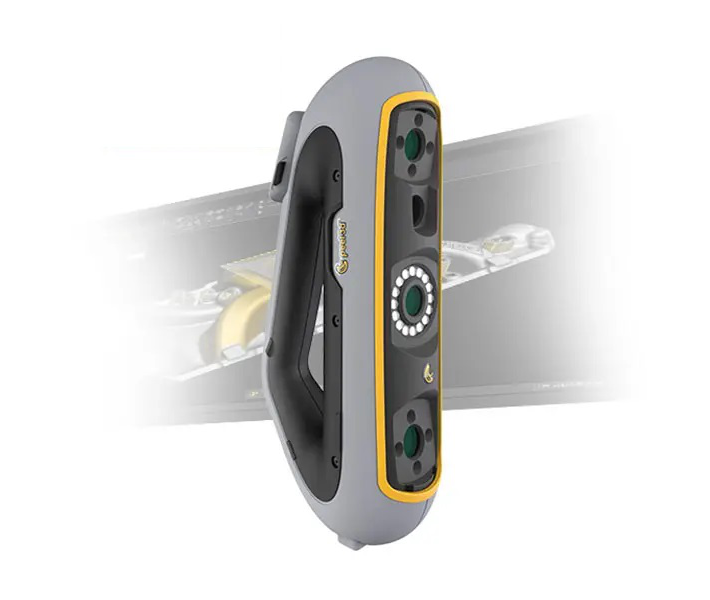

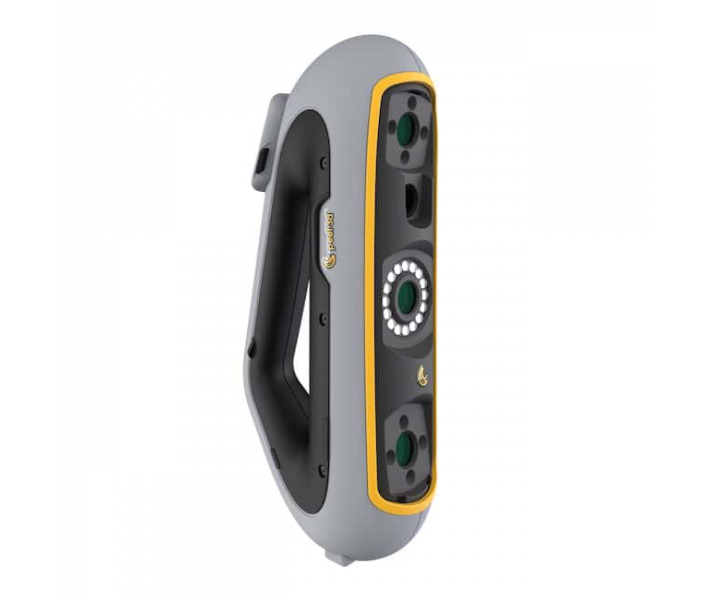

Peel 3 CAD 3D Scanner
3D-scanner Peel 3 CAD brand Peel 3D is designed specifically for creating 3D copies, CAD design, reverse engineering. It can be purchased officially on the territory of Ukraine in 3DDevice shop.
Peel 3D have completely rethought and redesigned the concept of their 3D scanners and created Peel 3 and Peel 3 CAD. Peel 3 CAD is the best fully integrated solution for volume scanning and for all your reverse CAD design needs. Get all the information you need and send it directly to your favourite CAD software.
The Peel 3 CAD 3D scanner for reverse engineering makes the design process easy and affordable.
Reverse engineering with Peel 3 CAD scanner
- Peel 3 CAD is an affordable turnkey professional 3D scanning and reverse engineering solution – the perfect balance between price and performance.
- Complete Solution. Peel 3 CAD comes with dedicated software for volume scanning of surface geometry and peel. CAD for reverse engineering. Get more out of your investment with Peel 3D’s turnkey solutions.
- Easy to learn. Instinctive ergonomics. Intuitive interfaces. Learning to 3D scan can take minutes.
New design. Peel 3 CAD’s user-friendly design and distance meter allow users to scan effortlessly – without having to return to the computer. - Help and support. Always within emailing distance! You’ll never be left behind in the darkness of 3D scanning.

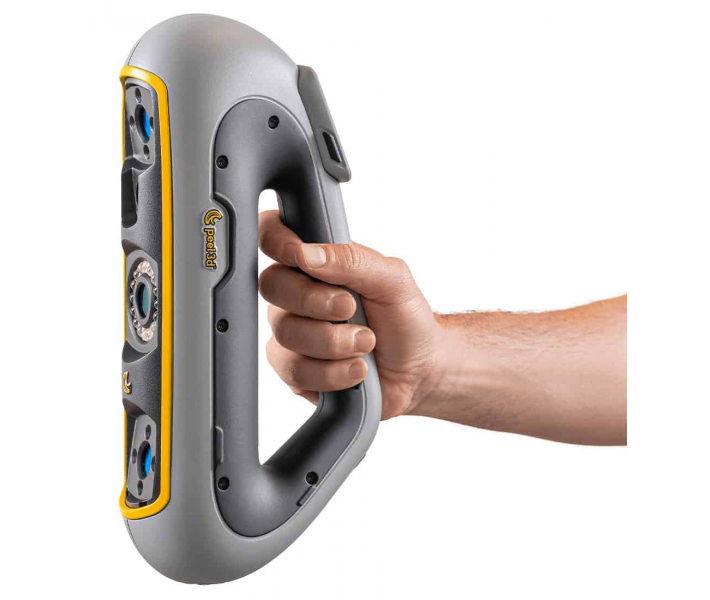

Ultra-ergonomic handle
The Peel 3’s unique triangular, multi-grip handle is designed for comfort in most common 3D scanning positions.
Ultra-ergonomic handleThe Peel 3’s unique triangular, multi-grip handle is designed for comfort in most common 3D scanning positions. |  |

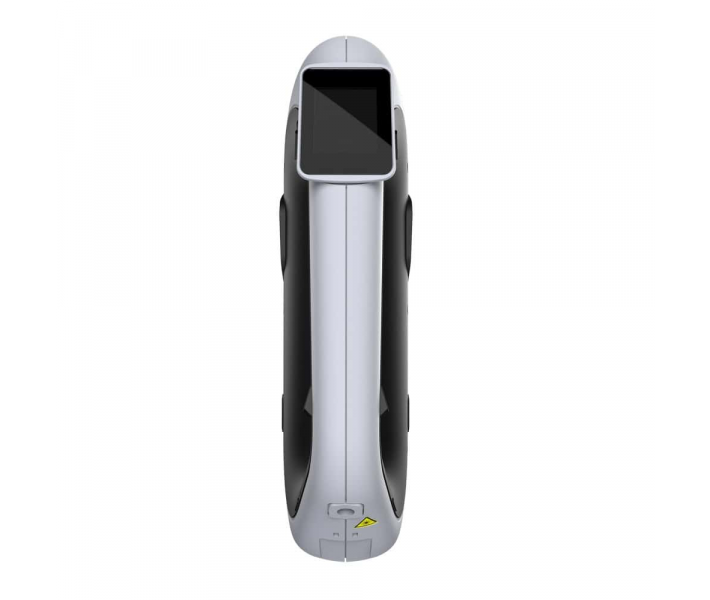

 | Stylish LCD screenThe scanner has a multifunctional and intuitive touch screen, which is very convenient to operate the scanner and has a function to measure the distance to the scanned object. You can stay focused on the computer display while getting distance feedback directly from the scanner. |
Comfortable tactile feedbackA world premiere for handheld 3D scanners, Peel 3 has several recognisable vibration patterns to help you scan narrow and hard-to-reach areas without line of sight. It’s the best real-time recall ever! |  |

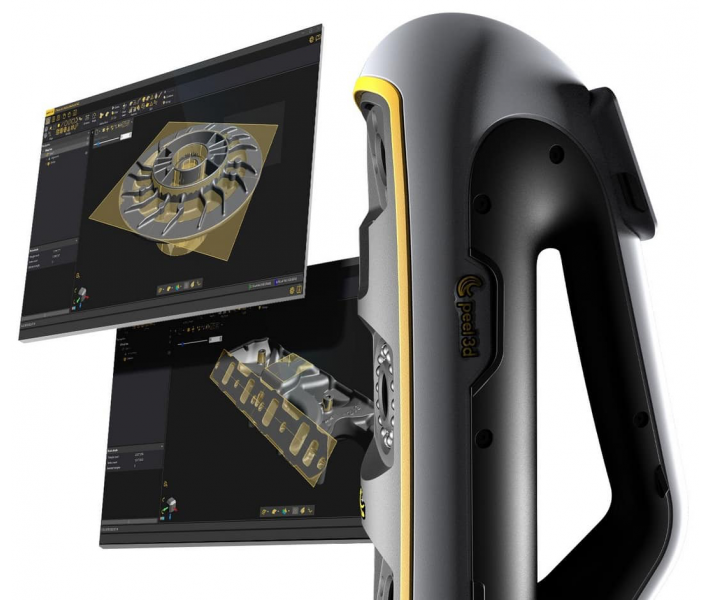

Successful CAD project with good software

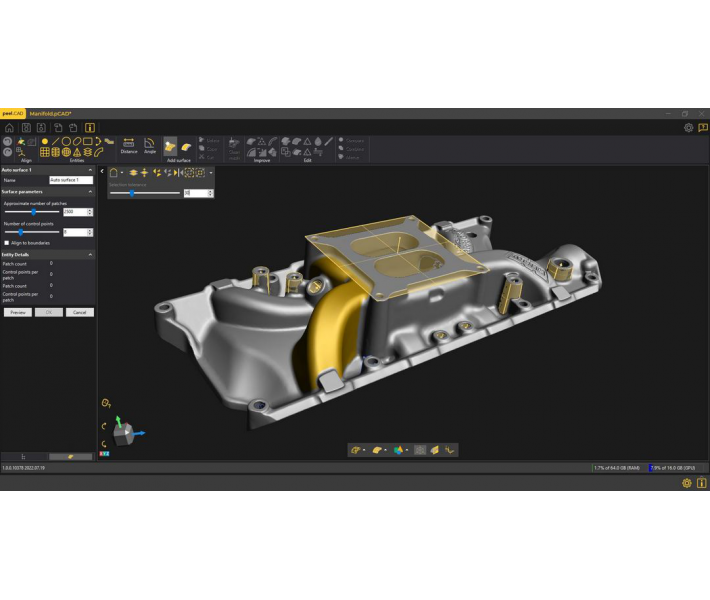

The very first prerequisite for the success of any 3D project is good software. Peel 3 CAD comes with peel.CAD, a reverse engineering software designed specifically for this scanner. Prepare your scans to turn them into CAD files in your favourite CAD application. Use the fast processing time that quickly optimises meshes and extracts all the geometric information needed for processing in your CAD software.
New, simpler design. Fewer clicks to save time during 3D scanning.
Easy to learn. With built-in help functions and intuitive design, input is minimised.
Turnkey reverse engineering solution. Peel 3 CAD comes with integrated reverse engineering software, which is very convenient and increases control.
Easy Peel 3D Peel 3 CAD workflow
Scanning an object. Both the object and the scanner can move freely: you can see what you have scanned and what you have missed in real time.
Mesh creation. Professionally clean, enhance, align and export tools that you simply won’t find in other available solutions.
Extract objects and surfaces. Use geometric entities, surfaces and cross-sections to define valuable information about your object.
Transfer data to CAD software. Transfer your extracted entities to use them as a reference to reproduce your object in your favorite CAD software such as SOLIDWORKS®, Inventor®, PTC, etc.
Package: all included
Get Peel 3D software and some accessories for free when you buy Peel 3 CAD.
Styrofoam lightweight carrying case*
Bridge-to-CAD software
Power supply
USB cable
Calibration plate
Regular positioning marks 500 pcs.
Positioning tags with superglue 500 pcs.
* Reinforced carrying case available.
Join the V.I.peel Club
Your investment deserves top-notch service. Protect your Peel 3 CAD scanner with Peel 3D’s exclusive V.I.peel protection plan.
- Free software updates
- Equipment repair coverage (with accident protection)
- When you buy 2 tag packs, get 1 free!
- 25% discount on accessories
- Full exchange value on Creaform technologies*
*Applies to Creaform technologies only (not other Peel 3D models).
Additional protection for your Peel 3 CAD 3D scanner
Peel 3D offers the perfect mechanical degradation protection kit for your 3D scanner. It includes a special silicone case, a removable lens cover, a protective glass and a truly excellent cable winder.
Transporting your scanner. Carry your 3D scanner with you wherever you go with this waterproof, shockproof and dustproof sturdy case. Durable yet lightweight, it’s small enough to fit in the luggage compartment of an aeroplane!
The rest of the accessories. Unlock a range of 3D scanning accessories to speed up workflows and increase productivity.
Where the Peel 3 CAD engineering scanner is used
A global community of users has taken advantage of Peel 3D’s high-performance yet affordable 3D scanners for all types of applications. Here are some examples. Peel 3D scanners can be used for after-sales service and tuning, product design, as well as repair and engineering in a wide range of industries.
Surfaces. Peel 3 CAD is capable of scanning matte black objects (such as plastic) or non-shiny metallic objects. To scan glossy black surfaces or shiny metallic surfaces such as chrome, use a special talcum powder spray to create a matte surface texture. For this, you can choose AESUB Blue or AESUB Orange self-evaporating 3D scanning spray, which creates a matte film that disappears after a few hours on the surface of the object and helps the 3D scanner to ‘see’ the surface of the object and make a 3D copy of it.
Reflective markers. Peel 3 CAD 3D scanners are capable of using the geometry and texture of the object for autopositioning, so the use of target markers is not unconditional. However, they are complementary and helpful when scanning, for example, flatter or smoother surfaces and when accuracy is important.
Peel 3 CAD specification
| Light Source | IR VCSEL |
| Volumetric Accuracy (mm/m) | 0.1 + 0.250 |
| Scan Range (mm) | 340 × 475 |
| Working Distance (mm) | 250 – 550 |
| Scanner Type | Handheld |
| Additional Extensions | None |
| Color Scanning | Yes |
| Marker Scanning | No |
| Part Size Range (m) | 0.1 – 3.0 |
| Scan Speed (points/s) | 1,250,000 |
| Scan Speed (s/m2) | 80 |
| Scan Accuracy (mm) | Up to 0.1 |
| Texture Resolution (DPI) | 50 – 200 |
| Scan Depth (mm) | 300 |
| Point Distance (mm) | 0.25 |
| Positioning Methods | Geometry and/or markers and/or texture |
| Features | Touch screen |
| Supported File Types | .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .dxf |
| Software | peel.OS |
| Connectivity | USB 3.0 |
| System Requirements | Windows 10 (64-bit). Minimum: Intel Core i7 (6+ cores) – 2.3 GHz or higher; NVIDIA (6GB video memory) OpenGL 4.5 and above, CUDA compute capability 6.1; 16GB RAM; Solid State Drive (SSD) with at least 200GB of free space; 1x USB 3.0+. Recommended: Intel Core i7 (8 cores) – 2.5 GHz or higher; NVIDIA RTX 3070 (8GB video memory) OpenGL 4.5 and above; 32GB RAM; 512GB SSD; 2x USB 3.0+ |
| Country of Origin | Canada |
| Warranty Period (months) | 12 |
| Net Weight (kg) | 0.950 |
| Net Dimensions (mm) | 304×150×79 |
| Operating Environment Temperature Range (°C) | 5 – 40 |
| Operating Environment Humidity Range (%) | 10 – 90 |
Easy and versatile 3D object creation
Peel 3D scanners combine excellent performance with an affordable price, but it’s better to see it once to be sure! Here is a video demonstration of the Peel 3 CAD scanner.
https://youtu.be/AH6QemqRUcg?feature=shared
