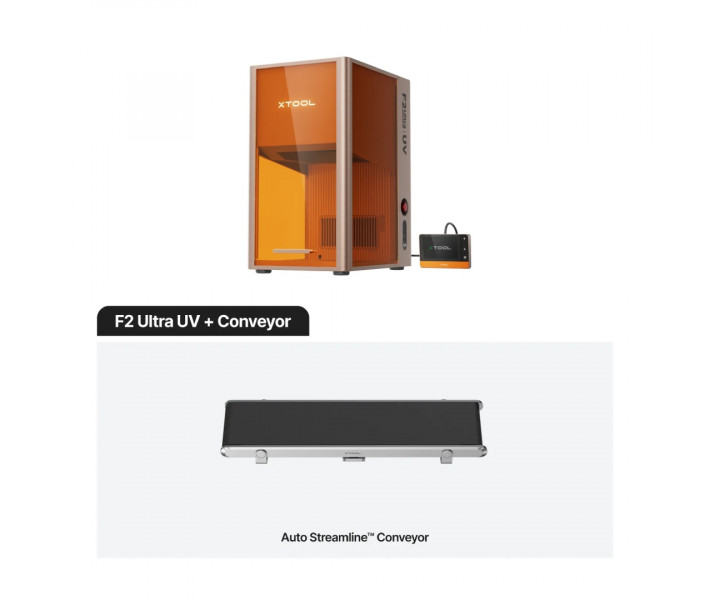

xTool F2 Ultra UV + Conveyor

F2 Ultra UV Conveyor Laser Engraving System

xTool F2 Ultra UV Conveyor is a professional UV laser engraving system designed for continuous and batch production processes. The equipment is equipped with a high-precision 5W UV laser with a wavelength of 355 nm, providing clean, detailed engraving without overheating, deformation, or damage to the material surface. The built-in conveyor system allows for automatic processing of long workpieces and serial batches, making it an efficient solution for industrial marking and flow production.

Key Advantages of the Conveyor Version

• Automated conveyor feed. Provides stable continuous operation in flow mode, ideal for marking and processing workpieces.
• Minimal manual intervention. The system automatically feeds workpieces and performs engraving in continuous mode.
• Cold laser marking. UV radiation at 355 nm allows for clear markings on sensitive materials with minimal surface heating.
• High precision and detail. The small focal point allows for clear marking even on delicate surfaces.

Conveyor System for Production Automation

The F2 Ultra UV Conveyor is equipped with a system for automatic workpiece feeding, simplifying the processing of large batches of products. Conveyor version configuration:

• xTool F2 Ultra UV laser block for high-precision UV engraving and marking.
• Auto Streamline conveyor system for continuous feeding and batch processing of workpieces.
• Intelligent synchronization of laser and conveyor movement for precise positioning of products during processing.

With the addition of the conveyor system, the F2 Ultra UV provides automatic material feeding, supports batch processing, and expands the working area to 200 × 500 mm. This allows for continuous production processes and maintains stable productivity when processing large batches of products.

Ideal Materials and Applications

The ultraviolet laser allows working with materials that require high precision and minimal heating. Due to the low thermal impact, the system provides clear marking without the risk of damaging sensitive surfaces. The conveyor version is optimally suited for serial engraving and marking.

• Glass panels and decorative products.
• Coated metal plates and components.
• Plastic parts (ABS, PC, PP, PE).
• Ceramics, rubber, silicone.
• Wood, leather, acrylic sheets.

Intelligent Features for Maximum Precision

The xTool F2 Ultra UV Conveyor is equipped with modern control and process automation technologies:

• LiDAR autofocus system;
• Automatic surface height detection;
• Dual 48 MP camera for precise positioning;
• Real-time layout preview;
• Industrial galvo system for high-speed engraving;
• Data transfer via USB, Wi-Fi, or local network.

Engraving Accuracy Parameters

• Focal point size: 0.02 x 0.02 mm.
• Camera positioning accuracy: up to 0.2 mm.
• Movement resolution: 0.00133 mm.
• Vector fitting resolution: 0.001 mm.

Combining high-precision optics, machine vision system, and automatic positioning, the equipment ensures accurate reproduction of fine details, texts, serial numbers, QR codes, and complex graphics even during serial production.

How to Start Working with F2 Ultra UV

The F2 Ultra UV is designed to minimize setup complexity and maximize production startup speed. The system supports automatic focusing and layout alignment.

1. Connect the device to power and control system.
2. Install the software and open the working interface.
3. Import the layout in a supported format (SVG, DXF, PNG, JPG, etc.).
4. Place the material in the working area or on the conveyor.
5. Perform automatic positioning via camera or LiDAR.
6. Start the engraving process.

F2 Ultra UV Conveyor Package Contents

The F2 Ultra UV Conveyor comes as a complete package for system startup without additional mandatory components. The set includes all essential elements for operation, setup, and initial equipment launch.

1. xTool F2 Ultra UV laser engraver.
2. Internal engraving kit.
3. Touch controller.
4. Auto Streamline conveyor system.
5. Air tube.
6. Power supply unit.
7. Power cable.
8. USB cable for connection.
9. Safety key.
10. L-shaped positioning element.
11. Gridded working panel.
12. Lint-free cloth.
13. 2.5 mm screwdriver.
14. Engraving test material set.
15. Quick start guide.
16. Safety instructions.

The package contains the essential components for a quick start and beginning of work without additional basic equipment.

F2 Ultra UV Technical Specifications

Thanks to the 355 nm UV laser, high working speed, and automation systems, the F2 Ultra ensures stable results even in production.

Laser Processing Parameters

Software and Compatibility

Ordering and Availability

xTool F2 Ultra UV Conveyor is available with professional consultation and delivery throughout Ukraine
