Buy S-Flex 90A flexible plastic in Ukraine
We bring to your attention S-Flex 90A – flexible plastic produced by the Polish brand Spectrum Filaments. In our 3DDevice store, you can also buy other materials for 3D printing at the most affordable prices in Ukraine.
Spectrum Filaments S-Flex 90A is a strong and flexible filament that allows you to print flexible products much easier than with other 3D plastics of this type. It makes printing easier: its formula provides good adhesion between layers and to the work surface.
Due to its resistance to hydrocarbons and good layering between layers, S-Flex 90A allows the production of sealing elements that must be resistant to any working fluid, ensuring the best tightness. Parts from this material can be used as energy absorbers, that is, all kinds of bumpers or vibration dampers.
In addition to the properties listed above, the S-Flex 90A material is also characterized by good resistance to UV radiation and high resistance to aging. S-Flex 90A flexible thread shows resistance to weak and diluted acids and alkalis.
S-Flex 90A is available in Ukraine in Deep Black color, but it is manufactured in a wide range of colors that can be ordered.
Characteristics of S-Flex 90A
- Very good wear resistance.
- Up to 500% elongation at break.
- Shore hardness – A90.
- Resistant to many common industrial oils and chemicals.
- Low shrinkage.
- High-quality surface.
- Reduced number of lines when printer is idle.
- Stability of the shape and properties of the material in the temperature range from -30 to +60 °C.
S-Flex 90A application
- Production of seals with high chemical resistance.
- Production of products to be used as energy adsorbents.
- Functional parts.
- All kinds of bumpers, vibration dampers, guides, protective cases, clamping parts, sleeves, hinges.
Packaging

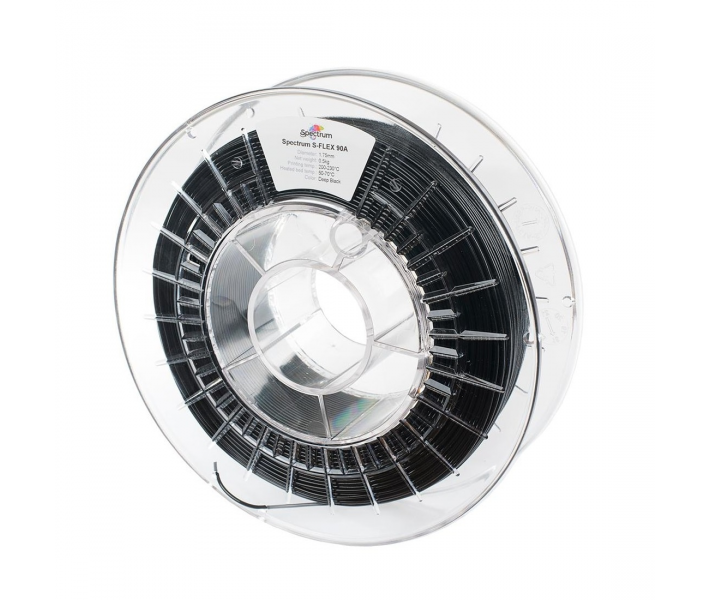

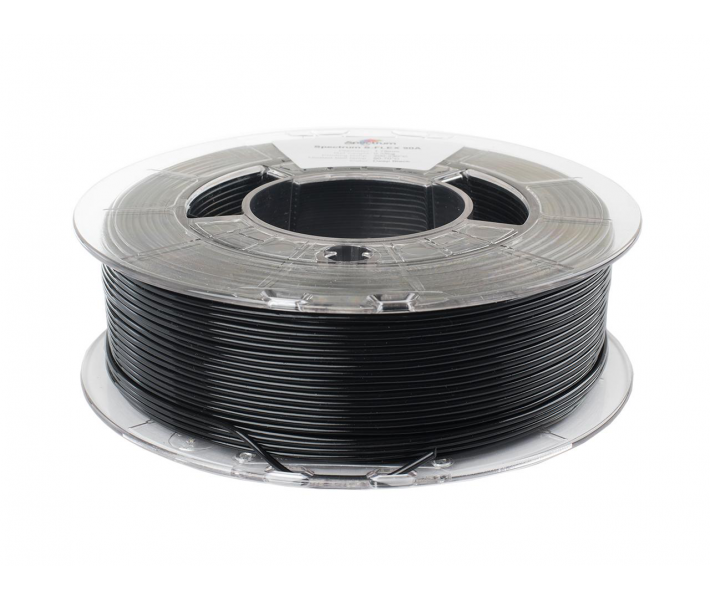

The thread weighing 0.5 kg is wound on a transparent spool, which contains information about the type of material, diameter, color and recommended printing temperature. Each coil is vacuum packed with a desiccant. All in original Spectrum Filaments foil card stock.
Coil dimensions
- Outer diameter: 200 mm.
- Width: 55 mm.
- Inner diameter: 52 mm.
- Weight of empty coil: ± 220 g.
Checking the quality of the thread of 3D plastic
Spectrum Filaments is the only company in Poland and one of the few in the world that has a tool for checking purchased filaments. VERIFY YOUR SPOOL is the most accurate quality control system on the market, ensuring that Spectrum Filaments products meet its strict requirements.
Filament for 3D printers is produced by the free extrusion method, which is one of the most difficult extrusion processing technologies due to the particularly significant influence of the process parameters on the dimensions of the product and the homogenization of the material. During the production process, every 1 mm of Spectrum Filaments is continuously measured on 2 axes with an accuracy of ±0.8 μm, which allows obtaining a high-quality final product. To prove this, the Spectrum Filaments company, as one of the few manufacturers in the world, has introduced the possibility of an online presentation, individually for each coil produced:
- the course of the diameter along the entire length of the coil;
- average diameter;
- ovality;
- standard deviation.
Specification
| Plastic diameter (mm) | 1.75 |
| Print temperature (°C) | 200 – 230 |
| Material | Flex |
| Diameter Tolerance (mm) | +/- 0.05 |
| Density (g/cm3) | 1.22 |
| Hardness Behind the Shore | 90A |
| Colors | Bahama Yellow, Bloody Red, Deep Black, Lime Green, Lion Orange, Pacific Blue, Polar White |
| Substrate For Printing | Magigoo, 3DLac, Dimafix |
| Heated table | Necessary |
| Table temperature (°C) | 50 – 70 |
| Closed Camera | Not required |
| Cooling (%) | 50 |
| Turnover (%) | 100 – 105 |
| Print speed (mm/s) | 15 – 50 |
| Producing country | Poland |
| Weight of Plastic (kg) | 0.5 |
| Gross weight (kg) | 0.9 |
