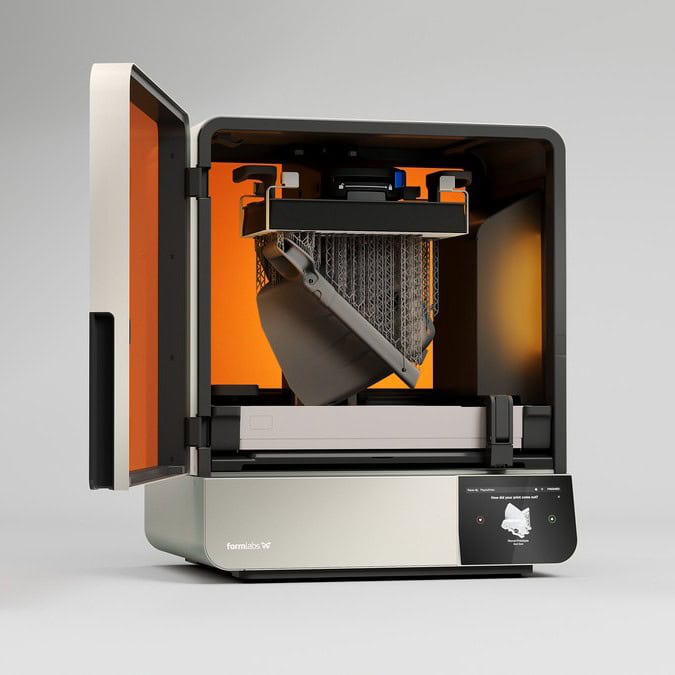

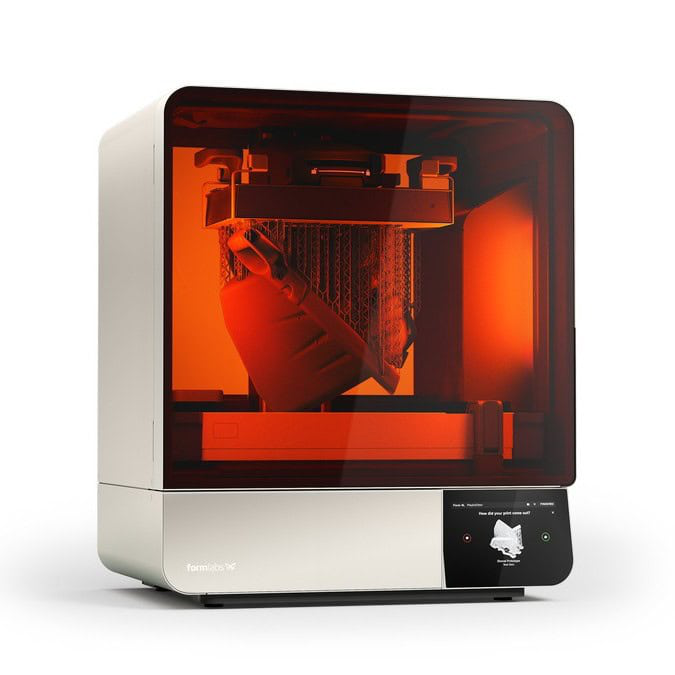

Formlabs Form 4L 3D Printer Complete Package
You can buy the Form 4L Complete Package 3D printer hardware kit from the 3DDevice store. Get everything you need to immediately start speedy and convenient 3D printing with repeatable results, at a more affordable price!
Formlabs introduces the new Form 4L wide-format 3D printer, delivering extreme speed, reliability and print quality – at any scale. Together with Formlabs’ versatile material catalog, Form 4L and its biocompatible version Form 4BL open up new possibilities for innovation, prototyping and manufacturing.
- Large print size. 4.6 times larger than Form 4. Print full-size products without partitioning, or print multiple parts in a single job.
- Unrivaled speed. Print large parts in less than 6 hours.
- Reliable. Wide-format 3D printing you can rely on.
- Versatile. Industry-leading materials and an open platform.
- Stunning prints. Print parts that are always the right size and have smooth surfaces.
- Intuitive. Anyone can learn in 15 minutes.
- Build volume – 353 × 196 × 350 mm.
- Layer height – up to 25 microns.
Excellent Form 4L print quality
- The sharpest details. Highly collimated light with preset antialiasing for sub-pixel resolution.
- Smoothest surface. Lower tear-off force, Light Touch support and 46 µm pixel size with pre-tuned anti-aliasing.
- Most accurate assemblies. Dimensional tolerances of ±0.15% XY, so printed assemblies always fit together.
Wide selection of Formlabs materials and Open Material Mode
Troubleshoot any problem with the best Formlabs materials or use Open Material Mode.
Unrivaled reliability
Form 4L is the wide-format 3D printing you can rely on.
- Proven print parameters. Formlabs optimization engineers test hundreds of printed parts to make sure every material meets the most reliable standards right out of the box.
- Intelligent management systems. Six control systems accurately measure and maintain printer temperature, resin level, print force and print status.
- Recycled Consumables. Reliable equipment recycled through years of use. Approximate consumable life: 75,000+ layers for Resin Tank and 600,000 to 1.9 million layers for Light Processing Unit 4L.
- Factory Calibration. 60-point calibration and quality control before your 4L mold even leaves the factory.
- Remote Monitoring. Monitor your printing devices and manage your printers from anywhere with a built-in camera, preventive maintenance reminders and our free Dashboard software.
Complete Package: Form 4L 3D printer equipment
- Form 4L 3D Printer
- Form 4L Resin Tank
- Form 4L Mixer
- Form 4L Build Platform
- Form 4 Resin Pumping System
- Form 4L Finish Kit: Cleaning Tools
- Form Wash L (2nd generation)
- Form Cure L
- PreForm
- 1 Year Warranty*
* You can also choose an optional Pro Service Plan for 1, 2 or 3 years.
Specifications:
| Printing Technology | MSLA |
| Build Field (mm) | 353 × 196 × 350 |
| Light Source | Backlight Unit: 145 uniform-wavelength LEDs, a plano-convex lens array, and integrated air cooling 405 nm optical wavelength 16 mW/cm² optical power intensity delivered to the cure plane 46 µm pixel size |
| Layer Height (micron) | 25 – 200 |
| XY resolution (micron) | 46 |
| Print Speed (mm/h) | Up to 80 |
| Resin Cartridges | 2 |
| Resin Filling System | Automatic |
| Supported Materials | Photopolymer resin |
| Supports | Autogenerated, Light-Touch Removal |
| Language | English, German, French, Spanish, Italian, Japanese, Simplified Chinese |
| Control | 7″ interactive touchscreen 1280 × 800 resolution |
| Video Camera | Integrated camera 2592*1944 resolution, 5 MP. Remote monitoring, print histories, and print timelapse |
| Supported File Types | STL, OBJ, 3MF, FORM |
| Operating System | Windows 7 (64-bit only, ARM not supported) and up. Mac OS X 10.12 and up. OpenGL 2.1. C++ runtime library from Microsoft (Windows only). 4 GB RAM (8 GB recommended) |
| Software | PreForm, Dashboard, Fleet Control |
| Connectivity | Wifi, Ethernet, USB 2.0 |
| Power Requirements | 100-240 VAC, 9 A, 50/60 Hz, 900 W |
| Manufacturer Country | USA |
| Warranty Period (months) | One-year warranty included. Paid service and extended warranty options available |
| Weight Netto (kg) | 58,5 |
| Minimum Access Dimensions (mm) | 889 × 1169 × 813 |
| Dimensions Assembled (mm) | 664 × 528 × 794 |
| Weight Brutto (kg) | 65,1 |
| Operating Temperature Range (°C) | 18 – 28 |
