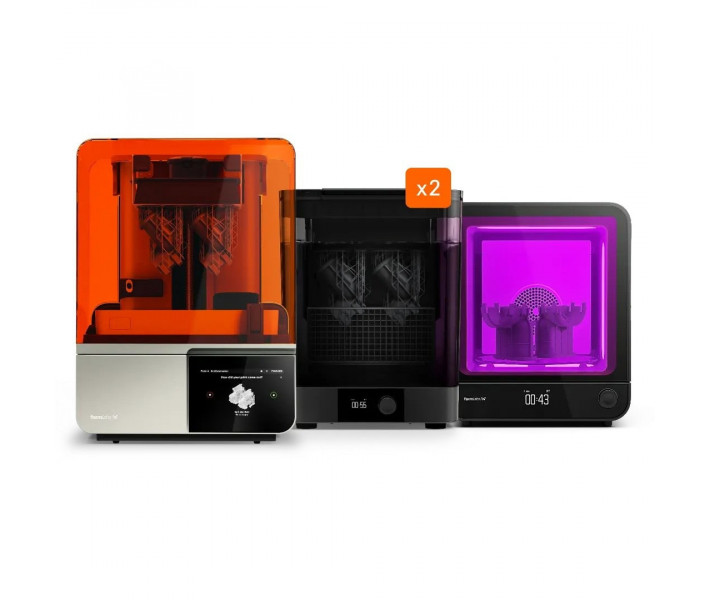

Form 4 Premium Package: a Cost-Effective Offer
On this page, you will find a Formlabs Form 4 Premium Package at a price lower than if you were to purchase each item separately.
The Form 4 utilizes the new Low Force Display™ technology to achieve high print accuracy and quality. With this printer, you can create parts quickly with simple workflows.
Key Features of Formlabs Form 4
- Technology – Low Force Display™ (LFD) that provides exceptional precision and accuracy.
- Build Volume 30% larger – 200*125*210 mm.
- Layer height – 25 microns.
- Print speed up to 4 times faster than the previous Form 3 model. Most parts are printed in less than 2 hours.
- High XY resolution of 50 microns and detail clarity.
- Updated cartridge design for faster refills, 30% smaller form factor, and 63% less plastic waste.
- Improved mixing system for increased speed and reliability.
Form 4 Premium Package Benefits
By purchasing the Formlabs Form 4 Premium Package from 3DDevice, you will receive:
- Rapid 3D printing, with most parts printed in less than 2 hours.
- Versatility, the ability to print anything using the best Formlabs materials or an open platform.
- An intuitive workflow.
- Cost savings due to the more favorable price of the Premium Package.
- High-quality printed parts with ±0.15% accuracy in the XY axis.
- Unparalleled reliability and repeatability of results.
- Formlabs Pro Service Plan – 1, 2, or 3 years of high-quality service support.
- Free training on operating with Formlabs 3D equipment purchased from 3DDevice.
Intuitive Workflow
Prepare for 3D printing takes only 15 minutes, and most parts printed in less than 2 hours:
- Import the model and prepare for printing.
- Load the material and start printing.
- Remove, rinse, and dry the parts.
- Further process the parts if necessary.
Unrivaled Reliability, No Failed Prints
Verified print parameters, intelligent control systems, durable consumables, factory calibration, and remote monitoring ensure reliable equipment operation.
Form 4 Complete Package contains:
- Form 4 3D printer
- Form 4 Resin Tank
- Form 4 Mixer
- Form 4 Build Platform Flex × 2
- Form 4 Finish Kit
- Form Wash (2 Generation) × 2
- Form Cure
- Finishing Tools
- Solwent Pump
- PreForm software
- 1 year warranty*
* You can also purchase a Pro Service Plan for 1, 2, or 3 years.
Specifications
| Printing Technology | LFD |
| Build Field (mm) | 200 × 125 × 210 |
| Layer Height (micron) | 25 – 300 |
| XY resolution (micron) | 50 |
| Print Speed (mm/h) | Average: 40. Maximum: 100 |
| Laser Characteristics | Backlight Unit: 60 uniform-wavelength LEDs, a plano-convex lens array, and integrated air cooling 405 nm optical wavelength 16 mW/cm² optical power intensity delivered to the cure plane 50 µm pixel size |
| Resin Cartridges | 1 |
| Resin Filling System | High-Speed Automatic Resin Handling |
| Resin Tank Lifetime | 75,000+ layers with any Formlabs material |
| Supported Materials | Photopolymer resin. 23 industry-leading Formlabs materials, or third-party materials using Open Platform. New materials being developed periodically |
| Supports | Autogenerated, Light-Touch Removal |
| Control | 7″ interactive touchscreen |
| Video Camera | Integrated camera 2592 x 1944 resolution (5MP) Remote monitoring, print history, and print timelapses Can be easily disabled, covered, or removed |
| Supported File Types | STL, OBJ, 3MF |
| Operating System | Windows 7 and up / Mac OS X 10.12 and up |
| Software | PreForm, Dashboard, Fleet Control |
| Connectivity | Wi-Fi, Ethernet, USB-C 2.0 |
| Power Requirements | 100 – 240 VAC, 4.8 A, 50/60 Hz |
| Power Output | 480 W |
| Manufacturer Country | USA |
| Warranty Period (months) | 12 |
| Weight Netto (kg) | 18,3 |
| Minimum Access Dimensions (mm) | 407 × 478 × 844 |
| Dimensions Assembled (mm) | 398 × 367 × 554 |
| Weight Brutto (kg) | 25,0 |
| Operating Temperature Range (°C) | 18 – 28 |
