3D scanner SHINING 3D EinScan Rigil
  • Stock: In Stock
  • Model: EinScan Rigil
  • SKU: 00-00012470
₴297,000.00
Ex Tax: ₴297,000.00

Handheld 3D Scanner SHINING 3D EinScan Rigil – Wireless High-Precision Scanning

The EinScan Rigil wireless 3D scanner will help solve many tasks related to creating accurate digital copies of objects of varying complexity. Thanks to its combined light source (laser + IR VCSEL), the scanner has almost no limitations on working with materials. Where the laser cannot cope, VCSEL kicks in, and vice versa. Its technical characteristics and electronic components allow for not just fast and productive work, but also comfortable use. The 3D scanner works excellently outdoors and indoors, wherever it is located.

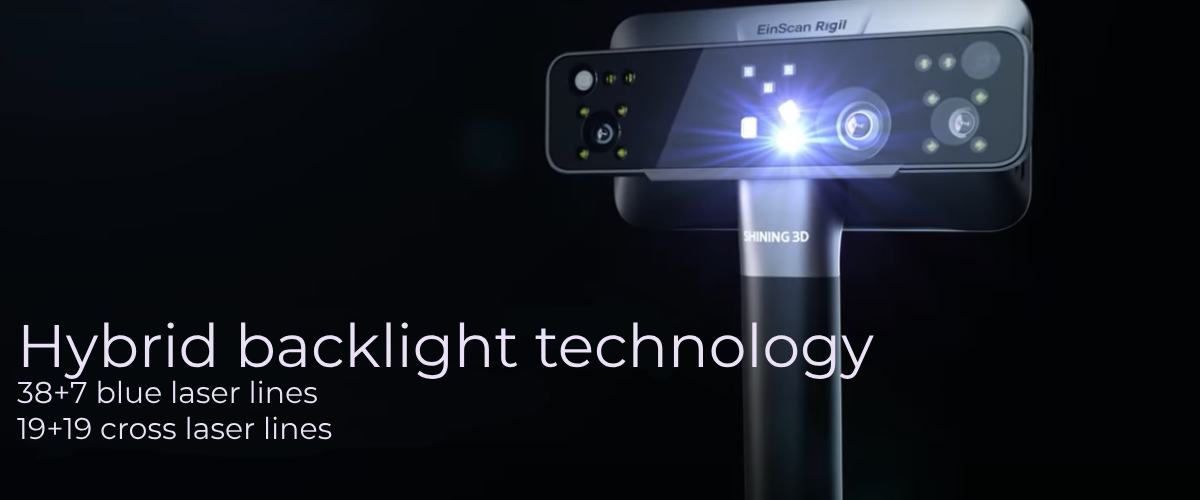

Wireless 3D scanner EinScan Rigi, hybrid light source

Advantages and Features of the SHINING EinScan Rigil Handheld 3D Scanner

  • Combined light source (blue laser + IR VCSEL).
  • Triple operating mode (standalone, wired PC, wireless PC).
  • Ability to switch scanning modes during operation (laser/IR).
  • Marker-free scanning (laser).
  • Fully autonomous mode.
  • High-quality components, powerful electronic stuffing.
  • 5-megapixel high-definition camera allows for accurate texture scanning.
  • Versatility of use indoors and outdoors.
  • Wide range of applications in various fields.
  • EinScan Rigil software (included) supports scanning processes, data export, and digital copy processing.

Handheld laser scanner

Handheld 3D Scanner EinScan Rigil – Best Results Thanks to 2 Light Sources

IR emission allows for fast scanning of large surfaces with excellent accuracy indicators:

  • Scanning speed up to 16,000,000 points/sec
  • Working distance 160-1500 mm
  • Volumetric accuracy 0.1+0.3 mm

Three operating modes of the Shining Rigil 3D scanner

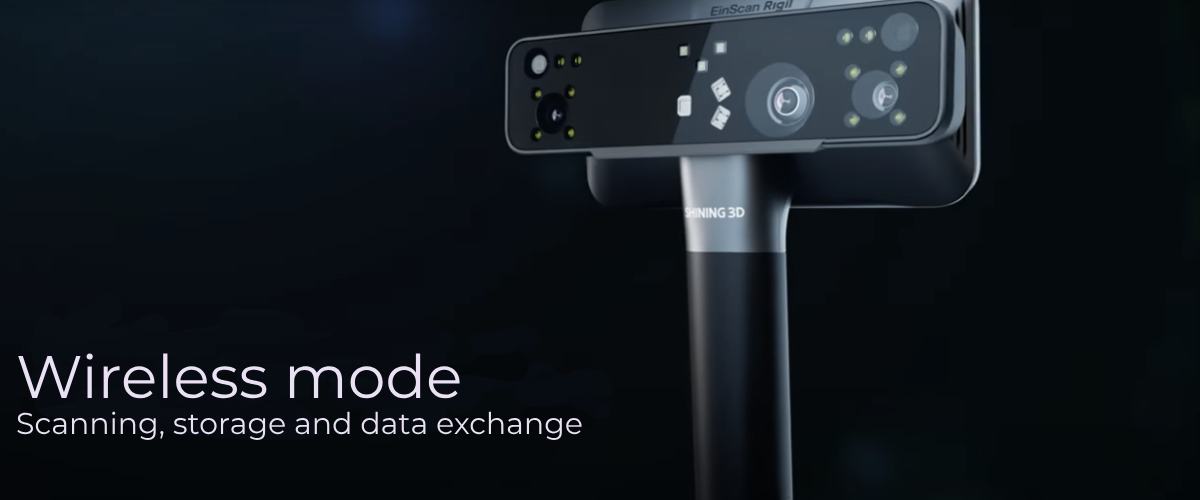

EinScan Rigi: wireless scanning from Shining

The autonomous Rigil scanner can work without connecting to a PC if necessary. The scanner performs scanning and digital copy processing tasks using its own resources.

Wireless scanning with Shining Rigil is carried out using the built-in Wi-Fi6 module. The scanner is capable of providing wireless scanning and PC connection. This optimizes performance for large scanning volumes or complex digital model processing.

High volumetric scanning accuracy

Advantages of Wired 3D Scanning with Shining Rigil

When the powerful hardware of the Rigil scanner is connected to the resources of a good PC – the digital flow is unstoppable! Wide possibilities for function accessibility, maximum data transfer speed in complex network environments – future technologies are already working for you!

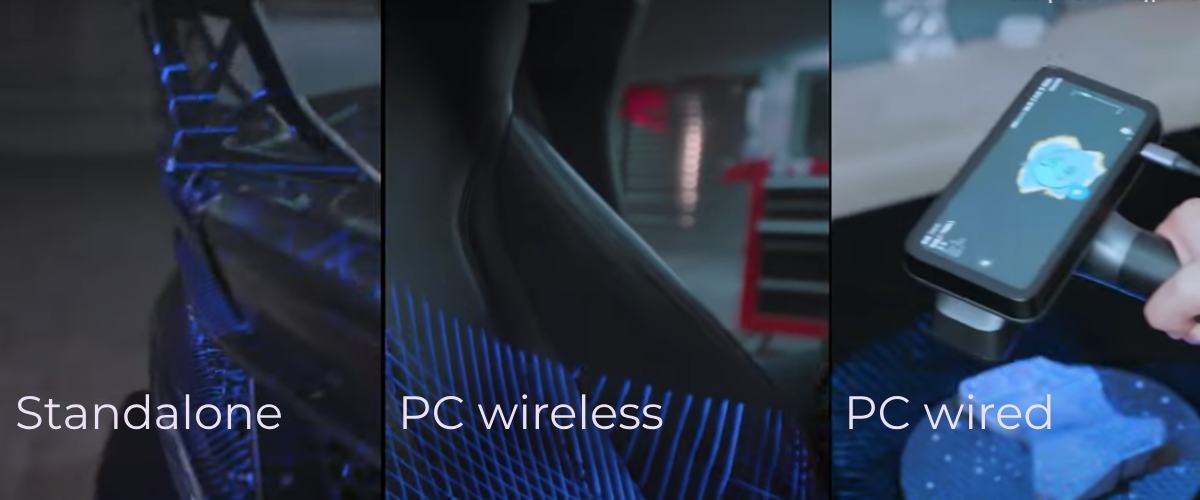

3D scanner EinScan Rigi – three scanning modes

Marker-Free Scanning

Thanks to 19+19 laser lines, large parts can be scanned without using special markers. Just take out the scanner, turn it on, and start working. A special tracking algorithm ensures blue laser scanning in combination with IR, supported by EXScan Rigil software. The efficiency of work and the quality of finished scans are higher compared to classic laser scanning with markers. Accuracy, compared to IR scanning without markers, is also significantly higher.

38 laser lines ensure high accuracy of digital copies

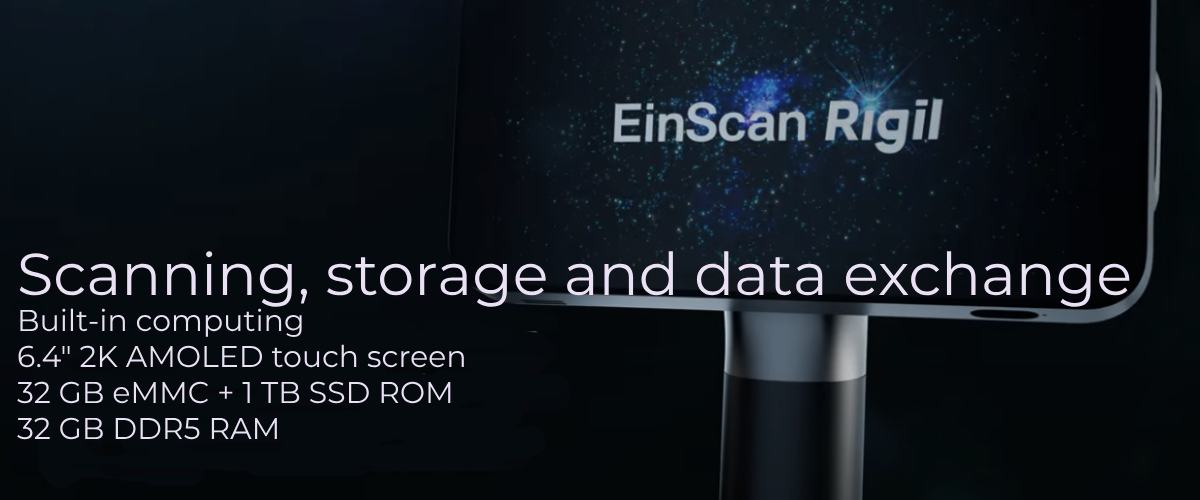

Hardware of the Rigil 3D Scanner

  • For continuous workflow, the device is equipped with 2 interchangeable 6000 mAh batteries
  • 2K AMOLED display measuring 6.4” ensures comfortable autonomous operation
  • 32 GB of DDR5 RAM allows for fast processing of data arrays even without PC connection
  • 32 GB eMMC + 1 TB SSD ROM provide the ability to store information directly on the 3D scanner
  • Shining Rigil scans better indoors or outdoors

High-quality components in the EinScan Rigi 3D scanner

Thanks to innovative software, high-quality components, and brilliant engineering solutions of the Rigil scanner, the device is equally effective both indoors and outdoors. The scanner can also be used on dark and metallic surfaces without the use of matting sprays.


Software for 3D scanner SHINING 3D EinScan Rigil

EXScan Rigil: main functions

EXScan Rigil is specialized software for a computer. It provides a solution to a full range of work tasks when processing digital copies of objects. The program allows you to:

  • easily cut and clean 3D models;
  • draw lines, automatically restore the grid;
  • align coordinates as needed;
  • invert surfaces;
  • create symmetrical copies of the 3D grid;
  • remove small noise fragments;

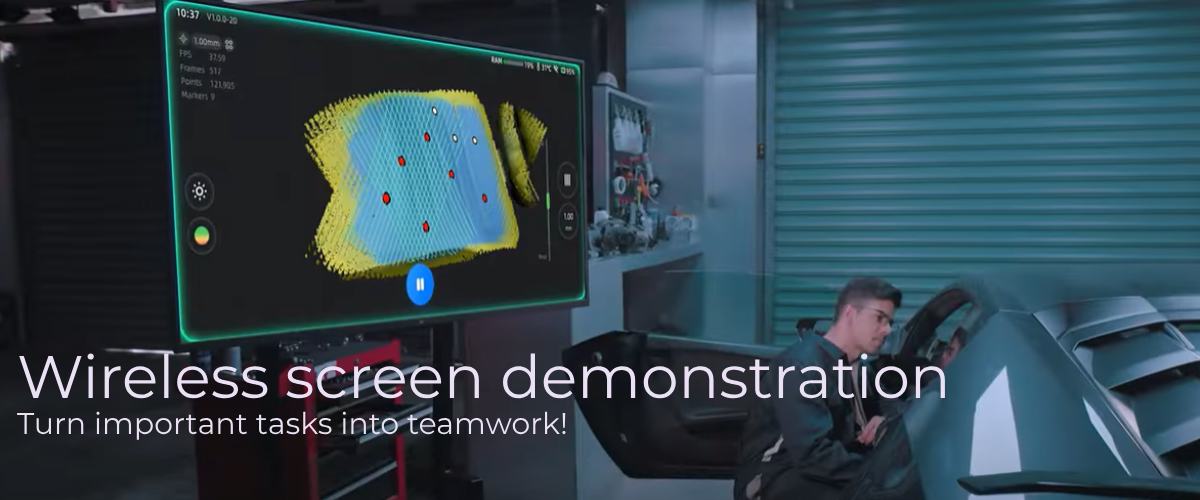

Wireless data transfer from scanner to screen

Areas of Use for the Shining Rigil Portable 3D Scanner

The automotive modification industry has reached a new level thanks to the use of the Rigil scanner. The flexibility of the device allows for the implementation of a maximum number of scenarios, choosing the optimal solution for restoration and modernization.

IR safe human scanning

Culture and Creativity

The accurate Rigil 3D scanner is equipped with a 5 MP high-definition camera. It is capable of restoring the texture of details with astonishing accuracy. An accurate digital copy of the texture geometry allows for the most precise reproduction of cultural heritage objects, architectural monuments, and works of art.

Wide possibilities of use indoors and outdoors

Education and Research

2 light sources (IR and blue laser) allow the 3D scanner to be used for scanning various materials. Its wireless design, the ability to view scanning results during operation, mobility, and accuracy allow both beginners and professionals to use Shining Rigil. The wireless method of duplicating the scanner's display to a monitor opens up wide opportunities for collaborative scientific research.


Fast IR scanning with EinScan Rigi


Automotive Industry and Engineering

Reverse engineering and automotive customization (tires, bumpers, tuning parts). Rigil allows for quickly obtaining accurate 3D models for manufacturing or refining parts without a PC, using autonomous mode.


Production and Quality Control

High accuracy (0.04 + 0.06 mm/m; resolution up to 0.05 mm), "Laser HD" and "IR Rapid" modes allow Rigil to be used for parts inspection and prototyping.

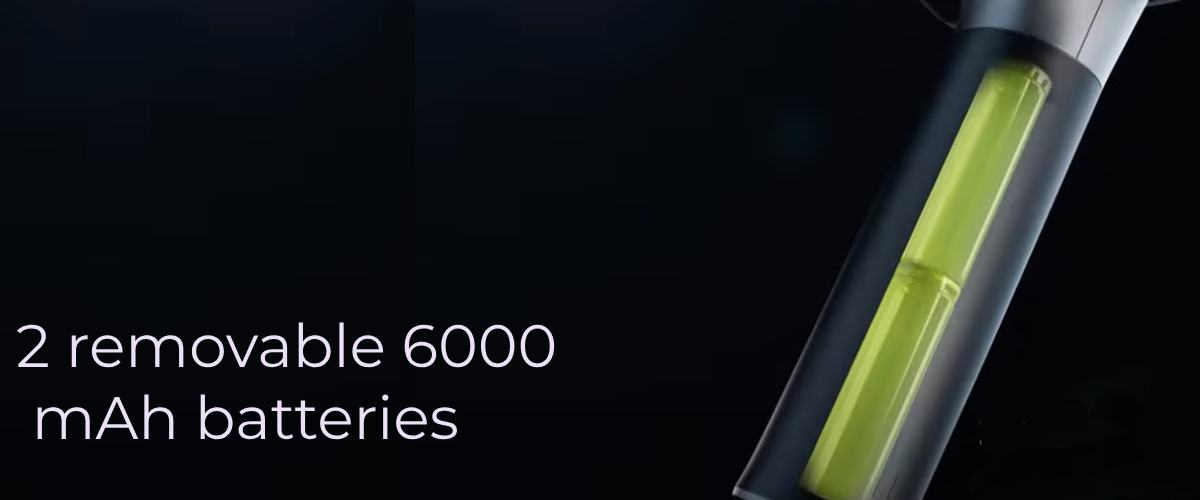

2 interchangeable batteries for continuous scanning

Mobile On-Site Work

Supports autonomous mode without a PC with Wi-Fi 6, built-in processor, SSD, and batteries — ideal for quick trips where power and computer access are limited.


Outdoor and Challenging Lighting Conditions

Works in bright daylight (up to 90,000 lux), handles dark and reflective surfaces without powder coating thanks to its hybrid laser source and marker-free tracking algorithms.


EinScan Rigil is a versatile high-precision 3D scanner with a hybrid light source, autonomous operation capability, and a wide range of application scenarios: from automotive engineering to the digitalization of cultural heritage and scientific projects.

This compact wireless scanner from Shining will help solve production, commercial, and scientific tasks quickly and successfully. Choose branded scanners from one of the best manufacturers of 3D devices on our website. We offer original products, loyal prices, and free training on how to use the device – call us!

Printer settings
Additional Information 19 + 19 intersecting laser lines: for high-speed scanning, providing the highest efficiency and flexibility. 7 parallel laser lines: for the smallest details, providing stable results.
Camera 5 MP, high definition
Certifications CE, FCC, RoHS, WEEE, FDA, IP50, etc.
Connectivity USB 3.0, Wi-Fi
Country of origin China
Dimensions Brutto (mm) 250 x200x100
File Transfer STL, OBJ, PLY, 3MF, ASC
Humidity range of the working Environment (%) 10 – 90 non-condensing
Light Source Hybrid light source: Blue laser lines + VCSEL infrared light, 19 + 19 intersecting laser lines, 7 parallel lines
Operating Temperature Range (°C) –10 – +40
Power 2 replaceable batteries 6000mAh, support charging and power supply via USB-C (PD3.0 ~60W)
Scan Accuracy (mm) Up to 0.05
Scan Range (mm) Up to 983×979mm @1500mm, with 3mm/dot accuracy, ~380×300mm @400mm with higher detail
Scan With Marks
Scanning speed (points/s) HD Laser Mode: 4,400,000 dots/s | Rapid IR Mode: 1,600,000 dots/s
Screen 6.4″ 2K AMOLED touchscreen
Software EinScan Rigil, EXModel compatible, BlueStar Mapping (optional)
Stand-off distance (mm) 160 ~ 1500
System requirements Operating System: Windows11Professional 22H2 (64‑bit) Processor: Intel Core i7-13700H (13th generation) or higher RAM: 64GB DDR5, preferably in dual-channel mode Graphics Card (GPU): NVIDIA GeForce RTX 3060 Laptop GPU or higher, with at least 8GB VRAM Connection Interface: USB 3.0 / USB-C for stable connection and high data transfer speeds
Volumetric Accuracy (mm/m) 0,04 + 0,6
Warranty Period (months) 12
Weight Brutto (kg) 1,3
Weight Netto (kg) 0.870 with battery
Details
Тип Сканера Portable
