Description

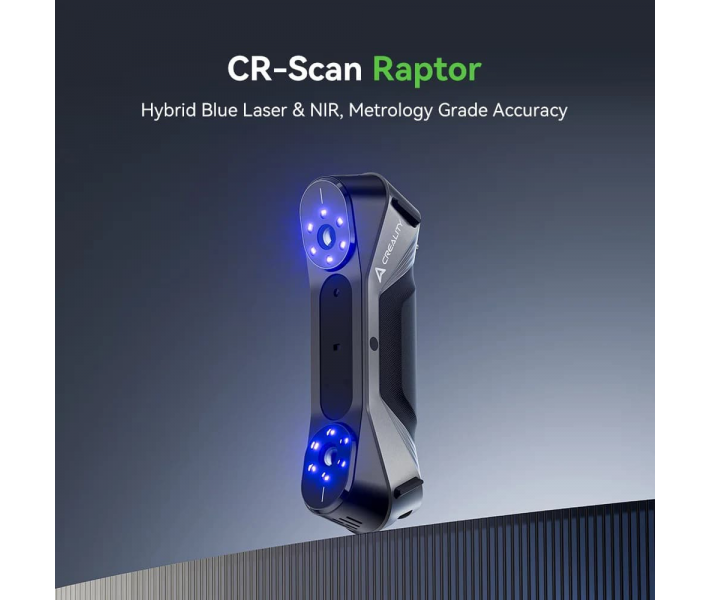

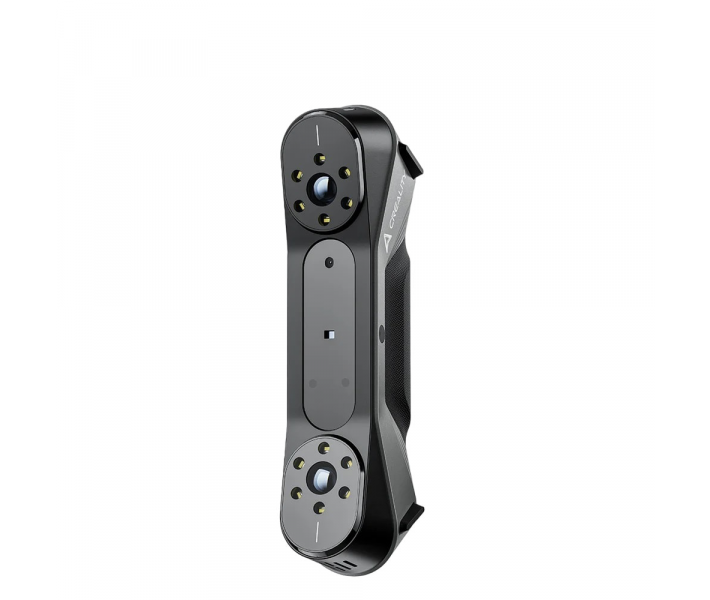

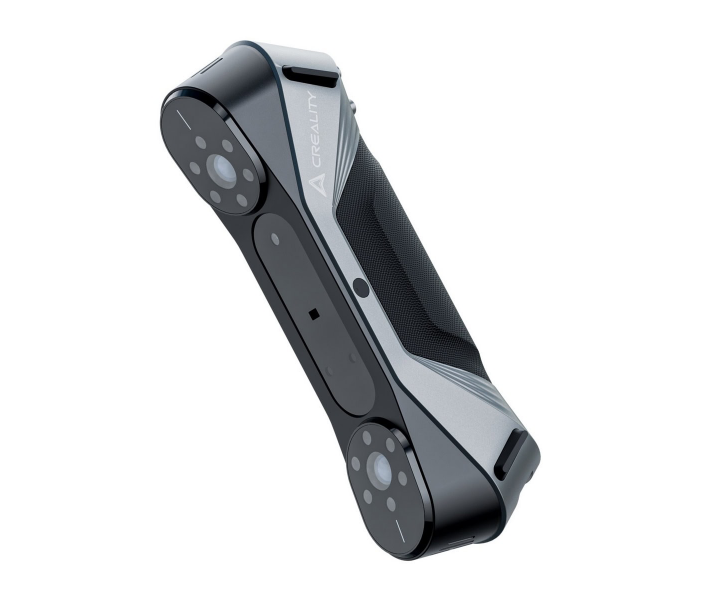

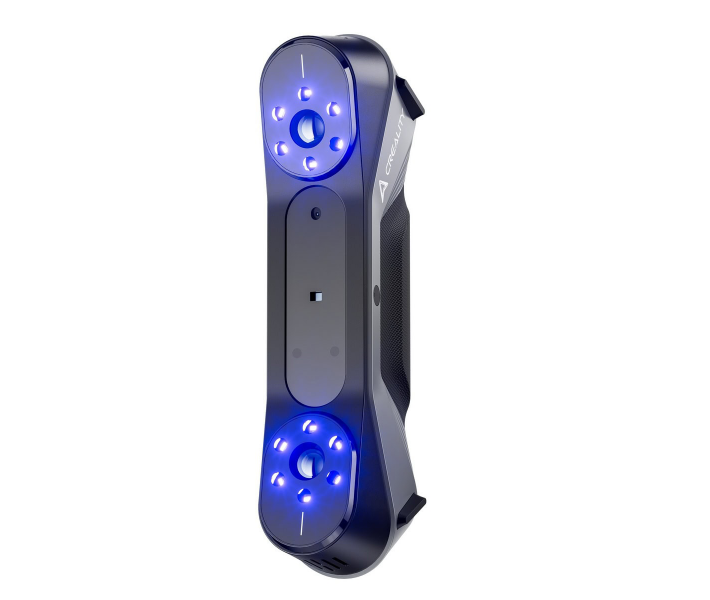

Creality CR-Scan Raptor laser-infrared 3D scanner
The new Creality CR-Scan Raptor hybrid 3D scanner uses blue laser and infrared structured light technologies, making it capable of scanning a wide range of sizes and materials, including without the need for positioning marks or 3D scanning spray.
In addition, it is a metrology-grade scanner that provides digital data with an accuracy of 0.02 mm.
The CR-Scan Raptor is an easy-to-use and versatile 3D scanner. The built-in anti-vibration system improves data quality. It scans in 24-bit color and is capable of reading metal and black surfaces without matting sprays on small and large objects from 5 to 2000 mm³.
The first multi-line blue laser consumer 3D scanner for professionals and hobbyists. An excellent and affordable device for quickly producing detailed 3D models with color reproduction.
CR-Scan Raptor scanner of metrological class
- 7 blue parallel laser lines + infrared structured light.
- Metrology accuracy up to 0.02 mm.
- Scanning speed up to 60 frames per second.
- Suitable for scanning objects from 5 to 2000 mm³.
- Sharper edges and richer details.
- Anti-jitter for smooth scanning.
- Spray-free scanning of black and metal surfaces.
- Scan without positioning marks.
- 24-bit full color scanning.
- Lightweight and compact: dimensions 215*50*74 mm, light weight 372 g.
Blue laser and infrared light – scan easily in a variety of environments
The CR-Scan Raptor integrates an innovative combination of blue laser and infrared light sources, covering the scanning of small, medium and large objects, which can meet the needs of a variety of industrial 3D scanning scenarios.
Two-color LED texture LEDs help to produce more realistic scanning results.
- Blue light – provides additional light for laser line scanning.
- White light – used to enhance the brightness of color textures.
7 blue parallel laser lines
Metrological accuracy in laser scanning mode can reach 0.02 mm. 7 parallel blue laser lines for fine scanning of parts, with a single laser line as small as 0.1 mm to produce better and sharper point cloud edges.
Scanning in infrared structured light mode
Markerless scanning. The CR-Scan Raptor uses 3D spot-matching images. Markers are not required for multifunctional parts. Objects can be scanned quickly and directly.
High-speed scanning beyond your imagination
- Blue light scanning speeds of up to 60 fps.
- IR scanning speeds of up to 20 fps.
Unique face and body 3D scanning algorithm
The Creality CR-Scan Raptor 3D scanner in Face and Body mode is equipped with a unique face display algorithm that captures more details, and scanning a person’s body takes only 2 minutes.
Accurate and detailed scanning
Advanced temperature compensation algorithm, it can improve temperature stability and ensure accuracy.
High-performance structure
- Lens with a large depth of field of 20 mm
Lens with low distortion < 5%% distortion
9-element glass lens
Metal frame and lens holder
The CR-Scan Raptor covers close and long range scanning and has good stability at high and low temperatures, providing reliable scanning measurement results.
Universal scanning for all sizes
By combining linear lasers with infrared structured light, the CR-Scan Raptor can scan objects ranging in size from 5*5*5 mm³ to 2000*2000*2000 mm³. Easy scanning of small figures, bolts, faces, human bodies, automotive components, etc.
Anti-shake for smooth scanning
Equipped with One-Shot 3D imaging technology, the CR-Scan Raptor is naturally stabilized and less likely to lose track. The fast trackback speed provides smoother handheld scanning.
Scan black and metallic objects without sprays
Even without a scanning spray, you can scan cars, car parts, tires, and other black/metallic objects to get the desired model effect.
24-bit full-color scanning
Equipped with 12 round LED texture lamps, it can enhance the brightness of color display in dark environments and realistically reproduce the colors of the scanned object.

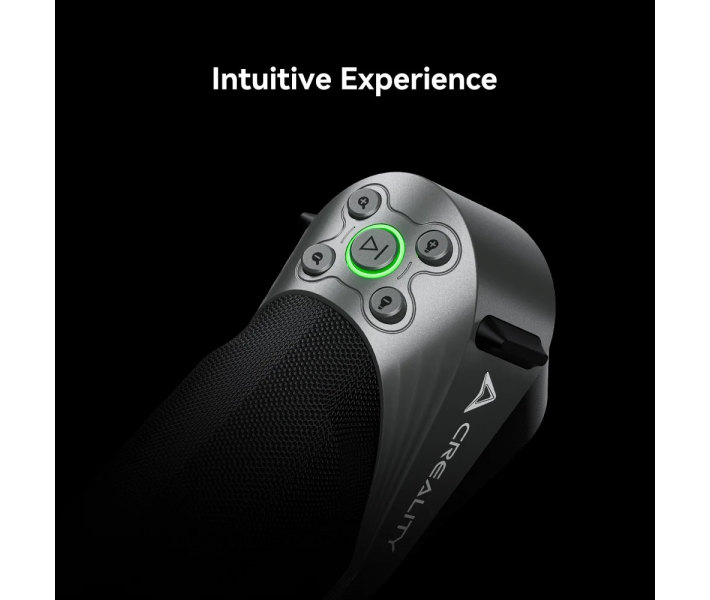

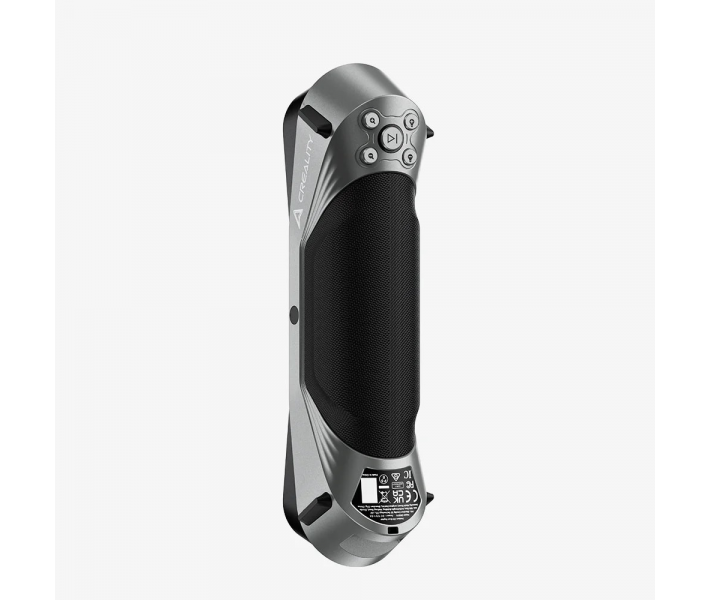

Intuitive and easy one-handed operation
An indicator light that provides real-time feedback on scanning status; combined with buttons, it provides convenient and easy operation.
Lightweight 372 g, effectively reduces prolonged work fatigue, and has an anti-slip sleeve and detachable wrist strap.
High precision glass calibration board
Uses high-precision glass substrate calibration board for accuracy calibration, you can maintain the high accuracy of the scanner, maintain accuracy.
Features.
Scanning mode: blue light (blue 7-line laser) / NIR (infrared binocular structured light)
Blue light mode (blue 7-line laser):
- Accuracy: up to 0.02 mm per 100 mm
- 3D resolution: 0.02-2.00 mm
- Scanning speed: up to 60 frames per second
- Min. scanning volume: 5*5*5 mm
- Single capture range: 270*170 mm at 300 mm
- Working distance: 150-400 mm
- Color display: yes
- Alignment mode: Marker
Infrared binocular structured light mode:
- Accuracy: up to 0.1 mm
- 3D resolution: 0.1-2.0 mm
- Scanning speed: up to 20 frames per second
- Min. scanning volume: 150*150*150 mm
- Single capture range: 930*580 mm at 1000 mm
- Working distance: 170-1000 mm
- Color display: yes
- Alignment mode: marker / geometry / texture
General parameters:
- 3D imaging camera resolution: 1920*1200
- Additional colored light: 12 white LEDs
- Improved marker recognition: 12 infrared LEDs
- Laser safety: Class I (eye safe)
- Buttons: mechanical
- IMU: Yes
- Output format: OBJ, STL, PLY
- Input power: 12 V 2 A
- Data interface: TypeC, USB3.0
- Device dimensions: 215*50*74 mm
- Device weight: 372 г
- Calibration board: high-precision glass calibration board
- Wireless scanning: supported in combination with future wireless scanning accessories
- System support: Windows, macOS
- Operating temperature: -10°C to 40°C
- Operating humidity: 0-90% RH
Accuracy is evaluated in a laboratory environment (the object of measurement is a pair of spheres with a diameter of 100 mm), and actual results may be affected by operating environments such as temperature, vibration, and other factors.
