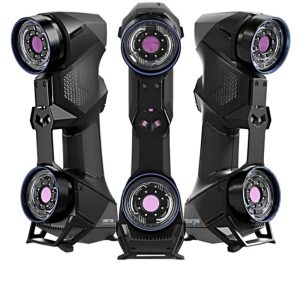

HandyScan 3D BLACK Elite Portable 3D Scanner
The HandyScan 3D BLACK Elite portable 3D scanner is a small scanner with metrological accuracy parameters. It is designed for high-precision digitization of objects. The scanner features high speed and reliability. The HandyScan 3D BLACK Elite provides high-quality measurements at a speed of up to 1,800,000 measurements per second.
High Accuracy and Scanning Speed of Creaform HandyScan 3D BLACK Elite

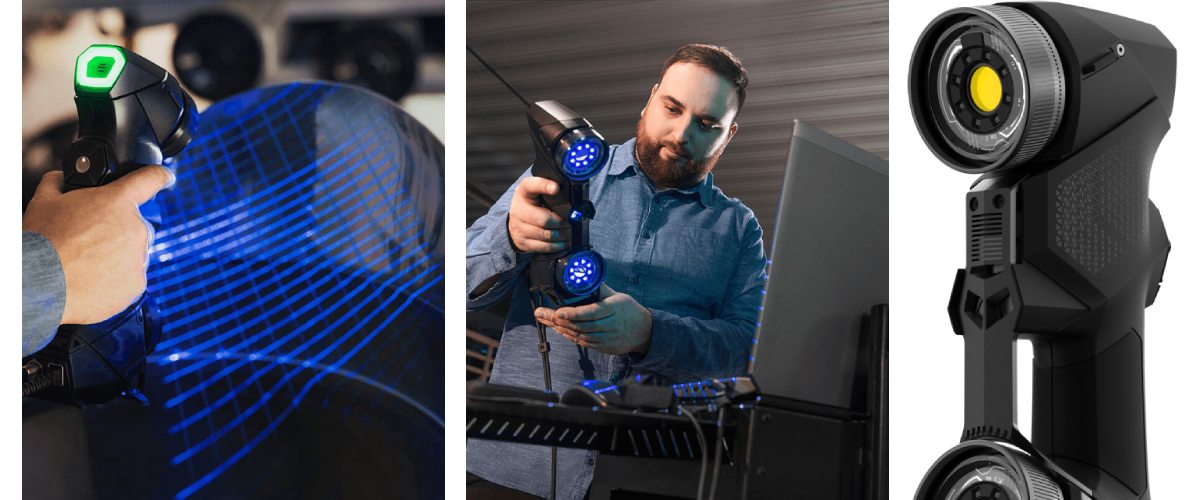

The HandyScan 3D BLACK Elite delivers accuracy up to 0.025 mm. Volumetric accuracy is 0.020 mm + 0.040 mm/m. The scanning speed reaches 1,300,000 points per second. The scanner is equipped with 30 blue cross laser lines, allowing for fast and high-quality digitization of complex shaped parts. The automatic mesh generation function simplifies the workflow.
Portability and Ease of Use of the HandyScan 3D BLACK Elite Portable 3D Scanner

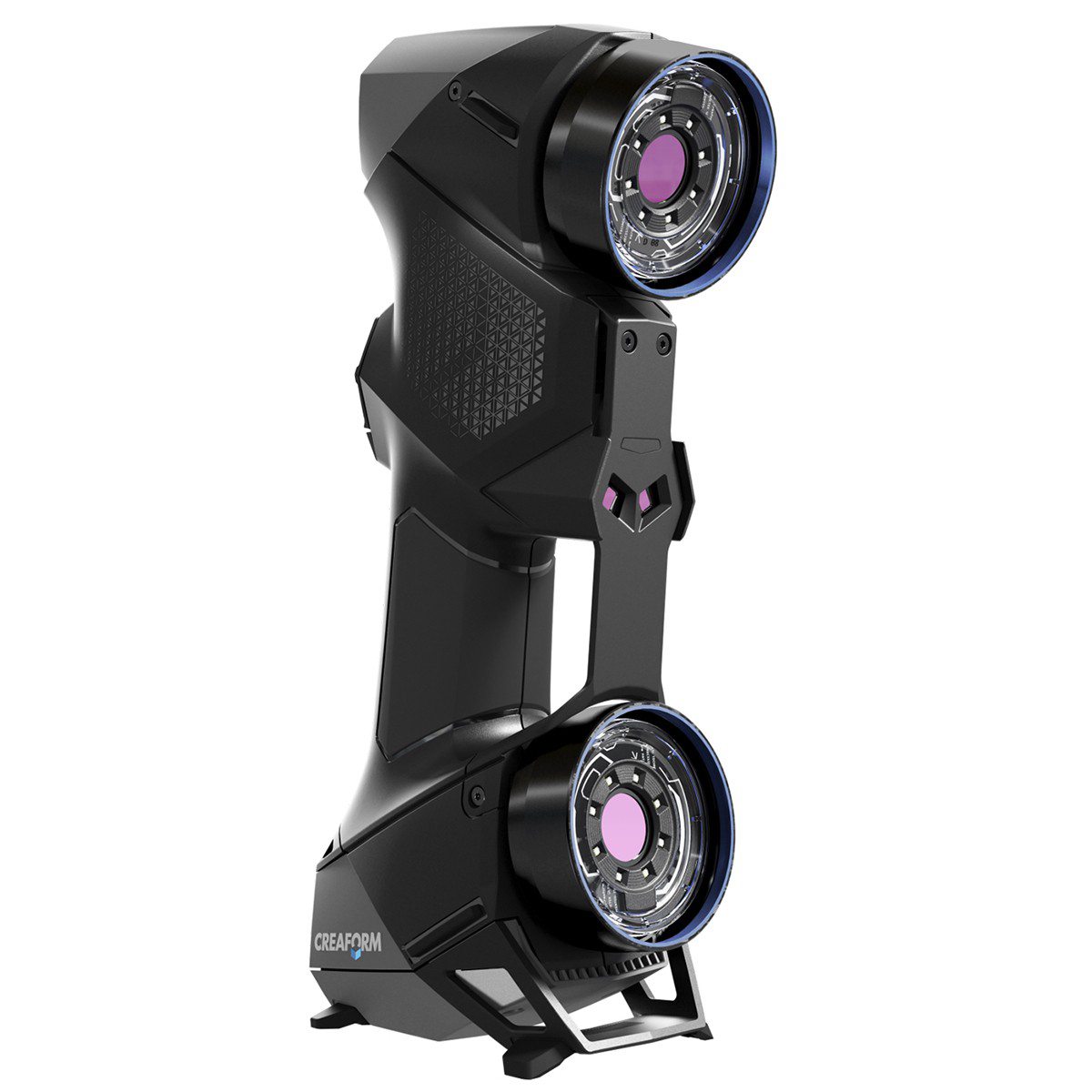

The scanner has a compact size (79 x 142 x 288 mm) and light weight (0.94 kg). This makes it convenient for operation in various conditions, both indoors and on-site. Getting started takes less than two minutes. The VXelements software is intuitive. It simplifies the scanning and data processing. Thanks to dynamic referencing, the scanner 3D and the object can move freely during scanning without loss of accuracy.
Key Features of BLACK Elite
- High measurement accuracy (up to 0.025 mm).
- High scanning speed (up to 1,300,000 measurements/s).
- 30 blue cross laser lines for fast data capture.
- ISO 9001 and ISO 17025 certifications.
- Automatic real-time mesh generation.
- Portability and light weight.
- Fast setup and ease of use.
- Dynamic referencing for scanning in motion.
- Compatibility with VXelements software.
- Also compatible with all major metrology, CAD, and computer graphics software through mesh and point cloud import.
Application Areas of the Creaform Portable 3D Scanner
The HandyScan 3D BLACK Elite finds application in various industries
- Automotive: Quality control of body parts, scanning engine components, reverse engineering,
deformation analysis.
- Aerospace: Inspection of turbines, blades, fuselage, creation of digital models for
analysis, geometry control of complex parts.
- Manufacturing: Geometry control of complex products, deformation analysis, rapid
prototyping, quality control of castings and welds.
- Metalworking: Quality control of castings, inspection of welds, creation of 3D models of
tools, analysis of equipment wear.
- Power Generation: Inspection of pipelines, power plant equipment, creation of digital twins
for monitoring and maintenance.
- Cultural Heritage: Digitization of historical artifacts, creation of virtual museums,
restoration of damaged objects.
- Healthcare: Creation of custom prostheses and orthoses, planning surgical operations,
analysis of body shape for ergonomics.
- Education and Science: Conducting research, creating educational models, visualization of
complex objects, analysis of experimental data.
- Design and Art: Creating digital models of sculptures, furniture, decorative elements, archiving works of art.
The HandyScan 3D BLACK Elite is a powerful and versatile tool for solving a wide range of tasks requiring high-precision and fast 3D scanning. Its portability, ease of use, and high performance make it an indispensable assistant for professionals in various fields.
Technical Specifications
| Light source | 30 blue laser lines |
| Volumetric accuracy (mm/m) | 0.020 + 0.040 |
| Scanning area (mm) | 310 x 550 |
| Working distance (mm) | 300 |
| Scanner type | Portable, handheld |
| Depth of field | 550 mm |
| Color scanning | No |
| Scanning with markers | Yes |
| Part size range (m) | 0.05 – 4.0 |
| Scanning speed (points/s) | 1,800,000 |
| Scanning accuracy (mm) | Up to 0.025 |
| Sphere/plane form error (mm) | 0.030/0.050 |
| Scanning depth (mm) | 250 |
| Point spacing (mm) | 0.2 |
| Laser class | 2M (eye-safe) |
| Supported file types | .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf |
| Software | VXelements |
| Compatible software | 3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Metrologic Group (Metrolog X4), New River Kinematics (Spatial Analyzer), Verisurf, Dassault Systèmes (CATIA V5, SOLIDWORKS), PTC (Creo), Siemens (NX, Solid Edge), Autodesk (Inventor, PowerINSPECT) |
| Connection | USB 3.0 |
| Net weight (kg) | 0.85 |
| Net dimensions (mm) | 77 x 122 x 294 |
| Country of origin | Canada |
| Certifications | EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE |
| Patents | CA 2,600,926, CN 200680014069.3, US 7,912,673, CA 2,656,163, EP (FR, UK, DE) 1,877,726, AU 2006222458, US 8,032,327, JP 4,871,352, US 8,140,295, EP (FR, UK, DE) 2,278,271, EP (FR, UK, DE) 2,230,482, IN 266,573, US 7,487,063, CA 2,529,044, EP (FR, UK, DE) 3,102,908, US 15/114,563, CN 201580007340X |
| Operating temperature range (°C) | 5 – 40 |
| Operating humidity range (%) | 10 – 90 |
