- Stock: In Stock
- Product code: 00-00014890
Buy 3D Scanner Artec Eva

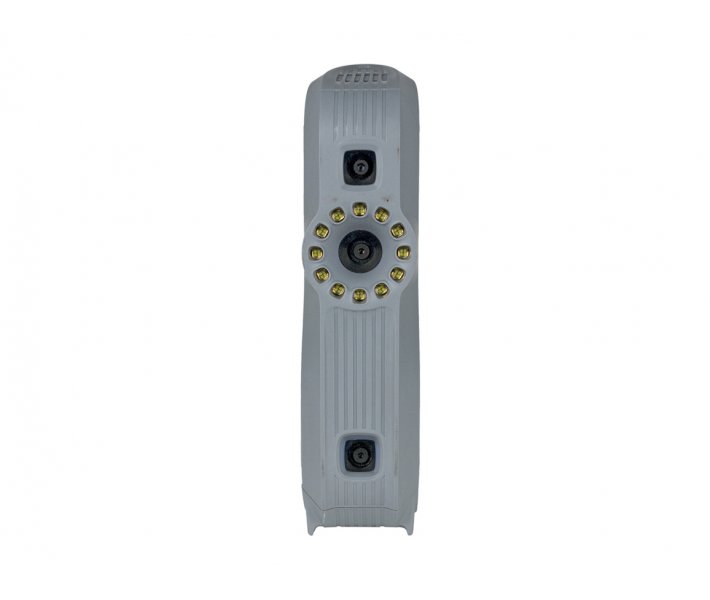

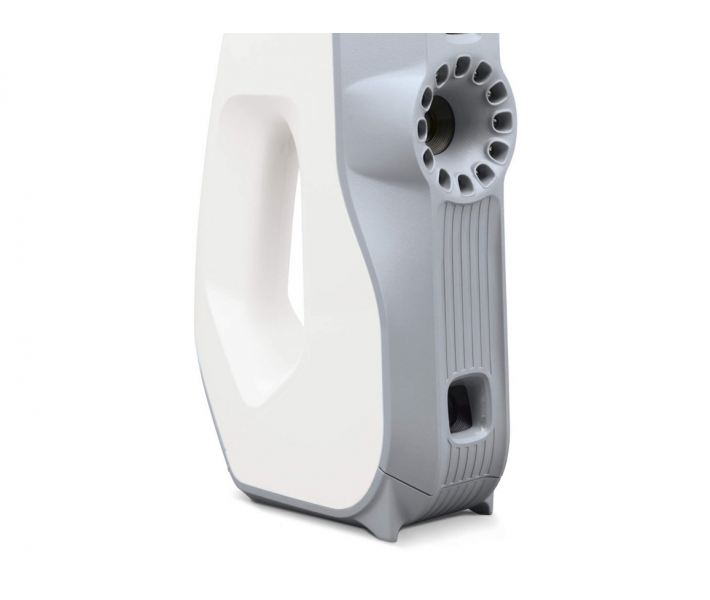

3D Scanner Artec Eva— is a fast professional 3D scanner based on safe structured light technology. The scanner can create an accurate 3D model with high resolution of a medium-sized object. It is an excellent versatile solution for capturing virtually any object, including objects with black and shiny surfaces.
The scope of Eva's application is very wide: computer graphics, quality control, forensics, healthcare, prosthetics, forensic examination, education, science, automotive and aerospace industries, and much more. Today, the Artec Eva 3D scanner is a leader in the portable 3D scanner market.
High Shooting Speed and Impressive Realism
- Captures and simultaneously processes up to 2 million points per second with high accuracy up to 0.1 mm in vivid colors;
- Tracks and excellently conveys geometry and texture simultaneously;
- Allows you to track the shooting process on the monitor directly at the moment of scanning. You can evaluate the scanning result and adjust the scanner's position relative to the object right during its operation;
- Uses structured light technology, so it is completely safe for scanning both people and objects. The Artec Eva scanner
does not use a laser beam, allowing doctors to create 3D models of a person without risk to the patient's health;

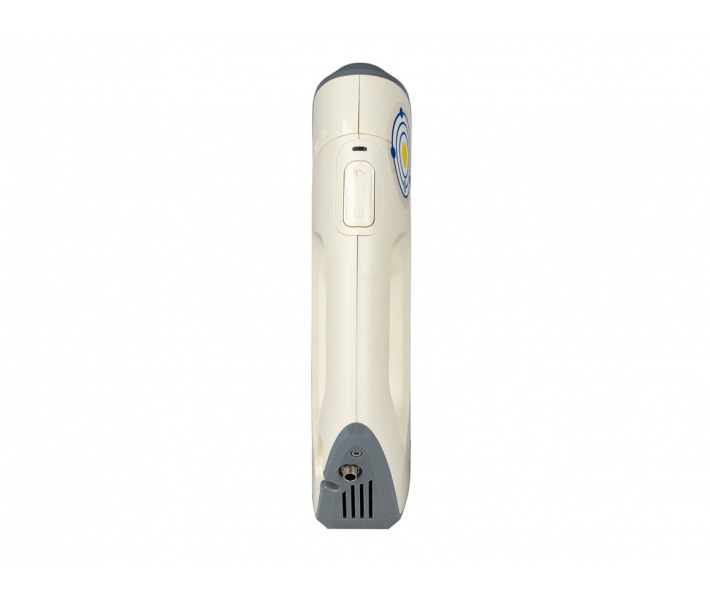

- Truly portable. The Artec Eva 3D scanner is easy to transport and easy to scan while holding the scanner in hand;
- Does not require special preparation and calibration. Artec 3D scanners use the unique geometry of the object itself to correctly determine the mutual arrangement of the captured surfaces, so there is no need to use markers during the scanning process. Just turn it on and start scanning;
- Can be used for scanning moving objects.
Technical Specifications
| Scanner Type | Portable |
| 3D Accuracy, up to | 0.1 mm |
| 3D Resolution, up to | 0.5 mm |
| Accuracy Depending on Distance, up to | 0.03% at 100 cm |
| Working Distance | 0.4 – 1 m |
| Capture Volume Area | 61,000 cm³ |
| Linear Field of View at Near Distance, H × W | 214 × 148 mm |
| Linear Field of View at Far Distance, H × W | 536 × 371 mm |
| Angular Field of View, H × W | 30 × 21° |
| Texture Reading | Yes |
| Texture Resolution | 1.3 MP |
| Color Transfer | 24 bpp |
| 3D Reconstruction Speed for Real-Time Alignment, up to | 16 frames/sec |
| 3D Reconstruction Speed for 3D Video, up to | 16 frames/sec |
| 3D Video Stream Mode Reconstruction Speed, up to | — |
| Data Collection Speed, up to | 2 million points/sec |
| 3D Exposure Time | 0.0002 sec |
| 2D Exposure Time | 0.00035 sec |
| 3D Illumination | Flash (no laser) |
| 2D Illumination | White 12-LED array |
| Position Sensors | — |
| Touch Screen | Image transmission to an external computer via USB port |
| Multicore Processor | On an external computer |
| Interface | 1 × USB 2.0, compatible with USB 3.0 |
| Built-in Hard Drive | — |
| Operating System | Windows 7, 8, or 10 x64 |
| Minimum System Requirements | i5 or i7 (recommended), RAM 12 GB |
| 3D Mesh Formats | OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB |
| 3D Point Cloud Formats | BTX, PTX |
| CAD Formats | STEP, IGES, x_t |
| Measurement Formats | CSV, DXF, XML |
| Power Source | AC network or portable battery |
| Dimensions, H×D×W | 262 × 158 × 63 mm |
| Weight | 0.9 kg |
Package Contents
- Scanner
- Power Source
- Specialized storage and transport bag
- User Manual
- Software for scanning and processing 3D models “Artec Studio ™”
How Does It Work?
Creating an accurate 3D model of a motorcycle using Artec Eva and Artec Space Spider scanners:
3D Scanning of President Obama with Artec Eva, Video
In the White House, it was decided to create a portrait of President Obama using 3D scanning technology, to obtain images for 3D printing a bust of the president and a realistic mask of his face, as well as remote viewing of their digital versions.
With the help of two professional color 3D scanners (Artec Eva), they digitized President Obama's face and shoulders in a few minutes. They turned these 3D shots into high-quality 3D models and produced a realistic bust and face mask of the president on a 3D printer.
