Description

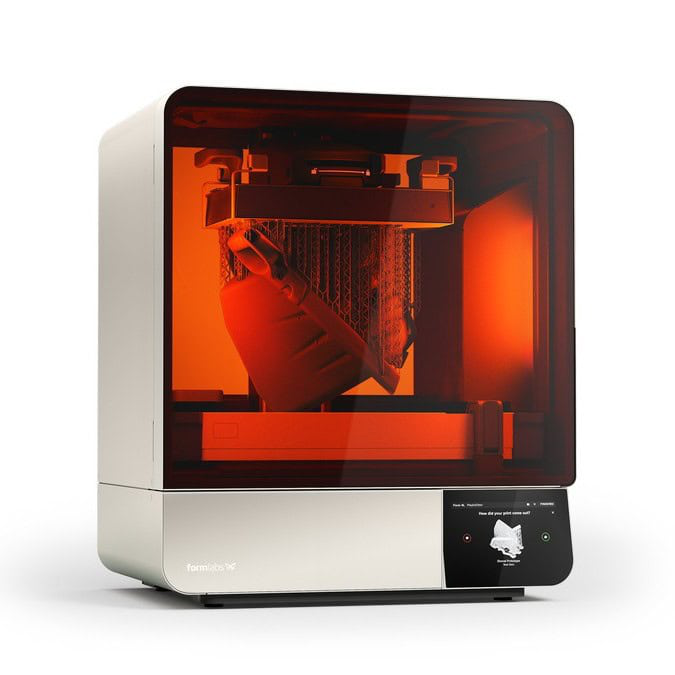

3D printer Formlabs Form 4L
Formlabs introduces a new wide-format 3D printer Form 4L, providing extreme speed, reliability and quality of printing – at any scale. Together with Formlabs’ versatile material catalog, Form 4L and its biocompatible version Form 4BL open up new possibilities for innovation, prototyping and manufacturing.
- Big parts: solve big problems with big parts.
- Unrivaled speed: large prints in less than 6 hours.
- Reliability: wide-format 3D printing you can rely on.
- Versatility: industry-leading materials and an open platform.
- Stunning detail: stunning parts that are always the right size.
- Intuitive: anyone can learn in 15 minutes.
- Printing area: 353 × 196 × 350 mm.
- Layer height: up to 25 microns.
Form 4L, based on Formlabs next-generation Low Force Display™ print engine delivers extreme speed, reliability and print quality. With most prints in less than 6 hours, the Form 4L combines the power of Formlabs polymer printers with the speed of MSLA technology. Open up your manufacturing to full-format prototyping and on-demand fabrication of functional tools.
Formlabs is also leveraging the Open Mode to give users more control, more accessibility, and more options than ever before. Learn more about the Open Platform, Open Material Mode, and the Print Settings Editor.
The Form 4L Basic Package includes:
- Form 4L 3D printer
- F4L Resin Tank
- F4L Mixer
- F4L Build Platform
- F4L Finish Kit: Rinse Bucket
- F4L Finish Kit: Cleaning Tools
- Formlabs PreForm Software
- 1 Year Warranty*
* You can also choose an optional Pro Service Plan for 1, 2 or 3 years.
Specifications:
| Printing Technology | MSLA |
| Build Field (mm) | 353 × 196 × 350 |
| Light Source | Backlight Unit: 145 uniform-wavelength LEDs, a plano-convex lens array, and integrated air cooling 405 nm optical wavelength 16 mW/cm² optical power intensity delivered to the cure plane 46 µm pixel size |
| Layer Height (micron) | 25 – 200 |
| XY resolution (micron) | 46 |
| Print Speed (mm/h) | Up to 80 |
| Resin Cartridges | 2 |
| Resin Filling System | Automatic |
| Supported Materials | Photopolymer resin |
| Supports | Autogenerated, Light-Touch Removal |
| Language | English, German, French, Spanish, Italian, Japanese, Simplified Chinese |
| Control | 7″ interactive touchscreen 1280 × 800 resolution |
| Video Camera | Integrated camera 2592*1944 resolution, 5 MP. Remote monitoring, print histories, and print timelapse |
| Supported File Types | STL, OBJ, 3MF, FORM |
| Operating System | Windows 7 (64-bit only, ARM not supported) and up. Mac OS X 10.12 and up. OpenGL 2.1. C++ runtime library from Microsoft (Windows only). 4 GB RAM (8 GB recommended) |
| Software | PreForm, Dashboard, Fleet Control |
| Connectivity | Wifi, Ethernet, USB 2.0 |
| Power Requirements | 100-240 VAC, 9 A, 50/60 Hz, 900 W |
| Manufacturer Country | USA |
| Warranty Period (months) | One-year warranty included. Paid service and extended warranty options available |
| Weight Netto (kg) | 58,5 |
| Minimum Access Dimensions (mm) | 889 × 1169 × 813 |
| Dimensions Assembled (mm) | 664 × 528 × 794 |
| Weight Brutto (kg) | 65,1 |
| Operating Temperature Range (°C) | 18 – 28 |
