- Stock: In Stock
- Product code: 00-00014322
Open 3D Printer Dowell DM6 Plus
Dowell DM6 Plus 600 × 600 × 600 mm is an industrial open-type FDM printer, designed for large-scale prototyping, furniture mold making, sculptures, and engineering components. With an extruder heating up to 380 °C and a high printing speed of up to 500 mm/s, the equipment ensures rapid 3D model printing when working with a wide range of filaments. The print volume of 600 × 600 × 600 mm allows for the creation of integral functional parts, minimizing costs on further assembly and gluing.
Kinematics and Structural Stability
The Dowell DM Plus series of 3D printers is built on a reinforced aluminum profile base with a thickness of 60 mm, providing rigidity and frame stability under intensive loads. High positioning accuracy is achieved through the use of professional mechanical units:
- XY Axes: implemented on precision linear guides, ensuring geometry stability at speeds up to 500 mm/s.
- Z Axis: uses 12 mm screw rods and stepper motors for precise layer step control.
- Quiet operation: thanks to noiseless drivers, the noise level during operation is about 60 dB, allowing comfortable use of the equipment in production premises.
Extruder with Heating up to 380°C
The printer is equipped with an industrial single-stage heating system designed for continuous filament feed with a flow rate of up to 400 g/h, ensuring stable build speed and uniform wall structure of models.
- Working temperatures of the extruder: the nozzle heats up to 380°C, opening up the possibility of working not only with basic plastics but also with engineering filaments such as nylon PA, carbon fiber CF, glass fiber GF, as well as ASA and PC.
- Versatility of nozzles: supports diameters of 0.4, 0.6, and 0.8 mm, allowing flexible balancing between detail and speed of filling the internal volume of the 3D model.
Thermally Stable Work Platform
The stability of the geometric parameters of the part and reliable adhesion of the first layers are ensured by a glass surface combined with a silicone heating element for quick and even heat distribution.
- Tempered glass and silicone heating panel: the standard configuration includes a worktable consisting of 6-mm tempered glass and a Silicone Heating Plate. This design ensures quick heating of the table, stable temperature across the surface, perfect flatness, and resistance to deformation. Finished products easily detach after complete cooling.
- Working temperatures of the platform: the worktable heats up to 100°C in the standard version (optionally, heating up to 150°C can be ordered). This is a critically important factor for ensuring adhesion and preventing shrinkage when working with engineering plastics such as ABS, Nylon, or PC.
Automation and Control Interface
To ensure stable repeatability of results and high accuracy of each operation, the Dowell DM Plus integrates an extended set of service functions.
- Automatic leveling: the automatic calibration system over 100 points first detects four corners and then performs a detailed scan of the table plane. It automatically compensates for irregularities, ensuring perfect flatness before each task.
- Filament sensor: the system automatically pauses the process if the filament runs out or the thread breaks.
- Automatic print recovery: after power loss and restoration allows resuming work from the point of interruption.
- Control monitor: the device is equipped with a 7-inch full-color touchscreen with a user-friendly interface. Wi-Fi connection provides convenient file transfer for printing.
Operational Control and Monitoring Tools
- Real-time adjustment: the ability to change speed, extrusion parameters, and cooling intensity directly during operation.
- Process visualization: tracking the print status and temperature change graph in real time.
- Working with code: integrated G-code viewer and configuration editing capability.
- Precise tuning: Z-axis offset correction and access to record history.
- Safety and upgrades: presence of an emergency stop button and a connector for installing an external camera.

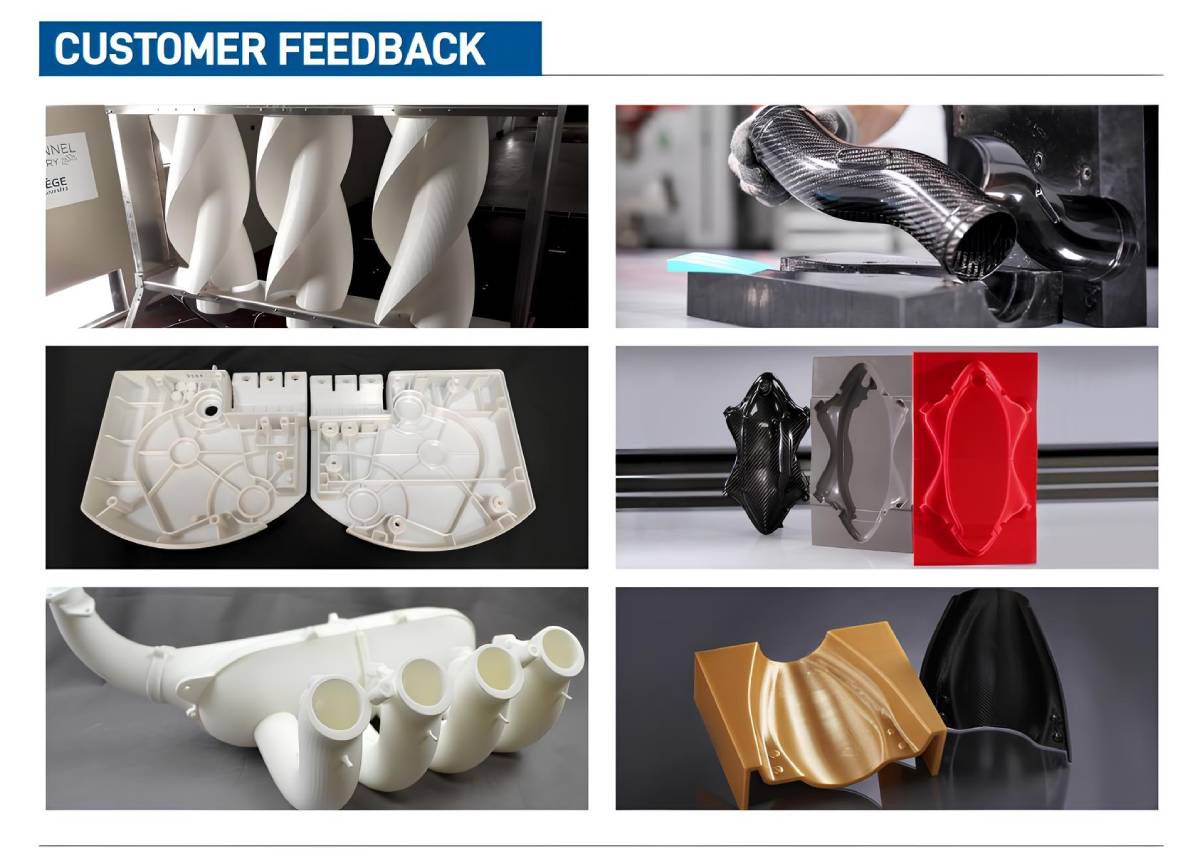

Examples of Finished Products
The industrial potential of the equipment is best demonstrated by the results of its work. The photo below shows samples made by owners of printers in this series: from industrial screws and auto-tuning parts to strong housing units and production molds. Stable thermal regulation and a large working area allow for the seamless production of both thin-walled designer constructions and massive parts subjected to high mechanical loads.
Technical Specifications
| Parameter | Value |
| Printing Technology | FDM |
| Build Volume | 600 × 600 × 600 mm |
| Maximum Nozzle Temperature | 380 °C |
| Nozzle Diameter | 0.4 / 0.6 / 0.8 mm |
| Extrusion Flow Rate | up to 400 g/h |
| Printing Speed | 150 – 500 mm/s |
| Maximum Bed Temperature | 100 °C |
| Positioning Accuracy | 0.02 mm |
| XY / Z Kinematics | Linear guides, 12 mm screw rods |
| Z Axis Motor | Stepper motor |
| Layer Thickness | 0.04 – 0.6 mm |
| Frame | Reinforced aluminum profile 60 mm |
| Noise Level | up to 60 dB |
| Supported Plastic | 1.75 mm: PLA, PETG, ABS, ASA, TPU, GF, CF, PVA, PP, PC, PA, and others |
| Software | Manufacturer's own development |
| Connectivity | SD card, USB port, Wi-Fi |
| File Format | STL, OBJ, G-code |
| Options (on order) | Closed case 60°C, bed heating up to 150°C, PEI coating |
Available Modifications of the DM Plus Series
The DM Plus series offers a wide range of open 3D printers with different platform sizes for printing. Such flexibility allows meeting any engineering needs in build volume — from standard to extra-large formats. We have gathered the most popular models among engineers in an open case, which you can choose from the list above. If your technological tasks and/or work with demanding filaments require a closed case, note that the DM Plus series also has closed 3D printers.
About the Manufacturer and Service
The company DOWELL 3D (Luoyang Dowell Electronics Technology Co., Ltd) has over 10 years of experience in developing industrial equipment. The products are certified according to CE, RoHS, and FCC standards, confirming the reliability of all electronic and mechanical components. A 12-month warranty from the manufacturer is provided for the 3D printer.
Have questions about the Dowell DM6 Plus open 3D printer model? Contact the 3DDevice team — we are located in Kyiv and can provide specific consultation on the model: preparation for installation, basic infrastructure requirements, launch, and typical nuances of FDM system operation. If deeper implementation is needed, additional services are available, including paid training and technological process support tailored to your tasks.
