- Stock: Inquire availability
- Product code: 00-00000181

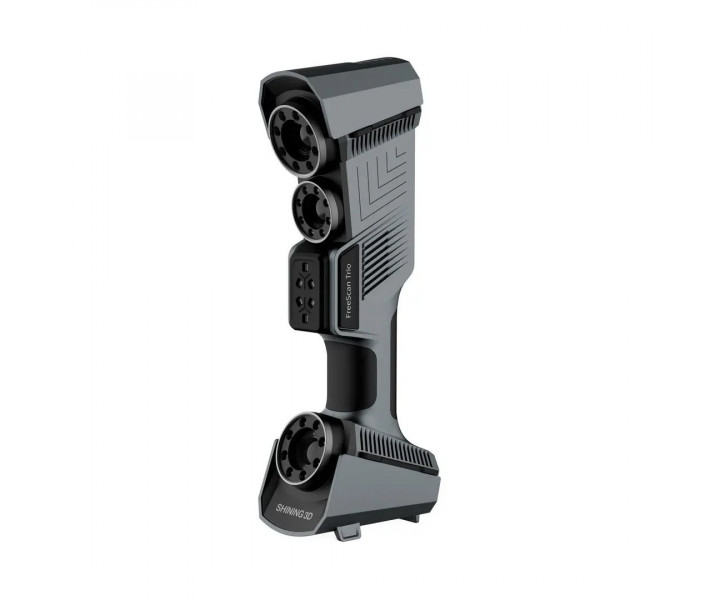

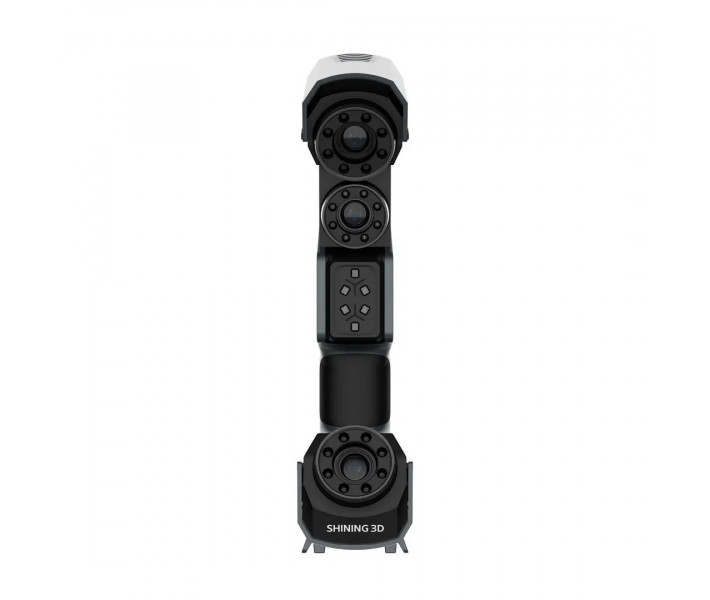

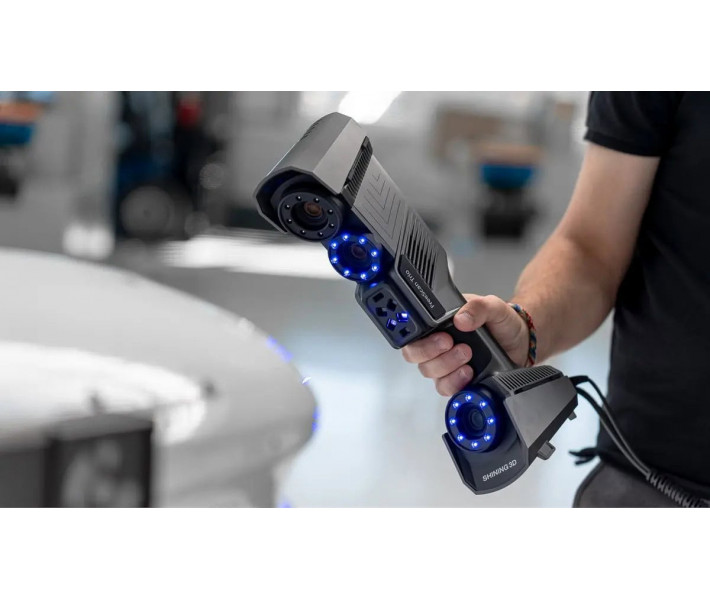

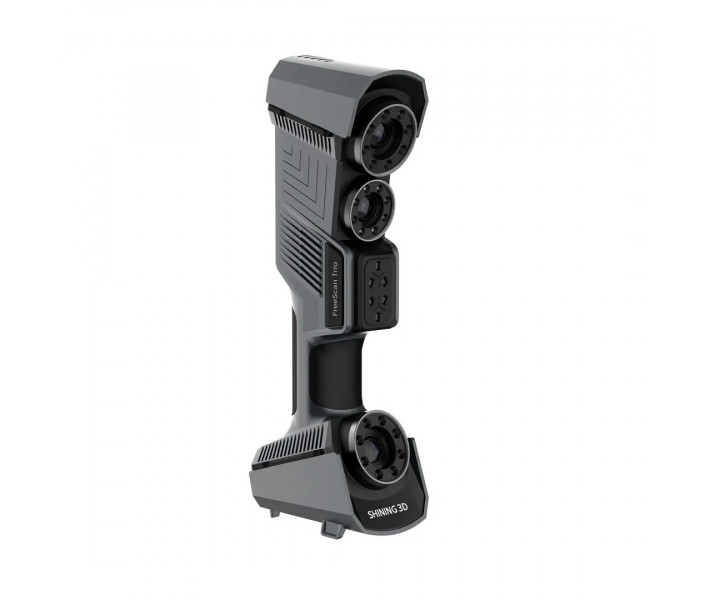

3D Scanner FreeScan Trio: Revolution in Marker-Free 3D Scanning

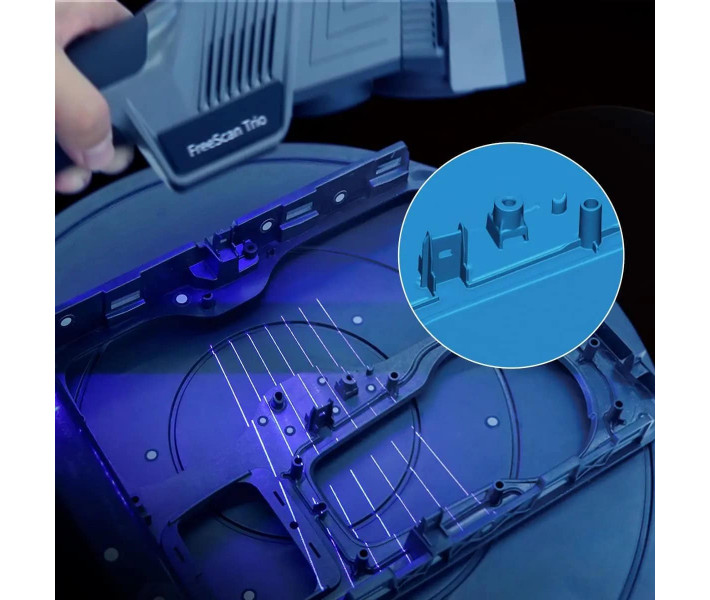

The 3D scanner FreeScan Trio is a breakthrough in laser 3D scanning technology. It allows scanning large objects without markers thanks to the mode of 98 laser lines and three 5-megapixel cameras. This is the perfect solution for ultra-fast and accurate scanning of large objects without the need for prior preparation.
After the successful debut of FreeScan Combo at the beginning of 2023, as well as the recent accreditation of Shining 3D by the ISO:17025 standard, FreeScan Trio sets a new level in metrological class 3D scanning thanks to its innovative features and unmatched performance.
Main Advantages of FreeScan Trio
FreeScan Trio is a new word in 3D scanning:
- Marker-free scanning.
- Ultra-high scanning speed up to 3,010,000 pixels/s.
- Wide field of view 650×580 mm.
- Versatility – 5 scanning modes for different tasks.
- Photogrammetry mode.
- Accuracy up to 0.02 mm, volumetric accuracy up to 0.02+0.015 mm/m.
Ultra-High Scanning Speed
FreeScan Trio is the fastest portable 3D scanner in its class. It can read 3,010,000 pixels per second, allowing it to capture more data in fewer passes. Combined with a wide field of view (650×580 mm), this makes scanning even more efficient.
Versatility for Different Tasks
In addition to the 98 laser line mode, FreeScan Trio offers other scanning modes:
- One laser line: suitable for precise scanning of details.

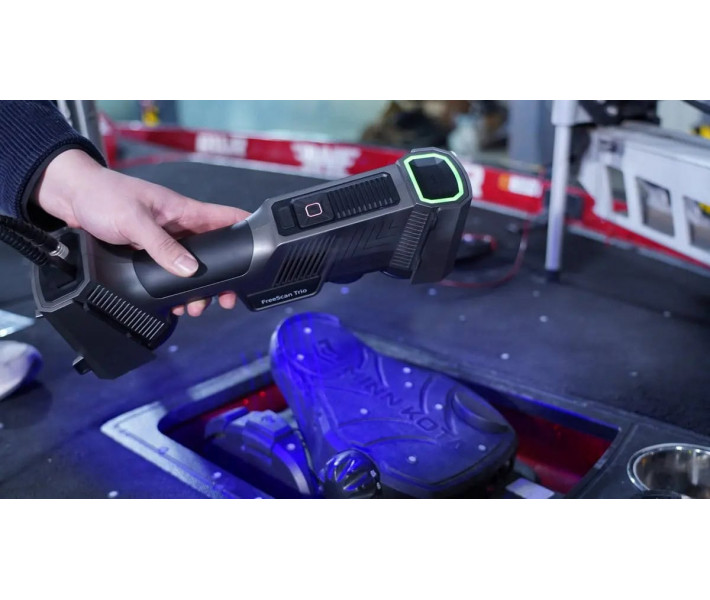

- 7 parallel lines: provides high scanning speed for medium-sized objects.
- 26 intersecting lines: ideal for scanning complex geometric shapes.
All these modes, when using markers, achieve accuracy up to 0.02 mm, and volumetric accuracy up to 0.02 mm + 0.015 mm/m.
Photogrammetry Without Additional Equipment
FreeScan Trio is equipped with a photogrammetry mode that works with the SHINING 3D magnetic ruler. This eliminates the need for additional encoded objects. This mode increases accuracy to 0.02 mm + 0.015 mm/m.
Reliable Assistant for Engineers and Designers
FreeScan Trio is a powerful tool that will become an indispensable assistant for engineers and designers. It is suitable for working with large-sized objects, as well as for thorough scanning of objects with small details.
Specifications of FreeScan Trio
| Light Source | Blue Laser |
| Volumetric Accuracy (mm/m) | 0.02 + 0.03 (0.02 + 0.015 with photogrammetry) |
| Scanning Range (mm) | 650 × 580 |
| Working Distance (mm) | 200 – 300 |
| Scanner Type | Portable |
| Additional Extensions | No |
| Color Scanning | No |
| Scanning with Markers | No |
| Scanning Mode | Scanning in 98 lines, 26 lines, 7 lines, 1 line |
| Safety Class | Class Ⅱ (eye-safe) |
| Scanning Speed (points/s) | 3,010,000 |
| Scanning Accuracy (mm) | Up to 0.02 |
| Scanning Depth (mm) | 360 |
| Point Distance (mm) | 0.01 – 3.00 |
| Supported File Types | OBJ, STL, ASC, PLY, P3, 3MF |
| Connection | USB 3.0 |
| Input Power | 12V, 5.0A |
| System Requirements | OS: Win10, 64 bit; Graphics Card: NVIDIA GTX/RTX series, equal to or higher than GeForce RTX 3060; Graphics Card: ≥6Gb; Processor: I7-10700; Memory: ≥64 GB |
| Country of Manufacture | China |
| Warranty Period (months) | 12 |
| Certificates | CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50 |
| Net Weight (kg) | 0.985 |
| Net Dimensions (mm) | 331×120×76 |
| Operating Temperature Range (°C) | 0 – +40 |
| Operating Humidity Range (%) | 10 – 90 |
