Ortur YRR 3.0 Bottom Gravity Rotary Roller

Ortur YRR 3.0 Rotary Roller with Bottom Gravity System

The Ortur Y-Axis Rotary Roller 3.0 is an advanced accessory for engraving cylindrical objects.

The rotary roller combines reliability, functionality, and ease of assembly and use.

Reliable Design and Compactness of the Ortur YRR 3.0

The body of the YRR 3.0 is made of durable aluminum combined with an A3-board and silicone rubber, which provides stability and durability during operation, while the module itself remains compact — its dimensions are 190 × 150 × 56 mm.

Quick Setup — Minimum Effort

The model comes pre-assembled — no difficulties with installation: you simply connect it to your laser engraver and can start working almost instantly.

Versatility of Sizes — up to 360° Engraving

The YRR 3.0 allows for engraving around the entire circumference — a full 360°.

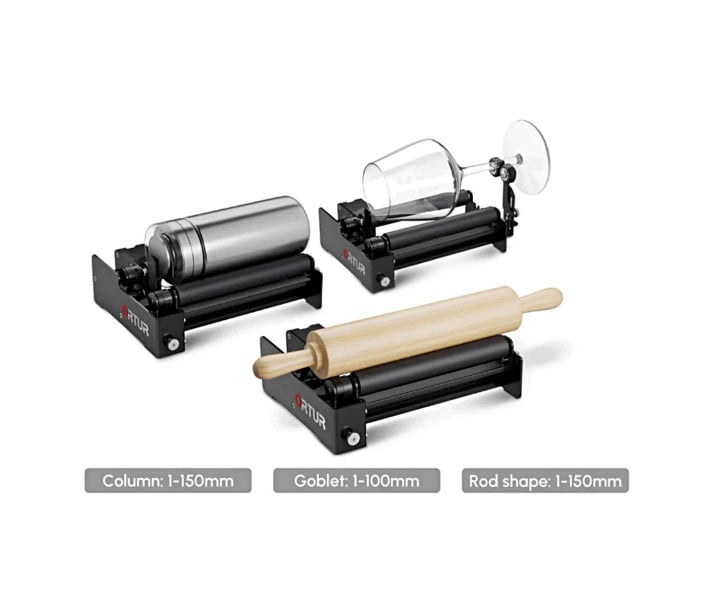

Six adjustable width positions allow you to work with a variety of cylindrical objects: from cans and bottles to glasses and baseballs.

Support and Flexibility of Use

It is suitable for all Ortur and Aufero lasers (excluding the F10 model), and is also compatible with many other engraver models — an ideal choice for users of different brands.

Technical Specifications — Accuracy and Speed

• Drive: Single Motor Drive
• Rolling Stroke: from 1 mm to 41 mm
• Optimal engraving speed: up to 3,000 mm/min — provides a smooth and uniform result

Ease of Adjustment for the Ortur YRR 3.0 Rotary Roller

With just two actions (loosening and tightening a screw) you change the settings — "everything is ready in a couple of minutes"

What Business Advantages does the Ortur YRR 3.0 Roller Offer?

• Expertise: you cover a wider range of customer requests.
• Convenience: products that simply connect and work immediately are always an advantage.
• Versatility: suitable for different machines and different object shapes, which is especially valued by craftsmen working with various items.
• The Ortur YRR 3.0 Bottom Gravity Rotary Roller module is used for laser engraving on cylindrical and rotating objects where a flat X-axis is insufficient.
• Comes pre-installed, no assembly required — plug-and-play
• Setup in 2 steps, less than 2 minutes — rotational adjustment and screw fixation

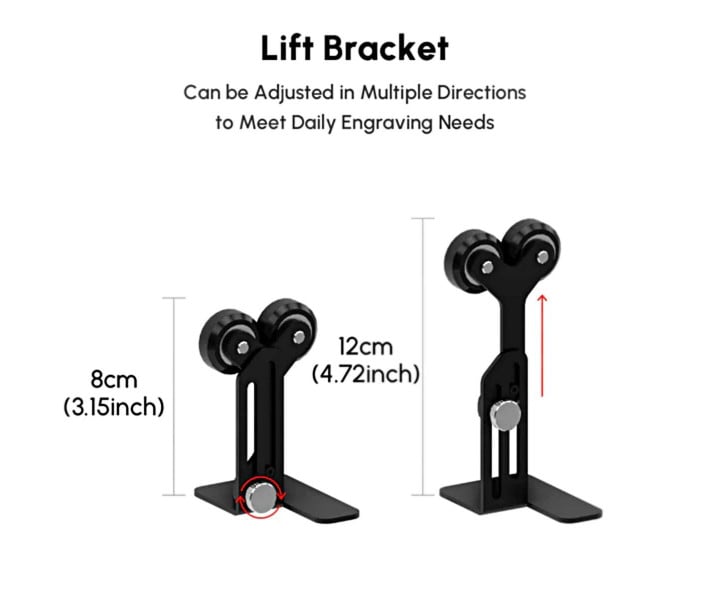

• Lift Bracket: adjustable in several directions — ensures stable fixation of cylindrical objects (cups, bottles, etc.)

How does the rotary module work?

In standard laser engraving, the head moves over a flat surface.

But if you want to apply an image to a bottle, glass, thermos, can, or even a baseball bat, you need a way to rotate the object so the laser can sequentially engrave the entire circumference.

That's what the rotary module is for. Simply do this:

1. The object is placed on the rubber rollers.
2. One of the rollers is driven by a stepper motor, rotating the object.
3. The laser beam remains static on the Y-axis, and the rotation of the object allows it to be engraved in a circle.
4. The system uses gravitational clamping — no clamps are needed. This allows you to easily change objects without wasting time on additional setup.

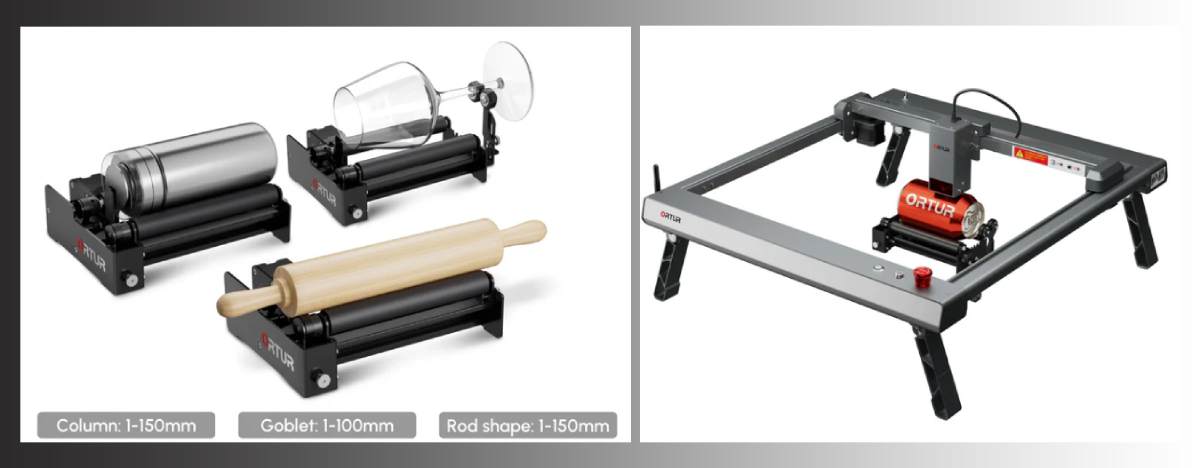

Examples of Using the Ortur YRR 3.0

• Engraving on bottles and glasses
• Glass and metal bottles, thermoses, mugs, glasses
• Creating custom gifts, branded products, or souvenirs
• Working with non-standard objects
• Baseballs, cylinders, candles, tubes, vials
• Ability to engrave on both hard and soft materials
• Wooden cylinders
• Rollers, rings, boxes, and even drums
• Creating textures, patterns, and inscriptions in a circle

Support for Popular Software

The YRR 3.0 works great with software:

• LightBurn
• LaserGRBL

Just specify the corresponding diameter and step (in steps per mm), and the software will calculate how to rotate the object evenly during engraving.

Why is the Ortur YRR 3.0 engraver accessory convenient and profitable?

• Full 360° circular engraving
• Simple setup — without tools

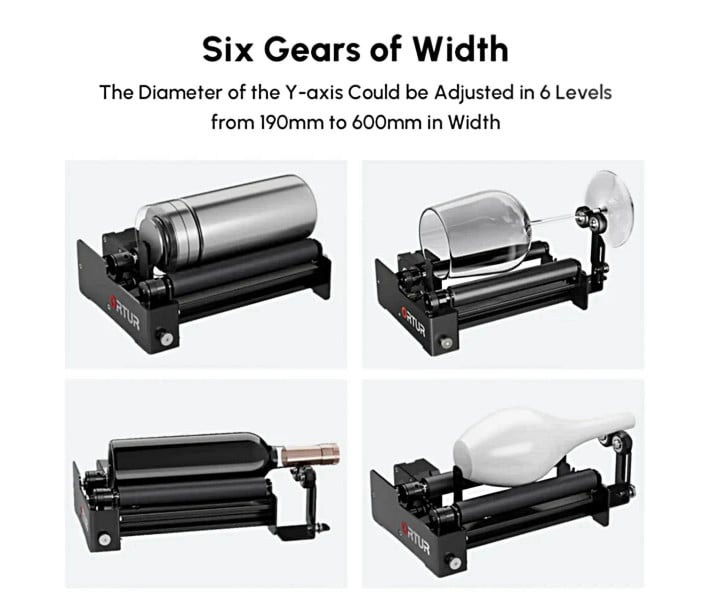

• 6 levels of width adjustment — from small to large objects
• Compatibility with Ortur and many third-party laser engravers

If you are involved in the production of gifts, promotional items, design, or small-scale production, the YRR 3.0 rotary module is an essential accessory to expand the capabilities of your laser engraver.

Specifications of the Ortur YRR 3.0

• Product name: Ortur Y‑Axis Rotary Roller 3.0
• Dimensions (net): approximately 190 mm × 150 mm × 56 mm
• Net weight: approximately 1 kg
• Materials: anodized aluminum, A3-board, working surfaces — silicone rubber (for reliable grip and object protection)
• Drive mode: single Schritt-motor (Single Motor Drive)
• Rolling Stroke: from 1 mm to 41 mm — six fixed width adjustment positions; designed for cylindrical objects with a diameter of up to 100 mm
• Optimal engraving speed: up to 3,000 mm/min — provides a balance between speed and image quality
• Compatible with all Ortur and Aufero lasers (exception: F10 model)

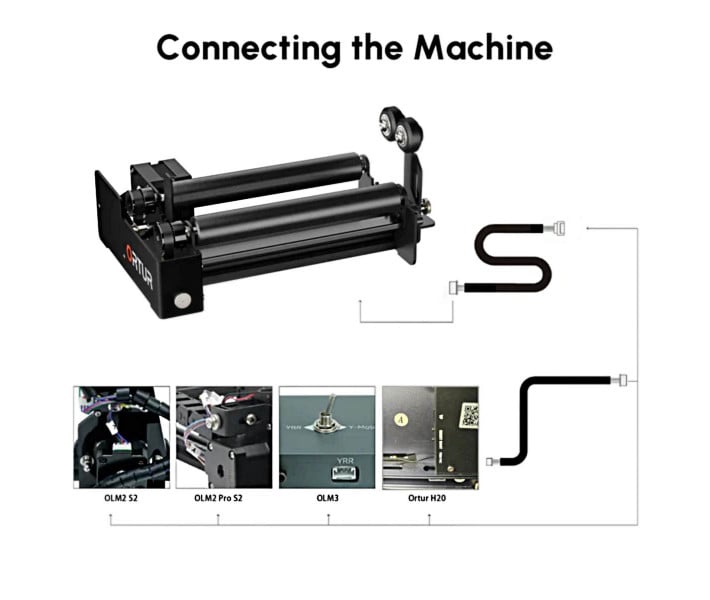

• Compatible with most other laser engraving machines via the Y-axis interface
