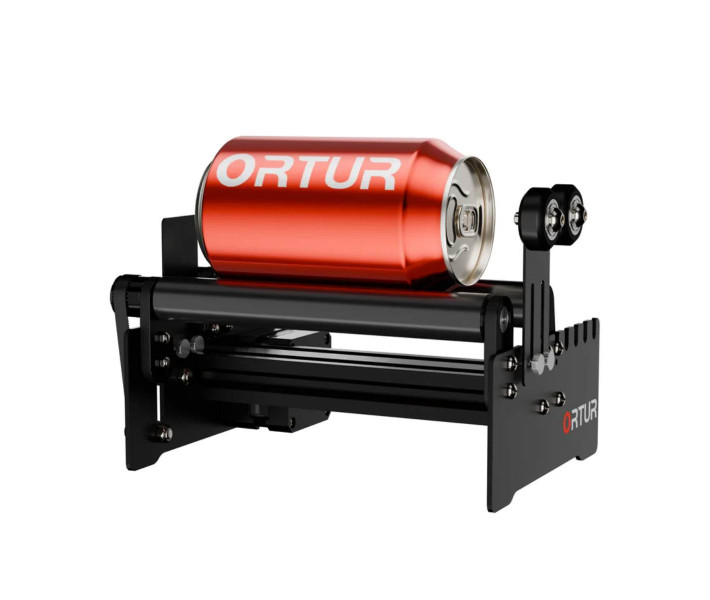

Rotary Roller for Cylindrical Engraving Ortur YRR 2.0

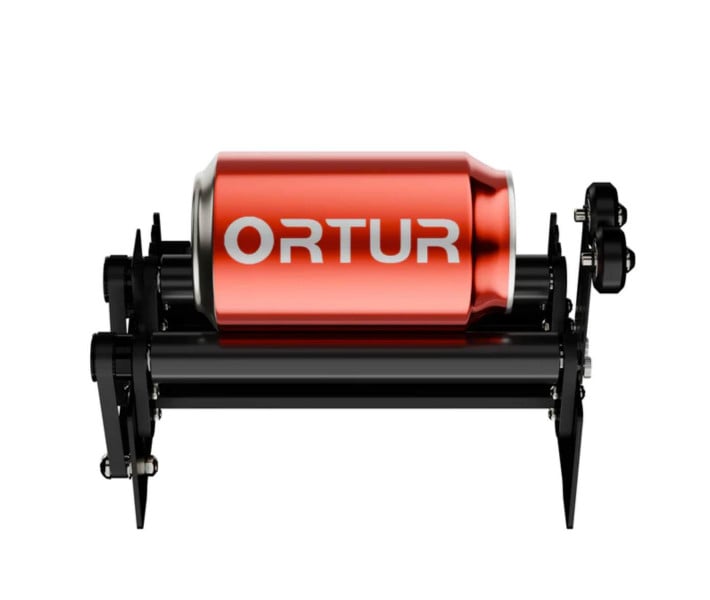

The Ortur YRR 2.0 rotary roller is a module with 360° rotation capability on the Y-axis, specifically designed for engraving cylindrical objects.
It is perfect for everyday tasks, such as engraving bottles, glasses, mugs, cans, or baseballs.
The thoughtful design ensures engraving precision and reliable service.
Compatibility and Ease of Use of the Ortur YRR 2.0

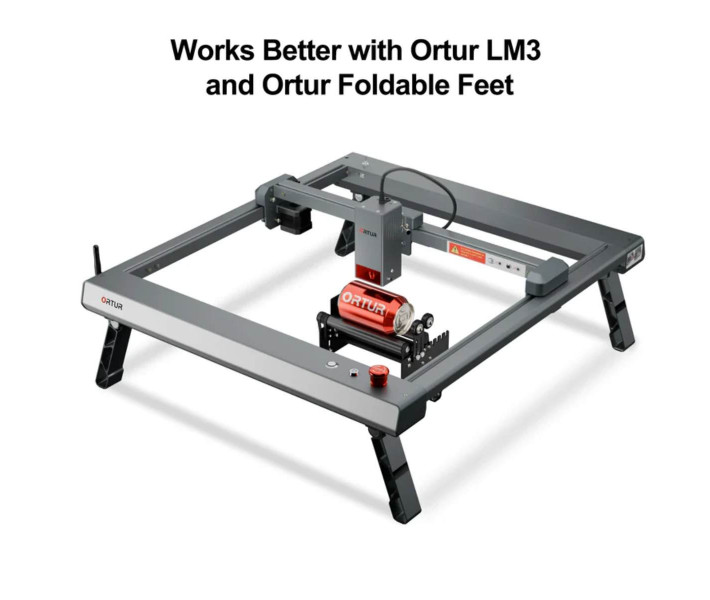

Fully compatible with Ortur and Aufero laser engravers, including models H20, OLM3, H10, OLM3 LE, OLM2 Pro S2, OLM2 S2, AL2.
It requires no installation or complex setup — it connects directly, and is powered and controlled through the engraving equipment.
Design and Accuracy
The width can be adjusted in 7 positions, which allows for securing objects of various diameters — from thin glass stems to more massive items.

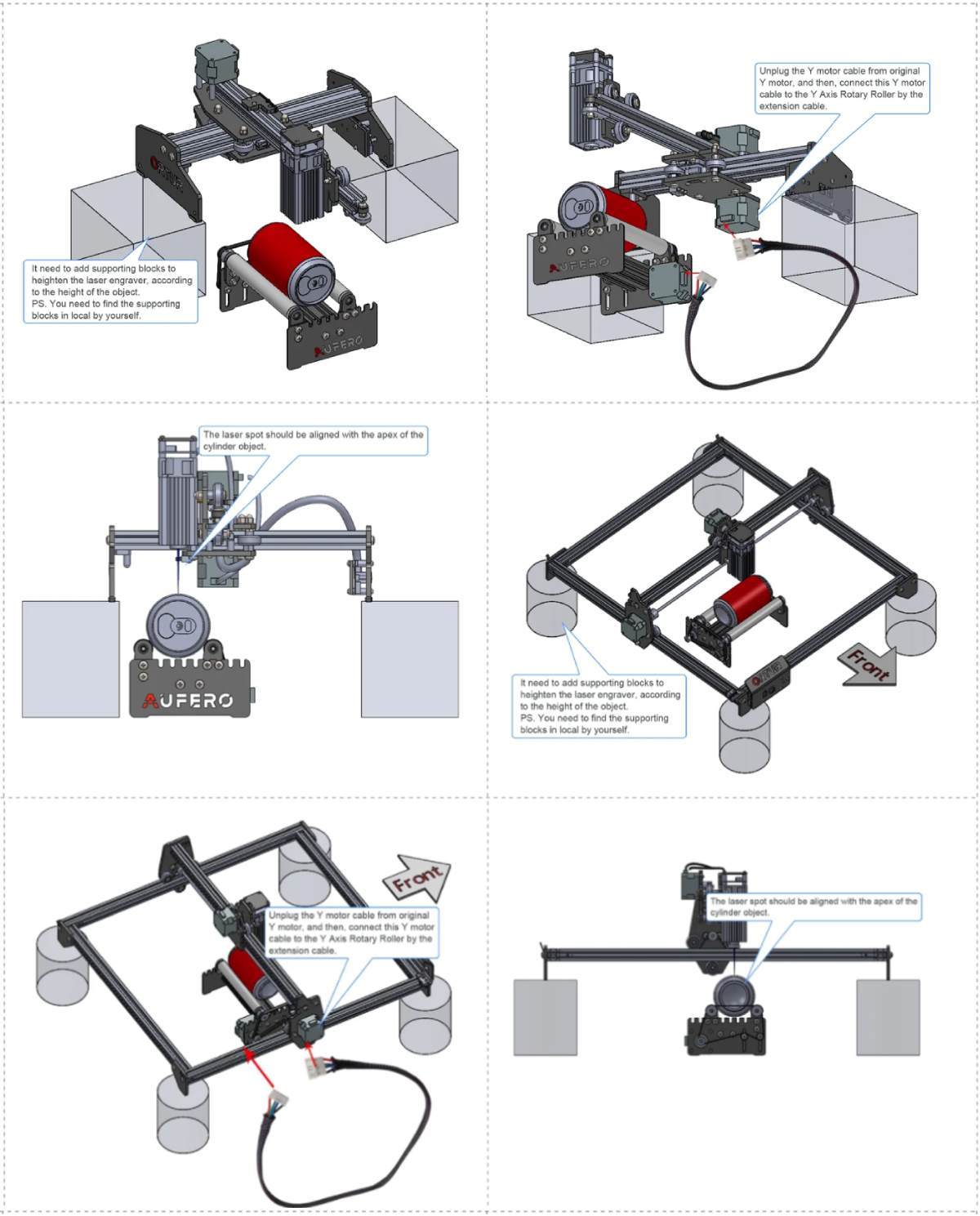

For correct engraving, the laser dot must be aligned with the top of the cylindrical object.
Features and Functionality of the Cylindrical Engraving Attachment
- Ensures smooth 360° rotation, which provides uniform application of the design across the entire surface.
- Equipped with a clamp that holds thin items, such as the stem of a glass, preventing them from slipping during engraving.
- Technical specifications

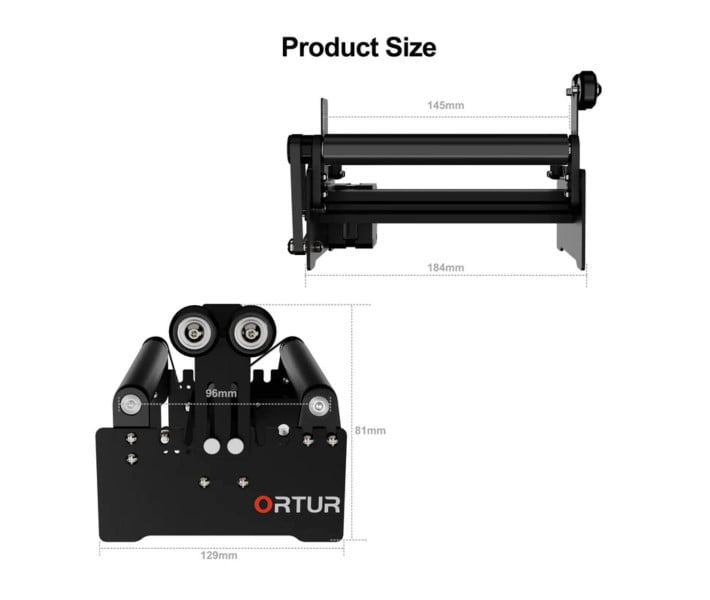

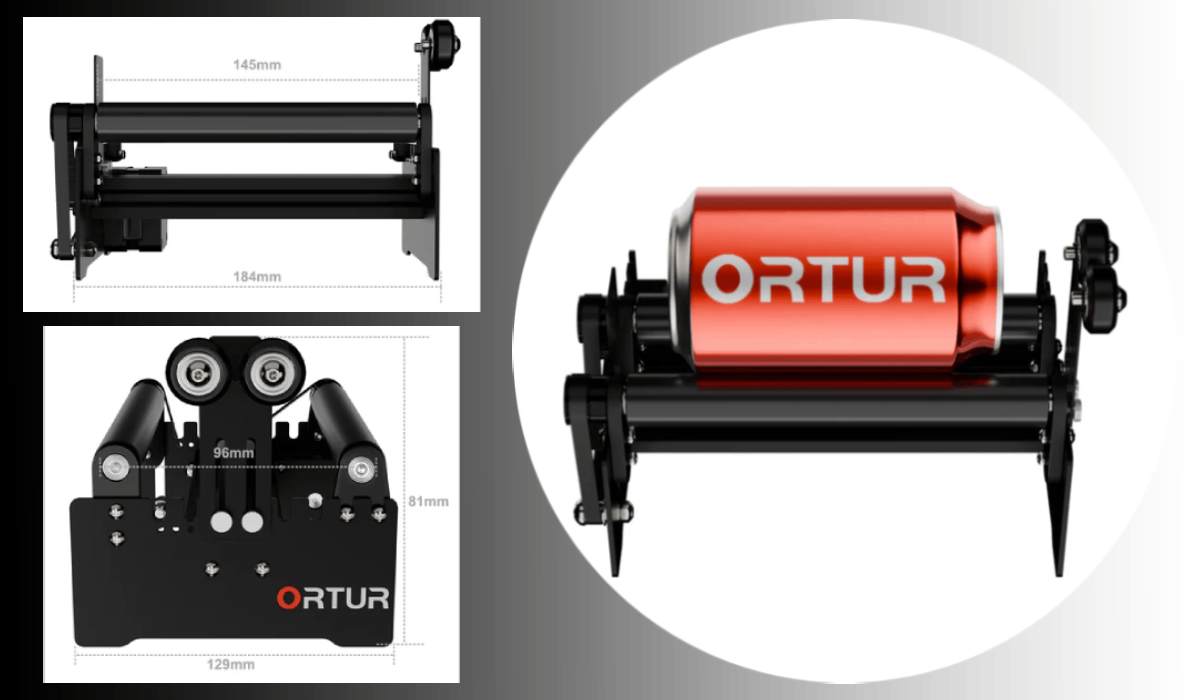

- Module dimensions: 129 × 184 × 81 mm.
- Weight: about 0.95 kg (net), in packaging — approximately 1.35 kg.
- Materials: aluminum, acrylic, motor, timing belt. High-quality materials ensure durability and stable operation.
- Software compatibility: control is supported via LaserGRBL, LightBurn, and the official Ortur app.

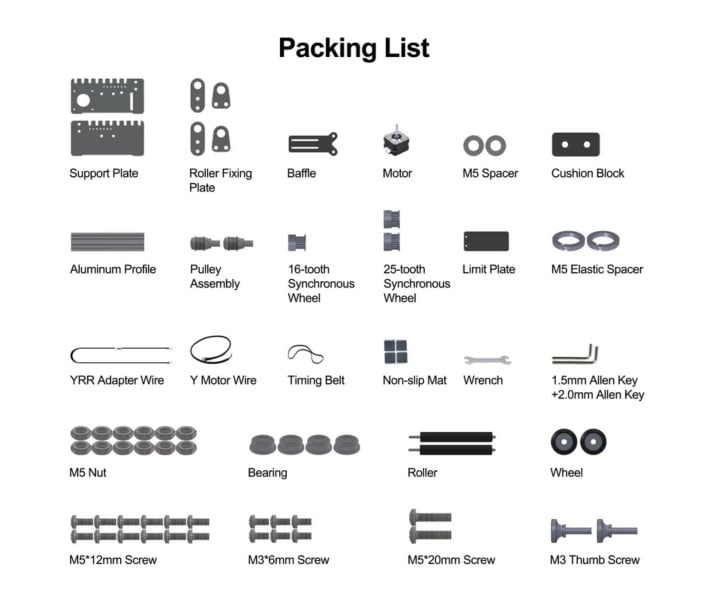

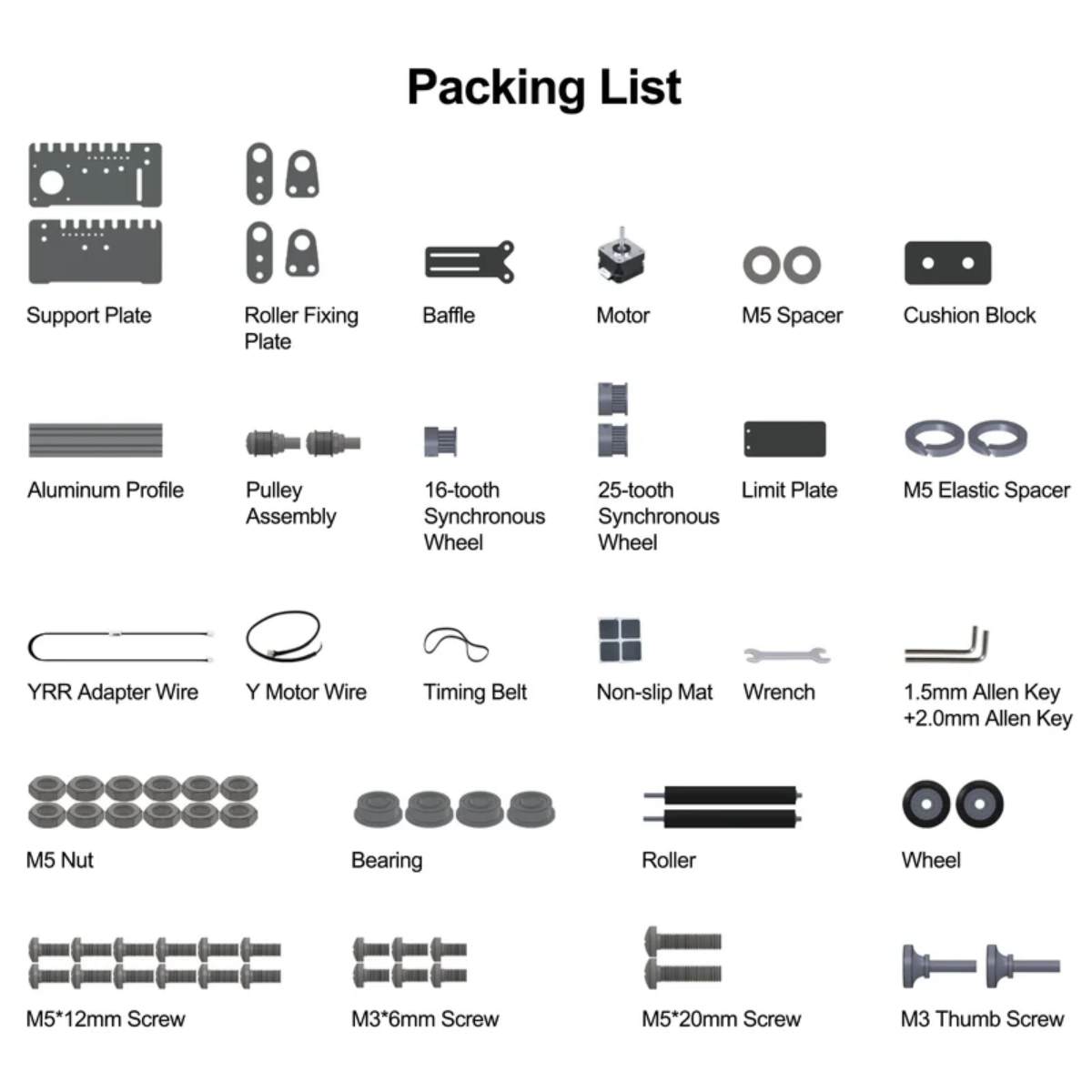

Ortur YRR 2.0 Package Contents
- Working position plates — 2 pcs.
- Aluminum profile 2040 — 1 pc.
- Rollers — 2 pcs.
- Motor cable — 1 pc.
- 16-tooth timing belt pulley — 1 pc.
- 25-tooth timing belt pulleys — 2 pcs.
- Nema 17 stepper motor — 1 pc.
- M5 spacers — 2 pcs.
- M5 nuts — 12 pcs.
- Fixed rollers — 6 pcs.
- M3 roller brackets — 6 pcs.
- M5 x 12 screws — 12 pcs.
- M5 x 20 screws — 2 pcs.
- 1.5 mm hex wrench — 1 pc.
- 8-10 wrench — 1 pc.
- Anti-slip pads — 4 pcs.
- Wheels — 2 pcs.
- Lifting plate with deflector — 1 pc.
- M3 x 12 knurled screws — 2 pcs.
- Bearings — 4 pcs.
- Lock nuts — 2 pcs.
- User manual — 1 pc.
Advantages of Using the Ortur YRR 2.0 Rotary Roller
- For everyday work: optimized for frequent and reliable engraving of cylindrical surfaces.
- Flexible adjustment: seven levels of adjustment adapt the roller to different diameters, ensuring accuracy and versatility.
- Smoothness and safety of operation: the rotation mechanism with a clamp prevents slipping, and the stable design reduces risks when engraving complex shapes.

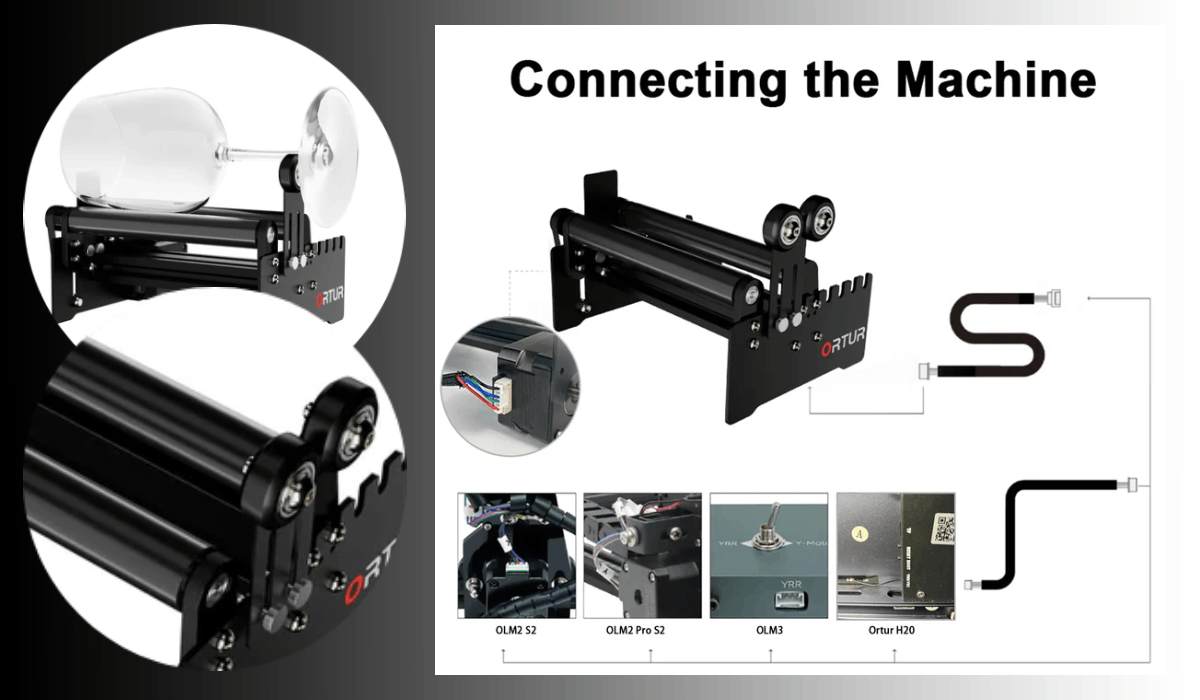

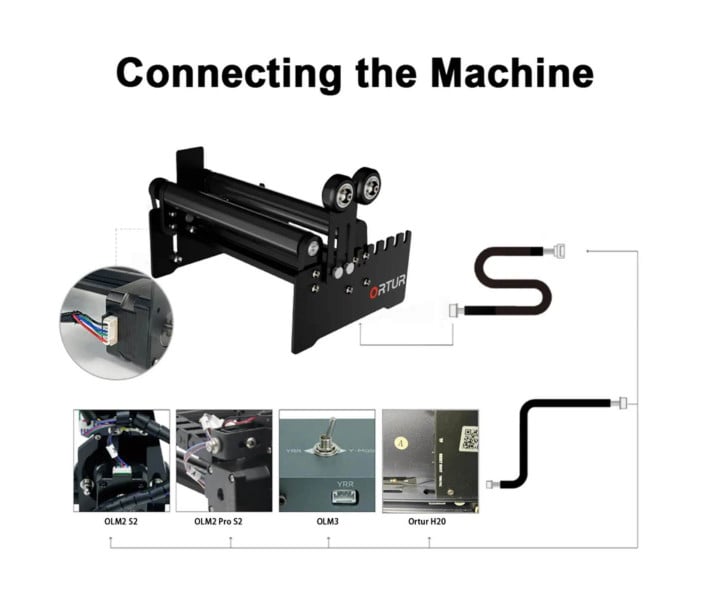

Diagram for Connecting the Ortur YRR 2.0 Rotary Roller to Engravers
