Metrology 3D scanner Shining 3D Freescan UE Nova

Description

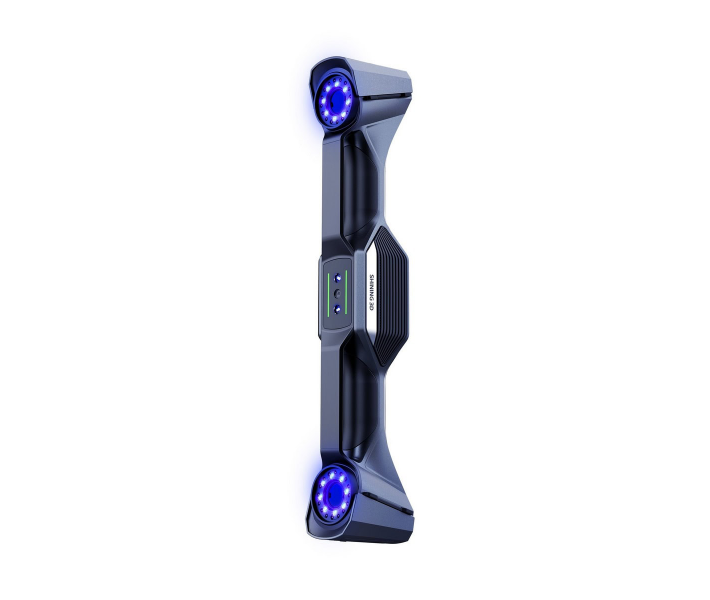

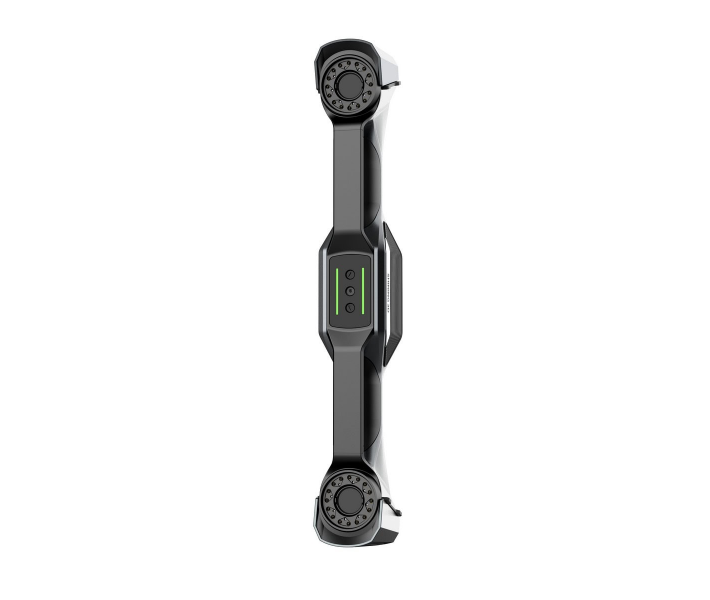

FreeScan UE Nova – a wireless scanner for precise measurements

FreeScan UE Nova is a wireless scanner for precise measurements. It is designed to work with large-sized objects. The device is characterized by metrological accuracy and high performance, which makes it an ideal tool for measurements and quality control in a variety of industries.

Excellent characteristics and high speed

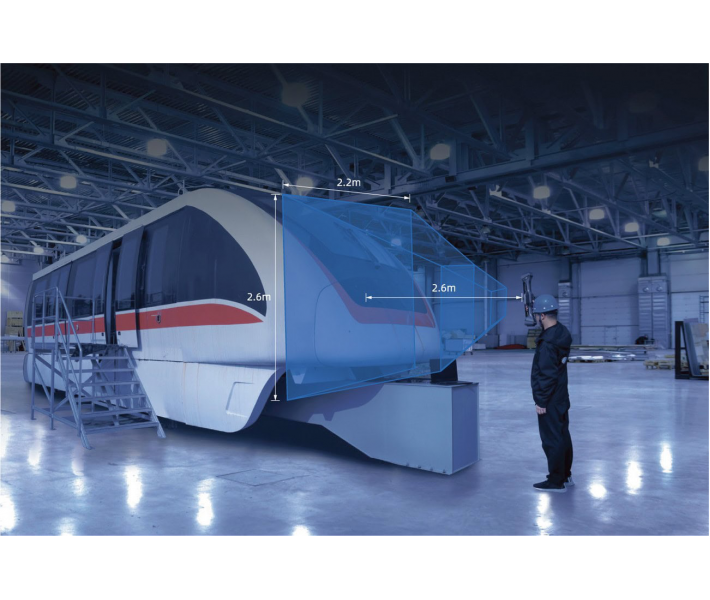

The 3D scanner can work with a field of view of 2.6 × 2.2 m, collecting up to 1,020,000 points per second. Its accuracy reaches 0.02 mm, and the volumetric accuracy is 0.02 mm + 0.015 mm/m, which fully meets the requirements of the metrological level. Video photogrammetry (VPG) technology allows you to achieve stable results without the need for coded markers. The device can be used in the FreeScan Trak Nova coordinate measuring system.

A versatile laser scanner from Shining

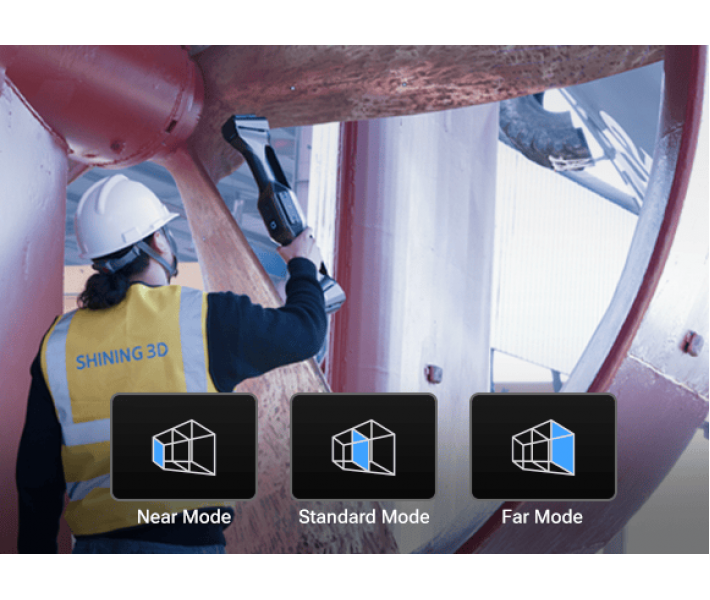

FreeScan UE Nova offers three operating modes adapted to different conditions:

1. Near mode (300–800 mm): ideal for detailed work with small elements.
2. Standard mode (600–1500 mm): a universal option for most tasks.
3. Long mode (1200–2600 mm): optimal for scanning large objects, providing coverage of large areas.

With these modes, the device is capable of handling projects of any complexity.

Innovative video photogrammetry technology

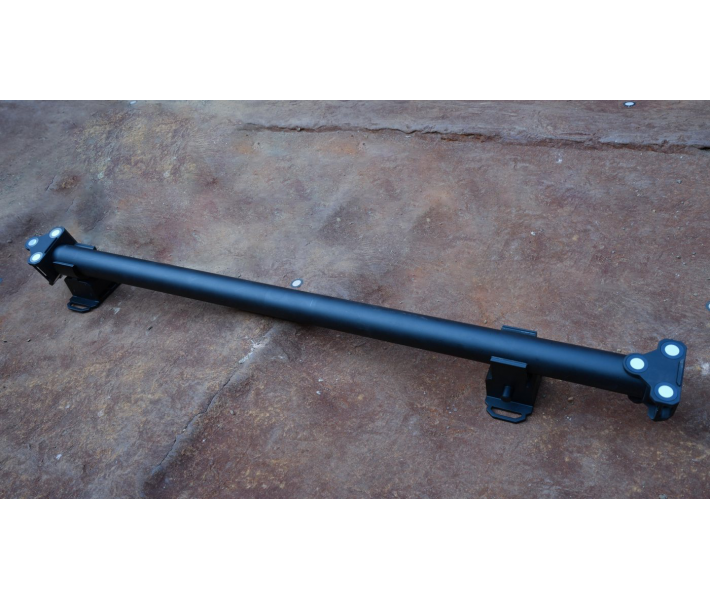

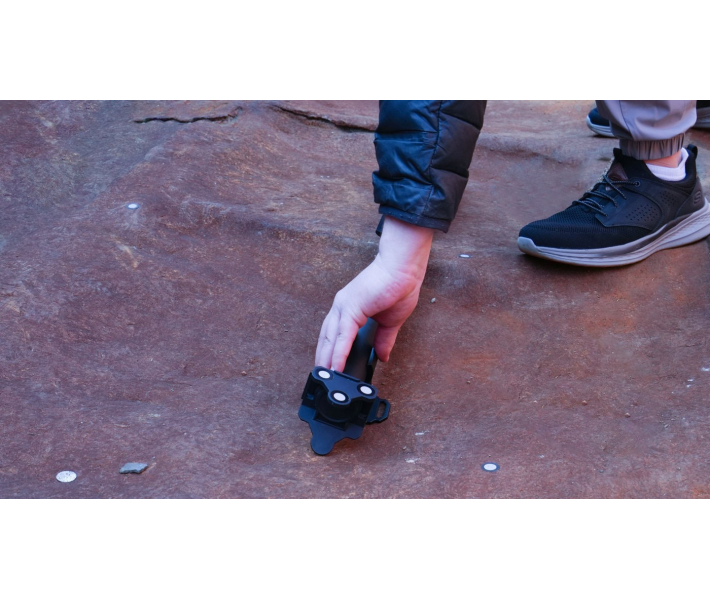

The scanner is based on the patented video photogrammetry (VPG) technology from SHINING 3D. The system eliminates the need for coded points by using built-in high-resolution cameras and photogrammetric scales. This allows you to quickly determine the position of target points even on large objects, reducing preparation time by at least half. FreeScan UE Nova provides fast and accurate scanning.

FreeScan UE Nova Software and Intelligent Features

FreeScan UE Nova is equipped with powerful software that simplifies the operation of the device:

• Real-time data visualization: allows you to monitor the quality of the scanned data at every stage.
• Intelligent resolution adjustment: automatically adjusts to the geometry of the object, ensuring accurate results.
• Big data processing: the system efficiently handles large projects, maintaining stability and high accuracy.

Convenience and mobility

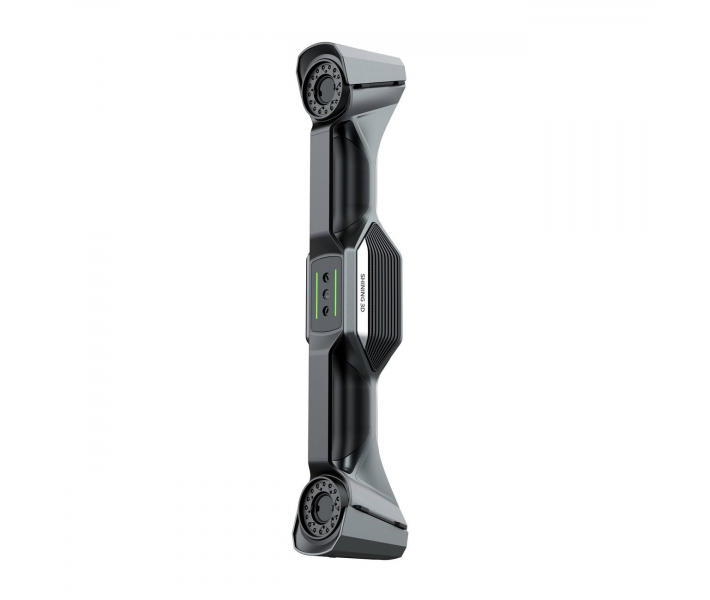

The scanner is compact and ergonomically designed. Its weight is only 1.6 kg, which makes the operator’s work easier. The wireless design and replaceable batteries with hot swapping make the device extremely convenient for use in remote locations and for long-term projects.

Applications in various industries

FreeScan UE Nova is successfully used in such industries as:

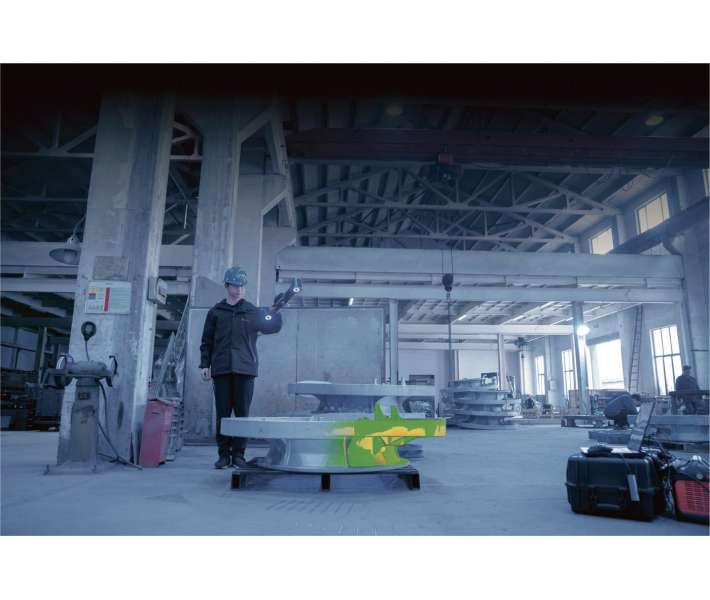

1. Engineering and industry: scanning of parts, wear control and defect detection.
2. Automotive: component measurement, modification and reverse engineering.

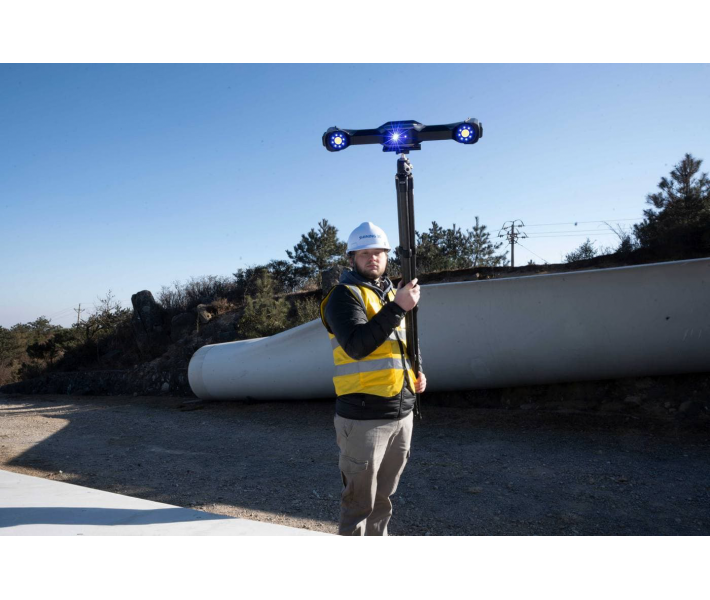

3. Power and heavy industry: inspection of turbines, pipelines and other large components.
4. Railway and aviation: inspection of complex structures and maintenance planning.

FreeScan UE Nova is a high-precision laser scanner that combines portability, speed and innovative technology. The device is ideal for large projects and professional use, setting a new standard in 3D scanning.
