Description

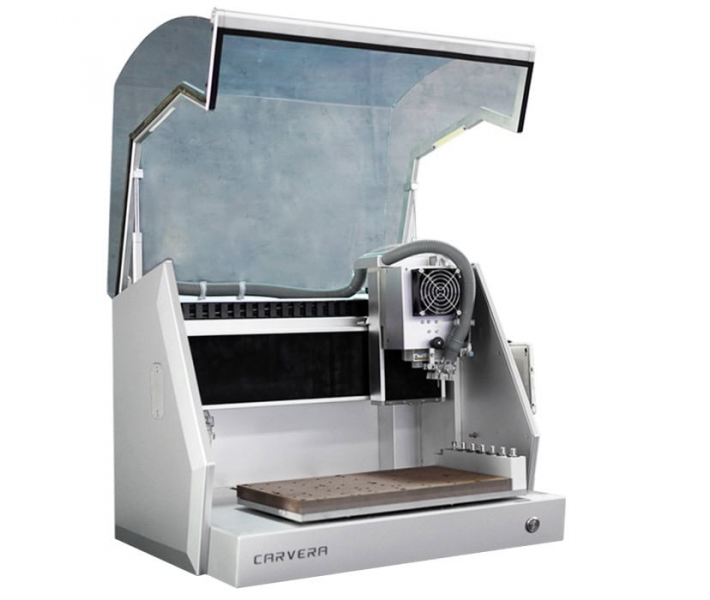

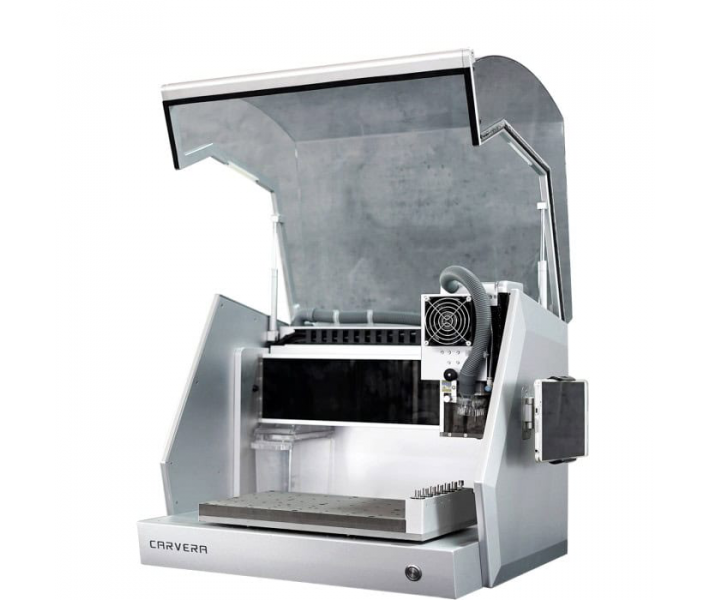

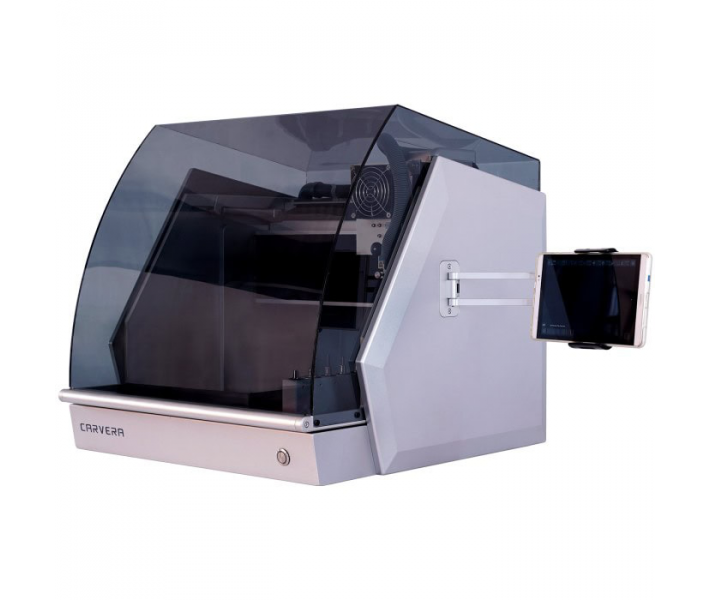

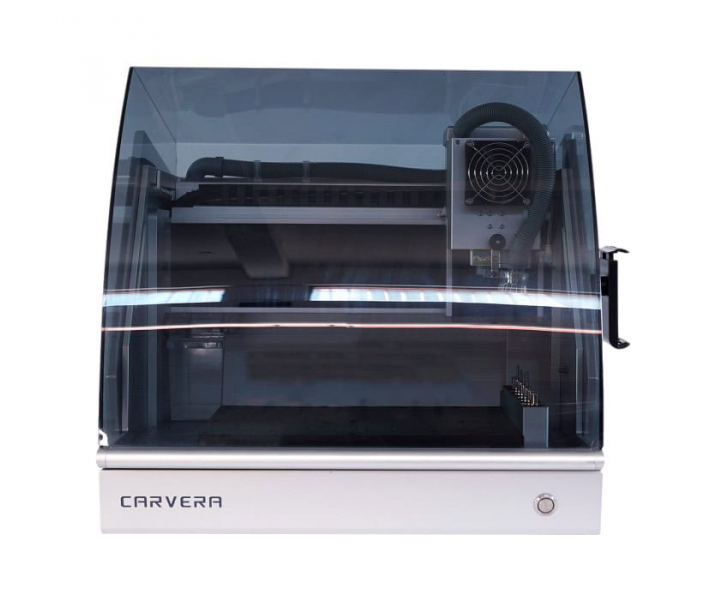

Carvera desktop CNC machine
The Carvera desktop CNC machine is a true revolution in the world of milling. Compact yet powerful, it combines automation, precision and ease of use. It is suitable for both beginners and professional craftsmen looking for an efficient tool for precision cutting, engraving and modeling.
Smart automation – effortless tool change and probing
With automatic tool change and auto-probing, Carvera saves you a lot of time. You no longer spend hours manually changing cutters or adjusting the level – the machine selects the right tool for each operation, ensuring perfect results even in complex applications such as board design and engraving.
Integrated dust collection system
Most tabletop CNC machines do not have a built-in dust collector due to their limited size. But Carvera has an integrated dust collection system that works flawlessly. You keep your workspace clean both during and after work.
Laser module – engraving with new possibilities
The integrated 2.5 W laser module expands the functionality of the machine. You can engrave wood, leather, plastic, fabric and other materials with precision. Switch between milling and laser modes in seconds.

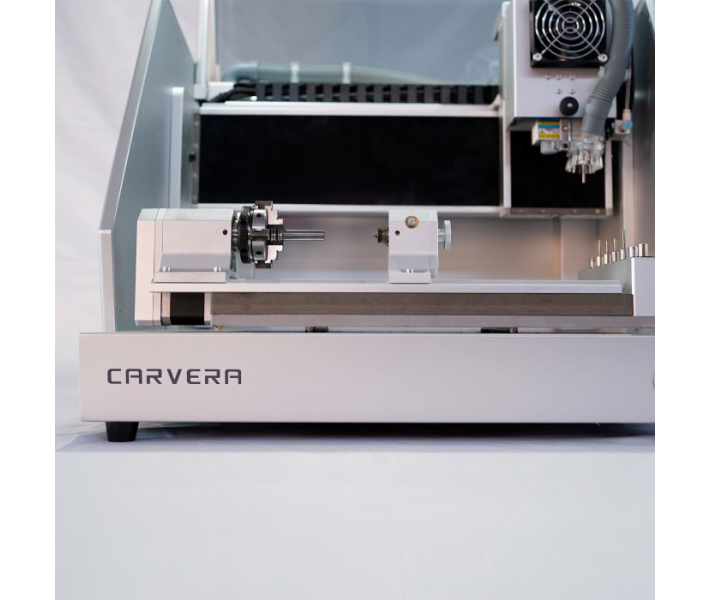

An optional 4th axis increases the possibilities
With the optional 4th axis module, you have access to full 4-axis machining. Creating three-dimensional models, machining cylindrical workpieces and double-sided objects are all possible with Carvera. Make products in plastic, wood or metal without limitations.
Using Carvera – from hobby to business
Creating professional printed circuit boards (PCBs)
Carvera allows you to make high-precision printed circuit boards at home. Upload a trajectory file and the automatic tool change and auto-adjustment do the rest. A special tool for removing the solder mask and a laser for silk screen engraving make subsequent assembly much easier.
Metal and carbon fiber components for robotics
Precision machining of parts made of durable materials such as carbon fiber or aluminum makes Carvera an indispensable tool for developers of drones, robots, or custom mechanical solutions.
Handicrafts and art
Do you work with wood, acrylic or other natural materials? Carvera is ideal for creating designer jewelry, engravings, or souvenirs. Its portability allows you to take the machine to exhibitions and market events.
Unique household solutions
Create useful things with your own hands. The Carvera desktop CNC allows you to realize any idea – from furniture elements to household accessories.
Reliability, accuracy and safety
Robust design and fully enclosed housing
The body is made of metal alloy, and the shell is made of stainless steel and ABS+polycarbonate. The fully enclosed housing ensures minimum noise, maximum safety and a clean working environment.
Linear guides and screw transmissions
Each axis is equipped with linear guides and ball screws to ensure smooth running and precise positioning without vibrations.
Closed loop servo motors
The Carvera is the world’s first closed-loop tabletop CNC, which ensures maximum accuracy and prevents damage from malfunction or overload.
Ready to go right out of the box
Each Carvera is delivered fully assembled, configured and tested. Before shipping, each unit is fully tested – from software verification to a test run over several days.
Specifications
| Working area (3 X*Y*Z axes) | 360*240*140 mm |
| Working area (4 axes) | 92 mm (Diameter) * 24 mm (Length) |
| Area (W*Y*H) | 580*520*540 mm |
| Gantry clearance | 120 mm |
| Maximum height with open cover | 84 mm |
| Materials | Wood: Hardwood, softwood, MDF, plywood, etc. Plastic: Foam, PVC, ABS, Acrylic, PC, HDPE, etc. Composite materials: Carbon fiber, FR4, etc. Laser engraving materials: Wood, plastic, fabric, leather, cardboard, etc. |
| Power supply | 200-240 VAC, 50/60 Hz |
| Weight | 50 kg |
| Controller | Special software supports CARVERA functions |
| Controller connection | USB/WIFI |
| Controller OS | iOS, Andriod, Mac OS, Windows, Linux, etc. |
| Special CAM software | Makera CAM |
| Joint CAD/CAM software | Fusion360, SolidWorks, AutoCad, VCarve Pro, Aspire, Illustrator, etc. |
| CNC | |
| Spindle power | 200 W |
| Spindle speed | 0 – 15000 rpm with closed-loop control |
| Cooling | Air, temperature control |
| Collet | Special collet with integrated ⅛in (optional: ¼in, 6mm, 4mm) |
| Tool library size | 6 |
| Drive system | Ball screws with linear guides |
| Maximum transition | 6000 mm/min. |
| Motors | Servo motors for X/Y/Z axis, Nema17 stepper motor for A axis |
| Spindle beating accuracy | <0.01 mm |
| Motor resolution | 0.005 mm |
| Dust control | Integrated dust collection system |
| Dust collector volume | 0.8 liters |
| Laser engraver & cutter | |
| Laser power | 2.5 W |
| Laser type | 445 nm solid-state diode laser. |
| Cooling | Air |
Scope of delivery
Why should you buy a Carvera desktop CNC from 3DDevice?
- Official warranty and support
- Delivery all over Ukraine
- Possibility of additional equipment
- Consultations on operation and setup
In 3DDevice, you buy only original products with an official warranty. We provide full technical support, setup assistance, and free consultations. Order Carvera now and open up new horizons of precision milling right at home or in your workshop.
