3D scanner Surphaser 100HSX-SR

Inkl. VAT


Known for its unrivaled accuracy and scan quality, the Surphaser line of scanners offer both short and medium range models ideal for use in reverse engineering, dimensional control, heritage conservation, architecture and forensics.

Surphaser 100HSX-SR is a short range hemispherical scanner (1.0 – 7.0 m) offering data quality and density unmatched by any other long range scanner on the market.


➤ We provide training and installation of equipment when purchasing a Surphaser scanner from 3DDevice

Category: Tag:

Description

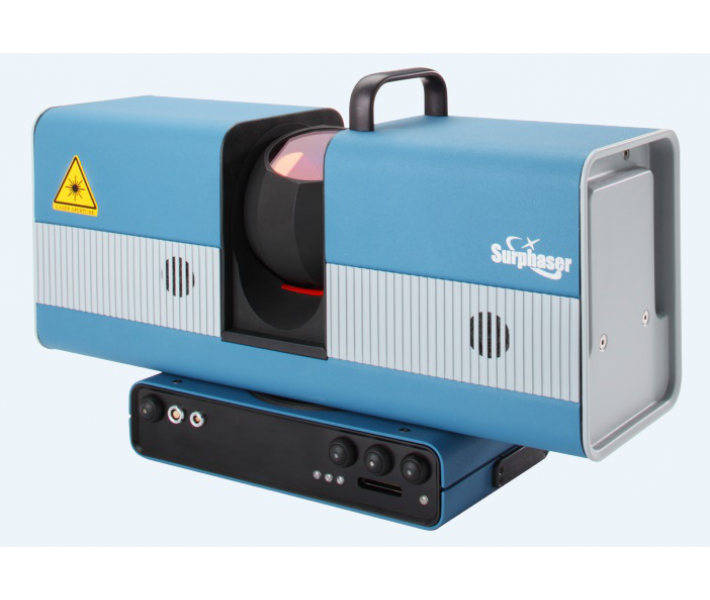

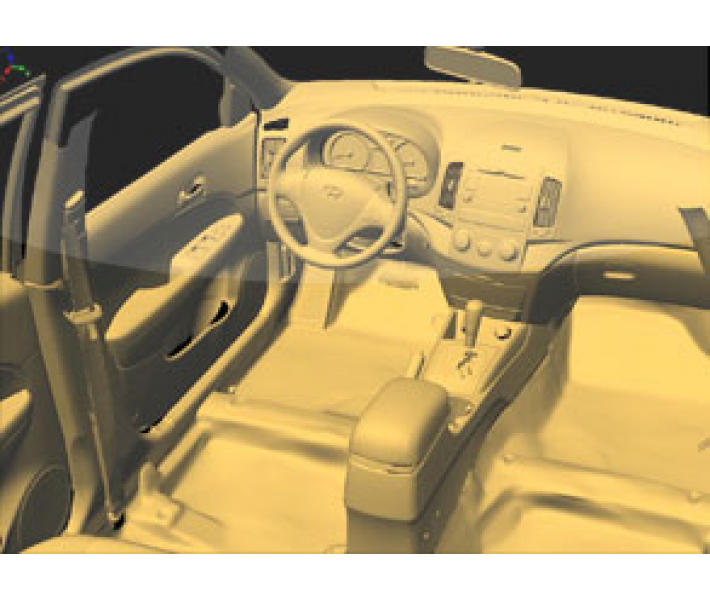

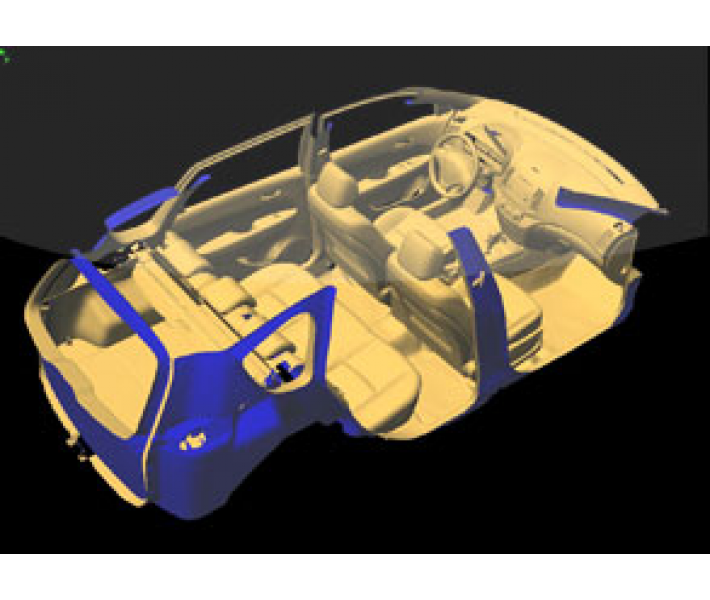

Large objects 3D scanner Surphaser 100HSX-SR

Large objects 3D scanner Surphaser 100HSX-SR offers the highest resolution and accuracy of any long range 3D scanner. The most accurate short range 3D scanner from 1 m to 7 m offering data quality and density unmatched by any other 3D scanner.

Rotating in two planes (360° horizontally and 270° vertically), it projects a laser beam onto a mirror set at an angle of 45 degrees, which directs the beam into space. At an angle of 1°, the 100HSX-SR scanner is capable of projecting up to 90 beams. The beam reflects from scanned object’s surface, returns and is captured by scanner’s sensor, which measures the distance to the object by phase shift. Data is read at a rate up to 800 000 points per second and accurate to 0.025 mm. There is a color scan option. Laser Class 3R.



100HSX-SR key features

  • Short range of 1.0 – 7.0 m, submillimeter measurement accuracy with scanning speed up to 1 million points per second.
  • The software allows you to export clean and accurate datasets to PolyWorks®, Geomagic®, Cyclone®, RealWorks® and other processing applications.
  • Easy to set up and move, fits in an optional carry-on suitcase approved for most domestic airlines.
  • Built-in scan controller and 2 Li-ion batteries 14 V, 90 Wh, each of which provides from 1.5 to 2 hours of work – allow you to work without a laptop and a main power source.
  • Optional 60 megapixel equivalent color camera system with automatic color matching.
  • Wi-Fi connection.
  • Rugged construction. It is intended for work in industrial conditions and in the open air.
  • Two models – short range (SR) and medium range (IR) are ideal for high precision applications.



Large objects 3D scanner Surphaser 100HSX-SR buyLarge objects 3D scanner



Short Range (SR) and Medium Range (IR) Surphaser Scanner Configurations

ConfigurationSR_100IR_100HQ4IR_100HS4
Recommended Work Range (m)1 – 71 – 351 – 50
Ambiguity Range (m)909090
Angular Uncertainty1,3 (arc sec)151515
Range Noise1,2, 90% reflectivity (mm)0.024@ 4 m0.07@ 10 m0.16@ 10 m
Range Noise1,2, 10% reflectivity (mm)0.088@ 4 m0.41@ 10 m0.3@ 10 m
Range Uncertainty3 (mm)<0.3@ 3 m<0.35@ 5 m<0.7@ 15 m
1 All Noise and uncertainty figures are for 1 sigma level.
2 Range Noise local (short term) range variation.
3 Evaluated with contrast target best fit at data rate of 208,000 points per sec.
4 IR_100HQ and IR_100HS are software selectable options based on the same IR_100HSX hardware model. System parameters are subject to change without notice.



Surphaser 100HSX Specifications

ModelSurphaser 100HSX
Scanner TypePhase Shift, Hemispherical Scanner with 360° × 270° field of view
Distance Measurement MethodPhase Shift
Laser Wavelength (nm)685
Laser TypeCW
Laser Class (IEC EN60825-1:2007):Class 3R
Scan Rate (points/second)208 000, 800 000
Internal Coordinate Representation Unit (mm)0,001
Angular position data
Internal Vertical Angular Representation Unit1 arc sec
Internal Horizontal Angular Representation Unit1 arc sec
Scan density control: software selectable
Min. Vertical Point Density (points/degree)24
Min. Horizontal Point Density (points/degree)10
Max Vertical Point Density (points/degree)90
Max Horizontal Point Density (points/degree)90
Full Volume Scan Time (minutes, at 20 ppd x 20 lpd
density)
4,5
Field-of-view (per scan, software selectable)
Horizontal (maximum)360°
Vertical (maximum)270°
Weight with battery (kg)11
Dimensions L × H × W381 × 219 × 120
Power Requirements14-24V DC, 45W (No Built-in Controller)
14-24V DC, 55W (With Built-in Controller)
Minimum system requirementsOS: Windows 7, 8, XP, Vista; 32-bit or 64-bit editions. Processor: 1.8 GHz or greater Pentium-compatible; System memory RAM 1GB or greater, 2GB recommended. USB 2.0 port
Environment conditions5°C to 45 °C, noncondensing humidity
Warranty1 year
