3D scanner Surphaser 80HSX

Description

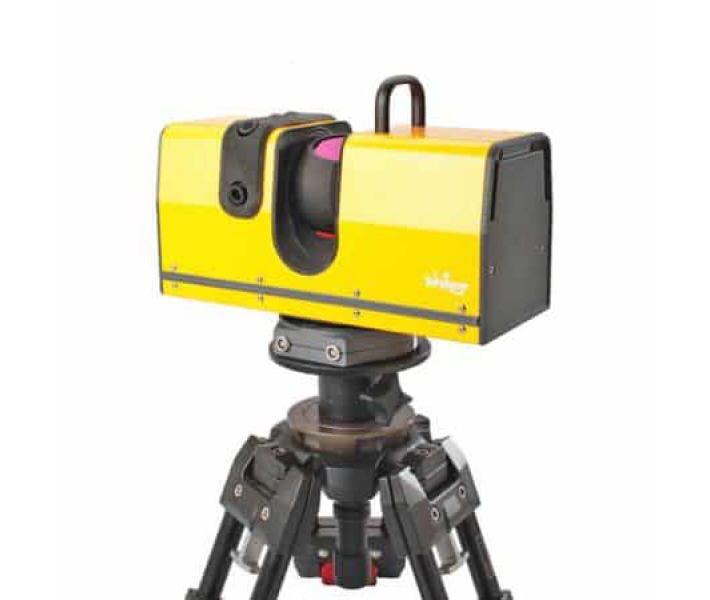

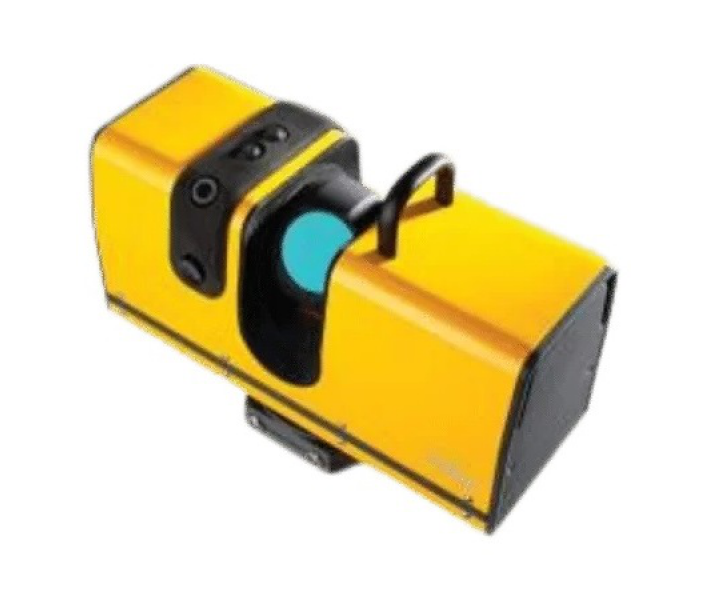

Small Radius Hemispherical 3D Scanner Surphaser 80HSX

Surphaser 80HSX hemispherical short range 3D scanner (0.25 – 7.0 m), measures with submillimeter accuracy – provides unsurpassed accuracy, resolution and data quality. Used in industrial applications to quickly scan and create accurate 3D copies of large objects in tight spaces.

Rotating in two planes (360° horizontally and 270° vertically), the scanner projects a laser beam onto a mirror set at an angle of 45 degrees, which directs the beam into surrounding space. At an angle of 1°, the 80HSX scanner is capable of projecting up to 360 beams. The beam reflects from scanned object’s surface, returns and is captured by scanner’s sensor, which measures the distance to the object by phase shift. Data is read at a rate of 208,000 points per second and accurate to 0.025 mm. There is a color scan option. Laser Class 1.



80HSX Scanner Key Features

  • The shortest range among the Surphaser range of 0.25 – 7.0 m, submillimeter measurement accuracy.
  • Deep submillimeter noise and 3D error.
  • Weight is only 6.2 kg, compact and easily transportable measuring instrument. Fits in hand luggage.
  • The built-in scan controller allows you to control the scanner, operate it and collect data without a laptop.
  • Two Li-Ion batteries 14V, 49Wh each provide approximately 1 hour of operation without a main power supply.
  • Two built-in 5-megapixel cameras. Software for automatic color matching and dynamic exposure control includes.
  • Wi-Fi connection and control from a laptop, tablet or smartphone.
  • Rugged construction. It is intended for work in industrial conditions and open air.
  • Automatic target recognition and target-based scan registration.
  • Fast preview scanning and selection of areas of interest on the screen for high density scanning.
  • An extensive set of filters to highlight areas of interest and eliminate invalid data.



Short Range Surphaser Configurations

Configuration75HSX HQ
208K pps
Class 3R
80HSX HQ
208K pps
Class 1
80HSX HP
832K pps
Class 1
Recommended Work Range (m)0.25 – 2.50.25 – 70.25 – 7
Ambiguity Range (m)90180180
Angular Uncertainty1,3 (arc sec)252525
Range Noise1,2, 90% reflectivity (mm)0.025@ 0.3 – 2 m0.045@ 0.3 – 4 m0.11@ 0.3 – 4 m
Range Noise1,2, 10% reflectivity (mm)0.07@ 0.5 м – 1.8 m0.14@ 0.3 – 4 m0.3@ 0.3 – 4 m
Range Uncertainty3 (mm)<0.15@ 1.5 m<0.25@ 1.5 m<0.25@ 1.5 m
1 All Noise and uncertainty figures are for 1 sigma level.
2 Range Noise local (short term) range variation.
3 Evaluated with contrast target best fit at data rate of 208,000 points per sec.
4 HQ and HP are software selectable options based on the same hardware model 80HSX.
System Parameters may be changed without notice; parameters are rated independently.



Surphaser 80HSX Specifications

ModelSurphaser 80HSX
Scanner TypePhase Shift, Hemispherical Scanner with 360° × 270° field of view
Distance Measurement MethodPhase Shift
Laser Wavelength (nm)1550
Laser TypeCW
Laser Class (IEC EN60825-1:2007):Class 1
Scan Rate (points/second)208000, 832000
Internal Coordinate Representation Unit (mm)0,001
Angular position data
Beam diameter (mm)1,4 mm @ 1,1 m
2,5 mm @ 2,5 m
Beam diameter at aperture, mm2 mm
Internal Vertical Angular Representation Unit1 arc sec
Internal Horizontal Angular Representation Unit1 arc sec
Scan density control: software selectable
Min. Vertical Point Density (points/degree)12
Min. Horizontal Point Density (points/degree)2
Max Vertical Point Density (points/degree)360
Max Horizontal Point Density (points/degree)60
Full Volume Scan Time (minutes, at 20 ppd x 20 lpd
density)
4,5
Field-of-view (per scan, software selectable)
Horizontal (maximum)360°
Vertical (maximum)270°
Weight with battery (kg)6,2
Dimensions L × H × W278 × 250 × 118
Power Requirements14-24V DC, 90W
Minimum system requirementsOS: Windows 8 or 10; 32-bit or 64-bit editions. Processor: 2.4 GHz or greater Pentium-compatible; System memory RAM 8GB or greater, 16GB recommended. USB 2.0 port
Environment conditions5°C to 40 °C, noncondensing humidity
Warranty1 year





Buy hemispherical Surphaser 80HSX in Kyiv Ukraine
