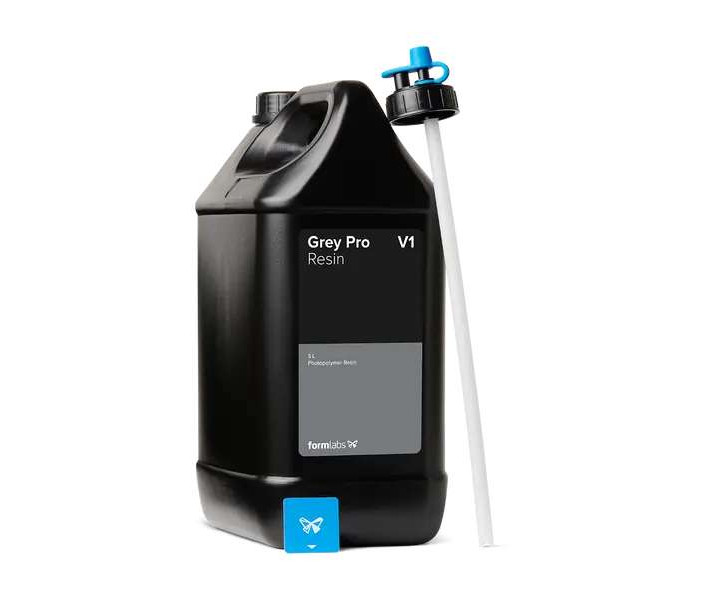

Formlabs Grey Pro Resin Form 3, 5L

Maximize your production capabilities with the high-capacity Formlabs Grey Pro Resin Form 3, 5L container. Designed for high-volume workflows, this bulk cartridge system requires a compatible Resin Pump to integrate seamlessly with your SLA printing setup. This engineering-grade material represents a significant upgrade from standard photopolymers, offering exceptional versatility for professionals who need more than just visual prototypes. By combining high precision with moderate elongation and low creep, it serves as a reliable choice for functional parts that must endure mechanical stress and deformation over time.

Why Choose Formlabs Grey Pro Resin Form 3, 5L?

Durability Meets Precision

The primary advantage of this material lies in its balanced mechanical properties. Unlike standard resins that may become brittle or deform under load, Grey Pro is engineered for toughness and heat resistance. It exhibits low creep, meaning it can withstand sustained stress and hold its original shape over long periods. This makes it an ideal candidate for parts that are handled repeatedly or subjected to impact energy, as the material absorbs shock without shattering.

Engineering-Grade Performance

In addition to its structural integrity, this resin offers high thermal stability, allowing for the creation of components that manage hot air, gas, or fluid flow. Despite its toughness, it does not sacrifice surface quality. You can expect smooth finishes and fine details, making it suitable for "looks-like" prototypes that also need to perform like final production parts. Whether you are iterating on a new product design or manufacturing aids for the shop floor, this material delivers consistent results.

Versatile Applications and Workflow

From Concept to Reality

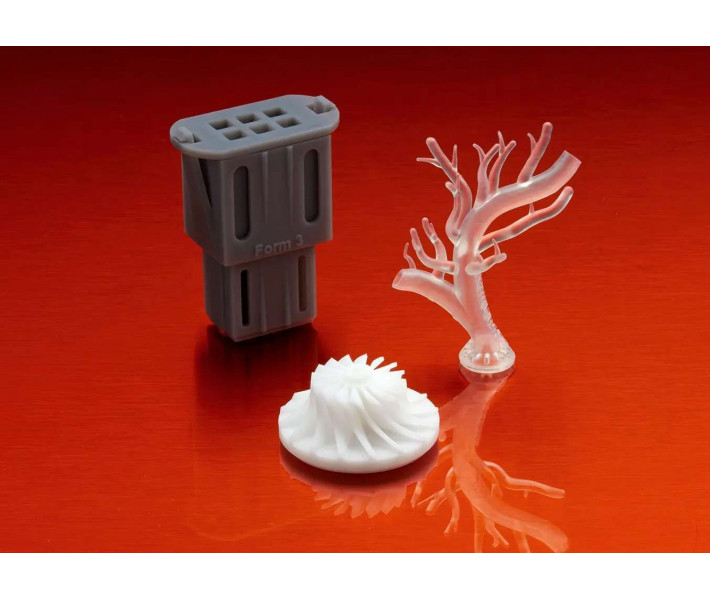

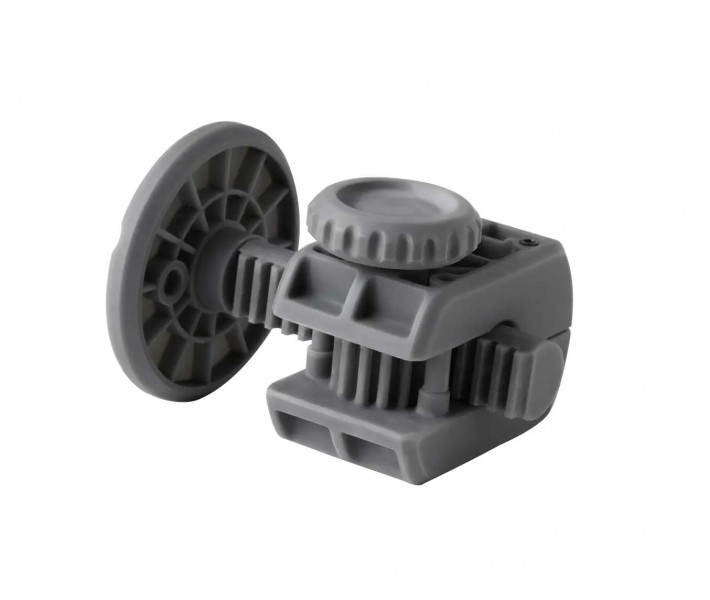

The Formlabs Grey Pro Resin Form 3, 5L is widely used across various industries for rigorous hands-on testing. It is particularly effective for creating mold masters used in silicone and plastic casting, as well as prototyping injection-molded products. Engineers and designers frequently utilize this resin for form and fit testing, ensuring that assemblies work correctly before committing to expensive tooling. It is also the material of choice for manufacturing custom jigs and fixtures.

Post-Processing Recommendations

To achieve the optimal mechanical properties listed in the technical specifications, proper post-processing is essential. The workflow begins with washing the parts in isopropyl alcohol or ether to remove uncured resin from the surface. While curing is sometimes optional for general-purpose materials, Formlabs recommends a short post-curing cycle for Grey Pro. This step significantly reduces surface tackiness, improves heat resistance, and enhances the overall strength of the printed object.

Technical Characteristics

• Material properties: Versatile engineering resin, resistant to deformation, high impact resistance.
• Application: General Purpose, Functional Prototyping, Jigs & Fixtures.
• Printing technology: SLA (Stereolithography).
• Ultimate Tensile Strength: 61 MPa.
• Tensile Modulus: 2.6 GPa.
• Elongation: 13%.
• Flexural Modulus: 2.2 GPa.
• Notched Izod: 19 J/m.
• Heat Deflection Temp @ 0.45 MPa: 78 ºC.
• Thermal Expansion: 79 μm/m/°C (0-150 ºC).
• Recommended shelf life: 24 months.
• Printer Compatibility: Form 2, Form 3/3+, Form 3B/3B+, Form 3L/3BL.
• Resin Tank Compatibility: Form 2 LT, Form 3 Tank V2/V2.1, Form 3L Tank (all).
• Layer Thickness (Form 2): 50, 100 microns.
• Layer Thickness (Form 3/3B/3+/3B+): 50, 100 microns.
• Layer Thickness (Form 3L/3BL): 50, 100 microns.

Buy Formlabs Grey Pro Resin Form 3, 5L at 3DDevice

To ensure high-quality printing results and reliable equipment operation, we recommend purchasing consumables only from trusted suppliers. The 3DDevice online store offers the best conditions for ordering Formlabs Grey Pro Resin Form 3, 5L.

Why choose us:

• We are experts in the field of additive technologies with experience since 2012.
• We provide professional advice and assistance in choosing the right materials for your specific tasks.
• We provide qualified technical support before, during, and after the purchase.

Official Partnership: 3DDevice is an official representative of Formlabs. This status guarantees you the best price on the market, access to original products, an official manufacturer's warranty, and certified service support. Trust the professionals to keep your production running smoothly.
