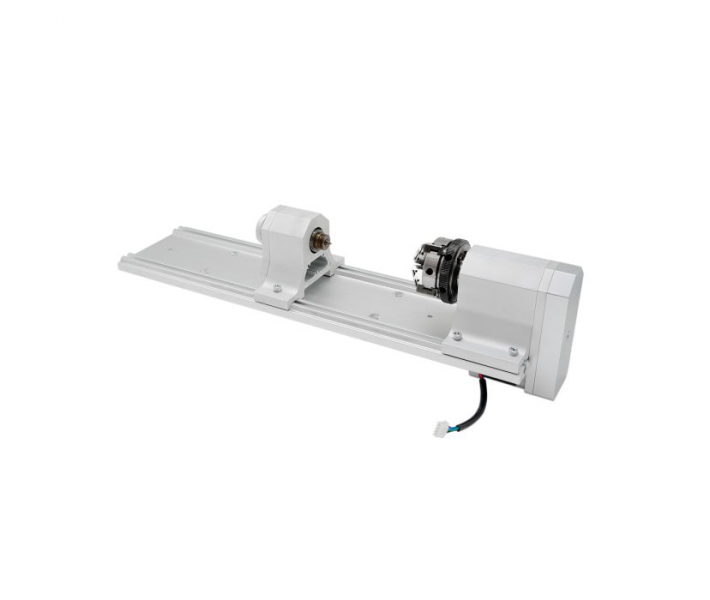

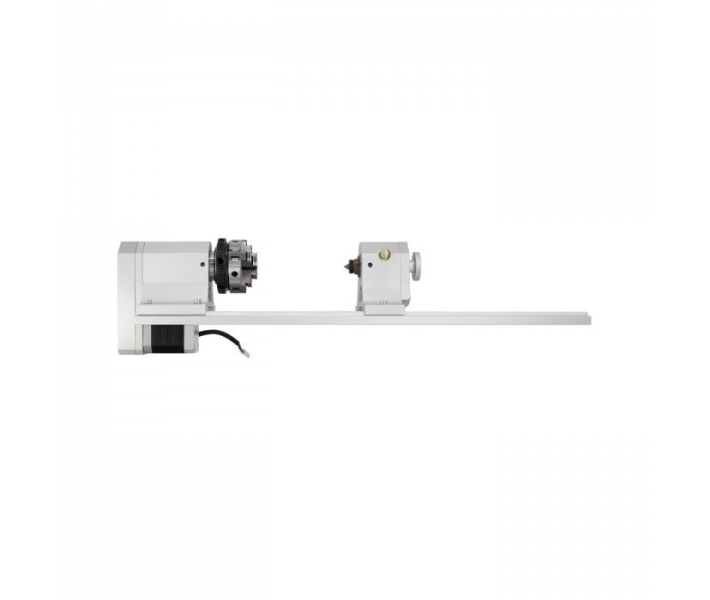

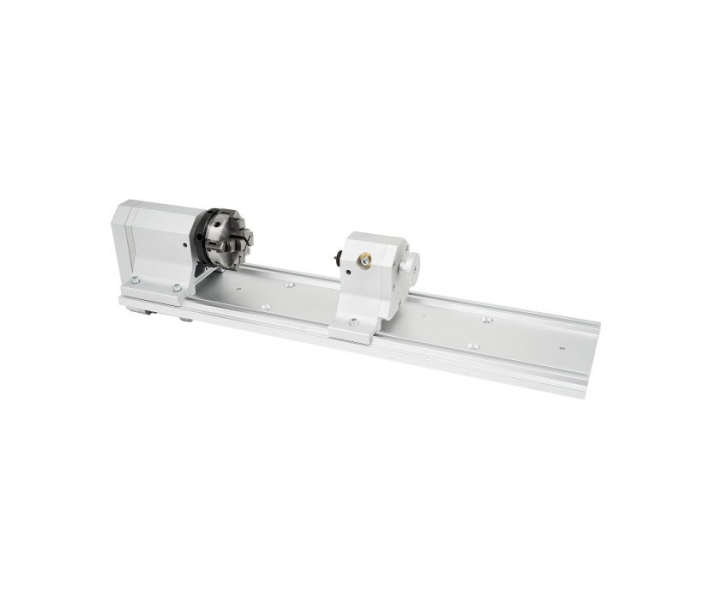

Carvera 4 Axis CNC with Harmonic Drive for more Milling Capabilities
If you are looking for a way to upgrade your CNC router and reach new levels of precision and complexity, the Carvera 4 Axis CNC with Harmonic Drive is the perfect solution. This module allows for complex 3D operations, milling of cylindrical parts, and high precision thanks to its backlash-free transmission.
Key benefits of the Carvera 4th axis
- Versatility – machining of three-dimensional, cylindrical and double-sided parts
- Precision – high-precision transmission without backlash thanks to Harmonic Drive
- Compatibility – full integration with Carvera CNC router
- Intelligent control – user-friendly software
- Easy installation – adapters and tools included
- Support for various materials – wood, plastic, metal
Professional machining of complex shapes
You are no longer limited to classic 3-axis milling – a whole new range of possibilities now opens up for precision models, models, decorations or functional elements in wood, plastic or metal.
Maximum precision with Harmonic Drive
This module is equipped with a Harmonic Drive gearbox that provides extremely precise positioning and virtually no backlash. This filigree transmission is critical for applications that require high repeatability, smooth surfaces, and fine detail.
Unlike simpler solutions, the Harmonic Drive guarantees a smooth and stable stroke as well as a long service life without sacrificing accuracy, making it ideal for professional use in workshops or R&D departments.
Easy setup and intelligent integration

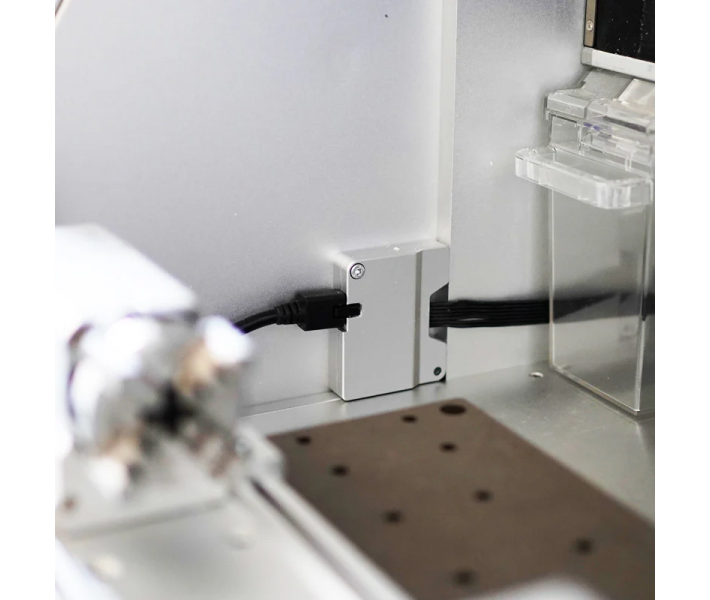

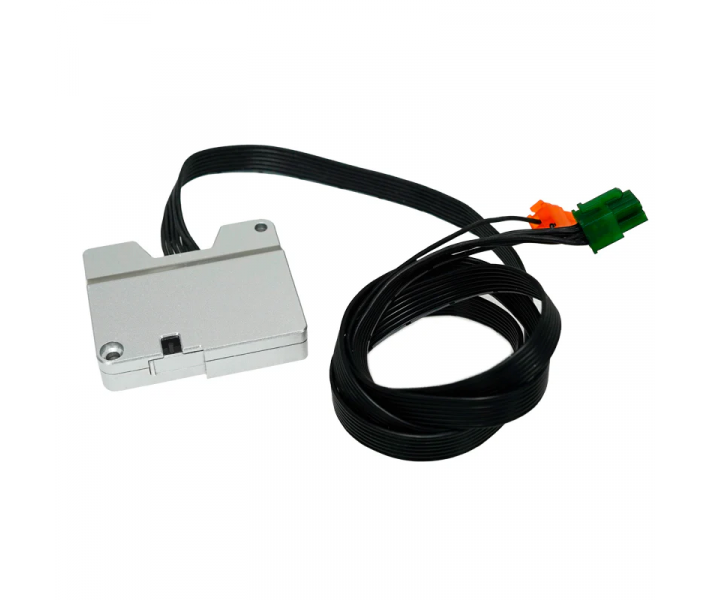

The 4th axis module can be easily integrated into your Carvera CNC router. All necessary adapters and installation tools are included, as well as the manual. Important: Before starting work, you must install the adapter according to the documentation provided.
Carvera supports automatic tool calibration, auto-probing, and anchor-based coordinate system, which greatly simplifies the setup of 4-axis jobs in the software. In fact, the entire process is as simple as standard 3-axis machining.
Intuitive software
For programming 4-axis operations, you can use the proprietary MakeraCAM software, which simplifies the process of generating G-code. The program supports the import of 3D models and the automatic creation of machining paths. Work with popular CAM systems such as Fusion 360 or VCarve is also available.
Thus, the user gets complete freedom in choosing design tools and a convenient transition to more complex manufacturing technologies.
Reliability and user-friendliness
The Carvera CNC Module 4 Axis is manufactured to the highest quality standards. Its compact design and robust mechanics allow it to withstand the stresses of continuous operation without losing accuracy.
Specifications
| Working area | 92 mm (diameter) * 240 mm (length) |
| Weight | 2.5 kg |
| Drive system | Harmonic drive |
| Motor | Nema17 stepper motor |
| Maximum speed | 2400°/min |
| Rotational accuracy | 0.01° |
| Materials | Wood, plastic, non-ferrous metal |
| Software | MakeraCAM, Fusion 360, VCarve, etc. |
Scope of delivery
Order Carvera 4th Axis Module with Harmonic Drive
If you are looking to upgrade your Carvera CNC router and expand its machining capabilities, the 4th Axis Module with Harmonic Drive is a great addition to your equipment. Leave a request on the 3DDevice website or contact our managers – we will help you choose, advise on settings, and ensure fast delivery.
