- Stock: Inquire availability
- Product code: 00-00011323
- Shipping Weight: 4.20kg
- SKU: EinScan SE V2

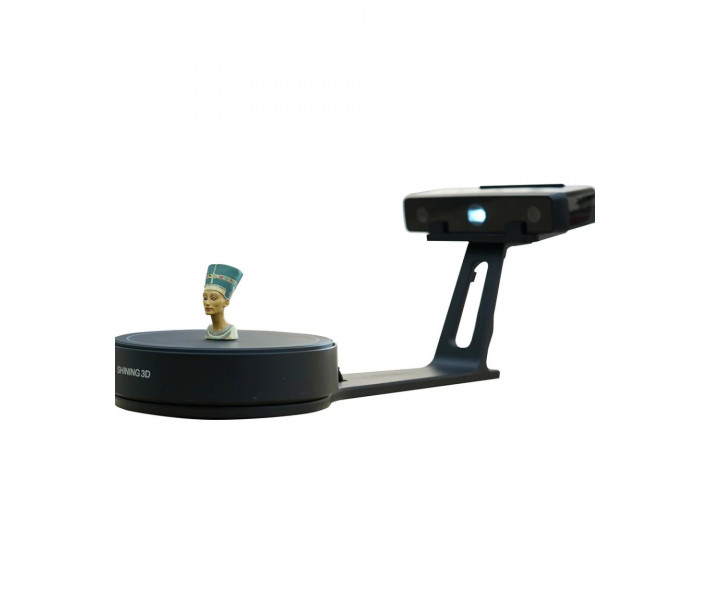

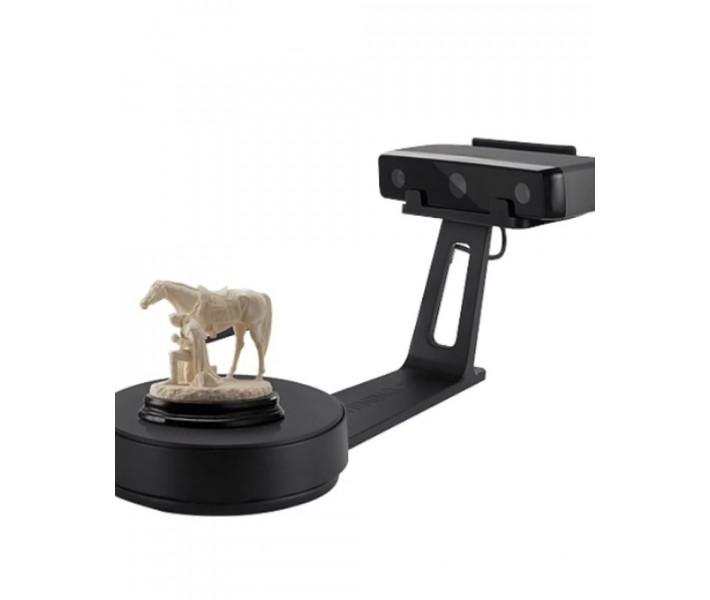

Maximize your scanning capabilities with the SHINING 3D EinScan SE V2, the next generation of desktop 3D scanners designed for educators, designers, and innovators. This powerful companion makes it easier than ever to capture high-quality 3D data, offering a simple, one-click scanning experience and an extensive scanning range for objects both small and large. With its user-friendly workflow and rapid scanning speeds, the EinScan SE V2 is the perfect tool to bring physical objects into the digital world with stunning detail and vibrant color.
Key Features of the EinScan SE V2

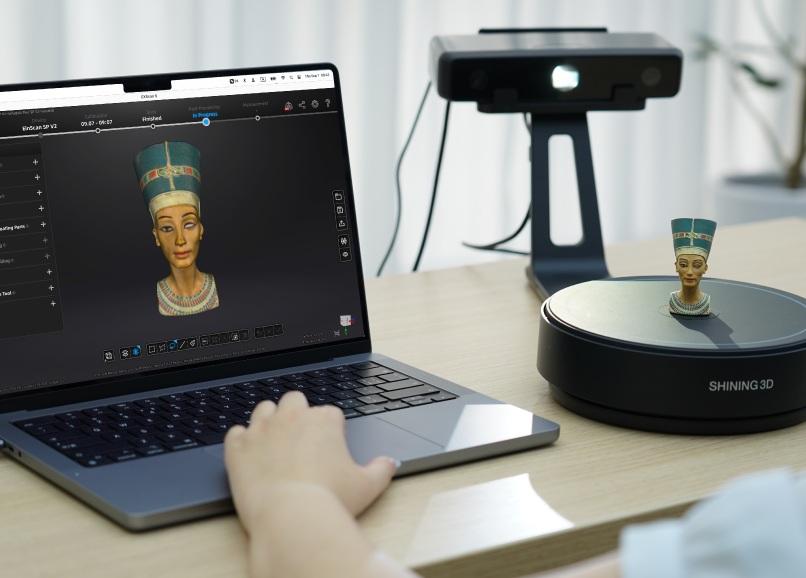

Easy Operation and Faster Scanning
The EinScan SE V2 is engineered for a user-friendly workflow that delivers results in record time. With features like automatic calibration and one-click scanning, it eliminates complex settings and simplifies the entire process for non-technical users. A single shot takes less than 1 second, and a full 360-degree scan on the turntable can be completed in under 45 seconds, making it one of the fastest and most efficient scanners in its class.

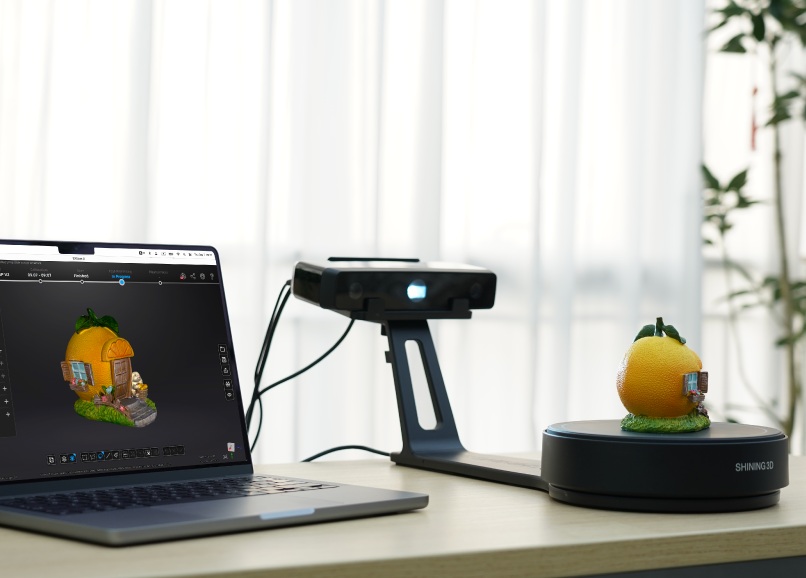

Fine Details and Full-Color Scanning
Capture your objects with a high level of detail and lifelike color. The EinScan SE V2 excels at the highly detailed reproduction of 3D data, easily capturing an object's geometry and full-color texture. This capability makes it perfect for creating realistic digital models for 3D printing, animation, VR/AR, and digital archiving.

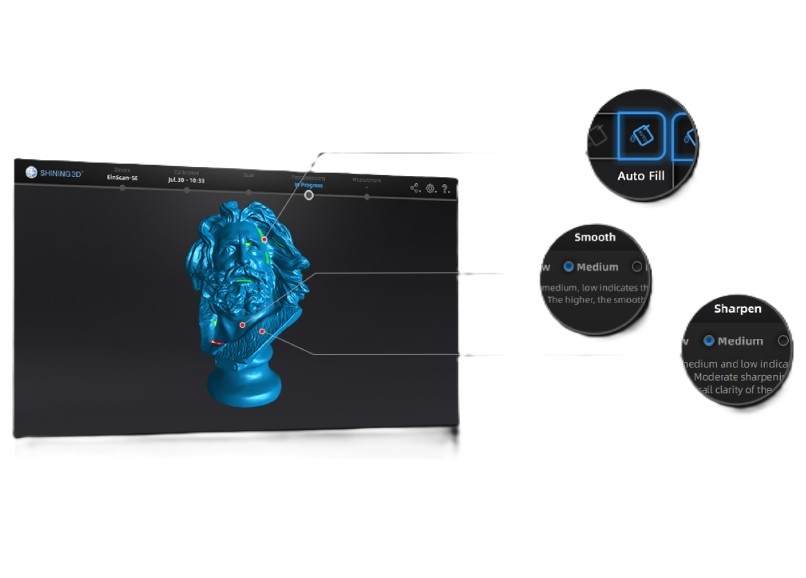

Good Accuracy for Design and Education
The EinScan SE V2 offers reliable 3D scanning accuracy of up to 0.1 mm, making it perfectly suitable for a wide range of design and educational applications where dependable precision is essential.
Versatile and Safe by Design
The EinScan SE V2 offers an extensive scanning range, from small components to larger objects. Depending on the size, you can use the included turntable for automatic 360-degree scanning or mount the scanner on a tripod for manual scanning of larger items. The scanner uses safe, visible white light, making it perfect for educational environments and ensuring it is completely safe for human eyes.
Seamlessly Ready for 3D Printing
The included software is designed to be fully compatible with 3D printers. It features an auto-meshing function that can directly generate watertight 3D data, making your scanned models ready for 3D printing without the need for complex file conversion or repair. This streamlined workflow makes it the ideal companion for any 3D printing setup.
Applications Across a Wide Range of Fields
The power and simplicity of the EinScan SE V2 make it an invaluable tool for:
- Education: Perfect for K12, vocational schools, and universities to bring hands-on 3D technology into the classroom.
- Design & Art: Ideal for creating high-quality 3D designs, enabling reverse engineering, and supporting various 3D printing applications.
- Digital Industry: A powerful tool for professionals in animation, CG, and VR/AR.
- Archiving and Sharing: Perfect for 3D digital archiving and easy data sharing.
Einscan SE V2 Technical Specifications
- Model: Einscan SE V2
- Scan Mode: Fixed Scan with Turntable; Fixed Scan without Turntable
- Align Mode: Manually Align; Feature Align; Turntable Align
- Scan Accuracy: ≤0.1 mm
- Minimum Scan Volume: 30 x 30 x 30 mm
- Maximum Scan Volume: Fixed Scan: 700 × 700 × 700 mm | Turntable: 200 × 200 × 200 mm
- Single Scan Range: 200 x 150 mm
- Scan speed of a single shot: < 1s
- Scan speed of one turn: < 45s
- Point Distance: 0.17 ~ 0.2 mm
- Color Scan: Supported
- Output Format: OBJ, STL, ASC, PLY, 3MF
- Camera Resolution: 1.3MP
- Light Source: White LED
- Computer Requirements: OS: Win7, 8, 10 (64bit); CPU: Intel Dual Core i5 or higher; RAM: >16GB; Graphics Card: Nvidia GTX660 or higher; Video Memory: >2GB; USB Port: 2.0/3.0
- Turntable Loading Capacity: 5KG
Why Choose 3DDevice?
At 3DDevice, our expertise is your advantage. As an official representative of SHINING 3D, we provide unparalleled value and support. With experience in 3D technology cultivated since 2012, we are uniquely positioned to guide you to the perfect solution. We offer professional consultations and dedicated, qualified support before, during, and after your purchase. When you invest in an EinScan SE V2 with us, you receive the best price, an official warranty, and complimentary professional training to ensure you unlock its full potential. Contact us today to learn more.
