- Stock: Inquire availability
- Product code: 00-00011698
- Shipping Weight: 1.13kg
- SKU: EinScan Pro HD

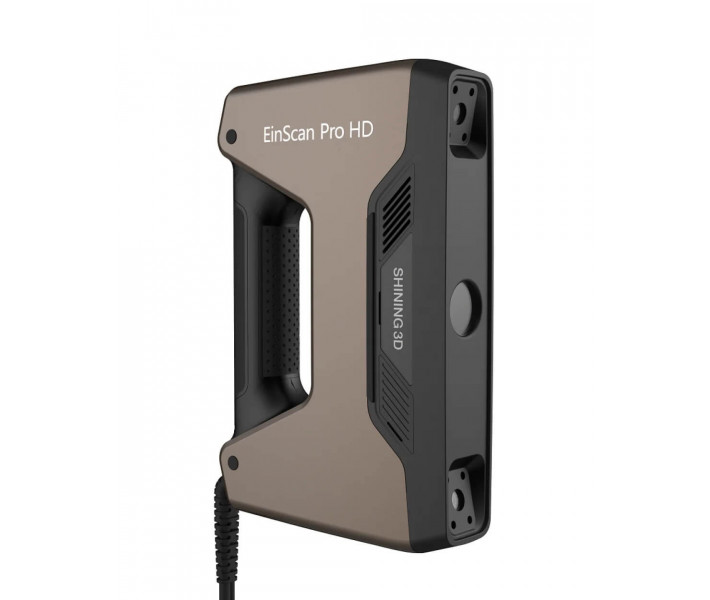

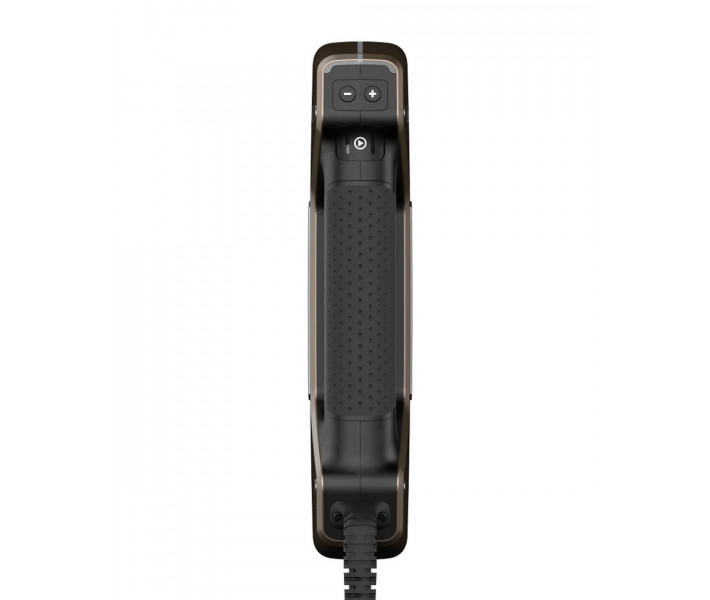

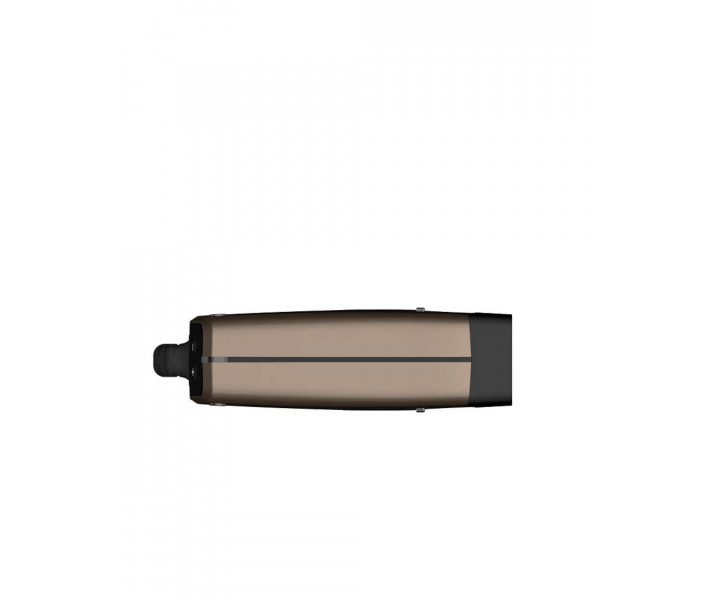

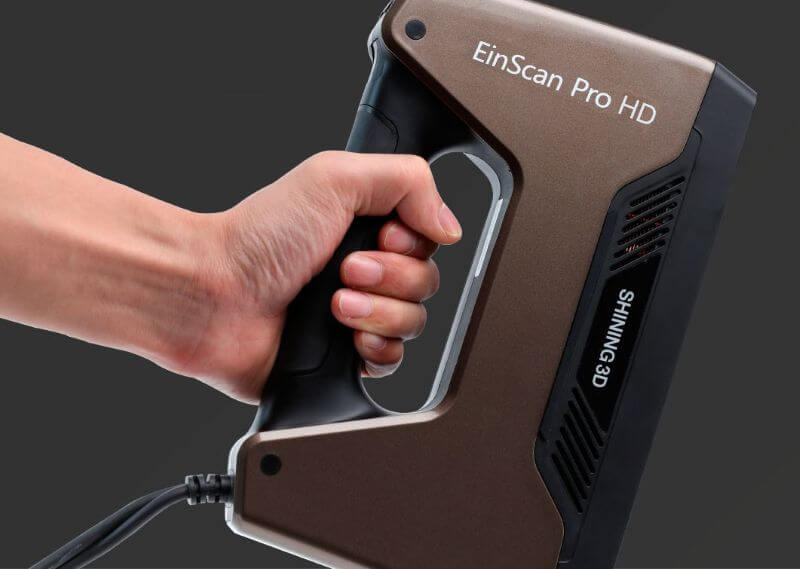

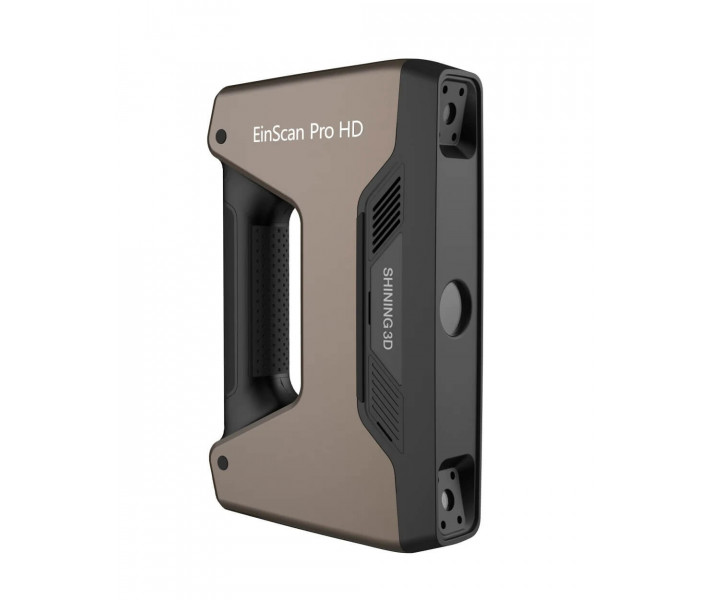

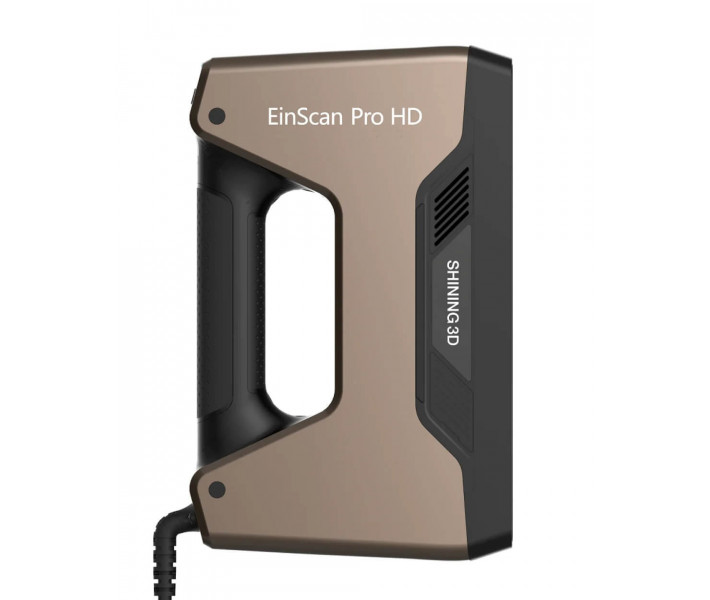

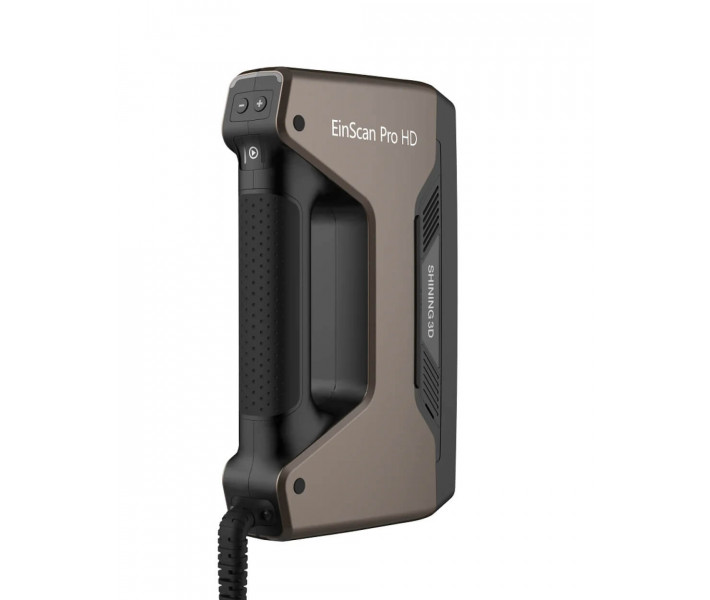

Experience the pinnacle of high-definition 3D scanning with the SHINING 3D EinScan Pro HD, a versatile and multifunctional handheld 3D scanner. As the designated model for the Mechanical Engineering CAD category in WorldSkills Competitions, the Pro HD is engineered to deliver exceptional accuracy and efficiency. Its ergonomic, lightweight design and plug-and-play functionality make it incredibly portable, allowing you to capture complex objects with seamless precision, anywhere you go.
Impressive High Resolution for Fine Details
Capture Reality with Unmatched Clarity
By adopting advanced stripe pattern scanning technology for both its fixed and handheld HD scan modes, the EinScan Pro HD delivers a level of detail that rivals stationary scanners, but with the freedom of a handheld device. With a minimum point distance of just 0.24mm in Fixed Scan mode and 0.2mm in Handheld mode, it effortlessly captures the fine details and intricate geometries of any object, from small industrial components to large, complex parts.
High-Speed Scanning for Maximum Efficiency
From Object to 3D Model in Record Time
The EinScan Pro HD is built for speed. It can capture up to an astonishing 3,000,000 points per second in Handheld Scan mode, and a single frame takes less than 0.5 seconds in Fixed Scan mode. This high-speed performance significantly improves scanning efficiency, allowing you to complete your projects faster and accelerate your entire design and production workflow.

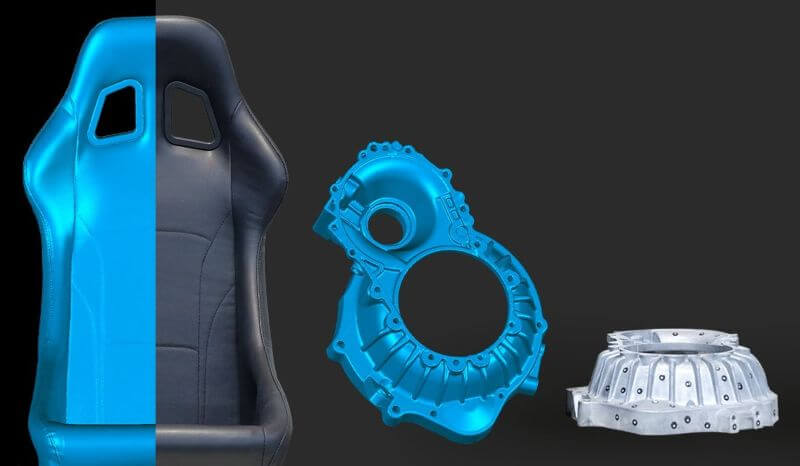

Fewer Limitations, More Possibilities
Scan a Broader Range of Objects
With a stronger lighting projection system and a smart, adaptive algorithm, the EinScan Pro HD is capable of scanning a wider range of objects than ever before. It excels at capturing data from objects with dark or black colors and can even handle casting metal surfaces, enriching its capability for 3D scanning a diverse array of materials with minimal preparation.
Modular Design to Scan Objects of All Sizes
Expand Your Capabilities with Optional Add-ons
The EinScan Pro HD is a modular system that can be tailored to your specific needs. Its versatility is enhanced by two optional add-on packs that unlock new scanning experiences:

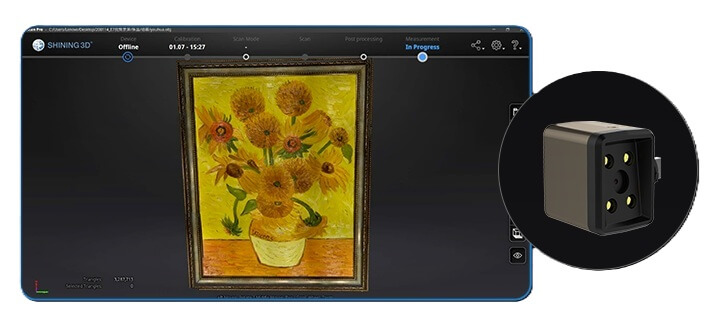

- Color Pack: This add-on enables the EinScan Pro HD to capture full-color texture along with the geometry, allowing you to create vibrant, lifelike, and photorealistic 3D models.

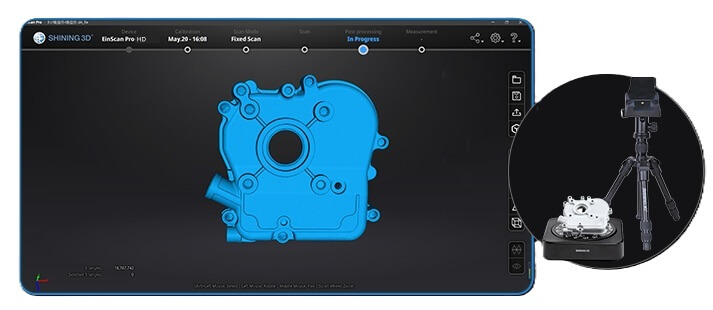

- Industrial Pack: Includes a professional tripod and a fully automatic turntable, enabling the scanner to perform static, automated scans for improved accuracy and ease of use, perfect for small to medium-sized objects.
Seamless Integration with Professional Software
A Powerful Scan-to-Design Workflow
The included EXScan Pro software seamlessly integrates with industry-leading platforms like Geomagic Control X and Geomagic Design X, enhancing the convenience of your data processing. For reverse engineering, the optional EXModel software serves as a powerful bridge from 3D scan to CAD, allowing you to create professional-grade, editable digital models that are fully compatible with your existing CAD software.
EinScan Pro HD TECHNICAL SPECIFICATIONS
| Scan Mode | Handheld HD Scan | Handheld Rapid Scan |
Fixed Scan with Turntable (with Add-on: Industrial Pack) |
Fixed Scan without Turntable (with Add-on: Industrial Pack) |
|---|---|---|---|---|
| Scan Accuracy | up to 0.045 mm | up to 0.1 mm | 0.04 mm (Single Shot Accuracy) | |
| Volumetric Accuracy[1] |
0.3 mm/m (Markers Alignment) |
/ | ||
| Scan Speed |
10 frames/s 3,000,000 points/s |
30 frames/s 1,500,000 points/s |
Single Scan < 0.5 s | |
| Point Distance | 0.2 mm-3 mm | 0.25 mm-3 mm | 0.24 mm | |
| Single Scan Range | 209*160mm-310*240mm | |||
| DOF | ±100 mm | |||
| Working Center Distance | 510 mm | |||
| Light Source | LED | |||
| Align Mode | Marker Alignment, Feature Alignment [2], Hybrid Alignment [3] | Marker Alignment, Texture Alignment [4], Feature Alignment, Hybrid Alignment | Turntable Coded Targets, Feature, Marker, Manual Alignment | Marker, Feature, Manual Alignment |
| Texture Scan | Yes (with Add-on: Color Pack) | |||
| Outdoor Operation | Set up the shelter or cover to avoid direct sunlight | |||
| Special Scan Object | For the transparent or highly reflective objects, please spray powder before scanning. | |||
| Software Included | ExScan Pro | |||
| Data Format | OBJ, STL, ASC, PLY, P3, 3MF | |||
| Scan Head Weight (include a USB cable) | 1.13 kg | |||
| OS System Support | Win10, 64bit | |||
| Recommended Configuration | Graphics card: NVIDIA RTX2060 and higher; video memory: >6G, processor: i7-9750, memory: 64G; interface: high-speed USB 3.0 | |||
| Required Configuration | Graphics card: NVIDIA GTX1080 and higher; video memory: >4G, processor: Intel i7-8700, memory: 16G; interface: high-speed USB 3.0 | |||
