Description

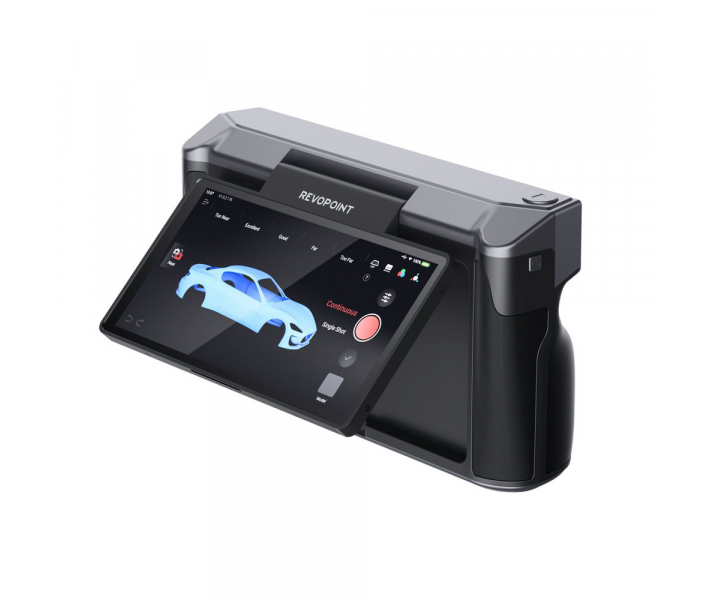

Revopoint Miraco Plus – all-in-one photogrammetric 3D scanner

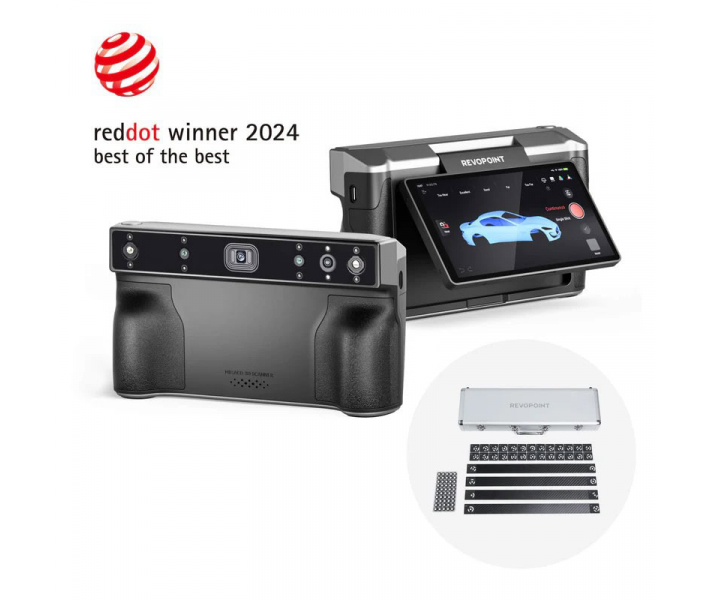

Introducing Revopoint Miraco Plus – the first all-in-one standalone photogrammetric 3D scanner at an affordable price. With a photogrammetric metrology kit (PMK) and improved accuracy and speed, the MIRACO Plus 3D scanner extends the Red Dot award-winning MIRACO series with metrology-grade capabilities for large object capture.
Revopoint MIRACO Plus is the world’s first cost-effective all-in-one 3D scanner with photogrammetric metrology capabilities. Independent and free 3D scanning and metrology measurement is provided by a powerful built-in power supply, large memory capacity and flexible firmware.
Key features
- Universal scanning from small to large objects
- Single frame accuracy of up to 0.04 mm
- Photogrammetric length accuracy of 0.02 mm + 0.05 mm
- Fast scanning speed up to 20 FPS
- 2X infrared optical zoom
- Single and continuous modes

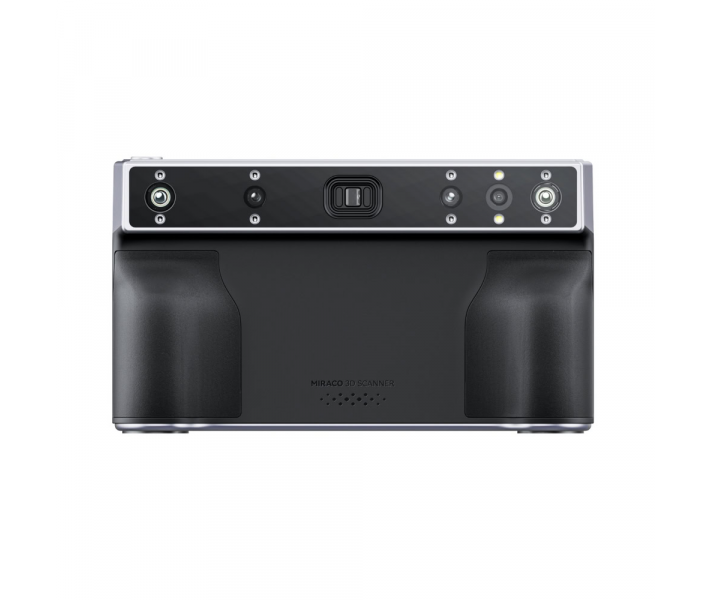

Technology and design
- Structured light projector: scanning speed up to 20 FPS.
- Depth camera in near mode: Capture fine surface details.
- Depth camera in far mode: Capture large objects quickly.
- 48 MP RGB camera: photorealistic 8K color scanning.
- LED flash: Illuminates objects for better color scanning.
- USB Type-C port: fast charging up to 80% in 35 minutes.
- 2K AMOLED screen: 180° rotation for easy viewing.
Works on large and small objects
With MIRACO Plus, switch freely between shooting modes for complete scanning flexibility. Use Close mode to capture intricate details in specific areas or small objects, and use Far mode to quickly capture entire objects.
Versatile workflow

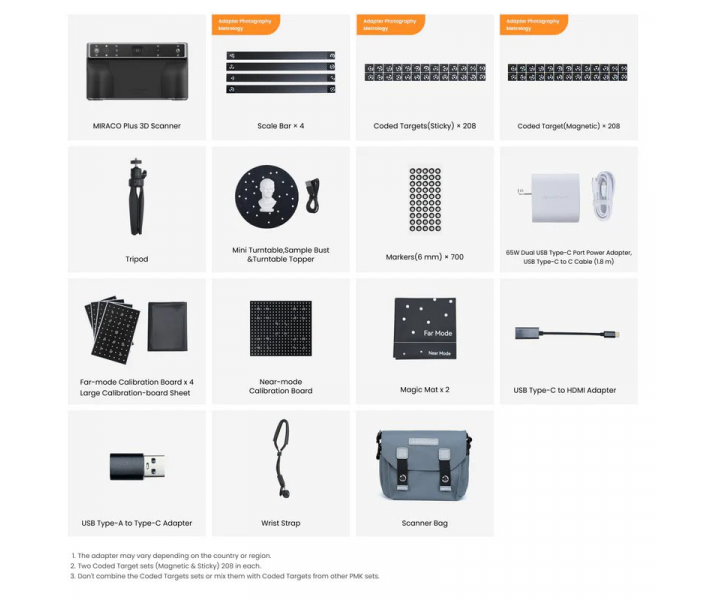

Capture and create photogrammetric models with two sets of coded targets (magnetic and sticky) Photogrammetric Metrology Kit (PMK), 4 magnetic carbon fiber scales, and a 48-megapixel MIRACO Plus RGB camera, powerful hardware, and advanced algorithms.
Scanning in 4 easy steps:
- Preparation. Place scale scales, coded targets, and markers on or around the object’s surface.
- Scan. Capture objects at different heights and angles until you have captured the entire scene.
- Calculate and capture a point cloud. Calculate markers and then capture point clouds on the MIRACO Plus 3D scanner.
- Processing and export. Process, edit, and then transfer to your PC.

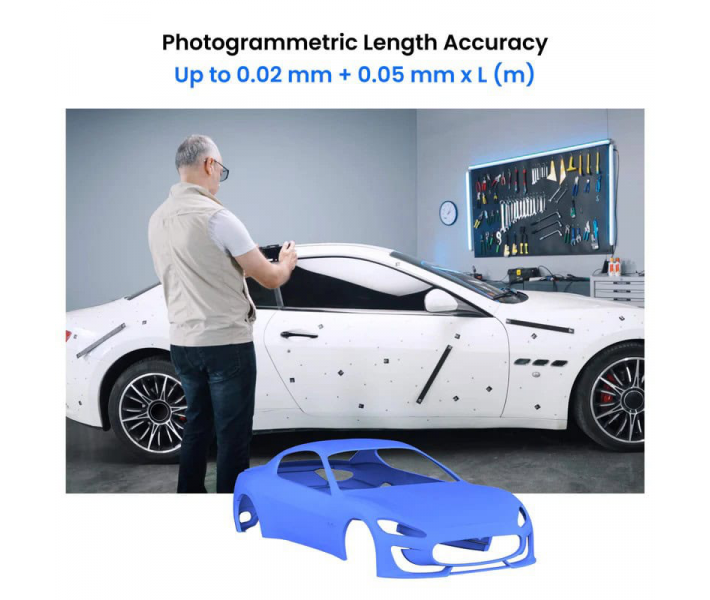

Standalone 3D scanner with photogrammetry
The photogrammetric function allows you to create metrological 3D models of large objects such as automobiles, ship or aircraft parts, and machines. The MIRACO Plus photogrammetric 3D scanner achieves an impressive length measurement accuracy of up to 0.02 mm + 0.05 x L (m).
Even better detail capture

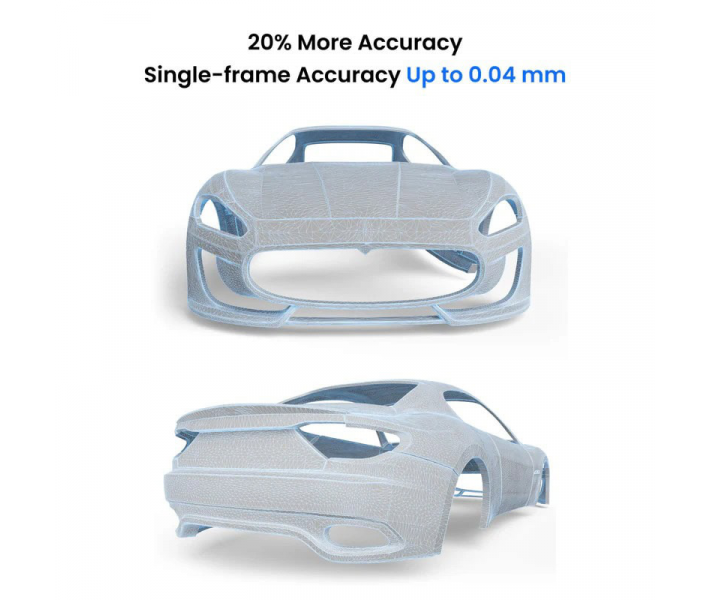

- Single frame accuracy of up to 0.04 mm
Capture even the smallest parts with 20% higher accuracy than MIRACO Plus, guaranteed to within 20 microns with the high-precision calibration board.

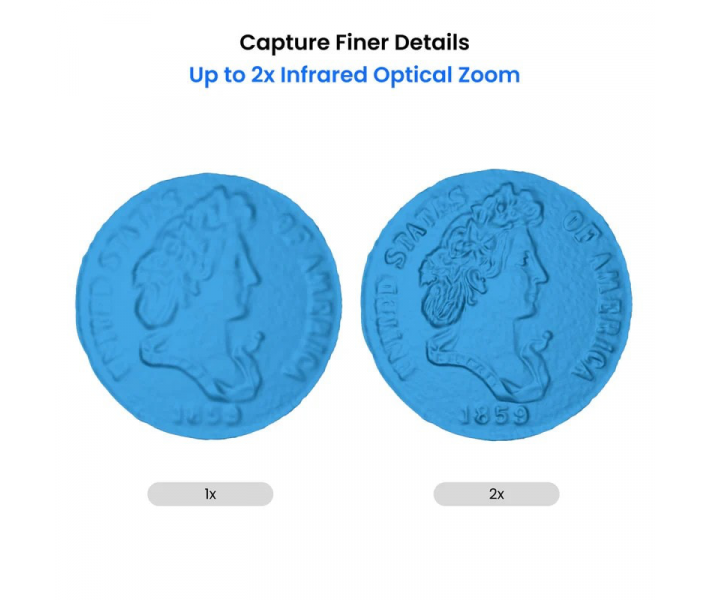

Zoom in and capture more detail
Reduce noise, increase smoothness, and capture even finer detail with MIRACO Plus’ 1.5x and 2x infrared optical zoom, creating structured light with higher resolution.
Two scanning modes
- Single Frame Mode. Recording a single frame in Single Frame mode makes it easier to scan in hard-to-reach environments and reduces point cloud overlap for improved accuracy.

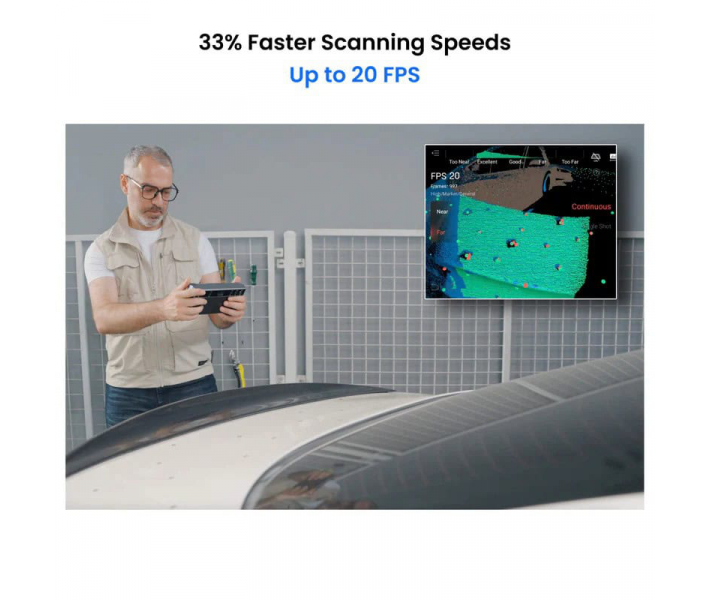

- Continuous Mode. Capture subjects efficiently at scanning speeds up to 20 fps.
Your scanning portal
2K AMOLED touchscreen with 180° rotation
View your scanned images in crystal clear on the MIRACO Plus 6-inch backlit 2K AMOLED touchscreen. Its 180° adjustable screen makes it easy to view from any angle and can be rotated for selfie scanning.
- 180° adjustable screen
- Screen size 6”
Dazzling color
Create eye-catching colorful 3D models with the MIRACO Plus’ 48-megapixel RGB camera.
Powerhouse in your hands
- 8-core 2.4 GHz processor
- 256 GB hard drive
Long scan times, fast charging
Charge the MIRACO Plus battery up to 80% in just 35 minutes with 65W fast charging.
The 5000 mAh MIRACO Plus battery provides up to 2 hours of continuous scanning.
*The MIRACO Plus battery is backed by a 2-year warranty.
Work without cables!
Easy project transfer. Transfer your scanned data quickly and conveniently via lightning-fast Wi-Fi 6 or easy USB Type-C connection.
Screen mirroring. Connect MIRACO Plus to a TV or monitor using the USB Type-C to HDMI adapter or DP port for easy viewing of 3D models or presentations.
Powerful built-in software
Do everything from scanning to processing, editing and merging on MIRACO Plus for a truly versatile scanning experience.
- One-touch editing
- Point cloud editing
- Edit the grid
- Tracking methods for each object
- Fill holes
- Export to PLY, OBJ, STL, ASC, 3MF, GLTF, or FBX
Scope of application of the Miraco Plus scanner
- Industrial production. Improve assembly accuracy, efficiency and product quality with fast scanning and accurate three-dimensional measurements of large objects. Increase assembly efficiency, production, and product quality by scanning the production line.
- Additive manufacturing. MIRACO Plus can quickly scan large, medium, and small objects to create perfect digital twins ready for replication on 3D printers.
- Reverse engineering. With the new MIRACO Plus photogrammetric feature, you can create metrology-grade 3D models of large objects that ensure accuracy during reverse engineering processes.
- Industrial design. Rapidly prototype large products using the generated data to improve appearance and structure, increase design accuracy and efficiency, and shorten the design cycle. Verify and refine the final product to ensure it meets project expectations.
Specifications
| Light Source | Infrared headlights, LED flashes |
| Technology | Four-chamber infrared structured lamp with optical zoom and ultra-high resolution Photogrammetric metrology |
| Volumetric Accuracy | 0.02 mm + 0.05 mm/m |
| Scanner type | Stand-alone handheld and benchtop as well as photogrammetric metrology |
| Color Scanning | Yes |
| Scanning with labels | No |
| Scanning mode | Single shot mode, continuous mode |
| Security class | CLASS I (safe for eyes) |
| Processor | 8-core ARM A76, 2.4 GHz, Mali G52 GPU |
| Controls | 6” 2K AMOLED 180° rotary touch screen, 2 buttons |
| Size of Scanned Objects (m) | min 0.01 × 0.01 × 0.01, max 4.0 × 4.0 × 4.0 |
| Scanning speed (frames/s) | 20 |
| Scanning accuracy (mm) | Up to 0.02 |
| Scanning accuracy (mm) | Up to 0.04 |
| Scanning range (mm) | 28 × 53 at a distance of 100 mm, 975 × 775 at a distance of 1000 mm |
| Working Distance (mm) | 100 – 1000 |
| Color reproduction | RGB camera |
| Camera Resolution (pixels) | 48 MP |
| Distance Between Points (mm) | Up to 0.05 |
| Positioning Sensors | 9-axis IMU |
| Positioning methods | By surface features, by labels, global markers |
| Features | Photogrammetric metrology. Ability to export 3D models directly to 3D printing. Use scanning spray for transparent, dark or highly reflective objects. |
| Supported File Types | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| Connectivity | USB Type-C, Wi-Fi 6.0, Bluetooth 4.1 |
| Battery capacity (mAh) | 5000 |
| Internal memory (GB) | 256 |
| System Requirements | Windows 10/11 (64-bit), macOS 11.0 or later |
| Memory (RAM) | 32 GB DDR4 |
| Warranty Period (months) | 12 |
| Net weight (kg) | 0,75 |
| Net dimensions (mm) | 200 × 50 × 110 |
