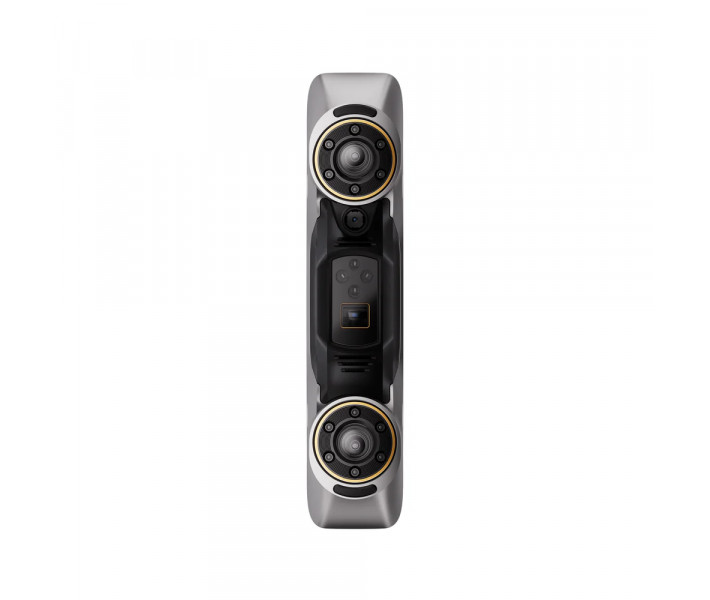

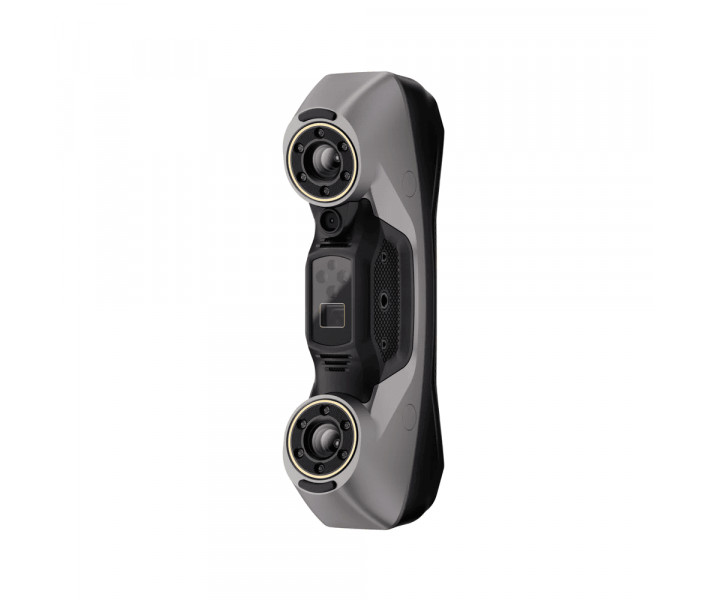

3D scanner Revopoint MetroY

Handheld 3D indoor scanner

Discover the 3D scanner Revopoint MetroY, a cutting-edge handheld device designed to transform your scanning experience. Engineered for precision and versatility, the MetroY series offers exceptional indoor scanning capabilities for professionals and enthusiasts alike. Whether you're capturing complex surfaces or small intricate details, this scanner delivers industry-grade accuracy with ease.

Key Features

Advanced Laser Technology

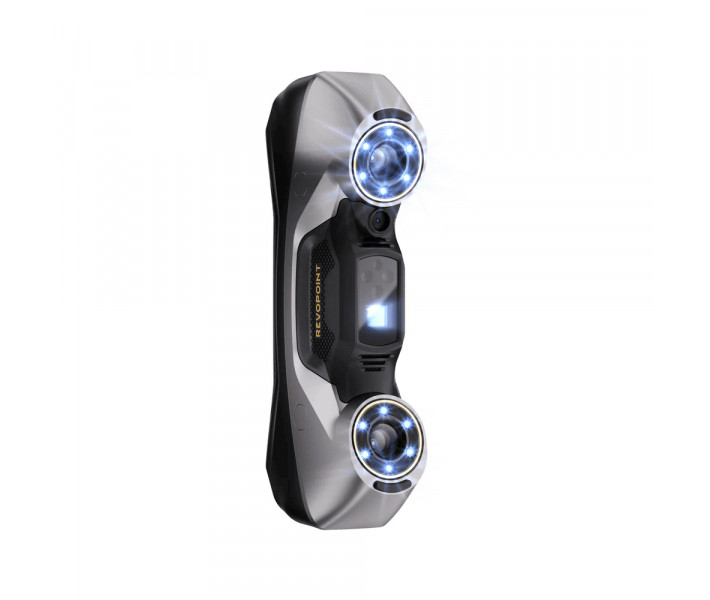

The Revopoint MetroY utilizes sophisticated multi-line blue laser technology, featuring 30 cross laser lines and 15 parallel laser lines, along with a single-laser line mode. This configuration ensures precise capture of deep and narrow features, making it suitable for challenging scanning tasks.

Unmatched Precision

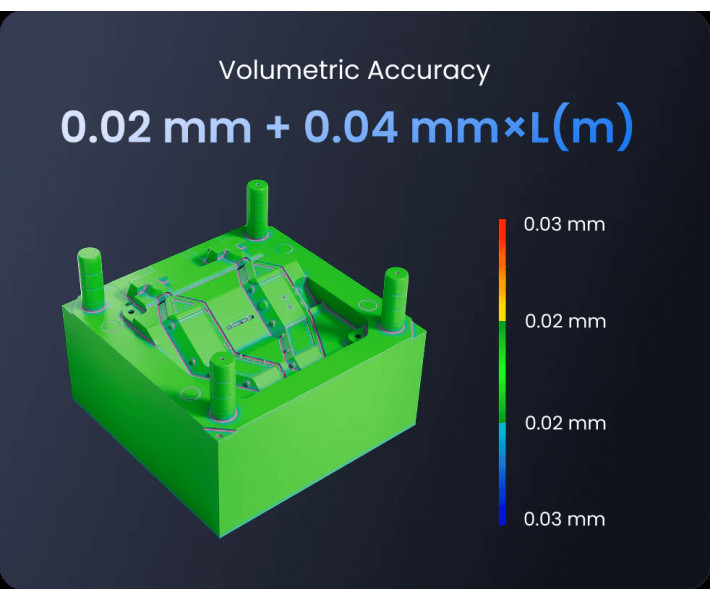

Experience unparalleled precision with a single-frame repeatability of up to 0.01 mm and accuracy up to 0.02 mm. The volumetric accuracy is maintained at 0.02 mm + 0.04 mm × L(m), ensuring consistent results for objects of varying sizes.

High Resolution & Density

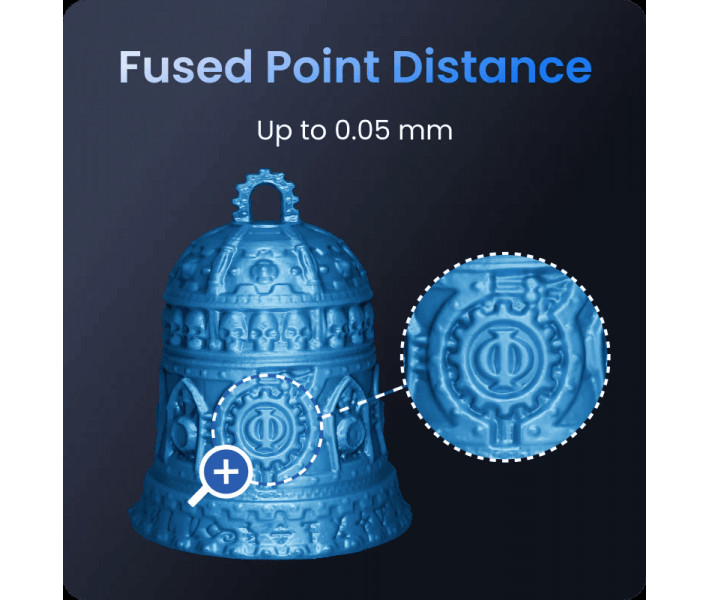

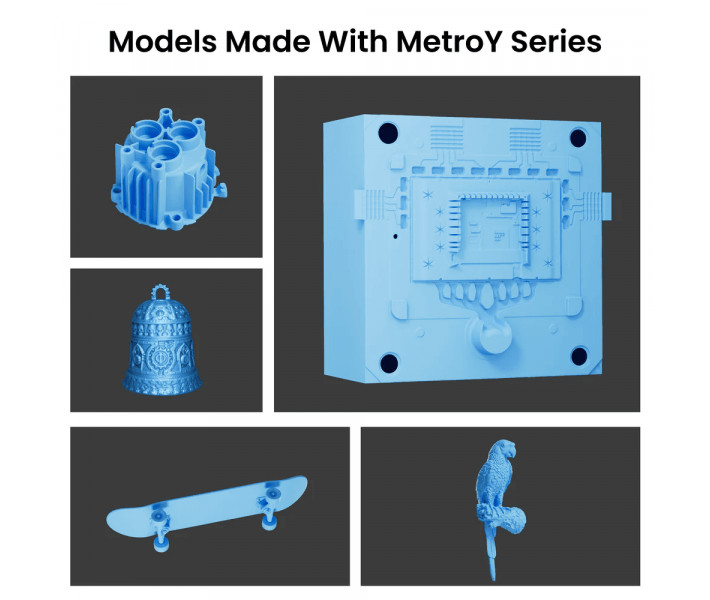

The MetroY offers exceptional resolution with a fused point distance as fine as 0.05 mm, making it perfect for capturing intricate details on small to medium-sized objects.

Flexible Working Range

Designed for convenience, the MetroY operates efficiently within a working distance of 200-400 mm. It captures areas ranging from approximately 123 × 130 mm at the nearest stand-off to 290 × 260 mm at the farthest distance.

Efficient Data Capture

With a scanning speed of up to 1,500,000 points per second in multi-line laser mode, the MetroY ensures rapid data acquisition without compromising on quality.

The scanner supports three scanning modes:

• Single Shot — for maximum detail on small objects.

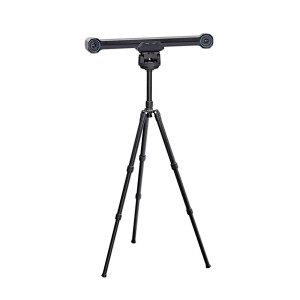

• Fixed Scan — for scanning stationary objects with a tripod or platform.
• Handheld Scan — for large or complex objects; faster but with less detail.

Technical Specifications

• Scanner Type: Portable
• Scan Precision (mm): Up to 0.01
• Country of Brand Registration: China
• Supported File Types: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
• Connection: USB Type-C
• Warranty Period (months): 12
• Weight Netto (kg): 0.540
• Dimensions Netto (mm): 253 × 113 × 56
• Stand-off Distance (mm): 200 ~ 400
• Additions: No additional extensions required
• Color Scanning: Yes
• Scan Accuracy (mm): Up to 0.01
• Scan With Marks: Yes
• Part Size Range (m): min 0.01 × 0.01 × 0.01
• Measurement Resolution (mm): Up to 0.05

User Benefits

No Pre-treatment Needed

The advanced blue laser modes reduce the need for scanning spray on shiny or dark surfaces, streamlining your workflow and saving time.

Simplified Connectivity & Portability

The MetroY connects seamlessly via USB-C and supports Wi-Fi 6 for wireless data transfer. Its lightweight design at just ~447 g makes it highly portable for fieldwork or studio use.

User-Friendly Software Support

The included Revo Metro software empowers users with tools for scanning, editing, merging, and exporting in various formats such as PLY, OBJ, STL, ASC, and more.

Caution & Requirements

Safety Precautions

The Class-1 blue laser projector is safe under normal use conditions but requires caution around reflective surfaces and optical devices to prevent direct beam exposure.

System Compatibility & Power Needs

An advanced computer setup is recommended: Intel i7 (12th Gen) or AMD Ryzen 7 (5800) for Windows users; M1 Pro/Max/Ultra for macOS users; with at least ≥32 GB memory in many cases.

The Revopoint MetroY is an essential tool for professionals seeking precision and efficiency in their scanning processes—an investment that enhances your capability in capturing high-fidelity digital models with ease.
