3D scanner Revopoint MetroX

Description

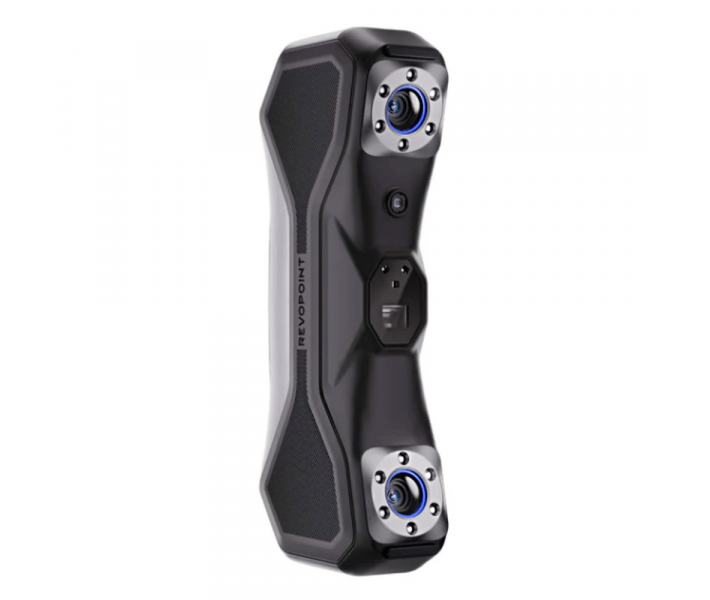

Handheld 3D scanner Revopoint MetroX 3D

Handheld 3D scanner Revopoint MetroX 3D is a universal scanner for indoor use. It is suitable for both experienced professionals and beginners. The device is designed for scanning small and medium-sized objects indoors. MetroX combines two technologies: multi-line laser scanning and scanning using structured light.

Brief technical characteristics of Revopoint MetroX

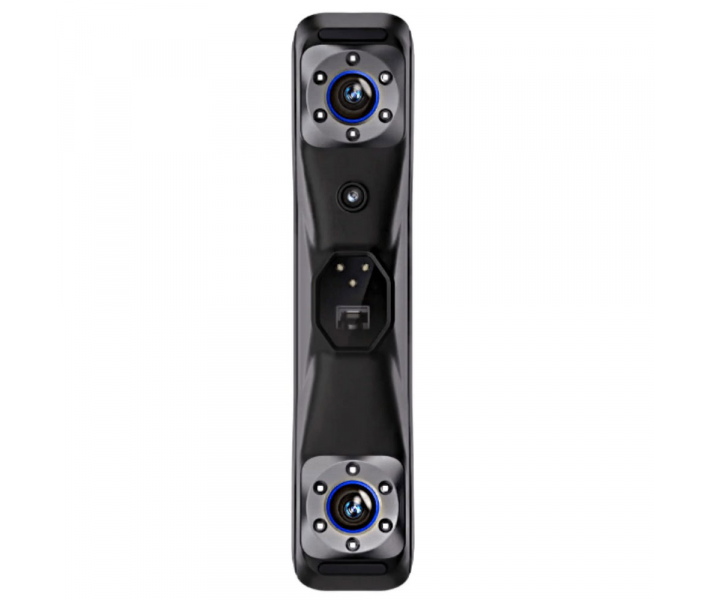

The scanner is equipped with advanced optical components:

• 14 intersecting blue laser lines.
• 7 parallel blue laser lines.
• 62 lines of structured blue light on the full screen.

This combination provides high scanning accuracy and speed.

Key Features of MetroX

The scanner has four operating modes. Each mode is suitable for different scenarios.

• Metrology-grade accuracy: 0.03 mm.
• Volumetric accuracy: up to 0.03 mm + 0.1 mm × L(m).
• Operating speed: up to 7,000,000 pixels per second in structured light mode.
• Operating speed: up to 800,000 pixels per second when using a multi-line laser.

Automatic scanning with a turntable

Revopoint MetroX supports automatic scanning mode. For this, a turntable is used. This function is useful for creating color 3D models with high detail.

3 scanning modes of Revopoint MetroX:

• The “Functions” mode is used for volumetric scanning with a large number of details.
• The “Marker” mode is used for objects without pronounced details.
• The “Global Marker” mode is used for increased volumetric accuracy.

Light sources and their capabilities

The scanner uses three types of light sources:

• Cross lines: 14 blue spectrum laser lines. Scanning speed is up to 800,000 pixels per second.
• Parallel lines: 7 powerful laser lines. They are ideal for capturing objects.
• Full-screen structured light: up to 7 million dots per second using 62 lines.

Handheld 3D scanner: high operating speed

MetroX provides high productivity. In structured light mode, the scanning speed reaches 7,000,000 points per second. In laser mode, the speed is up to 800,000 pixels per second.

Advantages of the turntable

The two-axis turntable allows you to scan in just a few steps. The integration function with Revo Scan software simplifies the process.

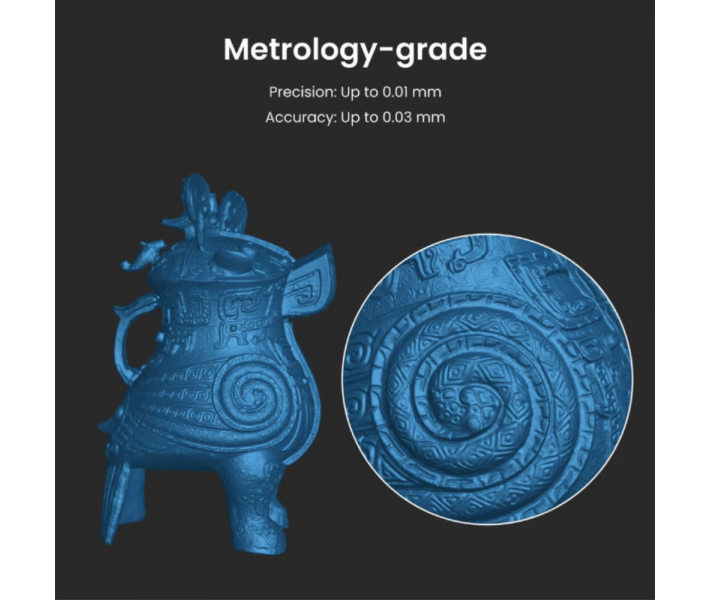

High scanning accuracy of the Revopoint MetroX 3D handheld 3D scanner
Revopoint MetroX provides metrology-grade accuracy. Accuracy rates reach 0.01 mm and 0.03 mm under ideal laboratory conditions.

Flexible capture area

The scanner offers two capture areas:

• 160×70 mm by 200 mm.
• 320 x 215 mm by 400 mm.

This allows you to adapt the scanning process to the size of the object

Working with problematic surfaces
For objects with shiny, black, transparent or mirror surfaces, it is recommended to use a special scanning spray. This is especially important in structured light and laser modes.

Additional features and markers in the MetroX 3D handheld 3D scanner

To speed up the process, you can use volumetric marker blocks. They are ideal for scanning objects without clear textures or details.

Revo Scan 5 software

Revo Scan 5 offers a wide range of functionality:

• Creating point clouds.
• Mesh construction.
• Editing and combining data.
• Importing results into popular formats.

Revopoint Handheld 3D Scanner Controls and Additional Features

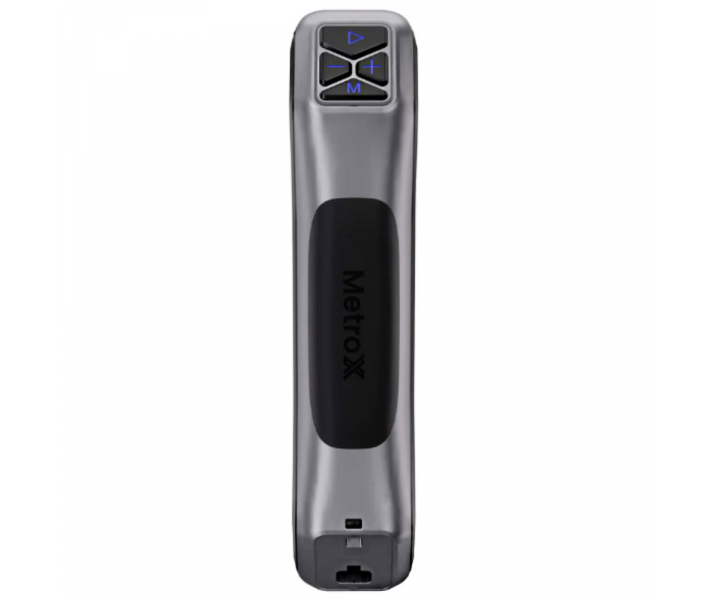

The scanner is equipped with four physical buttons for easy control. The HD RGB camera provides realistic color scanning. Convenient control with 4 buttons. Start/pause scanning, adjust the depth camera exposure and digital zoom during scanning.

Revopoint MetroX 3D Scanner Package

The handheld 3D scanner can be purchased in 2 variations: standard and extended.

The standard version includes:

1. MetroX 3D scanner and wrist strap.
2. Tripod and stand for the scanner.
3. Power adapter (may vary depending on the country or region).
4. Two-axis turntable.
5. Calibration board.
6. Markers (6 mm)×500.
7. USB cable Type-A to Type-C.
8. USB adapter Type-C to Type-A.
9. Carrying case.
10. Sample bust.
11. Quick user guide.
12. Certificate and warranty card.

Extended version contains:

1. Complete set of standard version + set of marker blocks.

Important Safety Tips

• The Class 2M laser projector is safe when used correctly.
• Avoid looking directly at the laser.
• Do not use optical devices to view the laser.
• Remove mirrored surfaces from the work area.
• The scanner has flickering lights that may be dangerous for people with photosensitive epilepsy.
• It is recommended to use a computer with a processor of at least 8 cores, 16 threads and a frequency of 2.4 GHz.

Note
The accuracy of MetroX measurements depends on the operating conditions. All declared characteristics are obtained under laboratory conditions.
